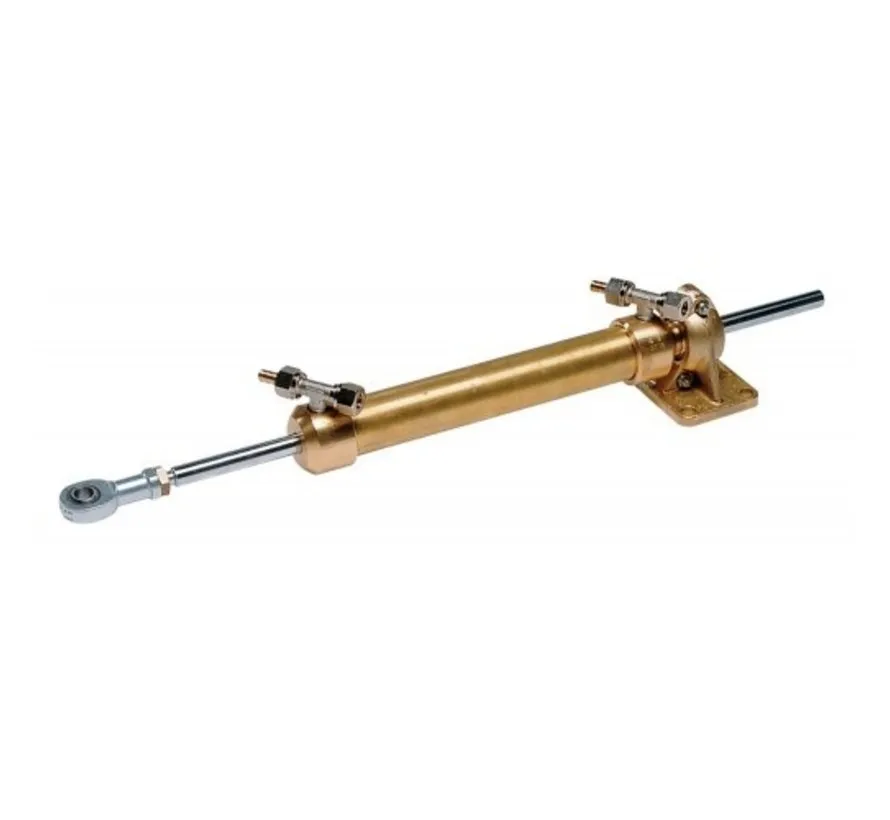

The Vetus MTC7210 is a hydraulic steering cylinder for larger yachts and workboats. This version is intended for systems using 10 mm tubing and features a brass cylinder body. Its combination of long stroke and solid maximum rudder torque makes it suitable for steering installations where strong but well-controlled rudder movement is required. The cylinder is supplied with a zinc-plated rod end and compression fittings with bleed nipples, so it can be integrated directly into a matching hydraulic steering system.
Specifications:
- hydraulic steering cylinder
- suitable for 10 mm tubing
- brass cylinder body
- supplied with zinc-plated rod end
- includes compression fittings with bleed nipples
- stroke: 225 mm
- cylinder volume: 146 cm³
- tiller arm length: 196 mm
- maximum rudder torque: 706 Nm
- weight: 3.8 kg
- connection: G 1/4 female thread
- suitable for larger yachts and workboats
