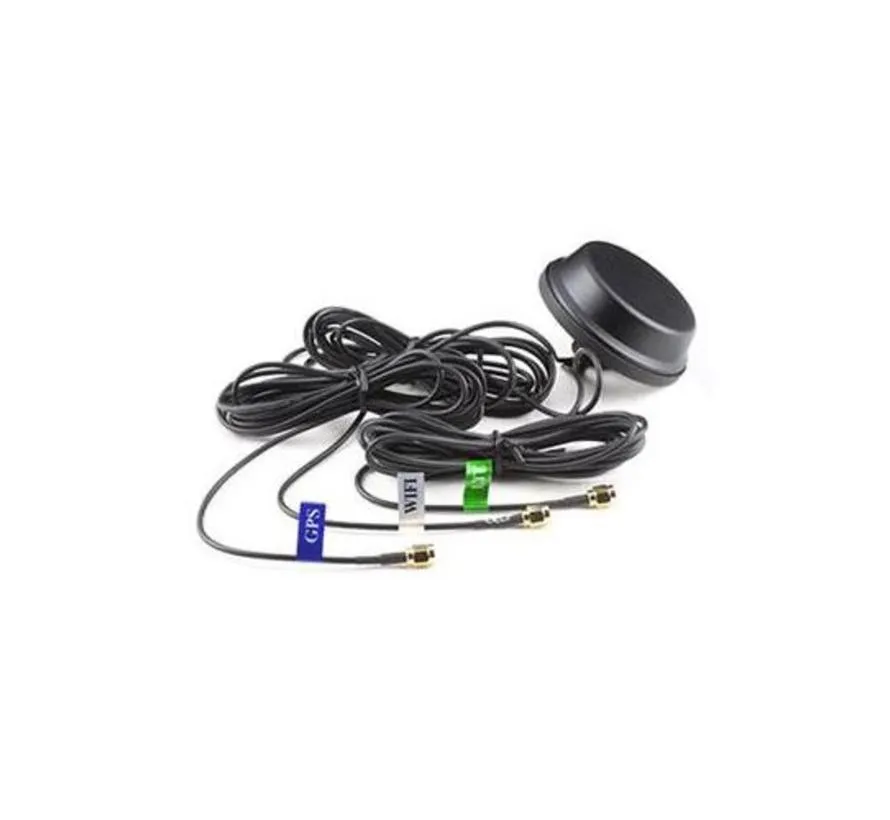

The vandal-resistant Omni Antenna is a compact combination antenna for mobile data, WiFi and GPS applications. Its puck-shaped housing is suitable for fixed mounting on vehicles, equipment enclosures, containers, machinery and other objects where metal or closed constructions can reduce internal signal reception.
The antenna combines three functions in one mounting position: one connection for 4G LTE / UMTS / GSM, one connection for WiFi and one connection for GPS. Each function has its own 3 metre cable with SMA Male connector, allowing a router, WiFi module and GPS receiver to be connected separately.
Key features
- Combination antenna for 4G LTE, WiFi and GPS
- Suitable for GSM, UMTS and LTE mobile connections
- Vandal-resistant puck design for fixed mounting
- One compact external antenna with three separate connection cables
- Cable set: 3 x 3 metres RG174
- Connectors: 3 x SMA Male
- LTE/UMTS/GSM gain: 0-3 dBi, frequency-dependent
- GPS gain: 28 dBi
- WiFi gain: 4 dBi
- Suitable for vehicles, containers, enclosures, machinery and outdoor installations
- Also known as a vandal-proof or tamper-resistant puck antenna
Product specifications
- Product name: Vandal-resistant Omni Antenna
- Article code: ANT700042
- Vendor article number: 20-0010COPLPWS3
- Product type: puck combination antenna
- Functions: 4G LTE / UMTS / GSM, WiFi and GPS
- Antenna design: omnidirectional for mobile data and WiFi
- GSM/WiFi polarisation: vertical omnidirectional
- Cable type: RG174
- Cable length: 3 x 3 m
- Mobile data connection: SMA Male
- GPS connection: SMA Male
- WiFi connection: SMA Male
- LTE/UMTS/GSM gain: 0-3 dBi, frequency-dependent
- GPS gain: 28 dBi
- WiFi gain: 4 dBi
- GPS current consumption: 6.6-16.6 mA max.
- GPS VSWR: <2 @ 1575 MHz
- GPS power supply: 2.3-5.5 VDC
- Mounting type: fixed through-hole mounting
- Required drilling diameter: 17 mm
- Antenna diameter: 78.8 mm
- Antenna housing height: 21.3 mm
- Total height: 44.5 mm
- Temperature range: -40 °C to +85 °C
- Application: routers, WiFi modules, GPS receivers, vehicles, machinery, containers, technical enclosures and public installations
- Variants: this item is the combination version with 1x cellular, 1x WiFi and 1x GPS, each with 3 metre cable and SMA Male connector
