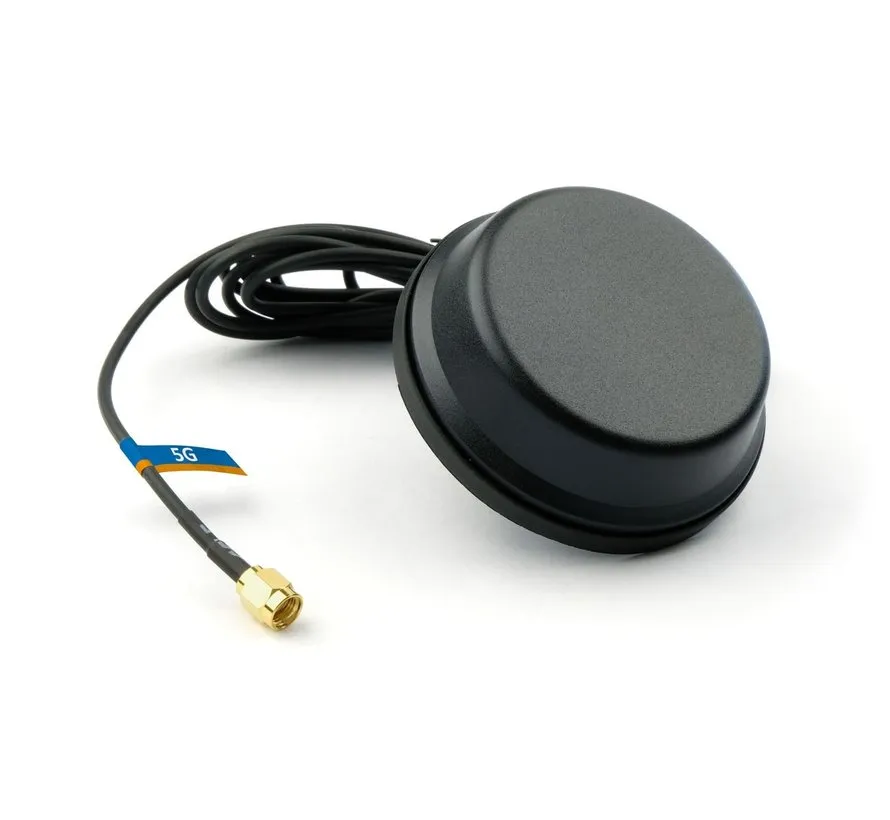

This 5G puck antenna is a compact antenna for fixed installation in mobile, industrial and technical systems. Its low-profile housing and vandal-resistant design make it suitable for vehicles, equipment cabinets, public installations and outdoor locations requiring a robust external antenna.
The antenna supports mobile data connections via 2G, 3G, 4G/LTE and 5G. Its 3 metre cable with straight SMA Male connector enables connection to suitable routers, modems and communication equipment.
Key features
- Vandal-resistant puck antenna for fixed installation
- Suitable for 2G / 3G / 4G-LTE / 5G
- Straight SMA Male connector
- Cable length: 3 metres
- Compact low-profile design
- Antenna gain: 0-4 dBi, frequency-dependent
- Impedance: 50 Ω
- Maximum input power: 20 W
- Through-hole mounting with 17 mm mounting hole
- Suitable for vehicle, router, enclosure and outdoor installations
Product specifications
- Article code: ANT800004MW
- Product type: puck antenna for mobile data communication
- Version: vandal-resistant / low profile
- Supported networks: 2G, 3G, 4G/LTE and 5G
- Frequency bands: 700-960 / 1400 / 1700-2700 / 3300-3800 MHz
- Antenna gain: 0-4 dBi, frequency-dependent
- Connector: straight SMA Male
- Cable length: 3 m
- Impedance: 50 Ω
- Maximum input power: 20 W
- VSWR: < 3.0 typical
- Mounting type: fixed through-hole mounting
- Required drilling diameter: 17 mm
- Antenna diameter: 78.8 mm
- Antenna height: 21.3 mm
- Total height: 34.5 mm
- Operating temperature: -40 °C to +85 °C
- Application: routers, modems, vehicles, equipment cabinets, mobile communication and technical outdoor installations
