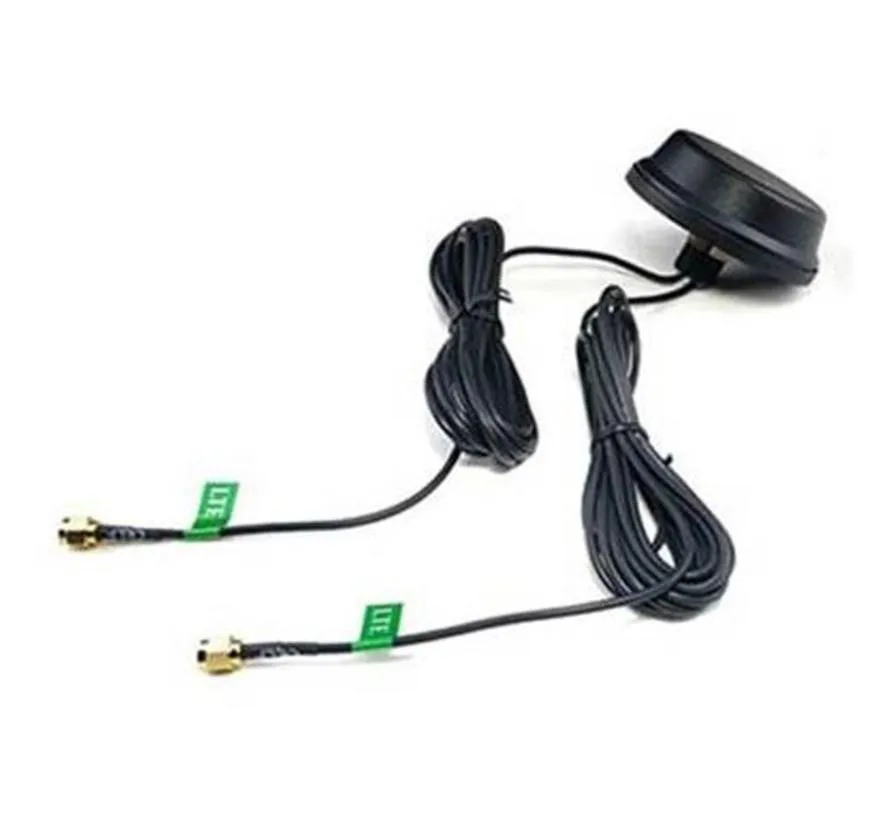

Vandal-proof 4G LTE MiMo puck antenna with 2 x 3 m cable.
LTE MiMo antenna: for fast and good reception
This housing contains 2 antennas that you can connect directly to your router to use MiMo (Multiple-in-Multiple-Out) technology and enjoy the highest speeds and best reception.
Robust and vandal-proof 4G LTE MiMo antenna
The vandal-proof 4G LTE MiMo antenna has a 17 mm thread at the bottom through which the cable runs. This ensures an extremely robust 1-hole mounting.
Specifications Vandal-proof 4G LTE MiMo antenna:
Cable (length): 2x 3m. RG174 (SMA-M)
Gain: 0-3 dBi (frequency dependent)
Max Power: 20 Watt
VSWR: < 3.0 Typical
Impedance: 50 Ω
Mounting: Fixed mounting, drill hole 17 mm
Dimensions: diameter 78.8 mm, height 21.3 mm, total height 34.5 mm
Temperature range: -40ºC to 85ºC
800 MHz LTE Low, 868 MHz Div., 900 MHz GSM/GPRS, 1800 MHz GSM/GPRS, 2100 MHz UMTS
