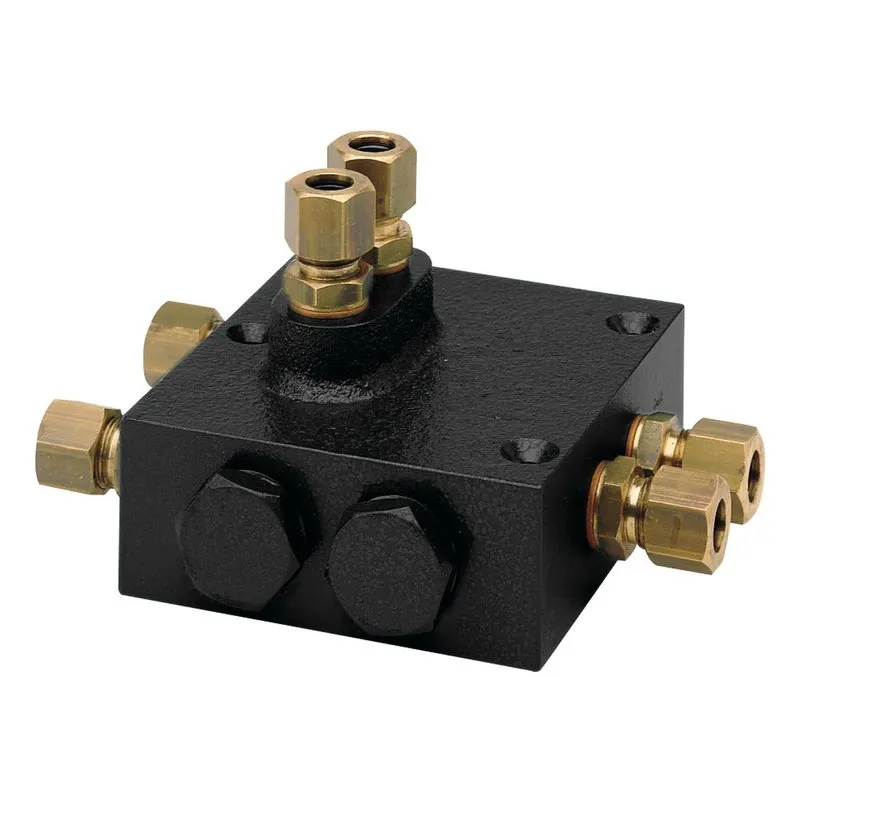

The Vetus K30/140B is a dual non-return valve block for hydraulic steering systems. It is used when a second steering station is required and the installed helm pumps do not have built-in non-return valves. The same applies when fitting an electro-hydraulic pump for an autopilot if the pumps in the system do not include internal check valves. This version is supplied without fittings, allowing the correct installation kit to be selected separately for the cylinder and tubing size in use. The block is suitable for MTC cylinders from MTC3008 up to MTC17510.
Specifications:
- dual non-return valve block
- without fittings
- application: hydraulic steering
- intended for dual station steering
- also suitable for autopilot installations
- compatible with cylinders from MTC3008 to MTC17510
- 6 ports
- thread type: 1/4 inch BSP female
- installation kit ordered separately
- product dimensions: 90 x 129 x 143 mm
- weight: approx. 2.38 kg
- product code: K30/140B
