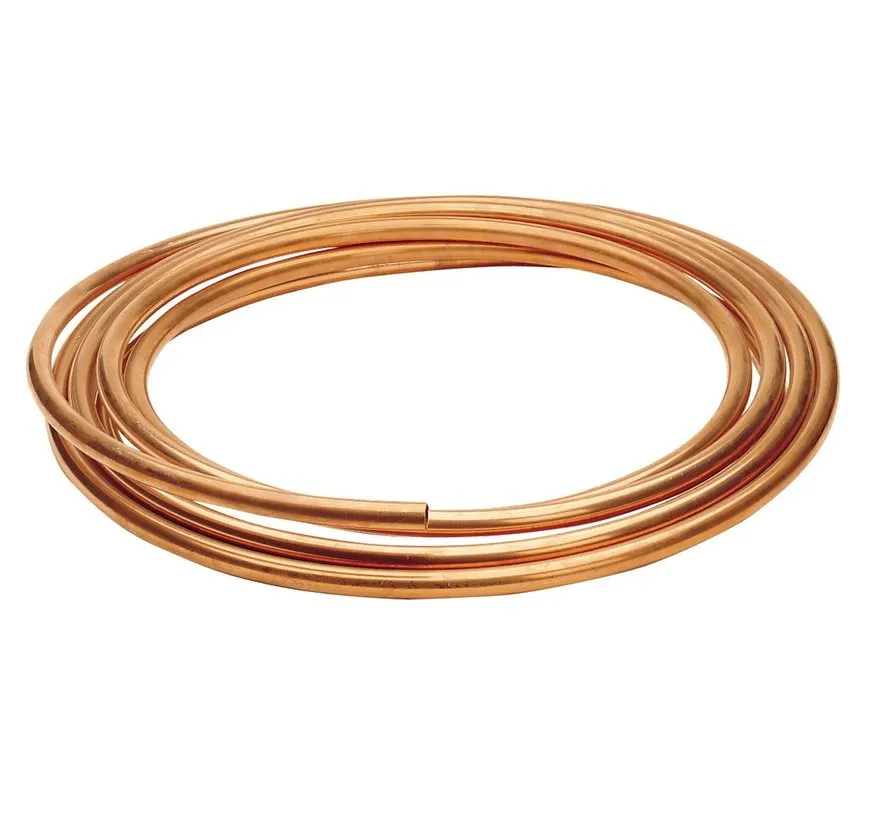

The Vetus COPPER range consists of copper tubing for hydraulic steering systems where a fixed metal line is preferred. These versions are intended for installations where the steering pump, cylinder and other components need to be connected with a durable pipe solution. In this selection, two sizes are available so the tubing can be matched to the steering system layout. Both variants are suitable for Vetus hydraulic steering systems and are supplied in coils.
Specifications:
- copper tubing for hydraulic steering systems
- available in 2 variants
- COPPER10: 8 x 10 mm, 20 metre coil
- internal diameter COPPER10: 8 mm
- external diameter COPPER10: 10 mm
- COPPER18: 15 x 18 mm, 10 metre coil
- internal diameter COPPER18: 15 mm
- external diameter COPPER18: 18 mm
- suitable for Vetus hydraulic steering systems
