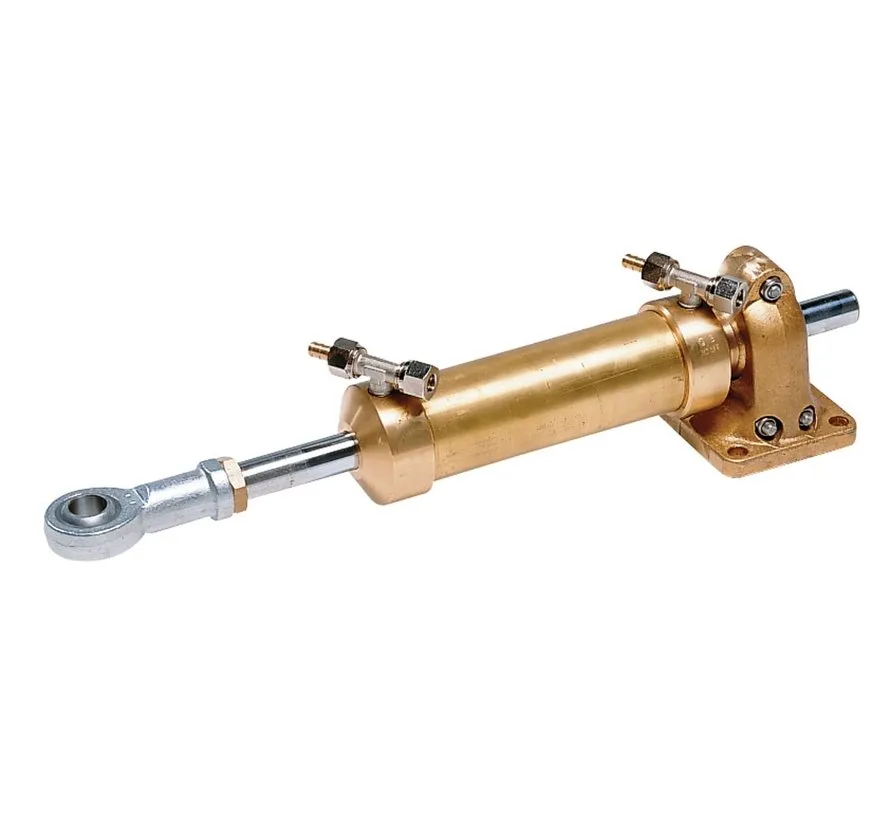

The Vetus MTC17510 is a hydraulic steering cylinder for larger yachts and workboats. This version is intended for systems using 10 mm tubing and features a brass cylinder body. Its combination of generous cylinder volume and high maximum torque makes it suitable for steering installations where strong and controlled rudder movement is required. The cylinder is supplied with a zinc-plated rod end, compression fittings and bleed nipples, so it can be integrated directly into a matching hydraulic steering system.
Specifications:
- hydraulic steering cylinder
- suitable for 10 mm tubing
- brass cylinder body
- supplied with zinc-plated rod end
- includes compression fittings with bleed nipples
- stroke: 225 mm
- cylinder volume: 356 cm³
- tiller arm length: 196 mm
- maximum torque: 1717 Nm
- weight: 8 kg
- connection: G 1/4 female thread
- suitable for larger yachts and workboats
