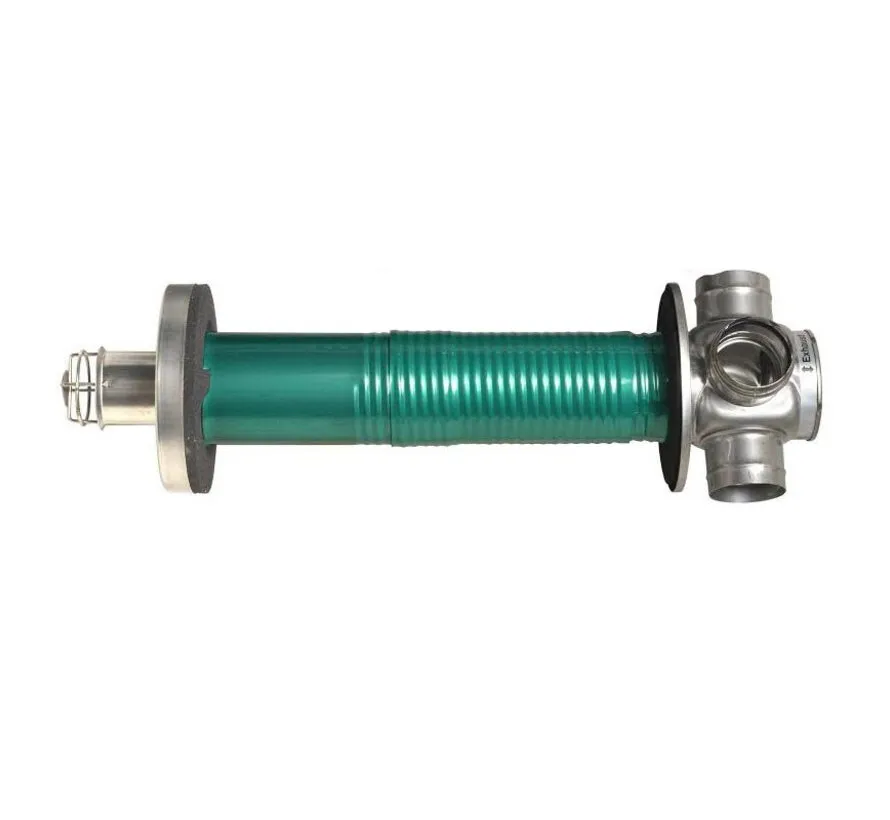

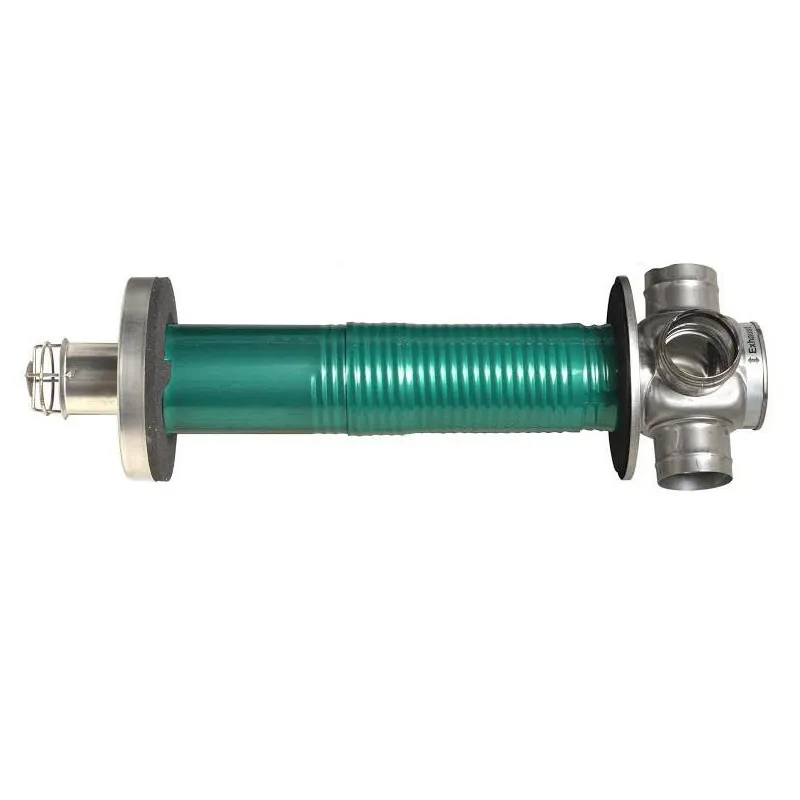

The Toyotomi standard flue pipe 17224296 is an original installation component for various Toyotomi FF heaters. It is installed horizontally through an outside wall and combines exhaust gas discharge with combustion air intake.
Specifications:
- Brand: Toyotomi
- Product type: standard flue pipe
- Part number: 17224296
- EAN: 4963505242961
- Application: Toyotomi FF heaters
- Installation: horizontal wall penetration
- Suitable wall thickness: 130-320 mm
- Function: exhaust gas outlet and combustion air intake
- Installation location: exterior wall
- Vertical installation: not suitable
- Genuine Toyotomi component
Compatibility:
Part 17224296 is listed for use with various Toyotomi FF models including:
- Toyotomi FF-V30
- Toyotomi FF-V30T
- Toyotomi FF-55
- Toyotomi FF-55T
- Toyotomi FF-95
Additional hoses, joints or extension pipe kits may be required depending on the exact heater and installation.
Installation notes:
- Install through an exterior wall
- Maintain a slight downward slope towards the outside
- Not designed for vertical flue installation
- Check wall thickness before installation
- Use with compatible Toyotomi installation components only
