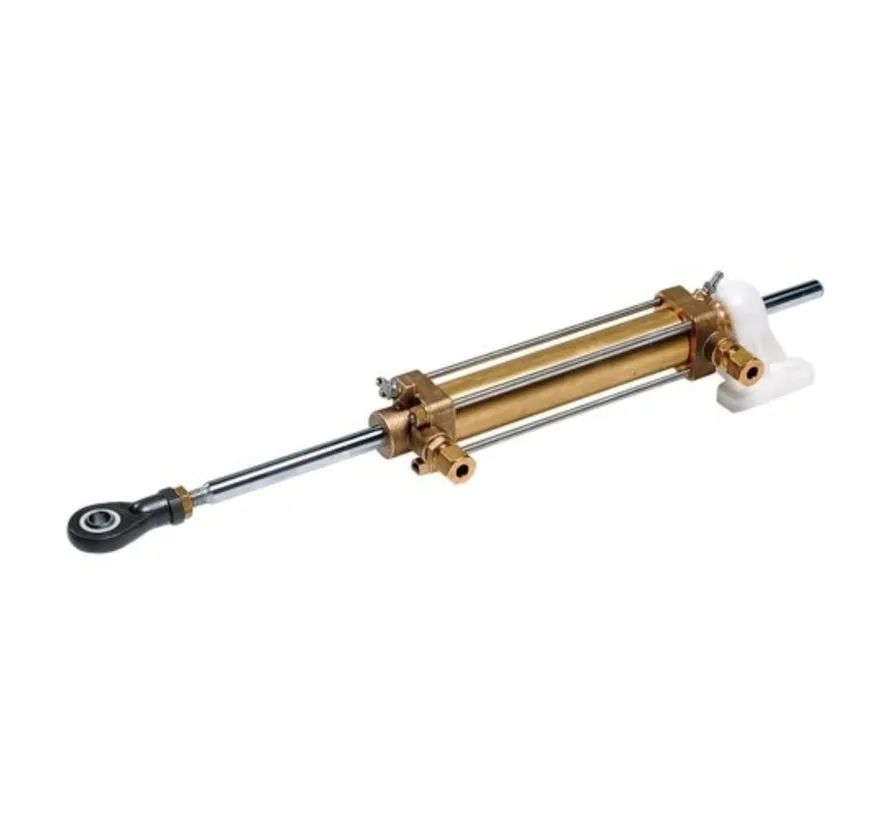

The Vetus MTC3008 is a hydraulic steering cylinder for larger yachts and workboats. This version is intended for systems using 8 mm tubing and features a brass cylinder body. Its combination of compact cylinder volume and solid maximum rudder torque makes it suitable for steering installations where controlled and dependable rudder movement is required. The cylinder is supplied with a zinc-plated rod end and compression fittings with bleed nipples, so it can be integrated directly into a matching hydraulic steering system.
Specifications:
- hydraulic steering cylinder
- suitable for 8 mm tubing
- brass cylinder body
- supplied with zinc-plated rod end
- includes compression fittings with bleed nipples

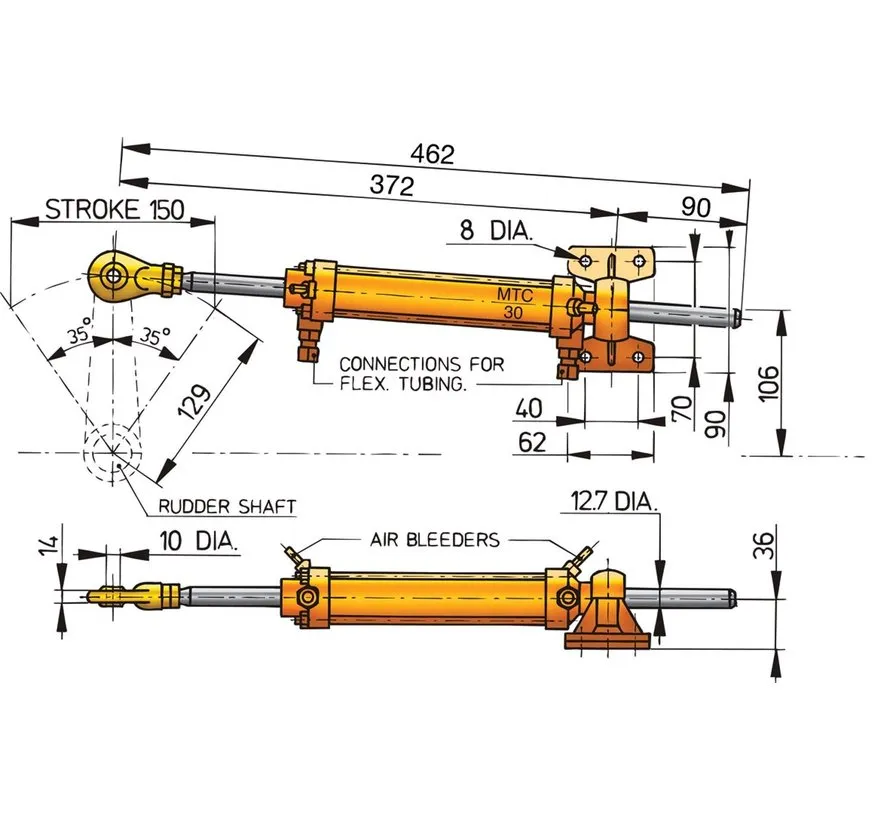

- stroke: 150 mm
- cylinder volume: 67 cm³
- tiller arm length: 129 mm
- maximum rudder torque: 510 Nm
- suitable for larger yachts and workboats
- product code: MTC3008
- for HS04N 6 x 8 mm hose, HS10131 or HS1011S are referenced as sleeve parts.
Vetus hydraulische cilinder voor 8 mm leiding (kunststof), MTC3008.
