The Peplink MAX BR1 Mini 5G is a compact industrial mobile router designed for applications requiring reliable 5G connectivity without the size and complexity of a larger enterprise router.
This version is the HW2 model with integrated WiFi 5. It supports global 5G Standalone and Non-Standalone Sub-6 GHz operation, with 4G LTE Cat 20 fallback.
Two physical Nano-SIM slots are provided. The router also supports Peplink eSIM, up to two BYO eSIM profiles, RemoteSIM through a SIM Injector and FusionSIM.
Integrated dual-band WiFi 5 operates simultaneously on 2.4 and 5 GHz using 2x2 MIMO.
With an active PrimeCare subscription or optional feature-pack licence, additional functions including Ethernet WAN, WiFi WAN, Hot Failover, WAN Smoothing and Bandwidth Bonding can be enabled.
The wide 10-30V DC input, ignition sensing and -40°C to +65°C operating temperature range make it suitable for vehicles, industrial M2M, IoT and remote installations.
Key features
- Global 5G router
- 5G SA and NSA Sub-6 GHz
- 4G LTE Cat 20 fallback
- Theoretical 5G download up to 3.4 Gbps
- Theoretical 5G upload up to 900 Mbps
- Dual Nano-SIM
- Peplink eSIM
- BYO eSIM
- RemoteSIM support
- FusionSIM support
- Dual-band WiFi 5
- 2x2 MIMO

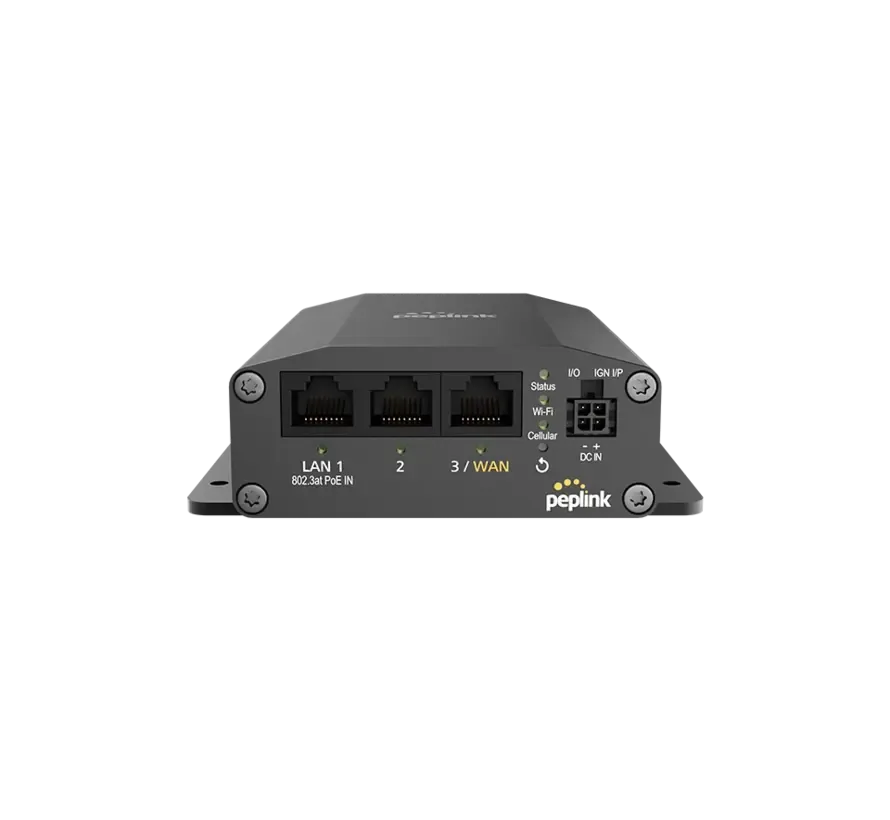

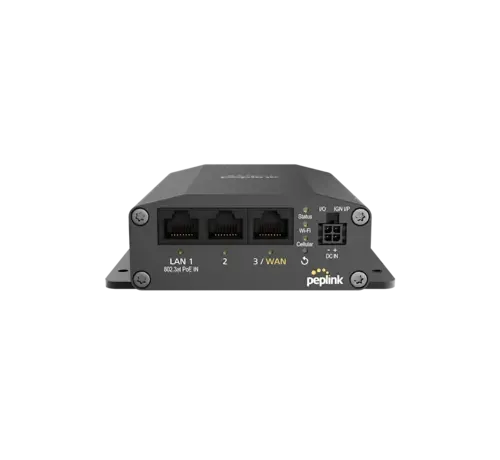

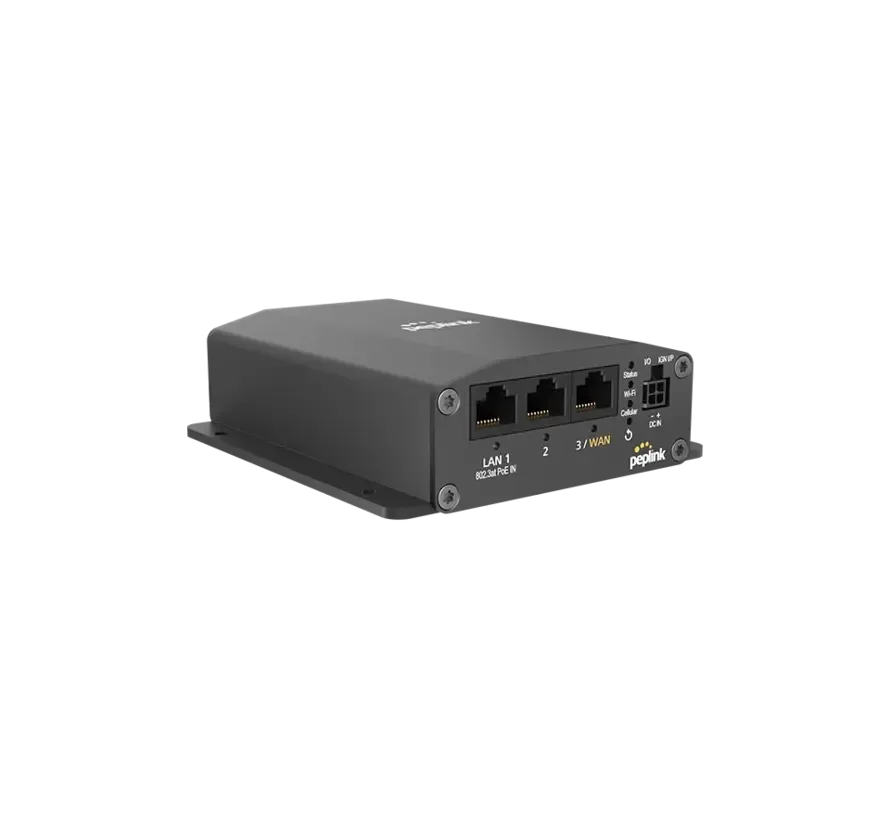

- 2x Gigabit Ethernet LAN
- 1x Gigabit Ethernet WAN/LAN
- 802.3at PoE input
- SpeedFusion VPN
- InControl 2 cloud management
- Ignition sensing
- Compact industrial construction
- No integrated GPS
Cellular bands
5G NR SA/NSA Sub-6 GHz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Product specifications
- Product type: industrial 5G/LTE mobile router
- Region: Global
- Cellular modem: 1x integrated 5G modem
- 5G technology: SA and NSA Sub-6 GHz
- LTE technology: Cat 20
- Maximum theoretical 5G rate: 3.4 Gbps down / 900 Mbps up
- Maximum theoretical LTE rate: 1.6 Gbps down / 200 Mbps up
- SIM: 2x Nano-SIM
- eSIM: Peplink eSIM and up to 2 BYO eSIM profiles
- RemoteSIM: supported
- FusionSIM: supported
- Ethernet LAN: 2x Gigabit
- Ethernet WAN/LAN: 1x Gigabit, WAN function licence dependent
- WiFi: WiFi 5 / IEEE 802.11ac
- WiFi bands: simultaneous 2.4 and 5 GHz
- WiFi technology: 2x2 MIMO
- WiFi WAN: available with PrimeCare or feature pack

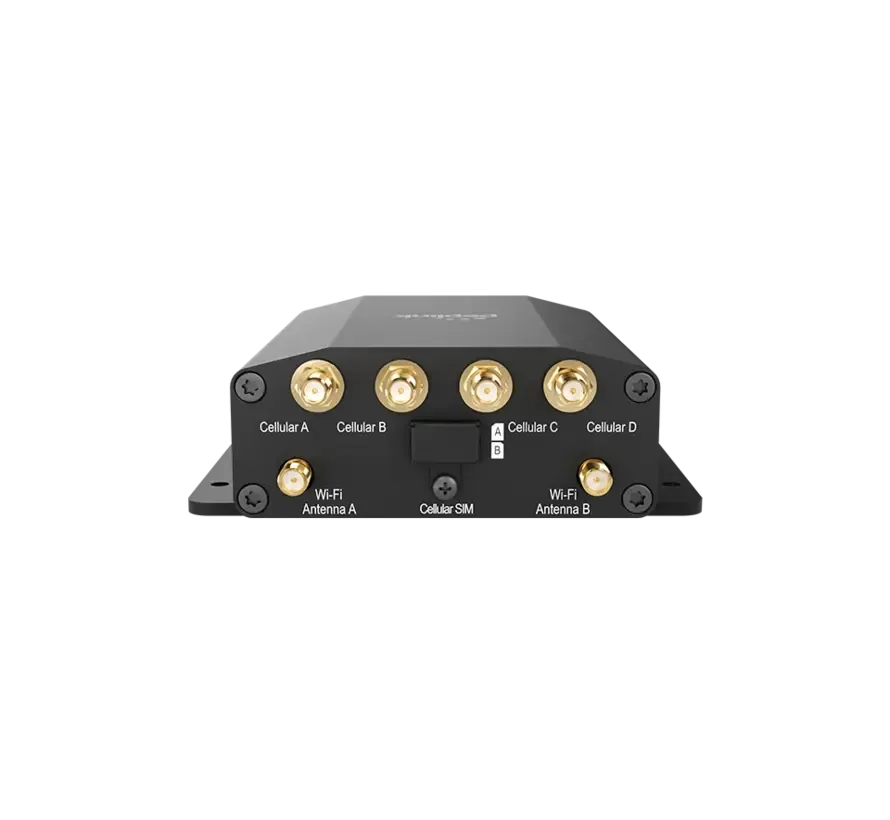

- WiFi antenna connectors: 2x RP-SMA

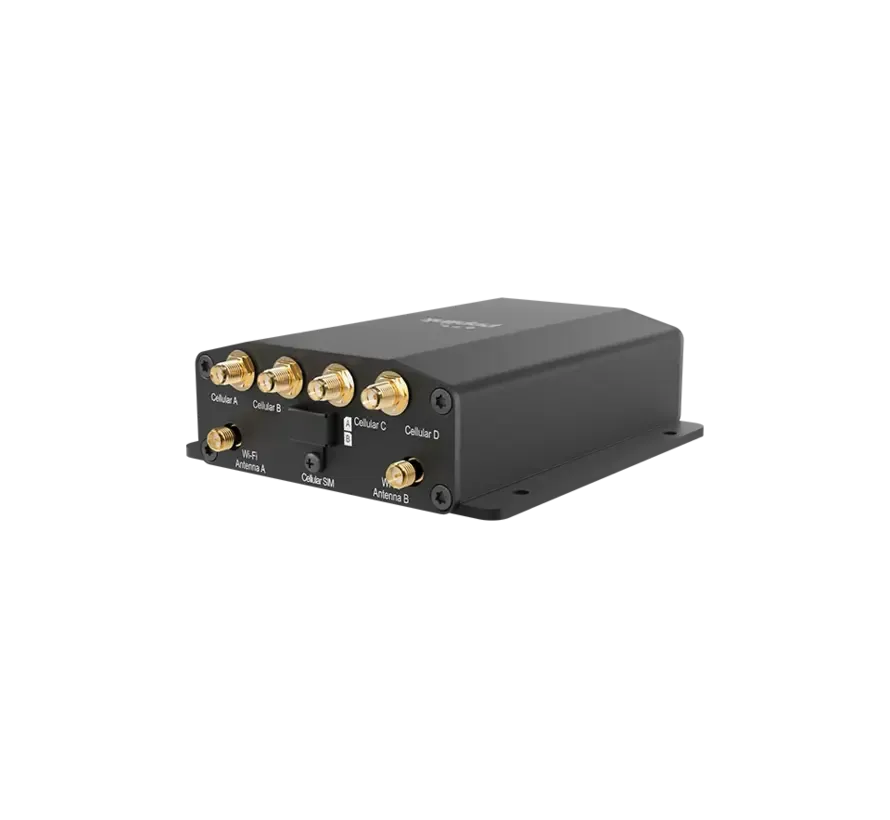

- Cellular antenna connectors: 4x SMA
- GPS: no
- Router throughput: approx. 300 Mbps
- SpeedFusion without encryption: approx. 80 Mbps
- SpeedFusion with 256-bit AES: approx. 60 Mbps
- SpeedFusion peers: 2 standard / up to 5 with additional feature
- Hot Failover: with PrimeCare or feature pack
- WAN Smoothing: with PrimeCare or feature pack
- Bandwidth Bonding: with PrimeCare or feature pack
- Recommended users: 1-60
- Multiple SSIDs: up to 16
- Cloud management: InControl 2
- Power input: 10-30V DC
- PoE input: IEEE 802.3at
- Supplied AC adapter: 100-240V AC to 12V DC / 2A
- Nominal power consumption: approx. 13 W
- Maximum power consumption: approx. 18 W
- Ignition sensing: yes
- Dimensions: approx. 125.7 x 107 x 35 mm
- Weight: approx. 425 g
- Operating temperature: -40°C to +65°C
- Humidity: 15-95%, non-condensing
- Certifications: CE, FCC and RoHS
- Additional standards: EN 61000 and EN 45545-2
- Country of origin: Taiwan
- Warranty: 1-year limited manufacturer warranty
- Application: vehicles, M2M, IoT, industrial networks, remote sites and mobile workplaces
- Included: router, 4x LTE/5G antennas, 2x dual-band WiFi antennas and 12V/2A 4-pin power supply
- Not included: SIM card, mobile data subscription, external 5G antenna, GPS antenna or optional feature-pack licence
- Compatibility advice: check carrier, frequency bands, SIM/eSIM configuration and required PrimeCare/feature-pack functions before ordering
