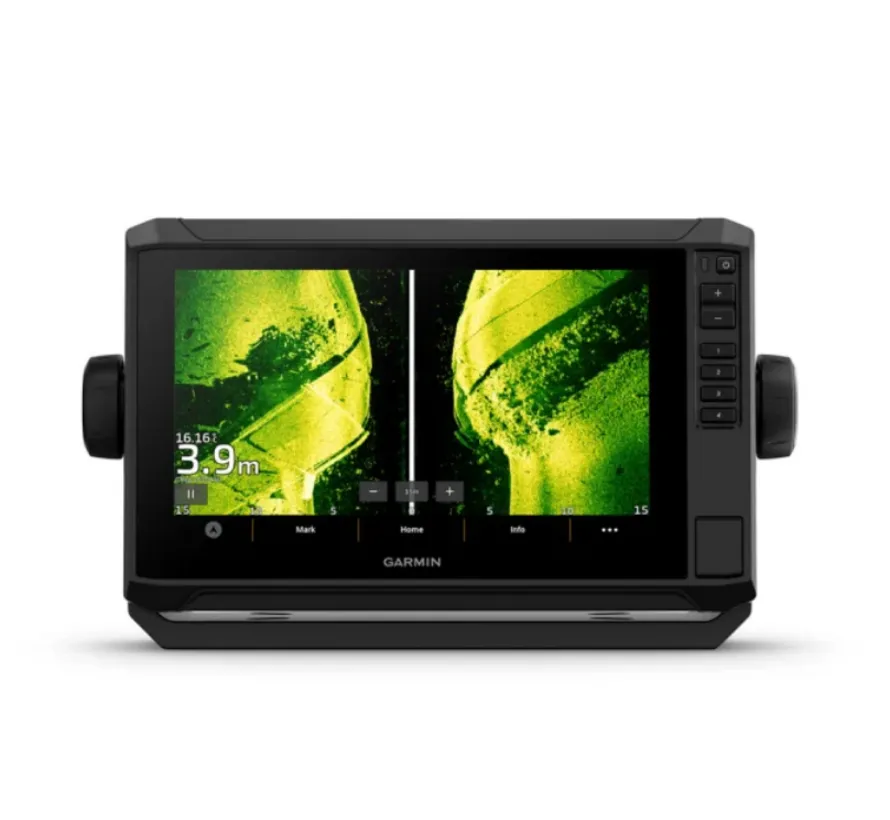

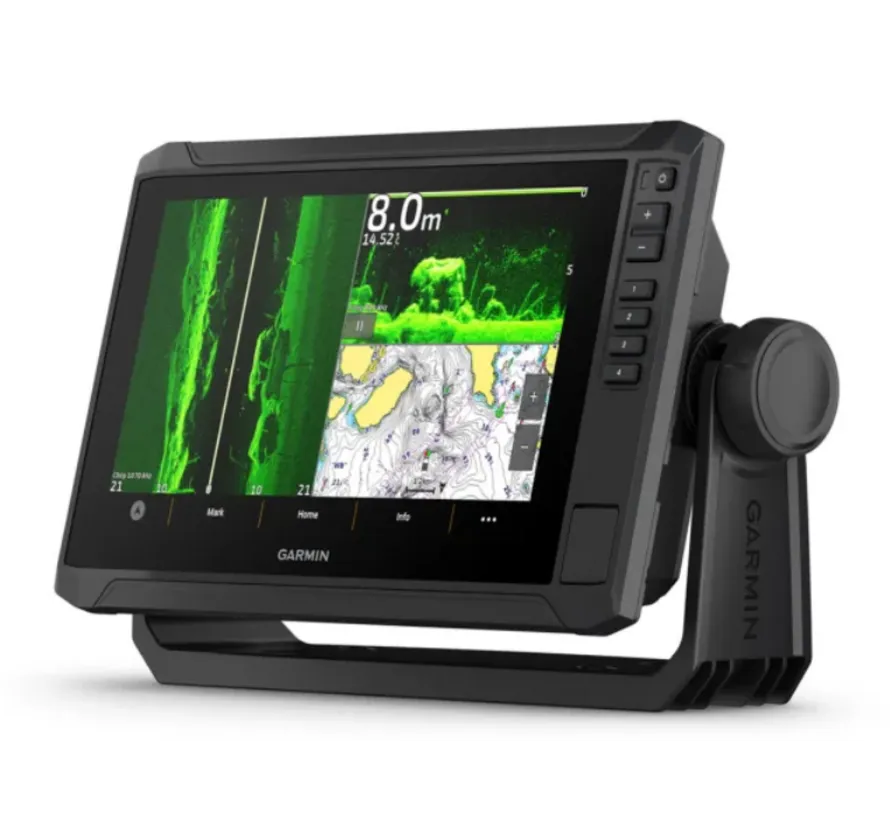

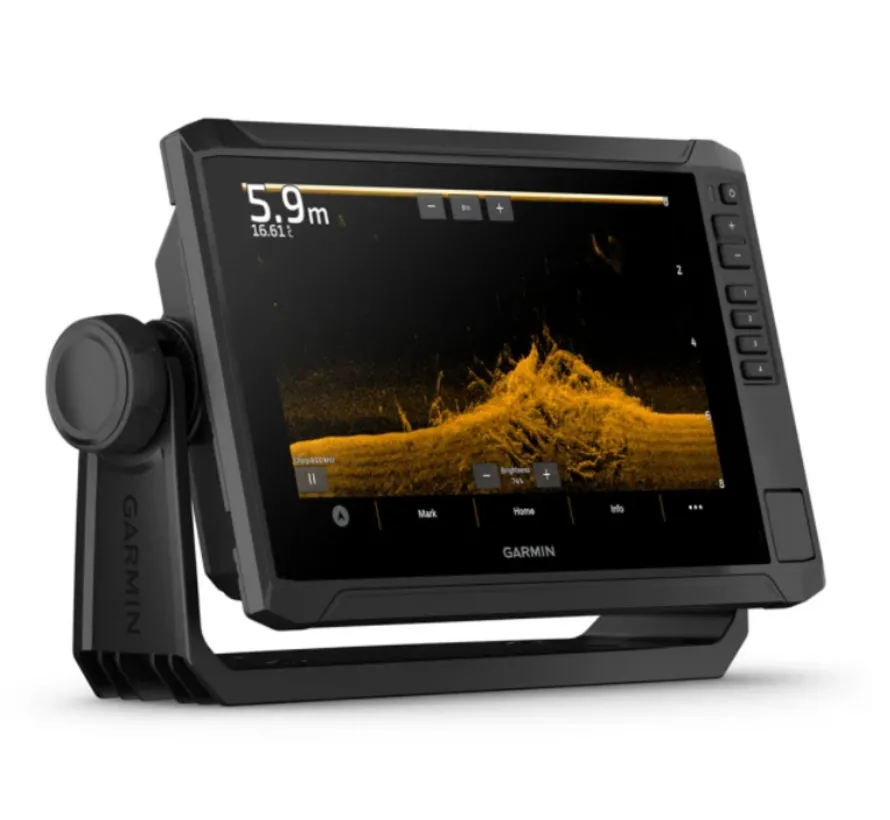

The Garmin ECHOMAP UHD2 62sv is a compact chartplotter and fishfinder featuring a bright 6.2-inch touchscreen with additional physical control keys.
This product page combines two variants:
• 010-02679-00 – without transducer
• 010-02679-01 – including Garmin GT54UHD-TM transducer
The chartplotter specifications are identical for both versions. Only the transducer package differs.
The ECHOMAP UHD2 62sv supports Garmin traditional CHIRP, Ultra High-Definition ClearVü and Ultra High-Definition SideVü sonar.
Key features
• 6.2-inch colour display
• Touchscreen with physical keys
• 800 × 480 pixel resolution
• Built-in GNSS receiver
• GPS, GLONASS, Galileo and BeiDou
• Multi-band GPS
• Traditional CHIRP sonar
• UHD ClearVü
• UHD SideVü
• LiveScope compatible
• NMEA 2000
• WiFi
• Garmin ActiveCaptain
• Garmin Quickdraw Contours
• Garmin Navionics+ support
• microSD card slot
• IPX7 water rating
• Bail or flush mounting
Product specifications
• Brand: Garmin
• Series: ECHOMAP UHD2
• Model: 62sv
• Product type: chartplotter / fishfinder
• Display: 6.2 inches
• Resolution: 800 × 480 pixels
• Touchscreen: yes
• Physical keys: yes
• Dimensions: approximately 206 × 131 × 67 mm
• Weight: approximately 0.8 kg
• Water rating: IPX7
• GNSS: GPS, GLONASS, Galileo and BeiDou
• GPS update rate: 10 Hz
• Multi-band GPS: yes
• NMEA 2000: yes
• NMEA 0183: no
• WiFi: yes
• ActiveCaptain: yes
• microSD slots: 1
• Maximum card capacity: 32 GB
• Waypoints: 5,000
• Track points: 50,000
• Saved tracks: 50
• Routes: 100
• Sonar output: up to 500 W
• Transducer connector: 12-pin
• Traditional CHIRP: yes
• ClearVü: yes
• SideVü: yes
• LiveScope support: yes
• Input voltage: 9-18 V DC
Variants
• 010-02679-00 – without transducer – EAN 0753759307783
• 010-02679-01 – with GT54UHD-TM – EAN 0753759307790
GT54UHD-TM specifications
• High Wide CHIRP: 150-240 kHz
• UHD ClearVü: 800 kHz
• UHD SideVü: 1200 kHz
• 455 kHz SideVü: yes
• Output power: 350 W
• Cable length: approximately 6 m
• Connector: 12-pin
• Depth: yes
• Water temperature: yes
• Mounting: transom or trolling motor
