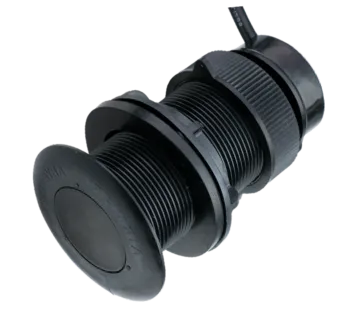

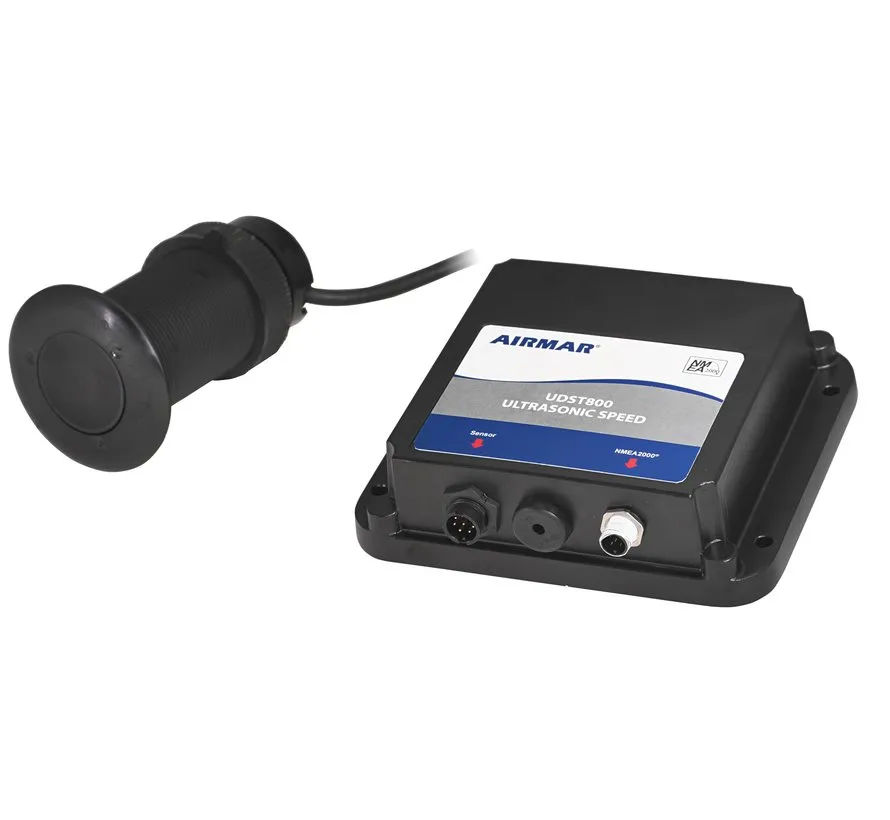

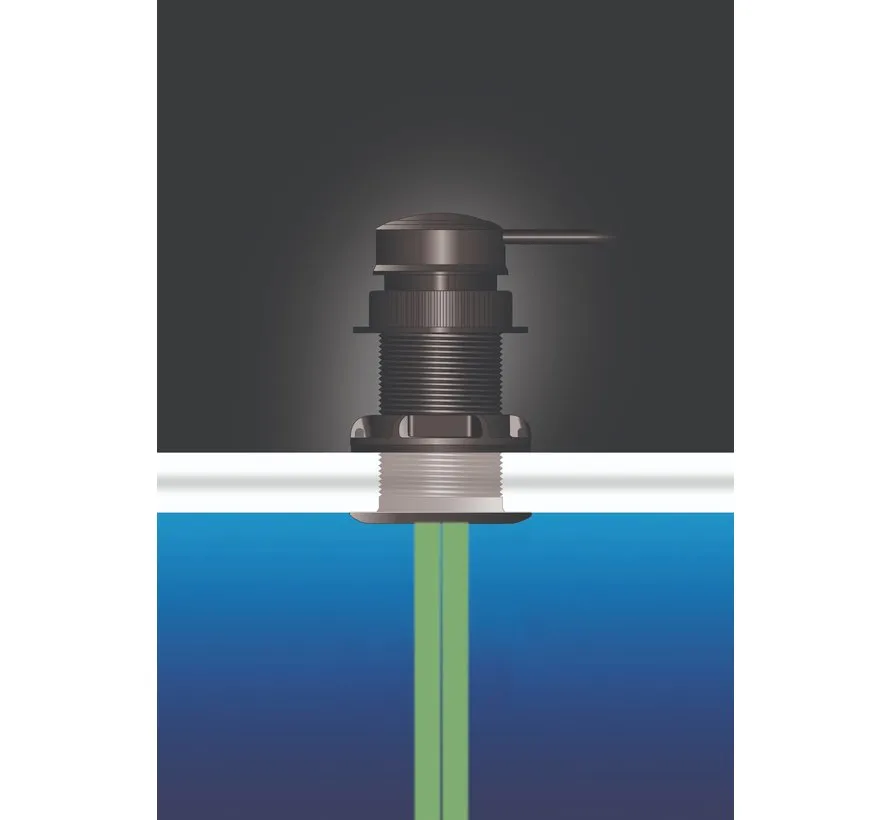

Airmar UDST800 Ultrasonic Smart Sensor - Includes UDST800 insert processing box, P617V housing kit and the 6 meter NMEA2000 cable. Ultrasonic speed, depth and temperature in one housing with no moving parts make this sensor a highly accurate, low-maintenance solution for use on motor and sailboats of all shapes and sizes. Data update rate: up to 10 times per second. Automatically adjusts to boat speed, water depth and water clarity, keeping speed accuracy consistent. 235 kHz frequency prevents interference with other echosounders on the vessel.
Specifications Airmar UDST800 Ultrasonic Smart Sensor:
Transmission frequency correlation velocity sensor: 4.5 MHz
Correlation pulse repetition frequency: 0.5 kHz to 12 kHz (varies with speed)
Speed range: 0.1 to 50 knots (0.1 MPH to 57 MPH)
Available outputs: NMEA 2000®
Water temperature range: -4 °C to 40 °C (32 ° F to 104 ° F)
Depth: 235 kHz
Depth range: minimum 0.6 m (2'), maximum 100 m (328')
Supply voltage - NMEA 2000®: 9 VDC to 16 VDC
Supply current: 80 mA - 200 mA, average 125 mA at 12VDC
Through-the-hull housing material: plastic (bronze or stainless steel optional)

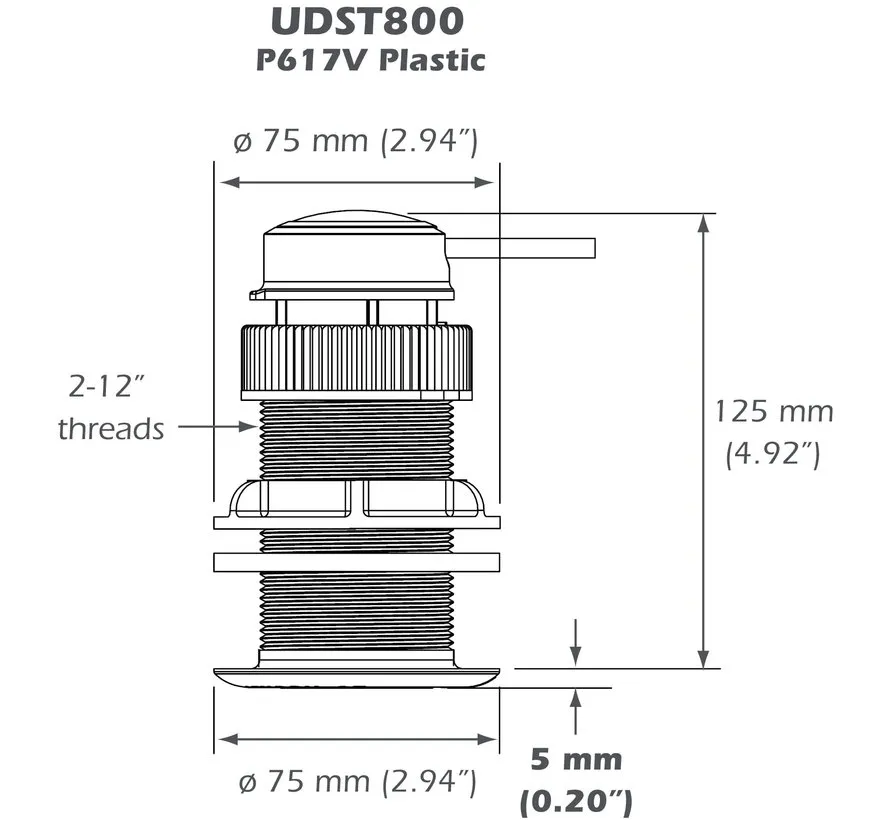

Diameter housing through-hull: 51 mm (2")
CE compliant: Yes

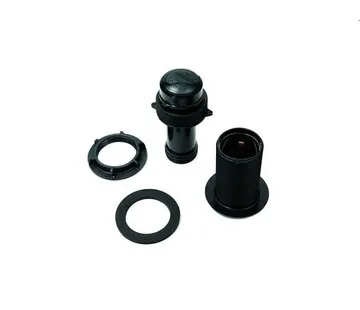

Fits into the AIRMAR P617V housing
Manual Airmar UDST800 Ultrasonic Smart Sensor.
