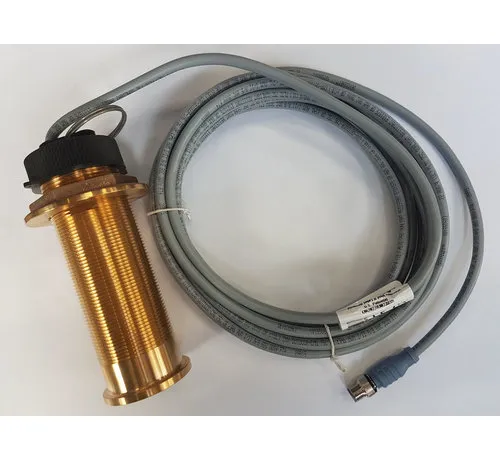

Airmar IDST800L 235F B-122-RETR 6M
Airmar's DST800 Smart sensor with built-in depth, speed and temperature. The signals are
incorporated into the sensor and can be displayed on any display that accepts NMEA 0183 or NMEA 2000. The 235 kHz frequency prevents mutual interference with other echosounders on the vessel.
to use with Simrad/B&G
Weight 3.9kg (8.7lb)
Acoustic Window Urethane
Hull Deadrise Up to 28° with fairing
Hole Diameter 51mm (2")
Data Update Rate 1 per second
Minimum Depth Range 0.5m (1.6')
Maximum Depth Range Up to 180 m (590')—Broadband
Pressure Rating 3m (10')
Pulse Rate 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage 9 VDC to 16 VDC
Supply Current <200 mA
Standard Cable Length
10 m (33')—NMEA 0183 cable 6 m (20')—NMEA2000® cable
Temperature Sensor Accuracy ±0.5°C (±1.8°F)
Temperature Sensor Range -10°C to 40°C (14°F to 104°F)
NMEA2000® Load Equivalency Number (LEN) 4
CE Regulation Complies to IERC60945
