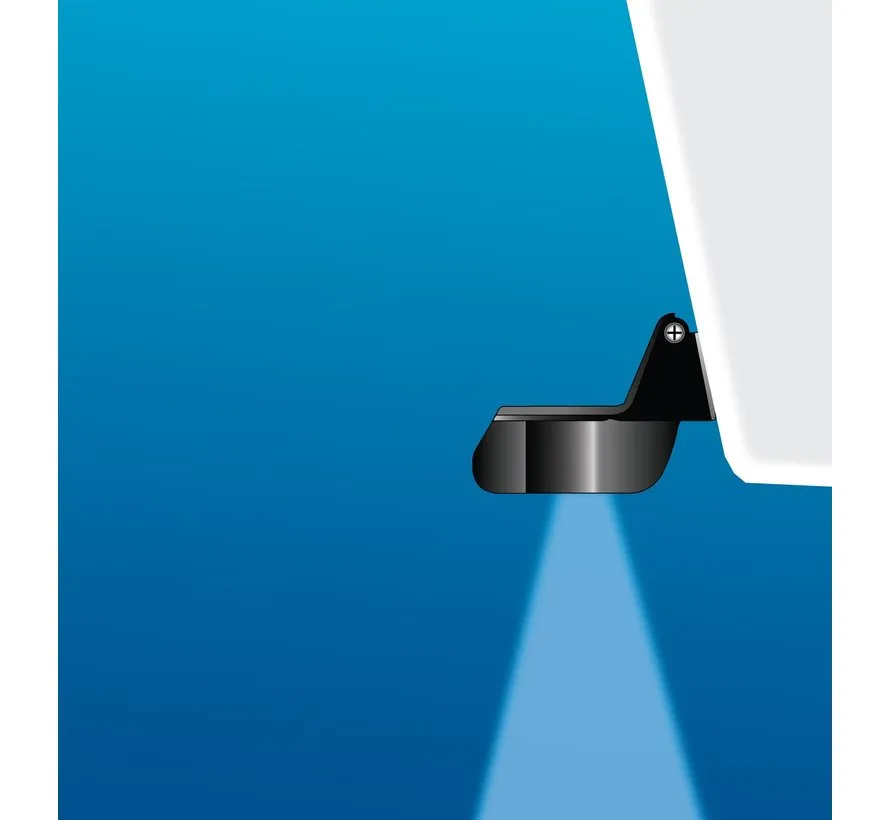

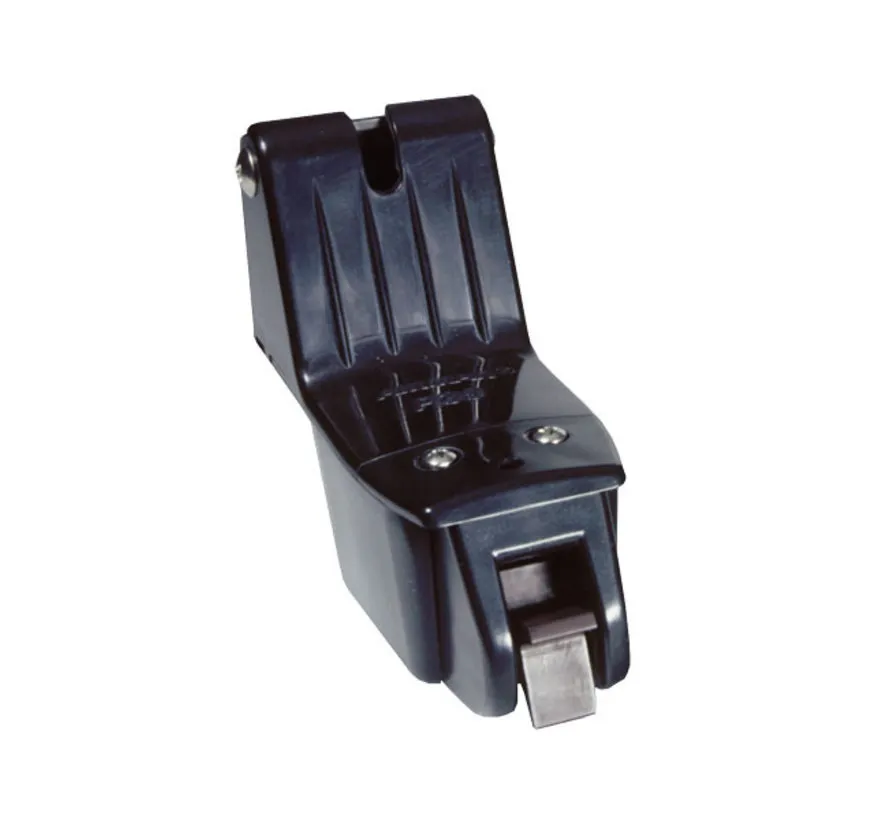

Airmar P39 Smart Multisensor with depth, speed and temperature. This P39 can be connected directly to your NMEA2000 network. This hydrodynamic housing has a rounded nose that reduces turbulence under the acoustic surface of the transducer for accurate depth measurements at high speed.
Airmar's Smart sensors have built-in microelectronics: the transducer element and the signal processor are only millimeters apart. The signal from the depth transducer is processed directly in the sensor itself. All that is required to receive depth, velocity and temperature data is a single cable to a compatible network or display.
The transducer kit comes with installation instructions. Please follow the instructions carefully to avoid damage to your boat.
Specifications Airmar P39 Smart Multisensor:
235kHz
Weight: 0.5 kg

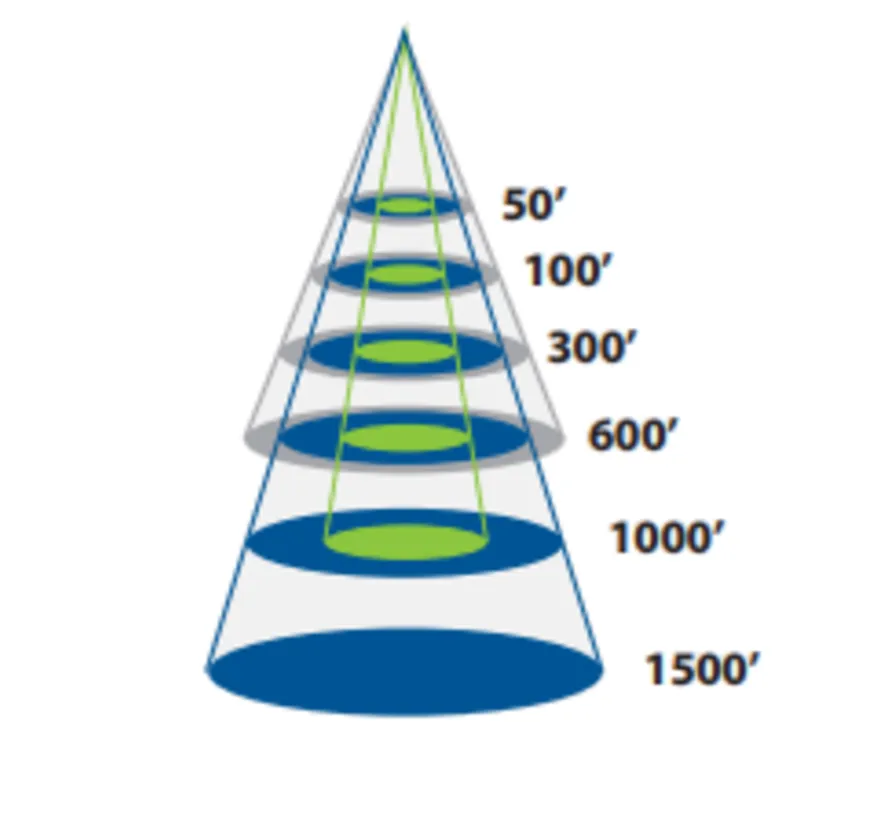

Beam: 11°
Mirror angle: 3° to 20°
Acoustic window: laminated plastic urethane (LPU)
Data update rate: 1 per second
Minimum depth: 0.5 m (1.6')
Maximum depth range: up to 150 m (500')
Pressure rating: 3 m (10')
NMEA 2000-9 to 16 VDC
NMEA 2000 - <200 mA
2 meter standard cable length: NMEA2000
Temperature sensor accuracy: ± 0.5 ° C (± 1.8 ° F)
Temperature sensor range: -10 ° to 40 ° C (14 ° to 104 ° F)
NMEA 2000 Load Equivalency Number (LEN): 4
