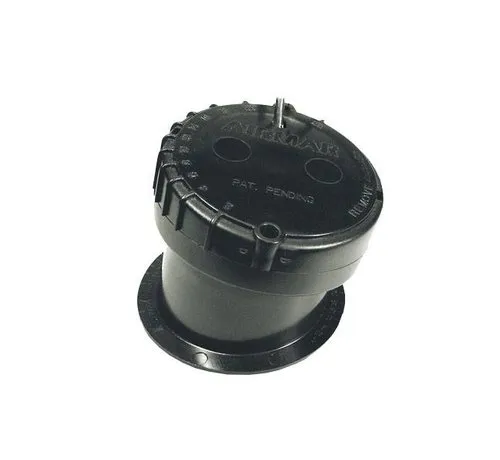

Airmar P79S Smart Sensor In-hull with an operating frequency of 235 kHz, a beam width of 6 degrees, and is suitable for angles between the plane and the keel between 0 and 22 degrees. This plastic transducer for hull mounting with an adjustable angle between the plane and the keel can be installed extremely easily.
This Airmar P79S can be connected directly to your NMEA2000/0183 network.
The transducer kit comes with installation instructions. Please follow the instructions carefully to avoid damage to your boat.
*Recommended for boats with a full foam bottom. Maximum fiberglass thickness should not exceed 1.59 cm (5/8 inch).
Specifications Airmar P79S Smart™ Sensor In-hull :
NMEA2000/0183
Deadrise 2 ° to 22 °
235 kHz
100 W
152 meters max depth
Depth only
For fiberglass hulls up to 1.59cm
For aluminum hulls less than 3.8mm
Weight 0.9 kg
Ships up to 8 meters
