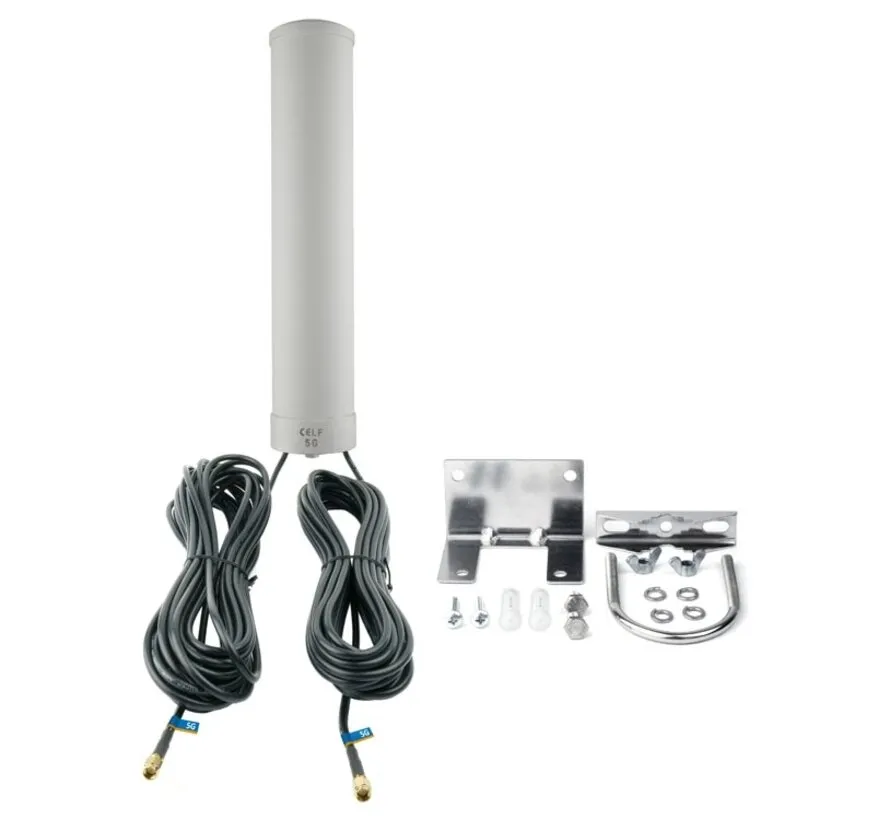

Stigwize 5G MiMo antenna that is also backwards compatible for the 2G/3G/4G mobile networks. MiMo stands for Multiple Input, Multiple Output. A MiMo antenna has 2 specially composed antennas in 1 housing. This MIMO antenna is suitable for 5G routers with 2 external antenna connections for 5G. Because the cables are integrated into this antenna, there is no connector transition and therefore no loss of signal or risk of interference due to moisture, for example.
Specifications Stigwize 5G MiMo antenna:
- Type: OMNI MIMO Directional
- 3G: Frequency & Gain 700-960MHz 3dBi
- 4G LTE: Frequency & Gain 1700-2700MHz 7dBi
- 5G NR: Frequency & Gain 3300-3800MHz 6dBi
- Cables: 2x 10 meters CLF200 Low Loss
- Connector: SMA
- Voltage: Standing Wave Ratio ≤ 3.2
- Power: 100 W
- Dimensions HxWxD (cm): High 44 x Wide 7.4 x Depth 7.4 cm
