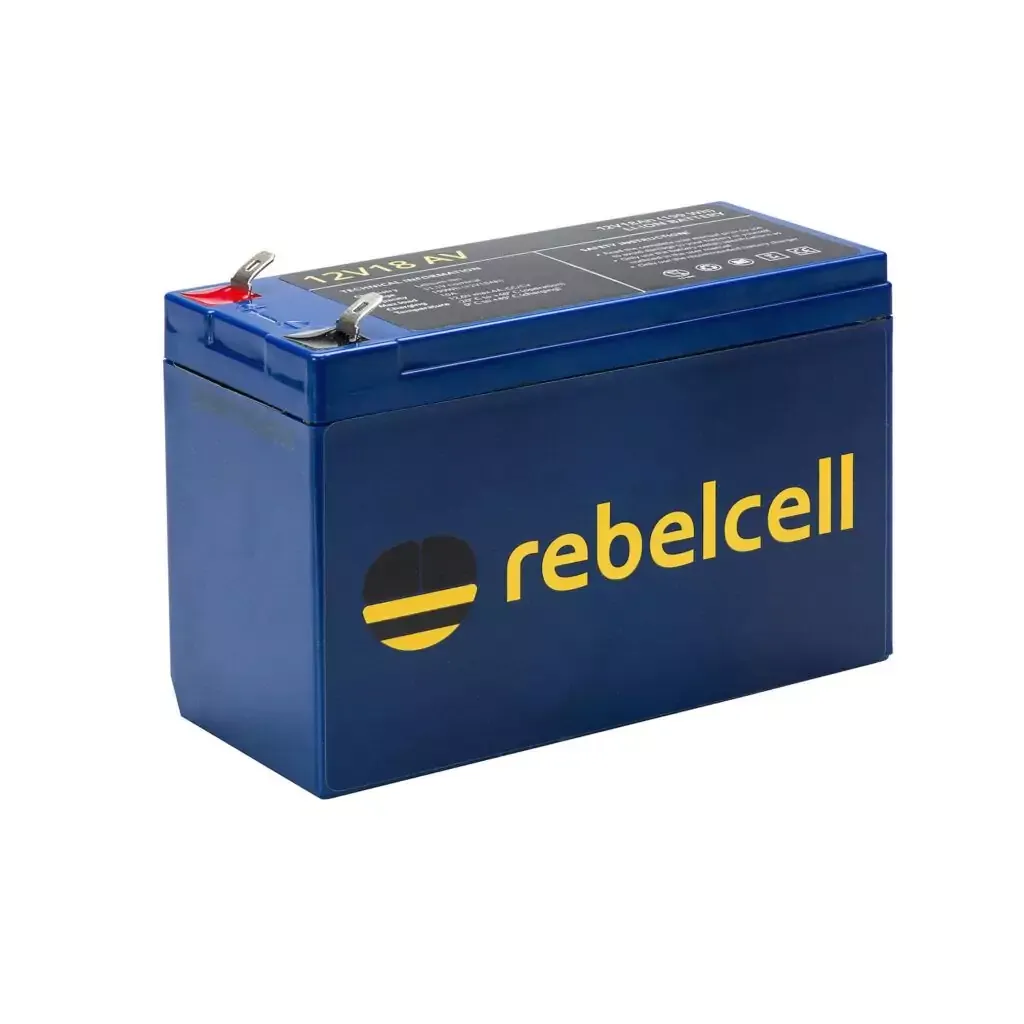

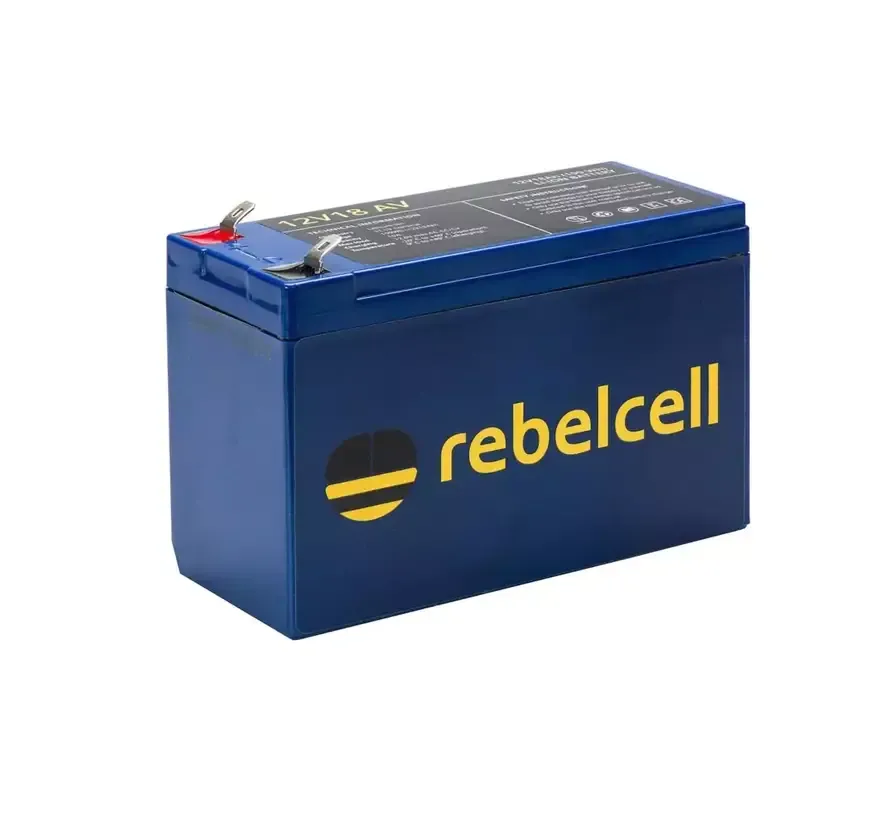

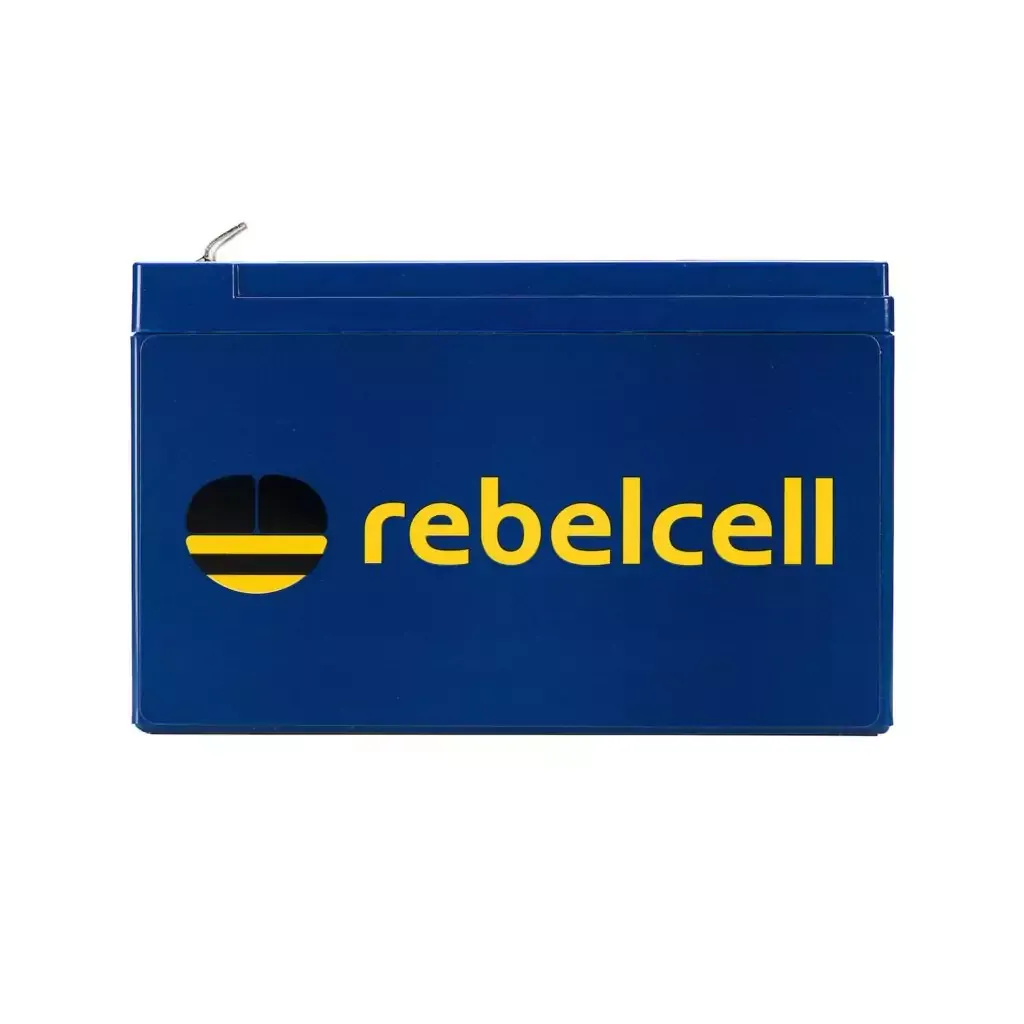

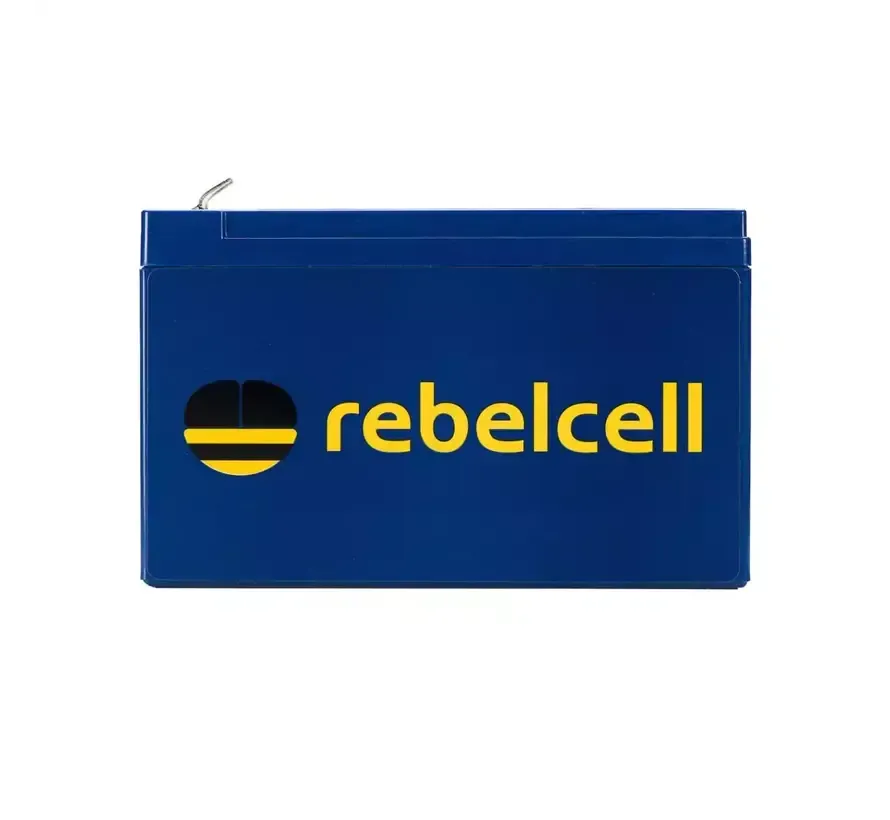

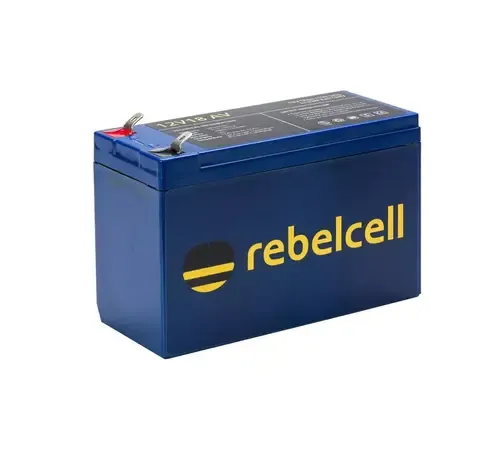

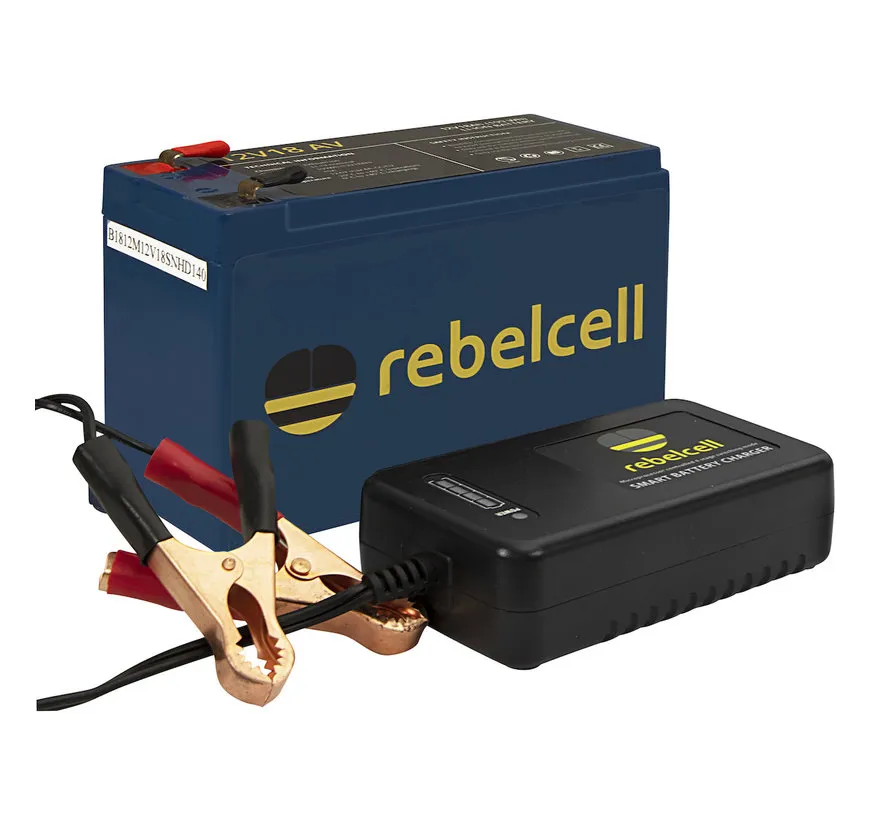

The Rebelcell 12V18 AV li-ion battery with up to 3x longer sailing time than ‘standard’ 12V9A lead-acid batteries. It is ideal for smaller (4 to 5 inch) depth sounders and bait boats. The battery weighs only 1 kg and can be discharged up to 100% without adversely affecting performance or service life. It is lightweight and compact, fast and can be recharged in between uses (fully charged within 4 to 5 hours). Reliable and long-lasting, with built-in abuse protection (against deep discharge, overvoltage, high temperature, etc.) by BMS and a lifespan of up to 10 years.
Easy to take with you when traveling, complies with IATA guidelines and may (under certain conditions) be carried in hand luggage on the plane.
Extra weight (piece of lead) may be necessary when used in bait boats. Consult your bait boat specialist about this. The battery is splash-proof according to the IP54 standard. To prevent problems, use a battery box and place the battery upright on a raised surface to prevent the battery from standing in water or water from damaging the battery through the top.

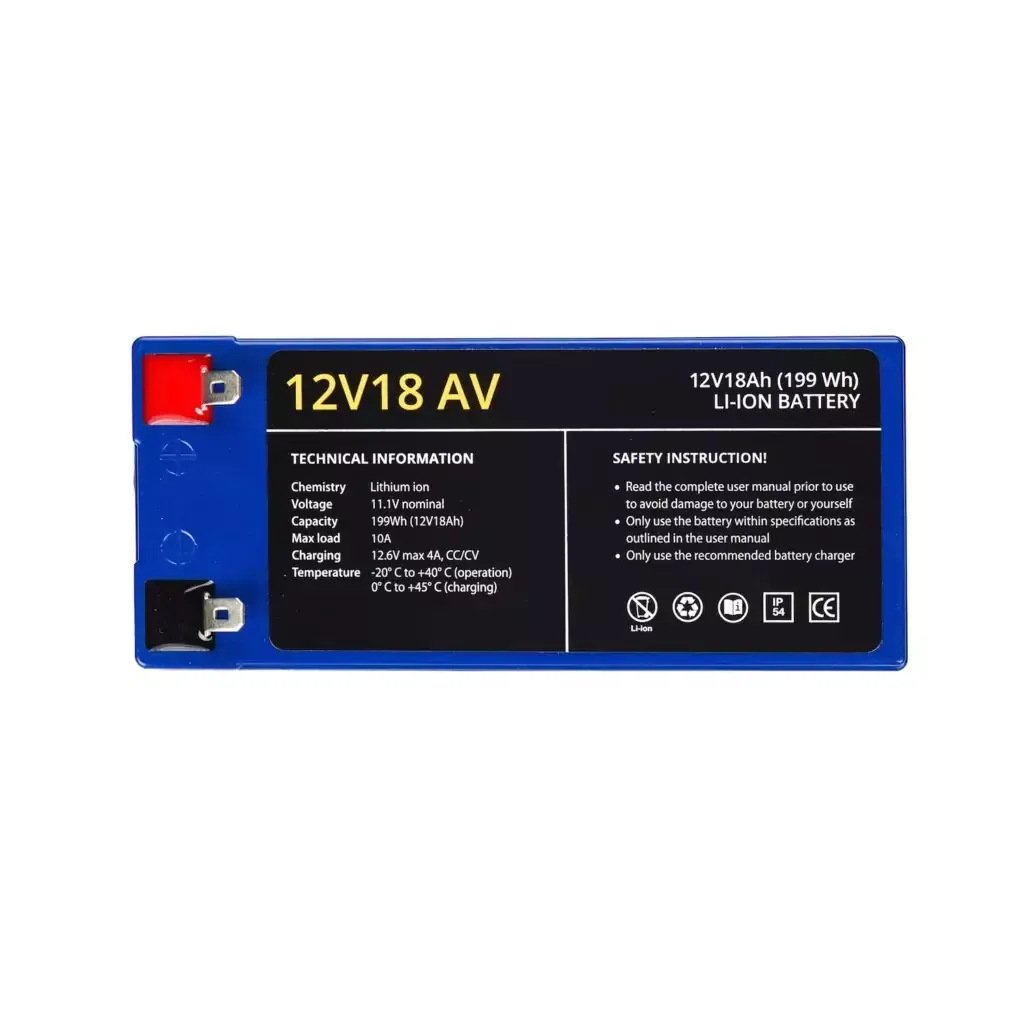

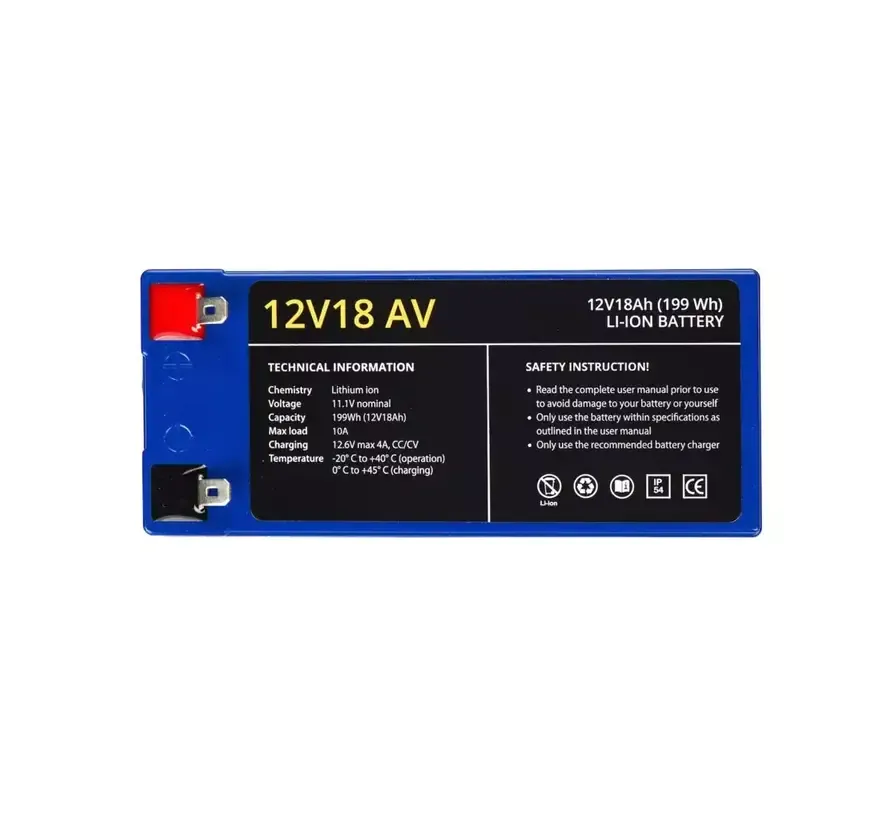

Specifications rebelcell 12V18 AV li-ion battery:
Chemistry Lithium ion
Voltage 11.1V
Capacity (C1-C20) 18Ah
EqPb (comparable lead battery) up to 35Ah
Nominal energy 199 Wh
Maximum continuous discharge 10 A
Peak discharge (10 sec) 15 A
Lifespan (#charges) (@80%DoD) ~1500
Lifespan (#charges) (@100%DoD) ~1000
Dimensions 151x65x95 mm
Weight ~ 1 KG
Energy density ~ 104 Wh/KG
Electronics & BMS
Voltage bandwidth 9.0V ~ 12.6V
Charging temperature 0 ~ 45 °C
Discharging temperature -20 ~ 60 °C
Storage temperature 0 ~ 45 °C
Maximum charging current 5A
Integrated cell balancing
Temperature protection
Maximum discharge current protection
Overvoltage protection
Undervoltage protection
Protection class (IEC 529) IP54
CE certificate
Warranty 2 years
