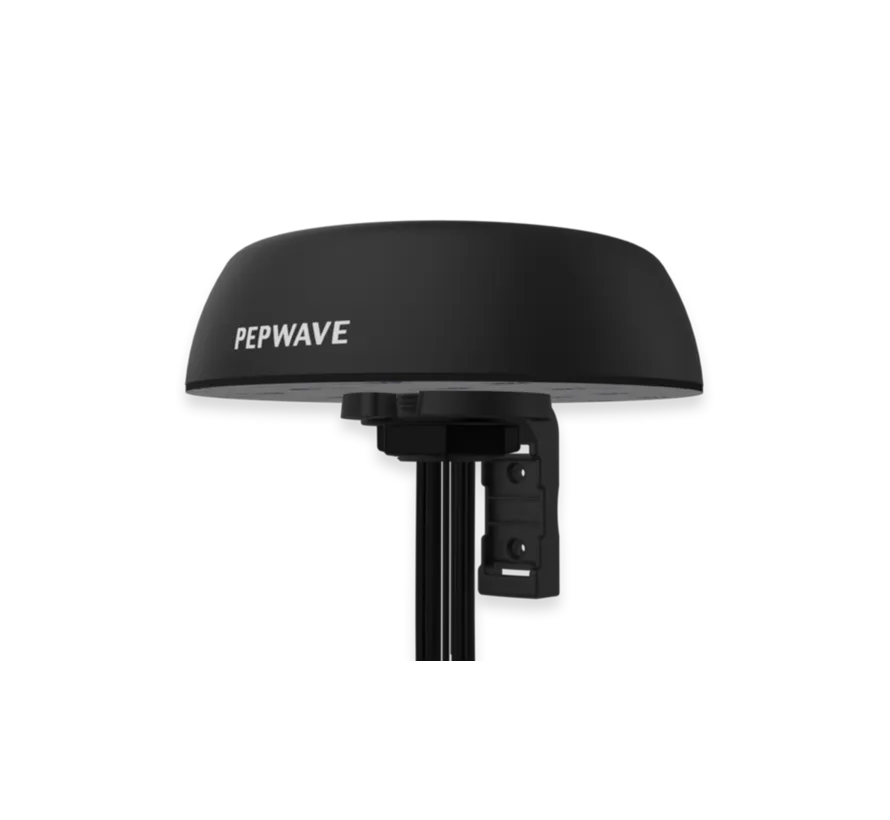

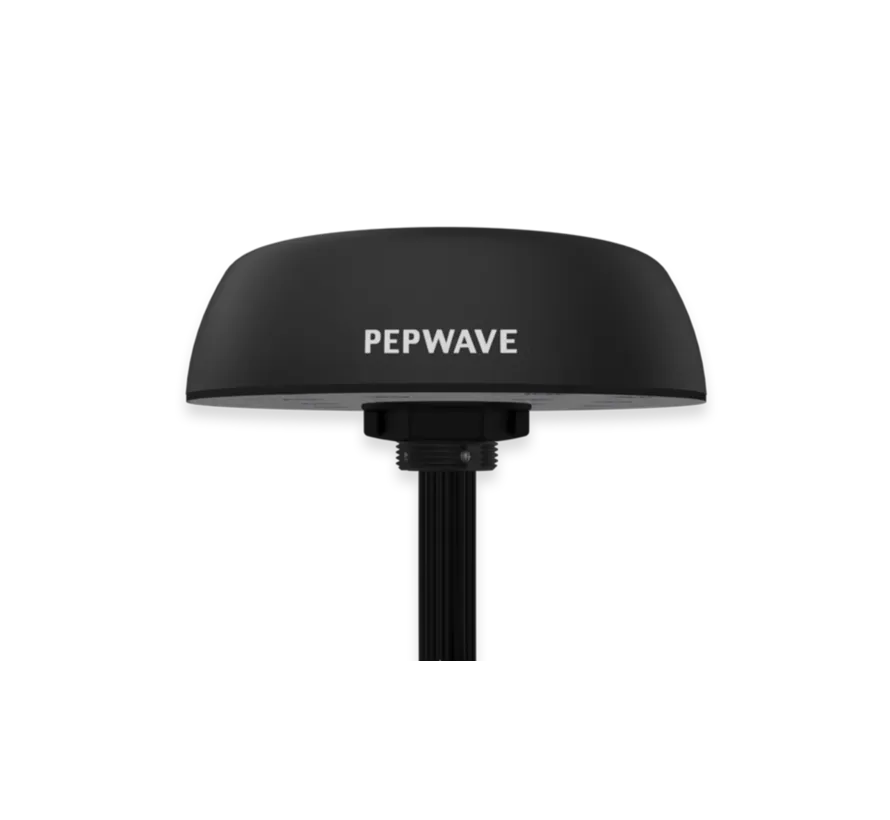

The Peplink Mobility 42G is a rugged omnidirectional 7-in-1 antenna system combining four 4G/5G cellular elements, two Wi-Fi elements and one active GPS/GNSS antenna. Cellular connectivity uses 4x4 MIMO while Wi-Fi uses 2x2 MIMO.
Product specifications:
- Brand: Peplink
- Model: Mobility 42G
- Part number: ANT-MB-42G-S-B-6
- Colour: black
- Cellular elements: 4
- Cellular configuration: 4x4 MIMO
- Wi-Fi elements: 2
- Wi-Fi configuration: 2x2 MIMO
- GPS/GNSS elements: 1
- Antenna pattern: omnidirectional
- 5G ready: yes
- LTE support: yes
- C-Band support: yes
- B71 support: yes
- IP rating: IP68
- UV resistant: yes.
Cellular:
- 617–960 MHz: up to 4.4 dBi
- 1710–2700 MHz: up to 7.8 dBi
- 3400–4200 MHz: up to 7.9 dBi
- 5000–6000 MHz: up to 8.2 dBi
- Impedance: 50 Ω
- Power handling: 10 W.
Wi-Fi:
- 2400–2500 MHz: up to 5.0 dBi
- 5000–6000 MHz: up to 7.5 dBi
- Dual-band 2.4 / 5 GHz
- 2x2 MIMO.
GPS/GNSS:
- Frequency range: 1561–1602 MHz
- LNA gain: 28 ±3 dB
- Active GPS antenna
- 3.3 V operating voltage.

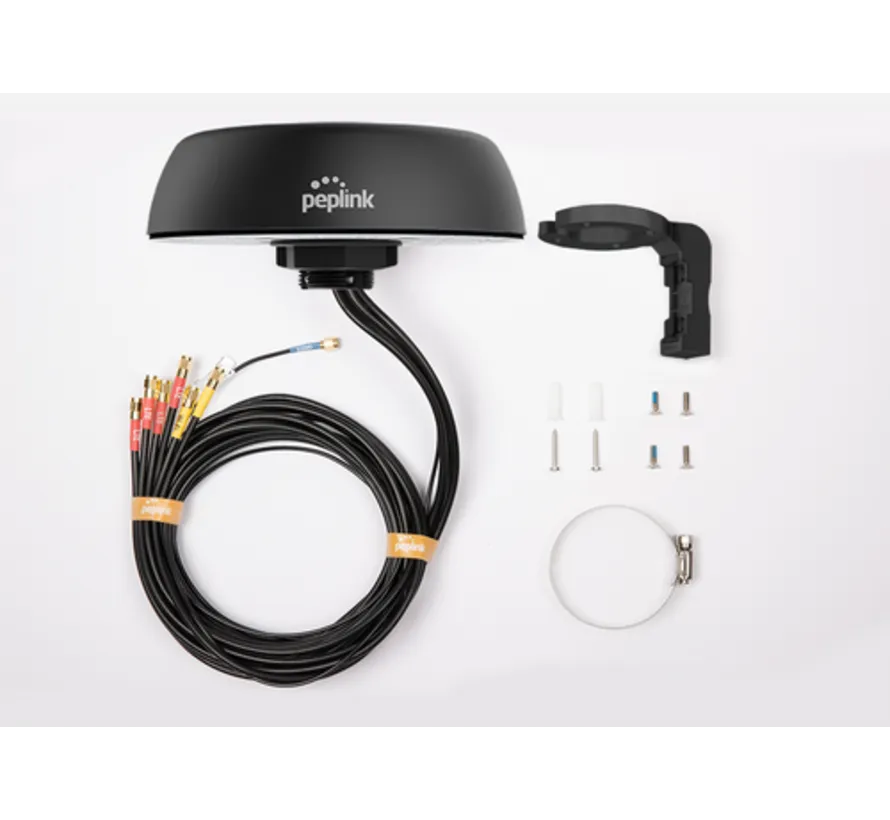

Connections:
- 4× SMA male cellular
- 1× SMA male GPS/GNSS
- 2× RP-SMA male Wi-Fi
- 7 integrated cables
- Cable length: approx. 2 m / 6.5 ft
- Cellular/Wi-Fi cable: CFD-200
- GPS cable: RG-174.
Physical:
- Diameter: approx. 208 mm
- Height: approx. 58 mm excluding mounting spigot
- Mounting hole: 43 mm
- Maximum panel thickness: 15 mm
- Operating temperature: -40 to +80 °C
- IP68
- Salt-spray tested
- UV resistant.
Suitable for:
- Peplink 5G routers
- Mobile router installations

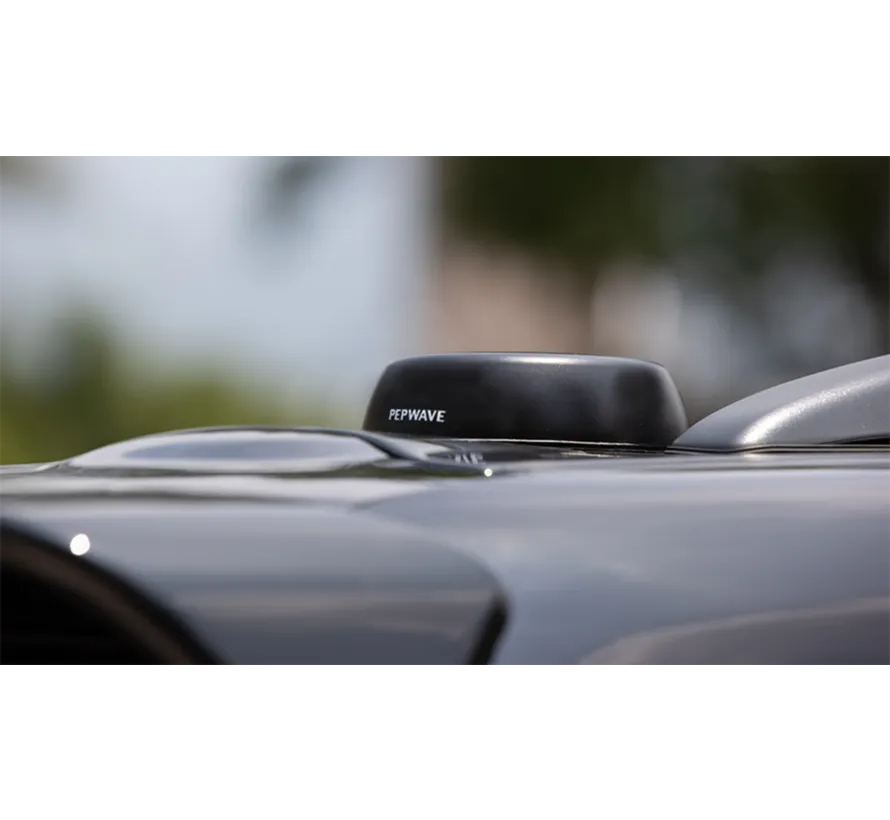

- Vehicles
- Motorhomes
- Boats and yachts
- Transport
- Industrial connectivity
- Installations requiring 4 cellular + 2 Wi-Fi + GPS connections
Important:
Check the router connectors before ordering. This S-version uses SMA male for cellular/GPS and RP-SMA male for Wi-Fi. QMA-equipped routers may require another Mobility 42G version or suitable adapters.
