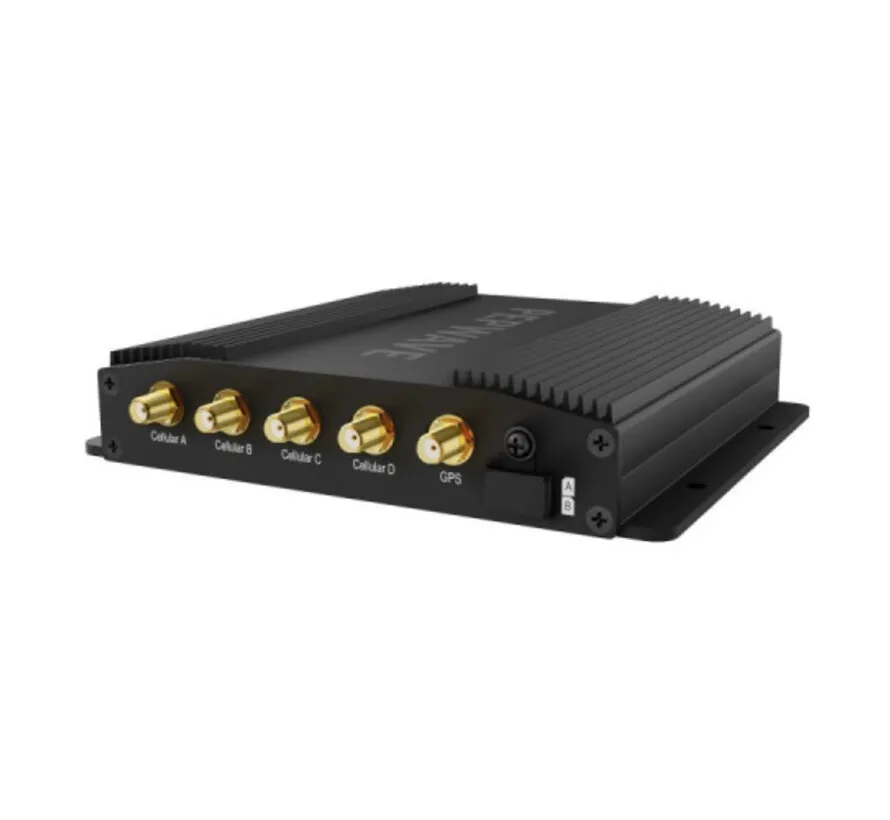

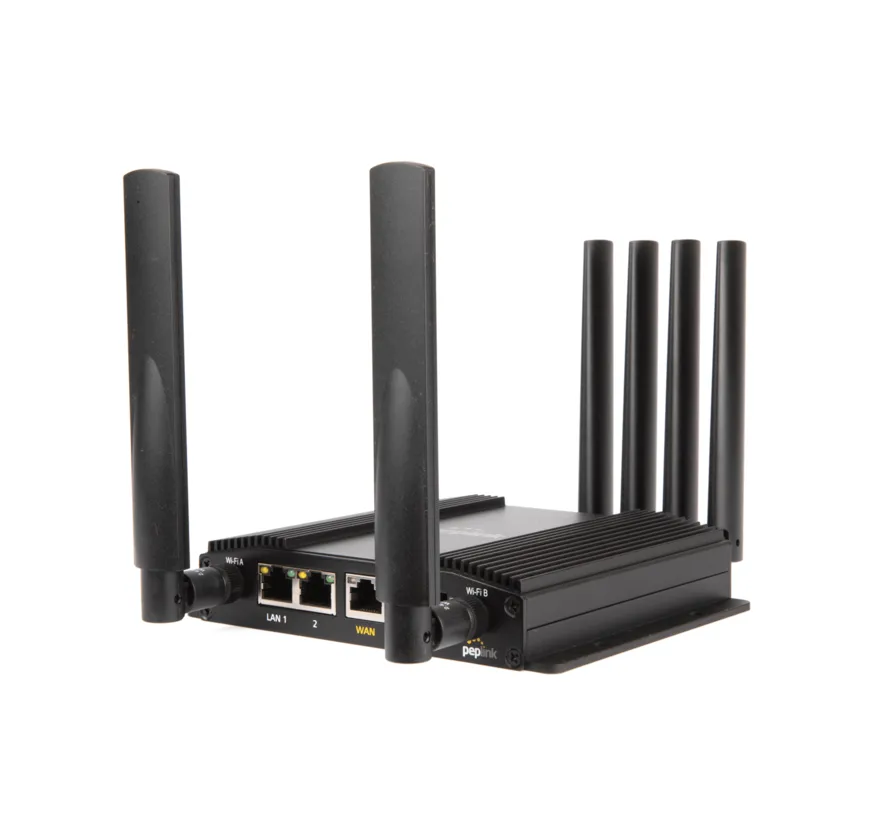

The Peplink MAX BR1 Pro 5G (MAX-BR1-PRO-5GN-T-PRM) is a professional-grade industrial 5G router built for applications where stable connectivity and deployment flexibility are essential. It is well suited for transport, marine environments, vehicles, temporary sites, remote work setups, and other installations that depend on reliable mobile internet. With support for 5G NSA/SA, Wi-Fi 6, and SpeedFusion, the router can be deployed as a primary internet router, a 5G backup solution, or a gateway within an existing network.
Its integrated 5G modem with redundant SIM slots allows the use of two SIM cards from different providers, helping improve flexibility in demanding field deployments. This makes the MAX BR1 Pro 5G a strong fit for use on vessels, yachts, boats, caravans, campervans, and mobile professional installations where dependable connectivity matters. The unit can also use existing wireless internet through WiFi WAN, adding another layer of connection options beyond cellular access.
The router combines a rugged industrial design with practical connectivity features, including a 2.5Gbps WAN port, two Gigabit LAN ports, integrated GPS, and Wi-Fi 6 2x2 MU-MIMO. Its compact housing and wide operating temperature range make it suitable for installations in more demanding environments.
Key features
- Professional industrial 5G router for fixed and mobile deployments
- Supports 5G NSA/SA Sub-6 GHz with LTE Cat 20 fallback
- Dual-SIM / redundant SIM slots
- Wi-Fi 6 dual-band 2x2 MU-MIMO
- 1x 2.5Gbps WAN and 2x Gigabit LAN
- Can be used as a router, gateway, or 5G adapter
- SpeedFusion support for more resilient connectivity
- Suitable for transport, marine use, camper installations, and mobile work environments
- Includes GPS and Peplink remote management support
Specifications
Model
Peplink MAX BR1 Pro 5G | MAX-BR1-PRO-5GN-T-PRM
Cellular
1x embedded 5G modem with redundant SIM slots. Supports 5G NSA & SA Sub-6 GHz and LTE Cat 20. Maximum theoretical data rates are 3.4 Gbps down / 900 Mbps up on 5G and 1.6 Gbps down / 200 Mbps up on LTE Cat 20.

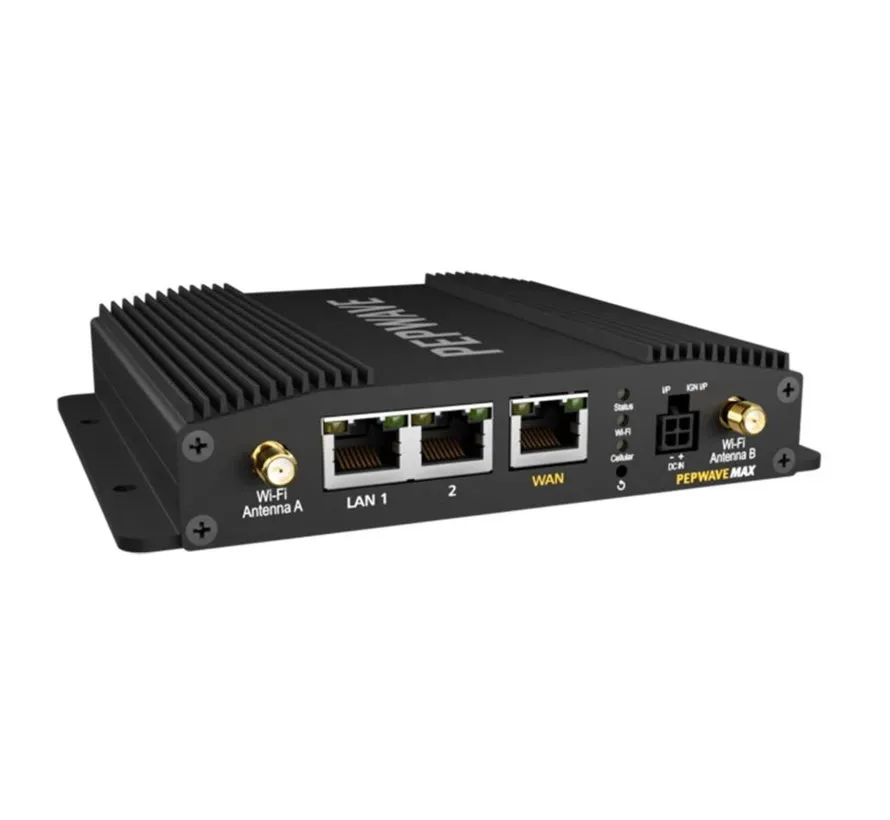

Ports
- 1x 10/100/1000/2500M Ethernet WAN
- 2x 10/100/1000M Ethernet LAN
Wi-Fi
Simultaneous dual-band 2.4 GHz / 5 GHz Wi-Fi 6, 2x2 MU-MIMO, usable as WiFi WAN and/or AP.
Performance
- Router throughput: 1 Gbps
- SpeedFusion throughput: 400 Mbps without encryption
- SpeedFusion throughput: 200 Mbps with 256-bit AES
- Recommended users: 1–150
Antenna connectors
- 4x SMA Cellular
- 2x RP-SMA Wi-Fi
- 1x SMA GPS
SIM / eSIM
- Nano-SIM (4FF)
- Peplink eSIM
- BYO eSIM with support for 2 profiles
Power
- 12V power adapter
- 10–30V DC input
- Power consumption: 8W nominal / 19W max
Dimensions and weight
- 146.8 x 129 x 29.3 mm
- 680 g
Environmental
- Operating temperature: -40 °C to +65 °C
- Humidity: 15% – 95% non-condensing
Certifications
Including FCC, CE, RoHS, E-Mark, EN61373, EN50155, EN61000 and EN45545-2

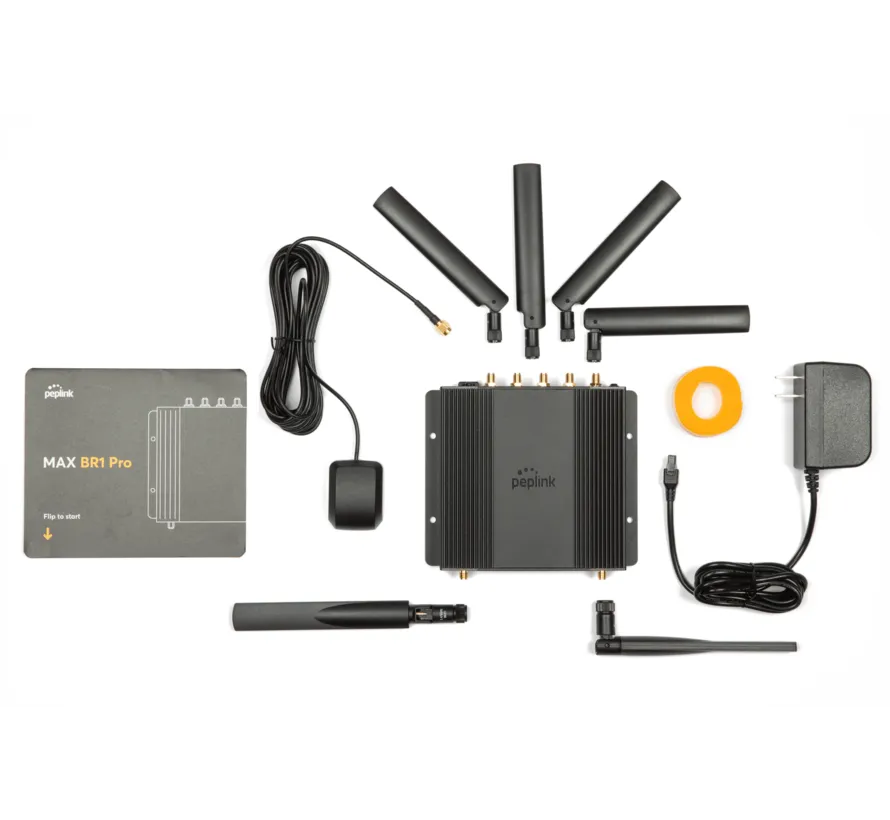

Package contents
Router, 4x LTE/5G antennas, 2x dual-band Wi-Fi antennas, 1x active GPS antenna, and 1x 12V 2A 4-pin power supply
