This complete Peplink maritime 5G bundle combines the industrial MAX BR1 Pro 5G router with two professional outdoor antennas and the required long cable runs for cellular and WiFi connectivity.

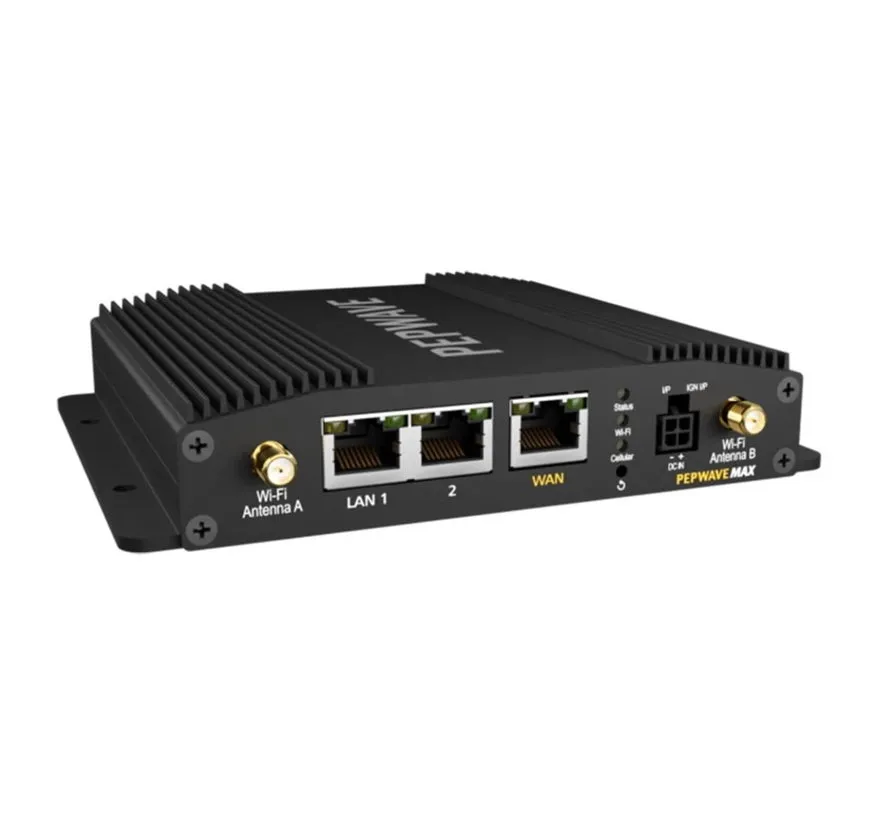

The MAX BR1 Pro 5G supports 5G SA/NSA, 4G LTE, dual SIM, WiFi 6, high-speed Ethernet, GPS and Peplink SpeedFusion.

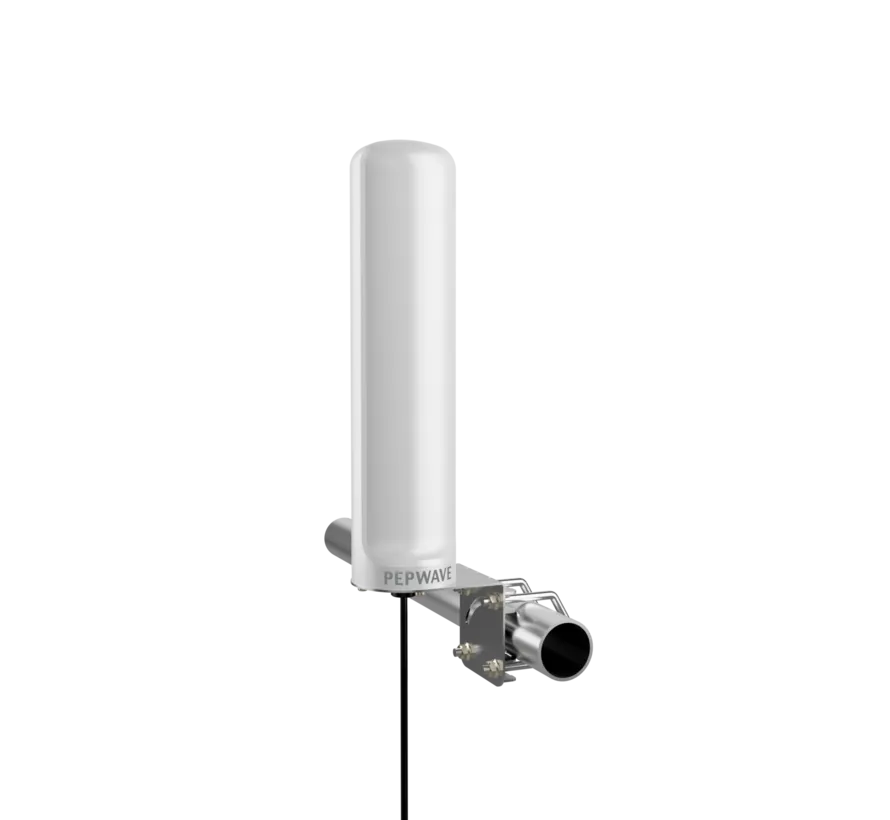

The Maritime 20G is an IP68 marine antenna containing two LTE/5G elements and one active GPS element. Its cellular elements cover a particularly wide 410-6000 MHz frequency range and the antenna is designed for harsh maritime environments.

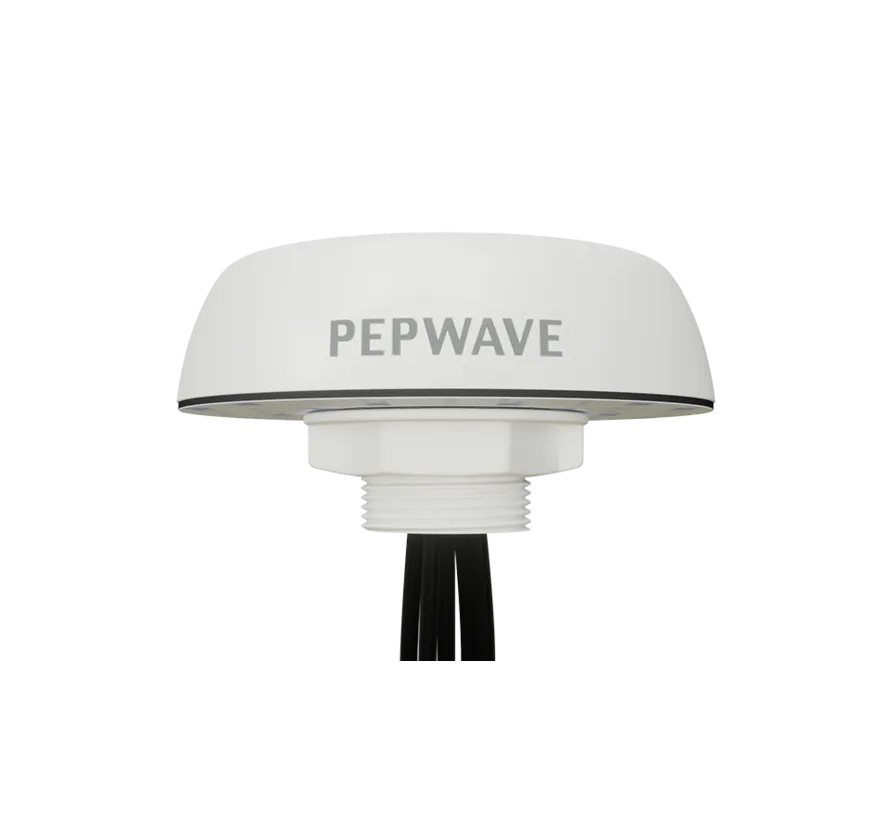

The Mobility 22G provides a further two LTE/5G elements, two WiFi elements and one GPS element in an IP68 outdoor enclosure.
Together, the antennas provide four external LTE/5G elements and two WiFi elements, matching the cellular and WiFi antenna interfaces of the MAX BR1 Pro 5G.

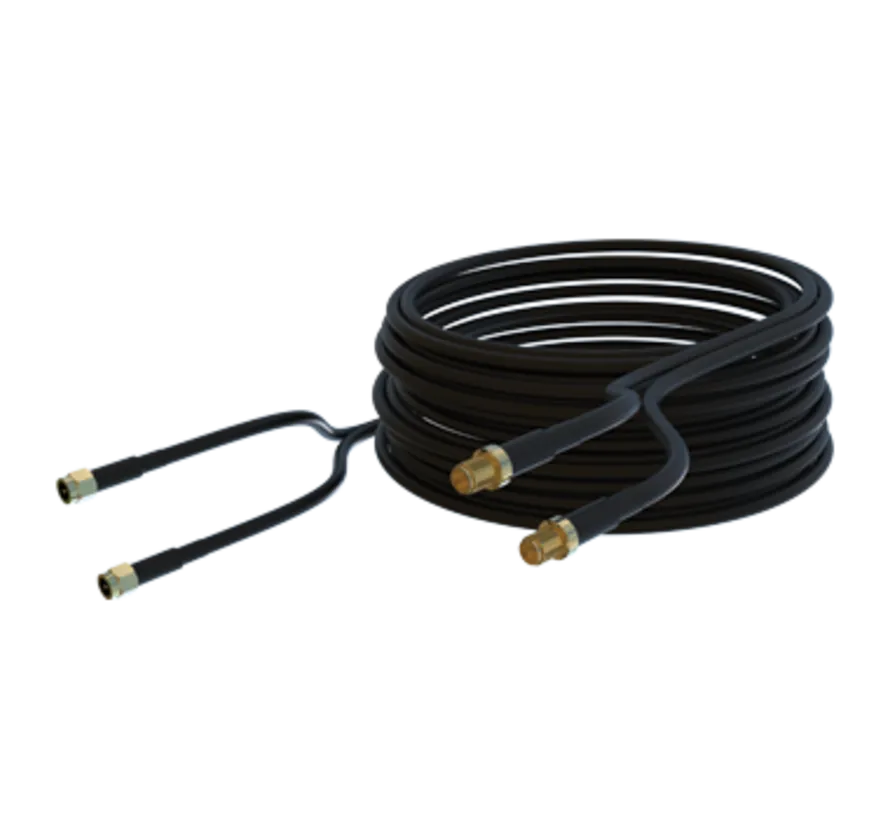

Three 10 metre Twin Siamese cable assemblies are included. Each contains two coaxial runs, providing six 10 metre antenna connections in total for the four cellular and two WiFi paths.
SMA to RP-SMA adapters are included for the WiFi connections.
Key features
- Complete maritime 5G router system
- MAX BR1 Pro 5G industrial router
- 5G SA and NSA Sub-6 GHz
- 4G LTE fallback
- Dual SIM
- WiFi 6
- Four external LTE/5G antenna elements
- Two external WiFi antenna elements
- GPS support
- IP68 Maritime 20G antenna
- IP68 Mobility 22G antenna
- Three dual 10 metre low-loss cables
- Six extended coaxial paths in total
- SMA/RP-SMA WiFi adapters
- Peplink SpeedFusion
- InControl 2 cloud management
Bundle contents
1x MAX BR1 Pro 5G
- Article number: MAX-BR1-PRO-5GN-T-PRM
- 5G SA/NSA + 4G LTE
- Dual SIM
- WiFi 6
- 1x 2.5GbE WAN
- 2x Gigabit LAN
- GPS
1x Maritime 20G
- Article number: ANT-MR-20G-S-W-6
- 2x LTE/5G
- 1x GPS
- Cellular range: 410-6000 MHz
- SMA male connectors
- Approx. 2 m attached cables
- IP68
- White
- Approx. Ø96 x 483.5 mm
- Wind survivability up to approx. 160 km/h
- Marine 1-inch 14 TPI mounting supported
1x Mobility 22G
- Article number: ANT-MB-22G-S-W-6
- 2x LTE/5G
- 2x WiFi
- 1x GPS
- 600-6000 MHz
- SMA/RP-SMA male connectors
- Approx. 2 m attached cables
- IP68
- White
3x 10 m Twin Siamese antenna cable
- Article number: FCCBV-CAB-109
- Two coaxial cables per assembly
- 10 metre length
- HDF-195 low-loss cable
- SMA male to SMA female
- Six coaxial connections in total
- EAN per cable: 6009710926062

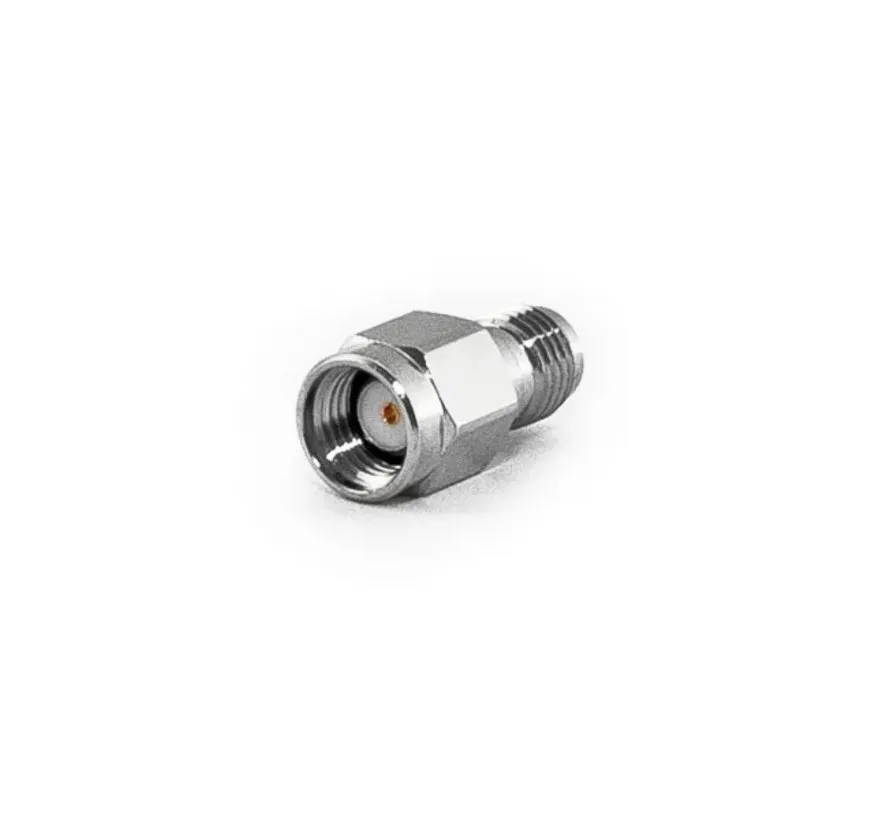

2x SMA Female to RP-SMA Male adapters
- Article number: FCCBV-SMA F-TO-RP-SMA-M
2x RP-SMA Female to SMA Male adapters
- Article number: FCCBV-RP SMA-F-TO-SMA M
Product specifications
- Product type: complete maritime 5G router and antenna bundle
- Cellular technology: 5G SA/NSA and 4G LTE
- SIM: dual Nano-SIM
- WiFi: WiFi 6
- WiFi bands: 2.4 and 5 GHz
- Cellular MIMO: four external LTE/5G antenna elements
- WiFi antennas: two external elements
- GPS: supported
- Router throughput: up to approx. 1 Gbps
- Theoretical 5G download speed: up to approx. 4.1 Gbps
- Ethernet WAN: 1x 2.5GbE
- Ethernet LAN: 2x Gigabit
- Router input voltage: 10-30V DC
- Router operating temperature: -40°C to +65°C
- Outdoor antenna rating: IP68
- Maritime 20G cellular range: 410-6000 MHz
- Mobility 22G range: 600-6000 MHz
- Extension cables: 3x dual 10 m
- Extended coax paths: 6
- Application: yachts, motor boats, sailing vessels, commercial shipping, offshore and professional marine networks
- Included: router, Maritime 20G, Mobility 22G, three dual 10 m cables and four SMA/RP-SMA adapters
- Not included: SIM cards, mobile subscriptions and any additional GPS extension cable
- Compatibility advice: check installation position, cable length, connector configuration and required GPS connection before ordering
Important installation information
The three Twin Siamese cable assemblies provide six 10 metre coaxial runs in total. These are suitable for the router's four LTE/5G paths and two WiFi paths.
If an externally mounted GPS antenna also needs a 10 metre cable run, an additional suitable SMA/GPS extension cable may be required.
The bundle consists of:
Pepwave MAX BR1 5G - 4Gbps
Maritime Antenna 20G
Mobility 22G
3 x 10M TWIN SIAMESE CABLE
2 x SMA Female to RP SMA Male
