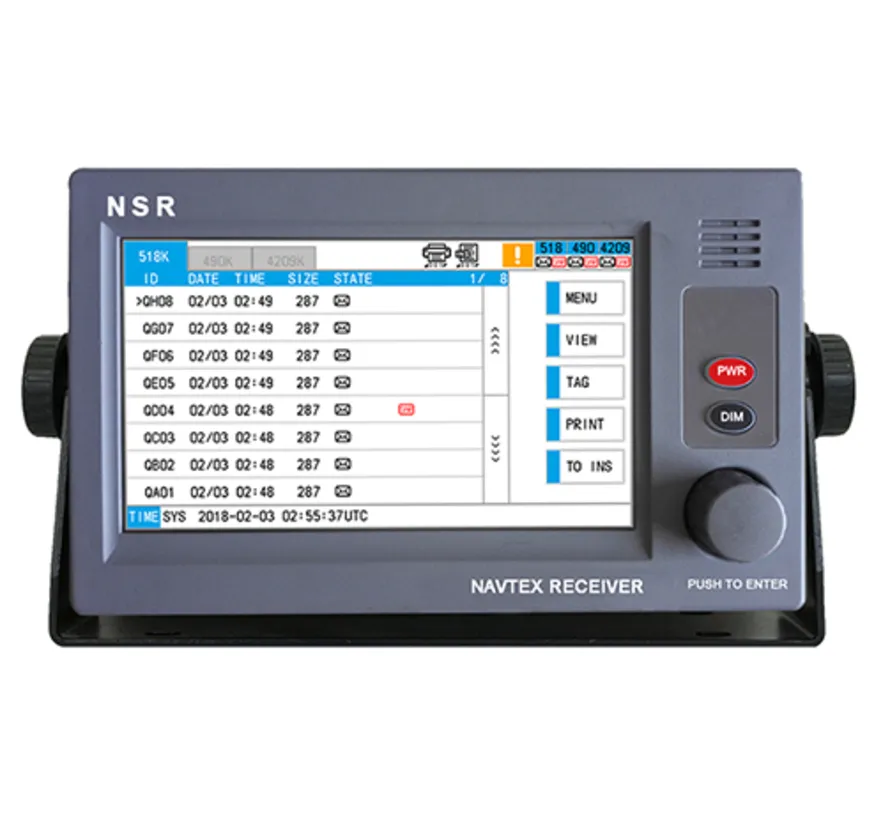

The NSR NVX-3000 Navtex Receiver is a professional NAVTEX receiver for automatic reception and display of maritime safety information, navigational warnings and weather messages. The large 7 inch colour touchscreen provides clear operation for professional bridge installations.
The NVX-3000 receives the three IMO NAVTEX frequencies 518 kHz, 490 kHz and 4209.5 kHz and stores received messages for up to 72 hours. It supports BAM/INS integration and includes interfaces for NMEA, printer output and external alarm. Mediawinkel lists the unit including a whip antenna with 20 metre cable.
Key features
- Professional NAVTEX receiver
- Large 7 inch colour LCD touchscreen
- Reception on 518 kHz, 490 kHz and 4209.5 kHz
- Simultaneous reception of three NAVTEX channels
- Message storage up to 72 hours
- High-sensitivity SDR receiver technology
- BAM/INS interface
- NMEA connection
- External printer output
- External alarm connection
- Self-diagnosis function
- Suitable for desktop or flush mounting
- DNV/MED Wheelmark type approved
- Designed for professional maritime use
Product specifications
- Brand: NSR / New Sunrise
- Model: NVX-3000
- Product type: NAVTEX Receiver
- Display: 7 inch colour LCD touchscreen
- Display size: 154 x 87 mm
- Resolution: 800 x 480 pixels
- Receiving frequencies: 518 kHz, 490 kHz and 4209.5 kHz
- Reception mode: F1B
- Sensitivity: better than -107 dBm according to recent datasheet
- Message storage: 72 hours
- Power supply: 24 V DC, suitable for 10–38 V DC
- Power consumption: approx. 10 W average
- Interfaces: NMEA, BAM/INS, printer, external alarm
- NMEA input: ZDA, RMC
- BAM/INS input: NRM, CRQ, ACK, ACN
- Receiver IP rating: IP22
- Antenna/amplifier IP rating: IP66
- Operating temperature: -20 °C to +55 °C
- Storage temperature antenna/amplifier: -30 °C to +70 °C
- Compass safe distance: 1.15 m
- Receiver dimensions: approx. 264 x 145 x 80 mm
- Receiver weight: approx. 2.3 kg
- Supplied: whip antenna with 20 metre cable
- Approval: DNV/MED Wheelmark type approval
- Application: SOLAS vessels, commercial shipping, coastal vessels, offshore and professional navigation
