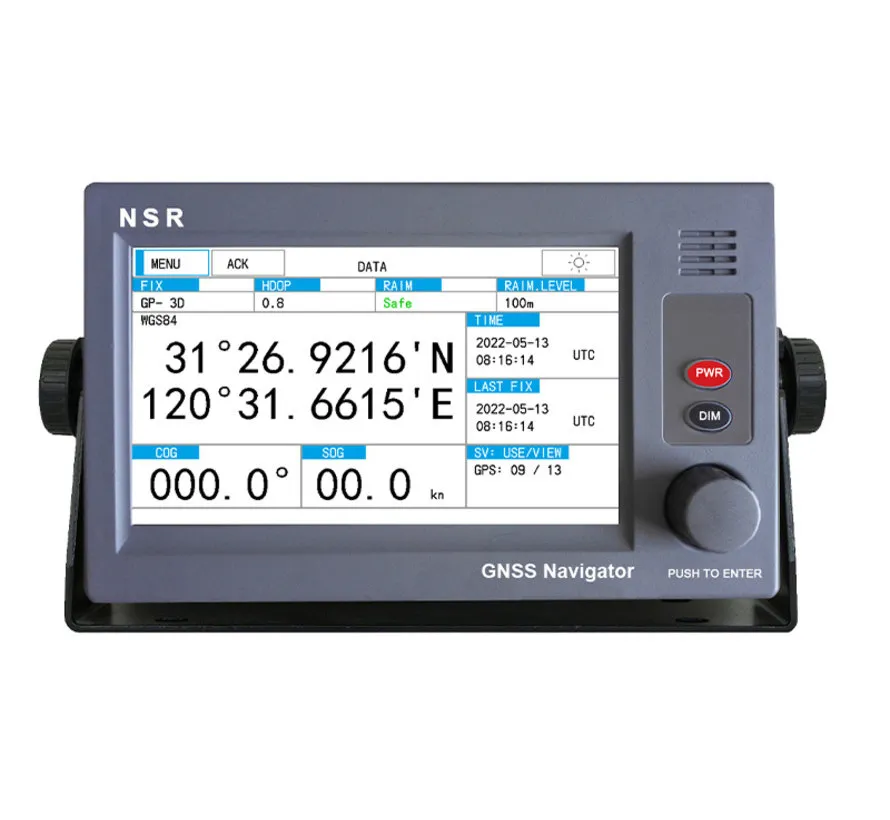

The NSR NGR-3000 IMO DGPS Navigator is a professional marine GPS/GNSS navigator for onboard position and navigation data. The system consists of a display unit with a 7 inch colour touchscreen and an external GNSS antenna. The navigator is suitable as a position source for radar, AIS, ECDIS, INS, autopilot, echo sounder and other navigation and communication equipment.
The NGR-3000 is designed for IMO applications and is MED/Wheelmark/DNV approved according to product information. For installations requiring differential correction, the NGR-3000 can be upgraded with an external NSR NDG-100 DGPS/DGNSS beacon unit. This makes the system suitable for professional shipping, bridge navigation and certified marine installations.
Key features
- Professional IMO GPS/GNSS navigator
- MED/Wheelmark/DNV type approval according to product information
- 7 inch colour display with touchscreen operation
- Supports GPS, BDS and GLONASS according to current NSR documentation
- DGPS/DGNSS possible via external NDG-100 beacon unit
- Storage for up to 999 waypoints and 30 routes
- 3 GNSS data outputs
- Dedicated BAM/INS input/output
- Position update every second
- Suitable as position source for radar, AIS, ECDIS, INS, autopilot and echo sounder
- Navigation alerts such as position lost, HDOP exceeded and DGNSS lost
- Designed for fixed professional marine installation
- Meets relevant IMO and IEC standards according to product information
Product specifications
Brand: NSR / New Sunrise
Model: NGR-3000 / NGR3000
Article number: NGR-3000
Product type: IMO GPS/GNSS navigator with DGPS/DGNSS upgrade option
Application: Marine positioning, navigation, bridge equipment, professional vessel installations
Compatibility: Radar, AIS, ECDIS, INS, autopilot, echo sounder and other systems with suitable GNSS/NMEA/RS422 data input
Receiving system: GPS, BDS and GLONASS according to current NSR documentation
GPS frequency: GPS L1, GLONASS L1, BDS B1 according to current brochure information
Receiving code: C/A code
Number of channels: 50-channel parallel GNSS reception
Position accuracy: approx. 2.5 m, 95% of the time at HDOP ≤ 4 according to current NSR information
Tracking velocity: up to 999 knots
Warm start: approx. 30 seconds according to current NSR information
Cold start: approx. 45 seconds according to current NSR information
Position update interval: 1 second
Display: 7 inch colour LCD touchscreen
Waypoints: up to 999
Routes: up to 30

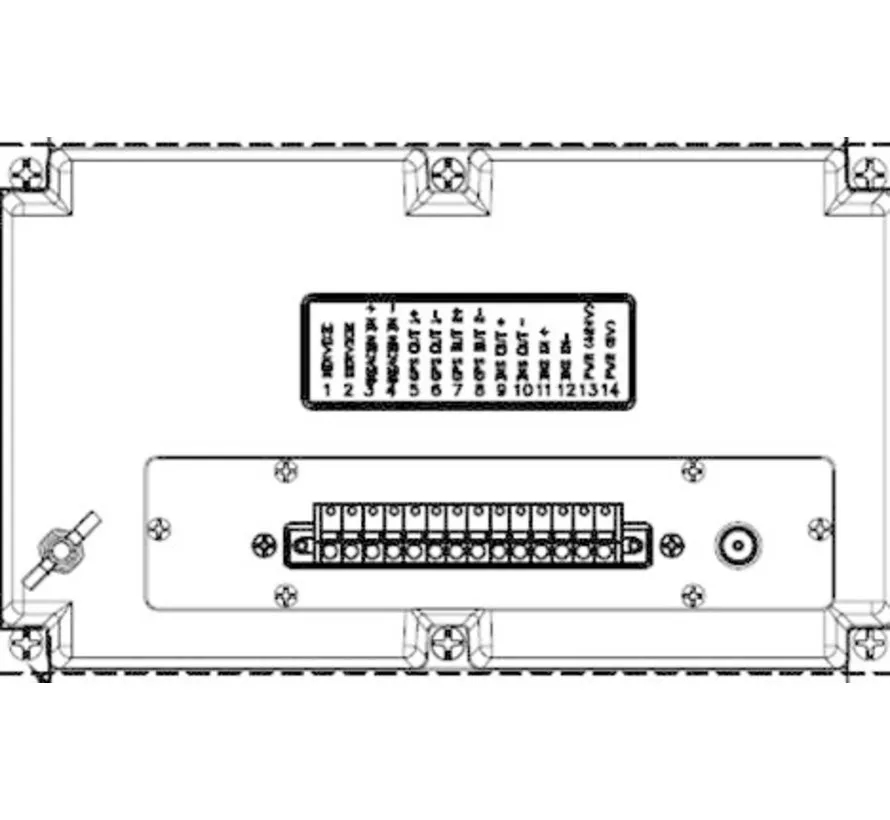

Data outputs: RS422, maximum 3 ports
Baud rate: 4800 / 9600 / 19200 / 38400 bps according to brochure information
NMEA sentences: including GNS, GBS, GGA, RMC, VTG, ZDA, DTM
BAM/INS: Input/output via RS422
DGPS/DGNSS: Possible with external NSR NDG-100 beacon unit
Power supply: 12–24 V DC according to dealer information
Antenna: External GNSS antenna NGA100
Antenna cable: 10 m or 20 m according to manual; 30 m RG212 is mentioned as a cable option in certificate documentation
Display unit dimensions: No reliable dimensions confirmed
Weight: No reliable weight confirmed
IP rating: No reliable IP rating confirmed for the display unit; antenna unit is mentioned as IP66 in some documentation
Approvals/certification: MED/Wheelmark/DNV type approval; IMO MSC.112(73), IMO MSC.302(87), IEC 61108-1, IEC 62923-1, IEC 62923-2 and IEC 62288 according to NSR documentation
