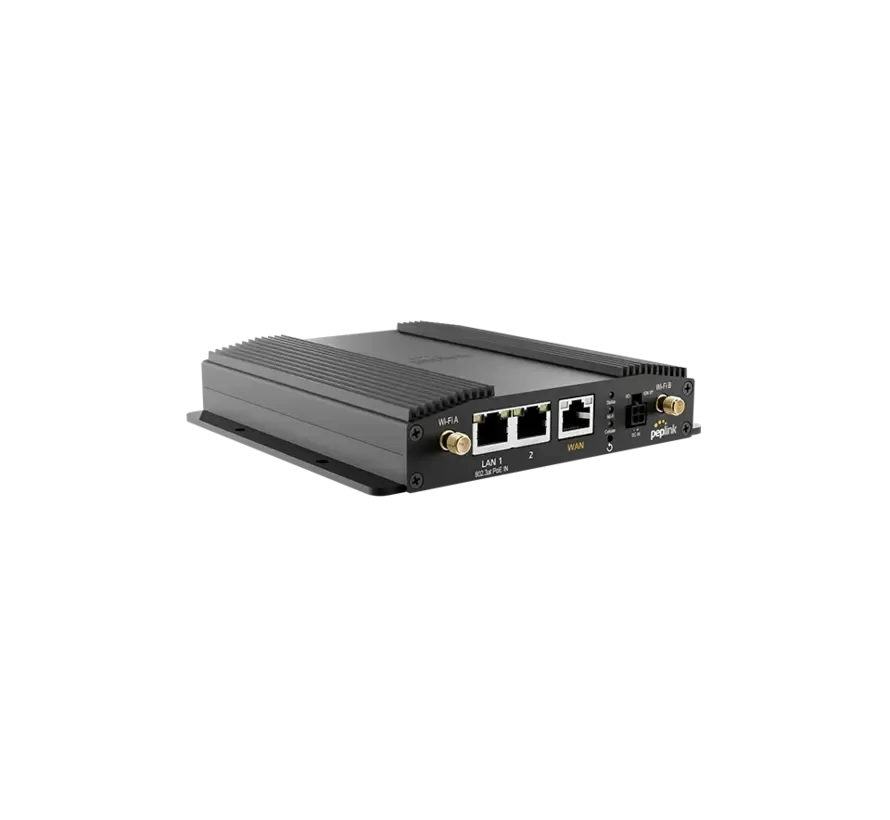

The Peplink MAX BR1 Pro 5G 5GK version is a professional industrial mobile router designed for demanding installations in vehicles, marine environments, public transport, emergency services, industrial systems and remote sites.
This version uses a Qualcomm X65 5G modem and supports both 5G Standalone and Non-Standalone Sub-6 GHz networks.
Two physical Nano-SIM slots are provided, together with Peplink eSIM and BYO eSIM support.

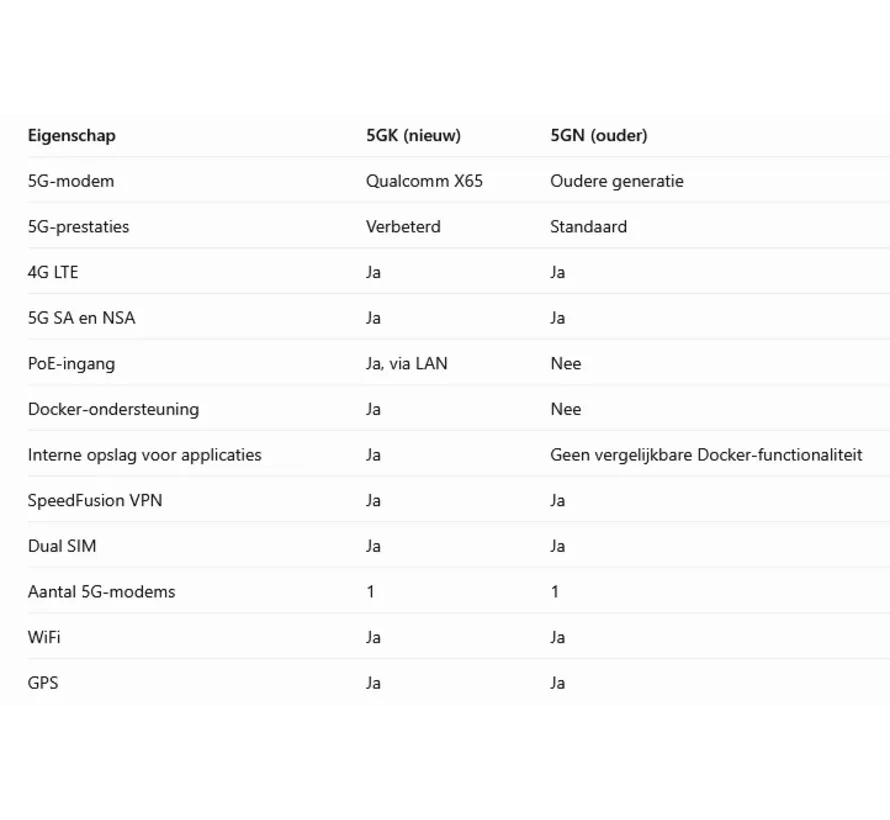

Compared with earlier BR1 Pro 5G hardware, the 5GK version adds 802.3at PoE input on a LAN port, edge-computing capabilities and 8 GB of onboard storage.

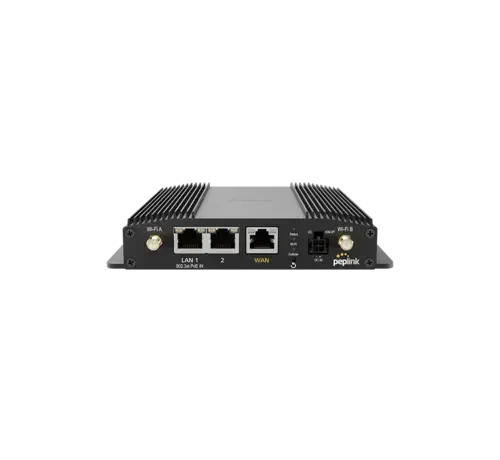

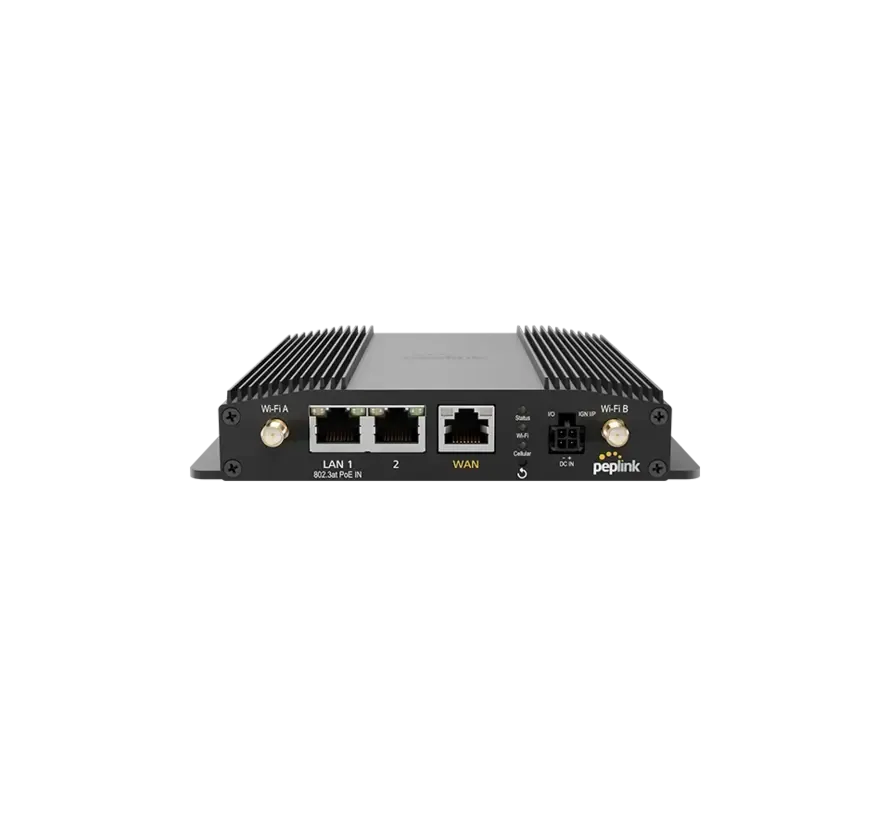

For wired connectivity, the router provides one 2.5 Gigabit Ethernet WAN port and two Gigabit Ethernet LAN ports. The WAN port can also be configured as LAN.
Simultaneous dual-band WiFi 6 operates on 2.4 and 5 GHz and can function as both an access point and WiFi WAN connection.
Peplink SpeedFusion provides Hot Failover, WAN Smoothing and Bandwidth Bonding for reliable multi-WAN connectivity.
Key features
- Qualcomm X65 5G modem
- 5G SA and NSA
- Sub-6 GHz
- 4G LTE fallback
- Global version
- Dual Nano-SIM
- Peplink eSIM
- BYO eSIM
- WiFi 6
- 2x2 MU-MIMO
- 1x 2.5GbE WAN
- 2x Gigabit LAN
- Convertible WAN/LAN port
- 802.3at PoE input
- Integrated GPS
- 8 GB onboard storage
- Edge computing support
- Docker support
- SpeedFusion VPN
- Hot Failover
- WAN Smoothing
- Bandwidth Bonding
- InControl 2 cloud management
- 10-30V DC input
- Ignition sensing
Cellular bands
5G NR SA/NSA Sub-6 GHz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Note: the 5GK version does not support 5G band n70, unlike the 5GN version.
Product specifications
- Product type: industrial 5G/LTE mobile router
- Region: Global
- Cellular modem: Qualcomm X65 5G
- 5G technology: SA and NSA Sub-6 GHz
- SIM: 2x Nano-SIM
- eSIM: Peplink eSIM and BYO eSIM
- Ethernet WAN: 1x 10/100/1000/2500 Mbps
- Ethernet LAN: 2x Gigabit
- WAN/LAN: WAN port configurable as LAN
- PoE input: 802.3at
- Router throughput: up to approx. 1 Gbps
- WiFi: WiFi 6 / IEEE 802.11ax
- WiFi bands: simultaneous 2.4 and 5 GHz
- WiFi technology: 2x2 MU-MIMO
- WiFi modes: Access Point and WiFi WAN

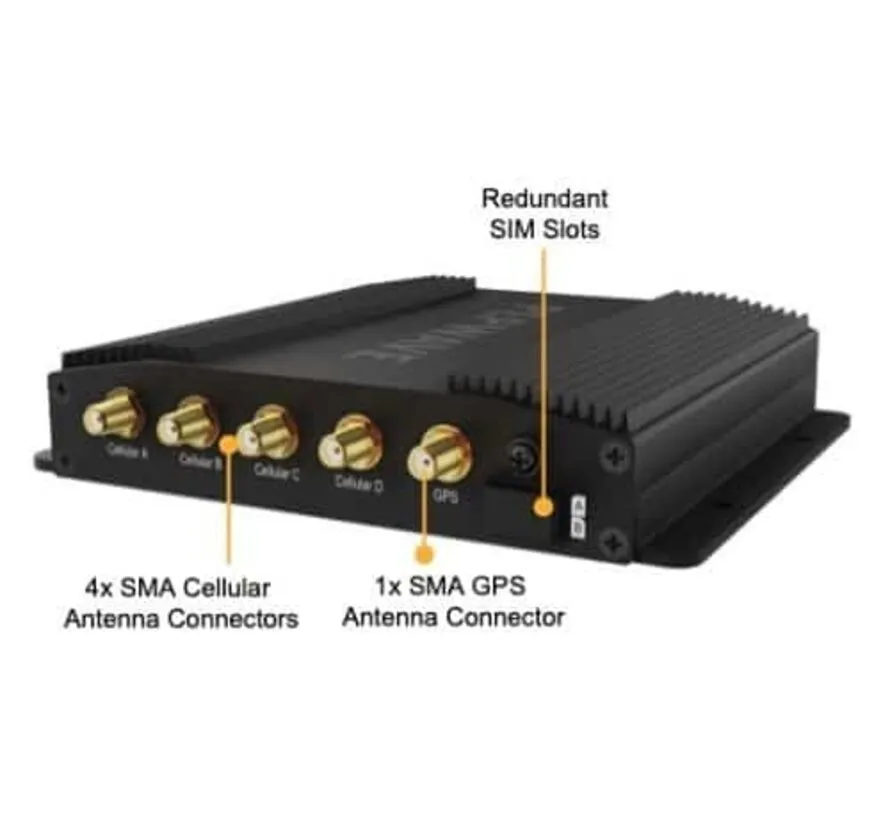

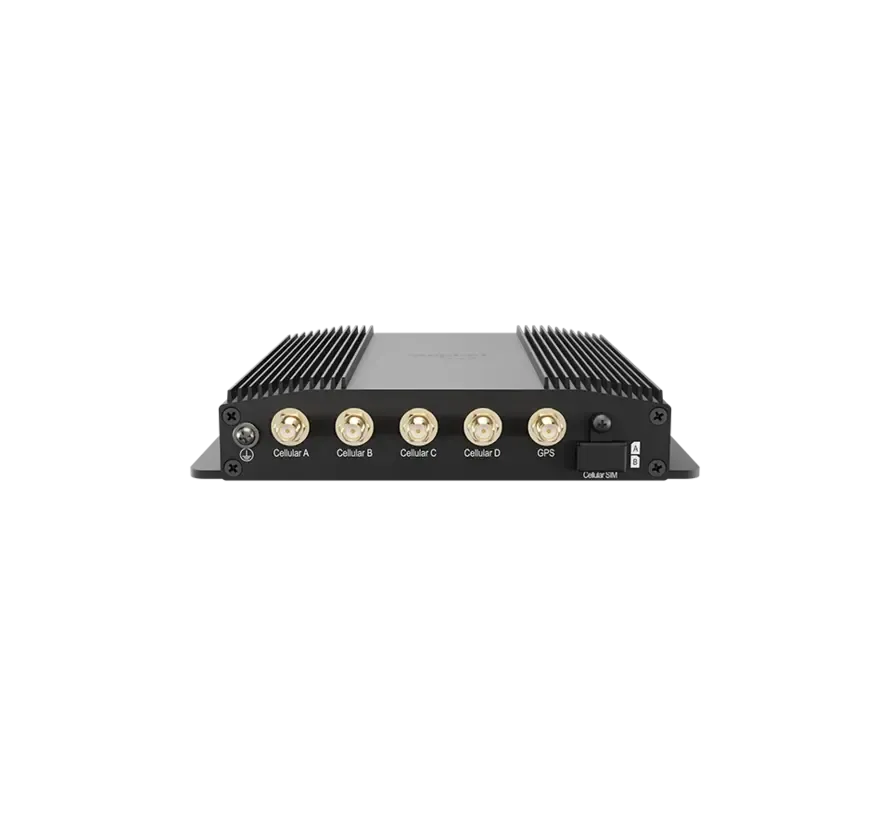

- Cellular antenna connectors: 4x SMA
- WiFi antenna connectors: 2x RP-SMA
- GPS antenna connector: 1x SMA
- GPS: integrated
- Onboard storage: 8 GB
- Edge computing: supported
- Docker: supported
- VPN: SpeedFusion VPN and IPsec
- SpeedFusion without encryption: up to approx. 400 Mbps
- SpeedFusion with 256-bit AES: up to approx. 200 Mbps
- Cloud management: InControl 2
- Power input: 10-30V DC
- PoE power input: 802.3at
- Supplied adapter: 100-240V AC to 12V DC / 2A
- Nominal power consumption: approx. 8 W
- Maximum power consumption: approx. 19 W
- Ignition sensing: yes
- Dimensions: approx. 146.8 x 144.3 x 29.3 mm
- Weight: approx. 720 g
- Operating temperature: -40°C to +65°C
- Humidity: 15-95%, non-condensing
- Certifications: CE, FCC, RoHS and E-Mark
- Industrial standards: EN 61373, EN 50155, EN 61000, EN 45545-2 and MIL-STD-810H Method 514.8
- Country of origin: Taiwan
- Application: vehicles, marine, public transport, emergency services, industrial networks and remote sites
- Included: router, 12V/2A power supply, 4x LTE/5G antennas, 2x dual-band WiFi antennas and 1x GPS antenna
- Not included: SIM card, mobile data subscription, external roof/marine antenna or vehicle power cable
- Compatibility advice: check carrier, frequency bands, SIM/eSIM configuration, power supply and antenna installation before ordering
