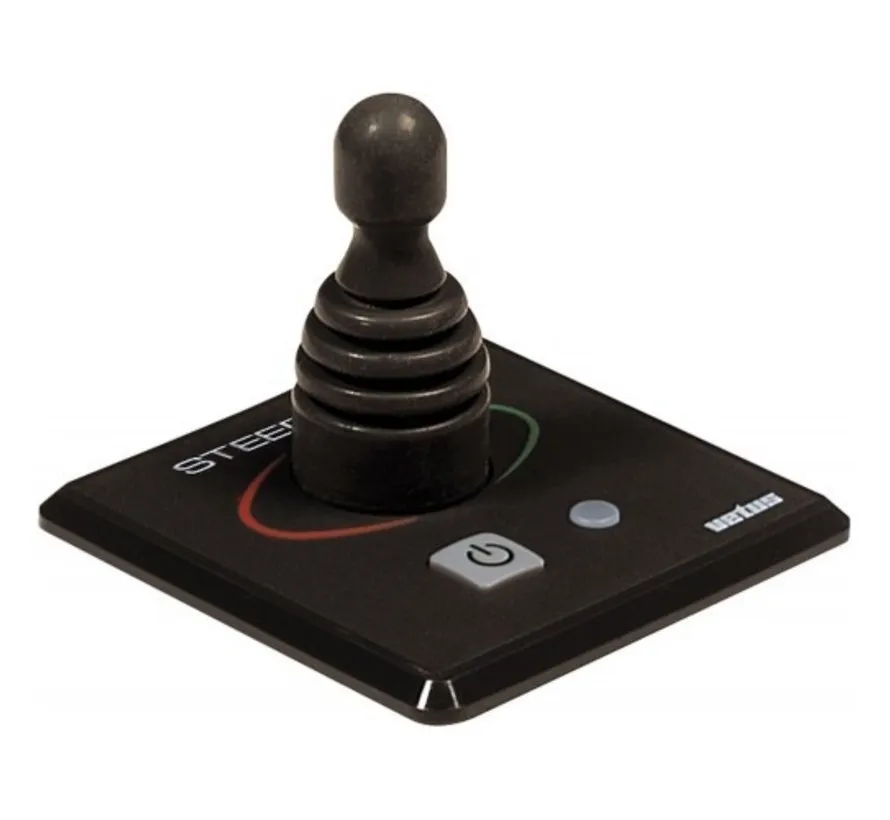

The Vetus EHPJSTA is a joystick control panel for 12V and 24V electro-hydraulic steering systems. This style of control is widely used as an alternative to a traditional steering wheel, especially on inland waterway vessels and other craft where direct course correction is preferred. The panel is mounted in the dashboard, and product information states that at least 50 mm of free space is required behind it. Connection is made by cable between the panel and the EHP unit.
Specifications:
- joystick control panel
- suitable for electro-hydraulic steering
- suitable for 12V and 24V systems
- dashboard mounting
- minimum clearance behind panel: 50 mm
- cable connection between panel and EHP unit
- can be used as an alternative to wheel steering
- product code: EHPJSTA
