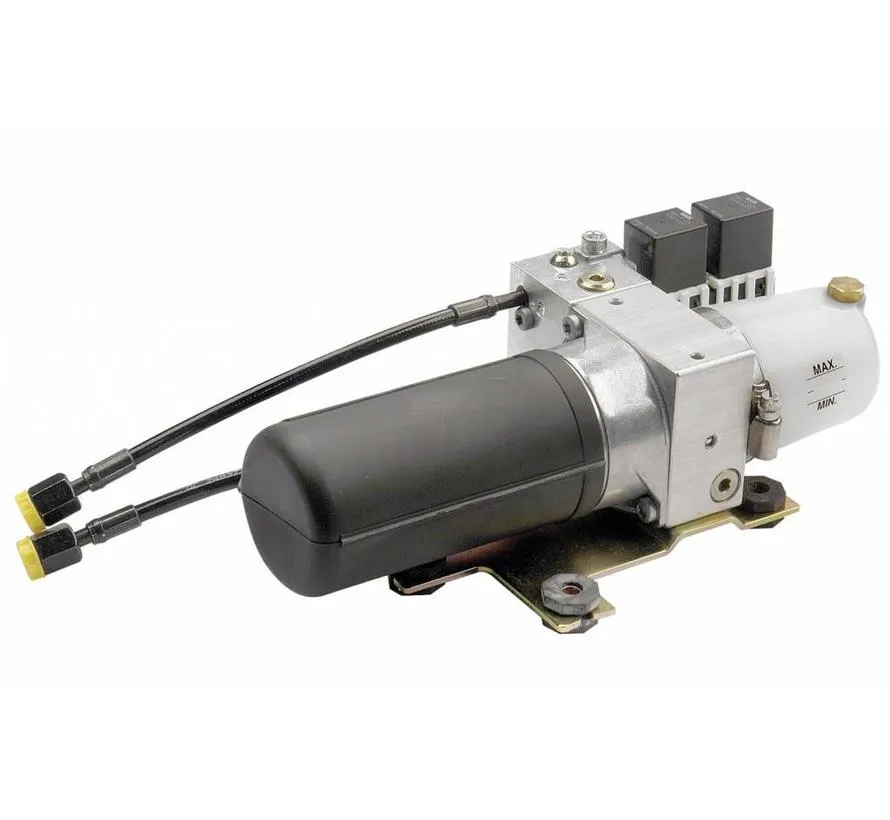

The Vetus EHPA24R2 is a 24V electro-hydraulic pump with type A output. It is intended for light-duty pleasure craft and combines a compact design with integrated valves and protective features. This makes it suitable for applications where dependable hydraulic drive or steering assistance is required.
Specifications:
- electro-hydraulic pump
- supply voltage: 24V
- type: A
- capacity: 350 cm³/min
- integrated non-return valves
- by-pass valve
- maximum working pressure: 40 bar
- reservoir capacity: 0.2 litres
- current draw: approx. 4.0 to 6.0 A

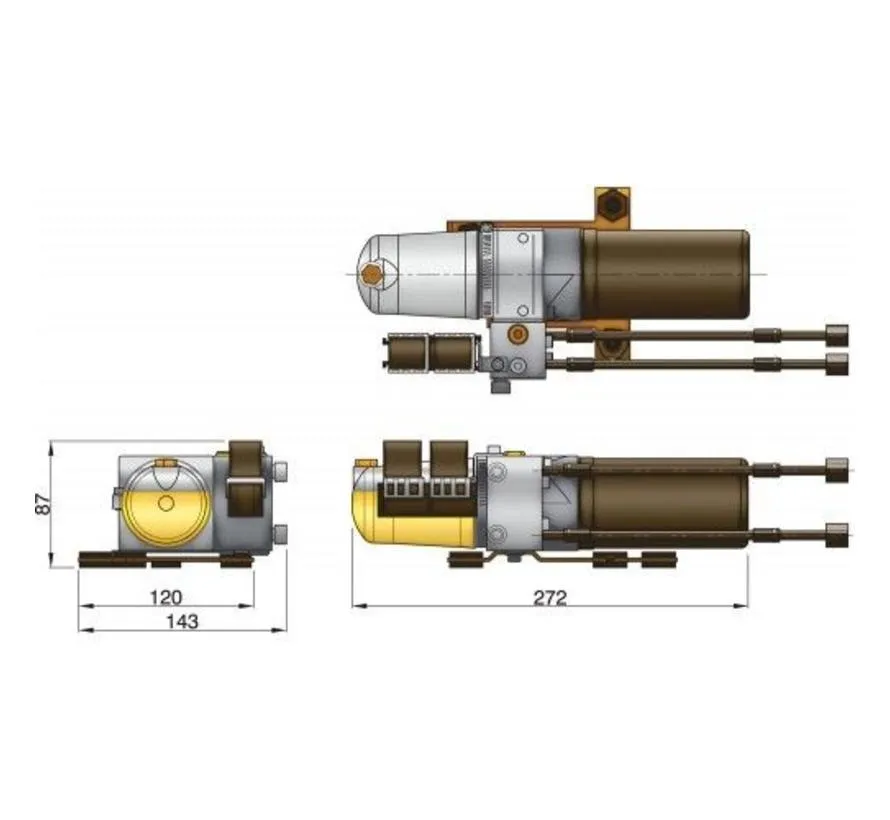

- dimensions: 272 x 143 x 87 mm
- supplied with 6 mm connections as standard
- suitable for light-duty pleasure craft
