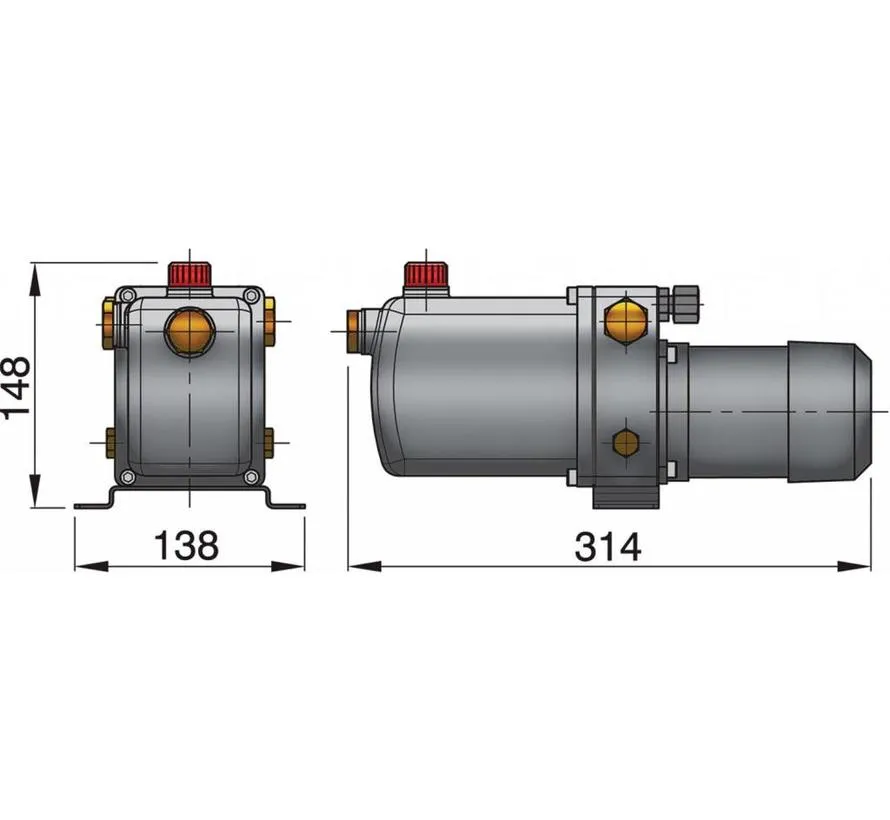

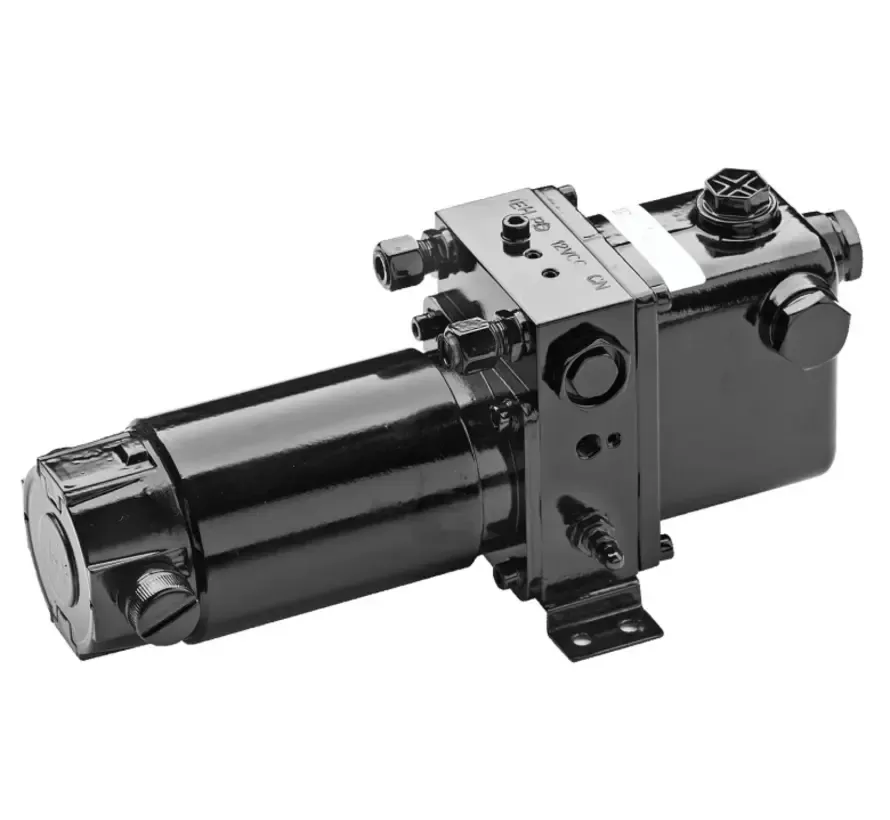

The Vetus EHPD12R is an electro-hydraulic pump for 12V installations where a higher oil flow is required. This type D version uses a gear pump design and is fitted with integrated non-return valves. It is intended for light-duty pleasure craft and is supplied without a by-pass valve. Standard 10 mm pipe fittings are used for this series. Some sources list 1400 cm³/min while some dealers mention 1450 cm³/min; here I’ve used the official Vetus product designation of 1400 cm³/min.
Specifications:
- electro-hydraulic pump
- supply voltage: 12V
- type: D
- capacity: 1400 cm³/min
- gear pump
- integrated non-return valves
- without by-pass valve
- supplied with 10 mm connections as standard
- suitable for light-duty pleasure craft
- working pressure / relief setting: 70 bar
- reservoir capacity: 0.95 litres
- current draw: approx. 16 A
