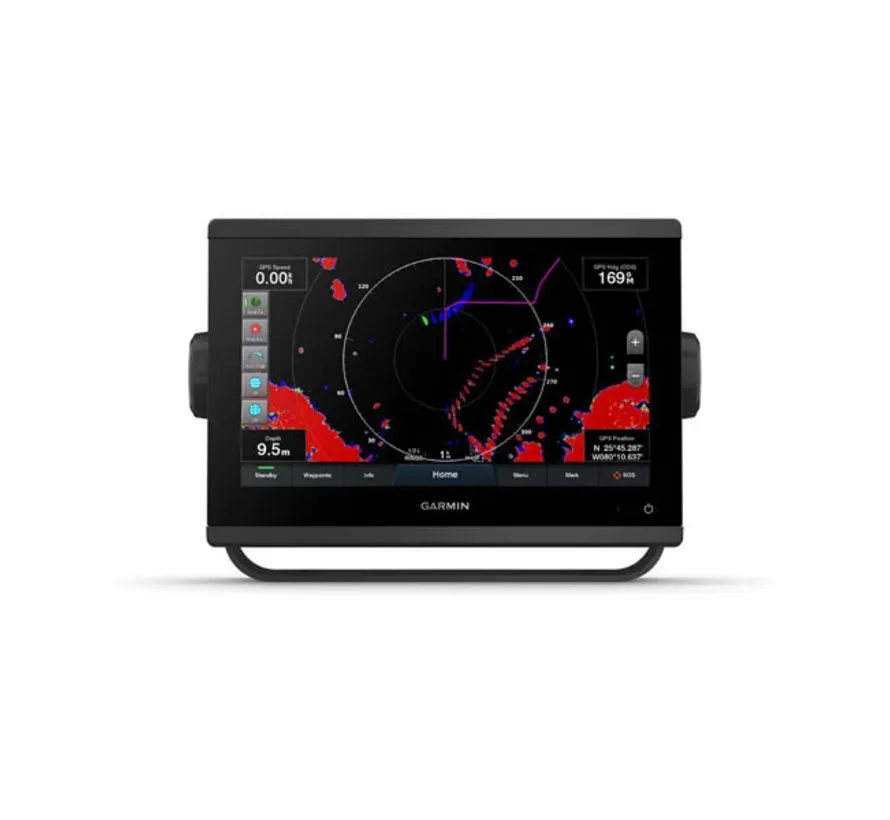

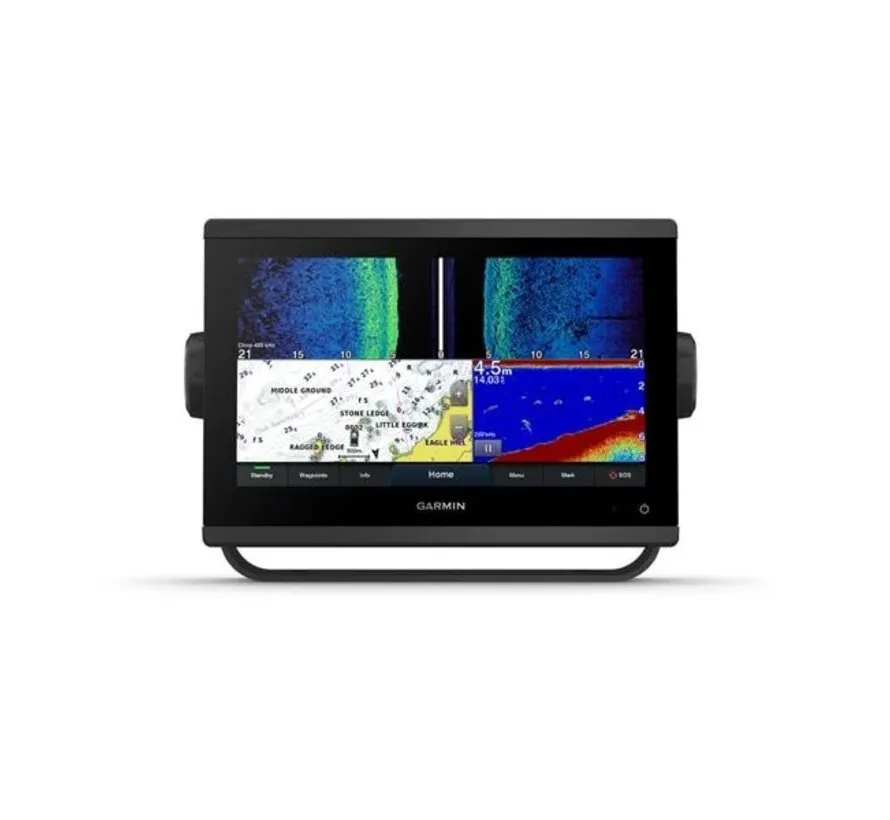

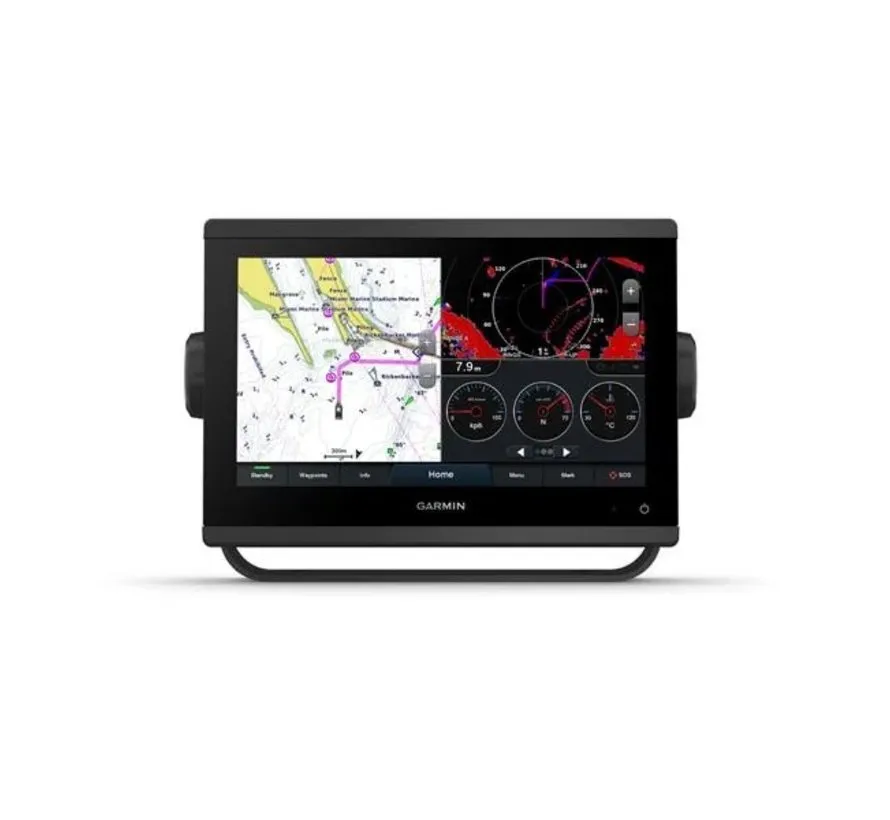

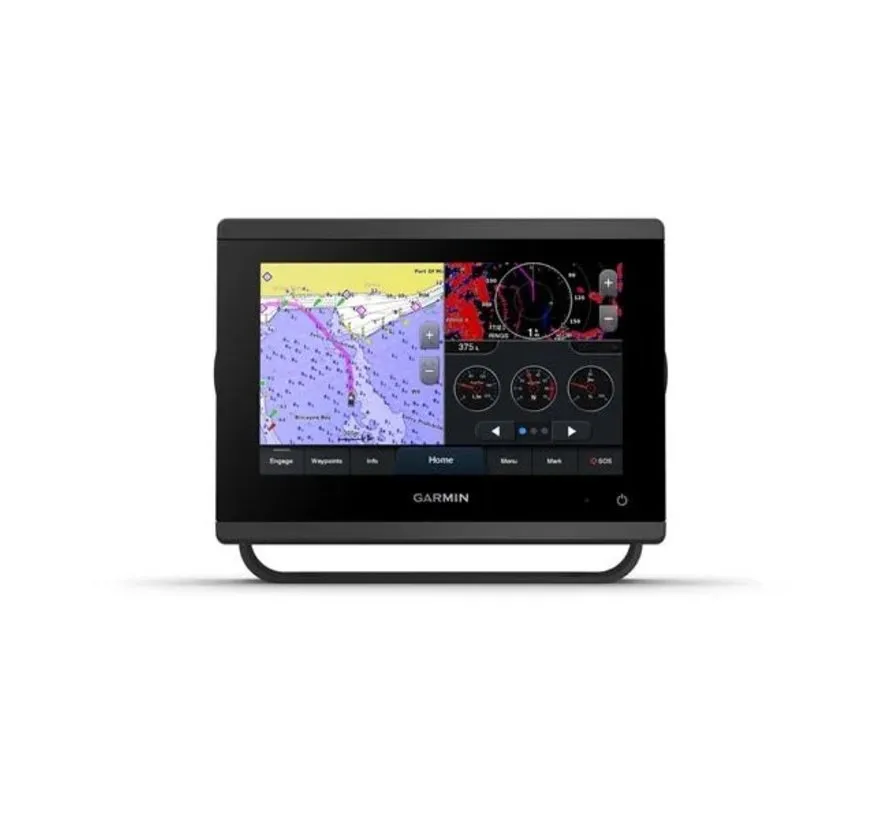

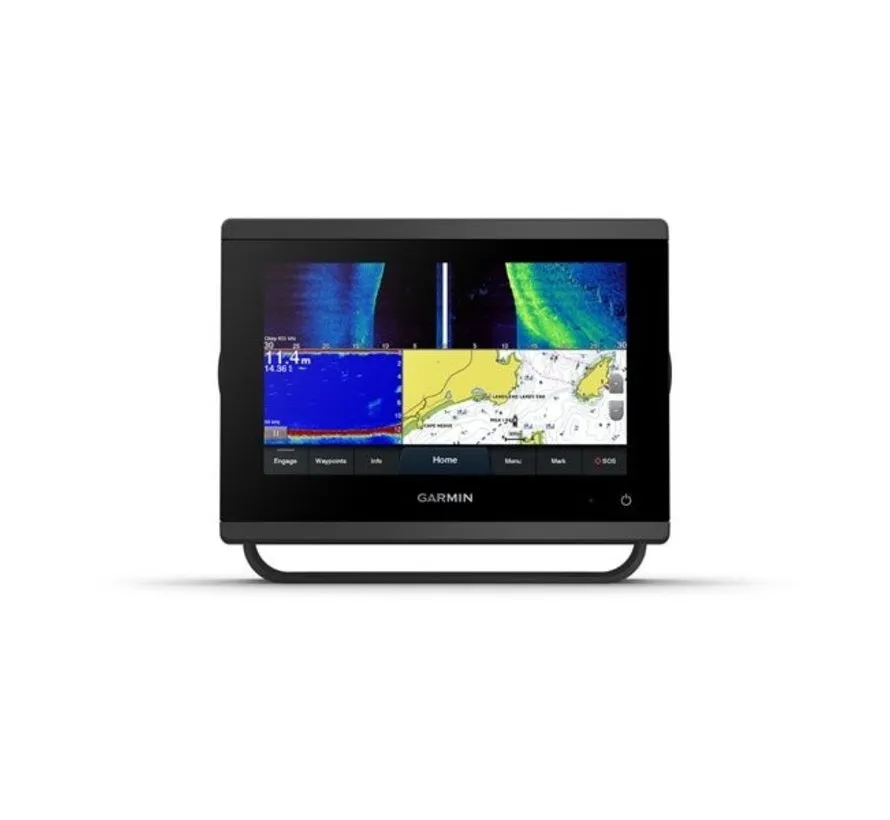

The Garmin GPSMAP 923xsv is a 9-inch multifunction chartplotter with built-in traditional CHIRP, ClearVü and SideVü sonar and extensive marine networking capabilities.
Variants:
010-02366-02:
- GPSMAP 923xsv
- Worldwide basemap
- Traditional CHIRP
- ClearVü
- SideVü
- Radar not included
- Transducer not included
- EAN: 0753759250546
010-02366-52:
- GPSMAP 923xsv
- Worldwide basemap
- GMR 18 HD3 radome included
- 15 m radar power cable
- 15 m network cable
- Transducer not included
- EAN: 0753759326005.
Main specifications:
- 9-inch IPS touchscreen
- 1280 × 720 resolution
- Integrated GPS/GNSS
- Traditional CHIRP sonar
- ClearVü
- SideVü
- Up to 1 kW sonar output
- NMEA 2000
- NMEA 0183
- Garmin Marine Network
- J1939
- Wi-Fi

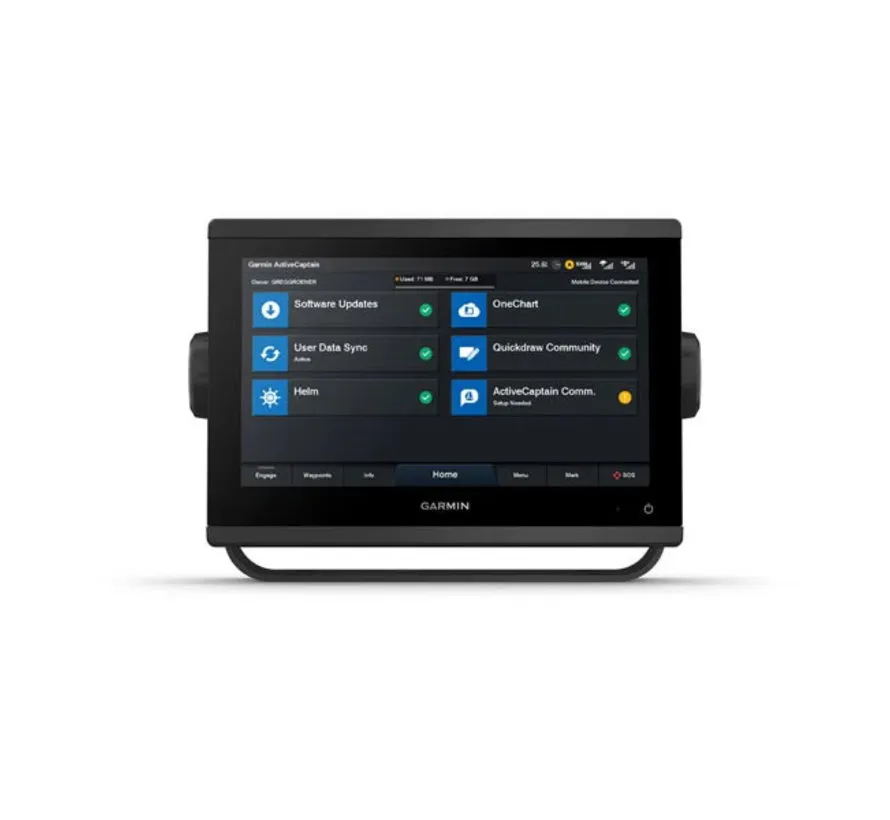

- ActiveCaptain
- 2 × microSD
- 10–32 V DC supply
- IPX7
- Dimensions: approx. 23.3 × 16.2 × 7.6 cm
- Weight: approx. 1.6 kg.

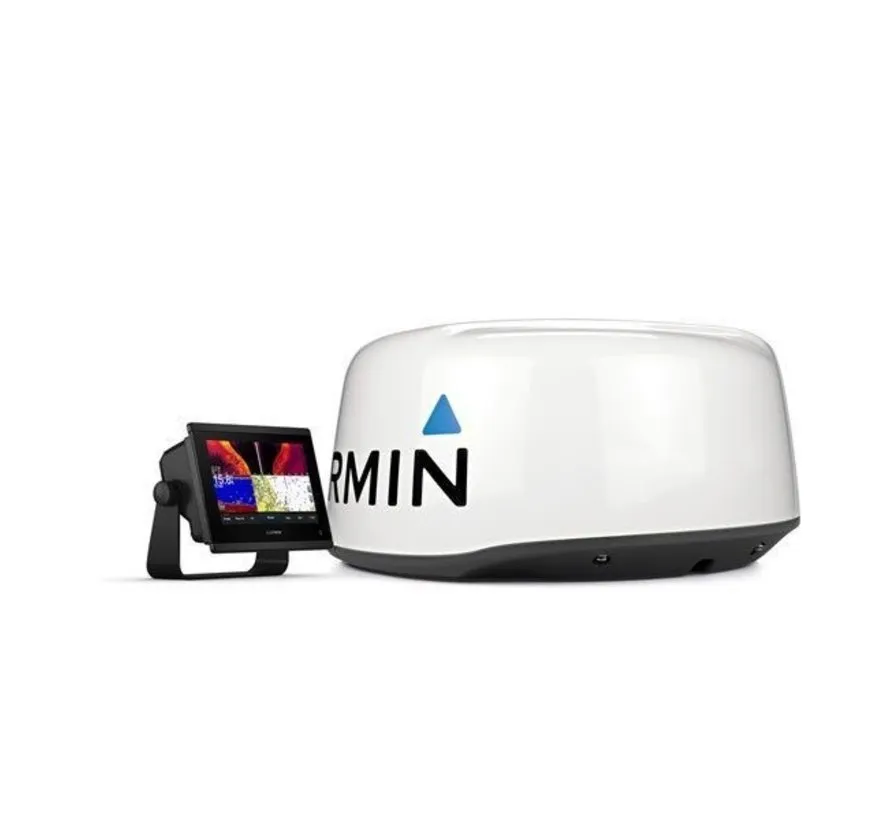

GMR 18 HD3 radar included with 010-02366-52:
- 18-inch enclosed radome
- 4 kW peak transmit power
- Maximum range up to approx. 36 nautical miles
- Minimum range approx. 20 m

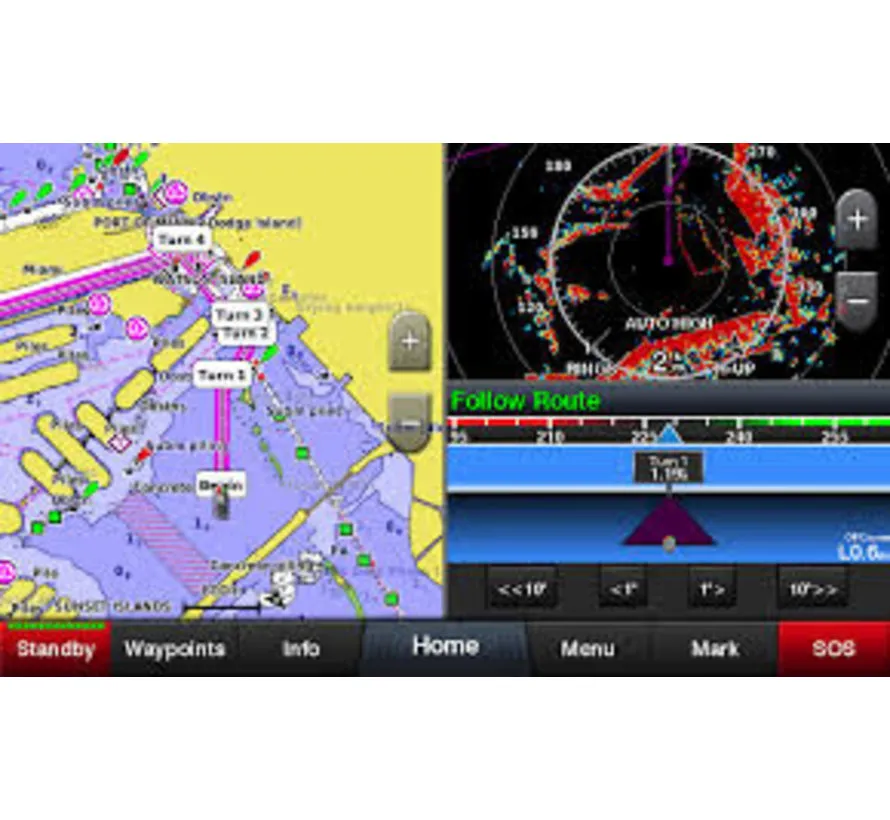

- Chart radar overlay
- Dynamic Auto Gain
- Automatic sea-clutter adjustment
- MARPA tracking with suitable heading data
- Garmin Marine Network connection.
Included with 010-02366-52 in addition to the standard chartplotter package:
- GMR 18 HD3 radome
- Radar mounting hardware
- 15 m power cable
- 15 m network cable
- Installation instructions.
