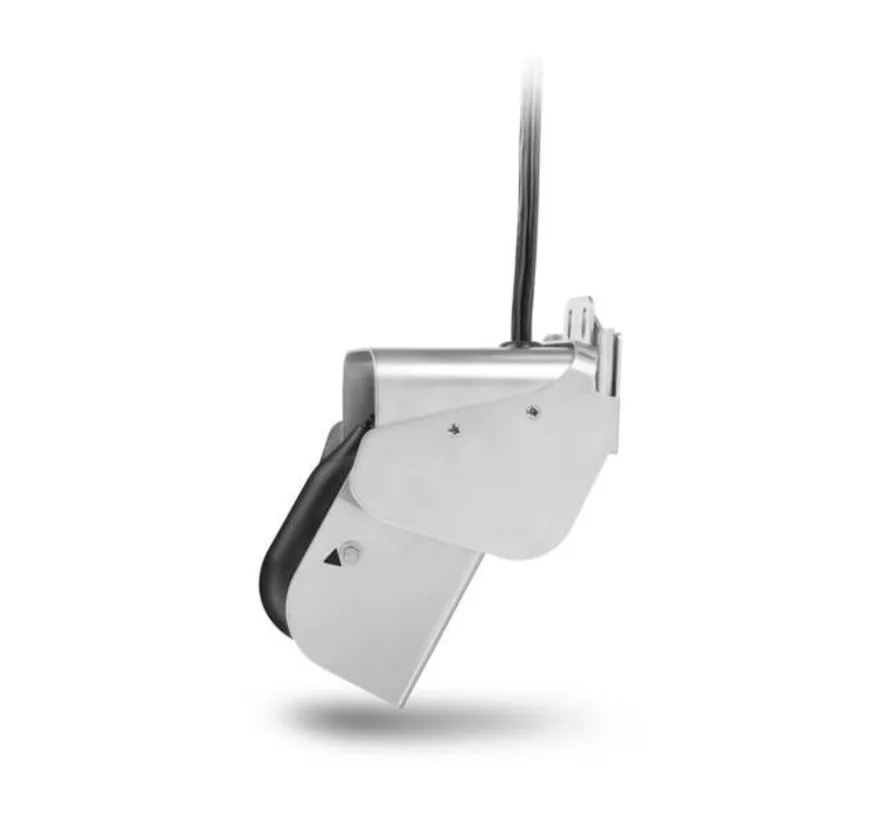

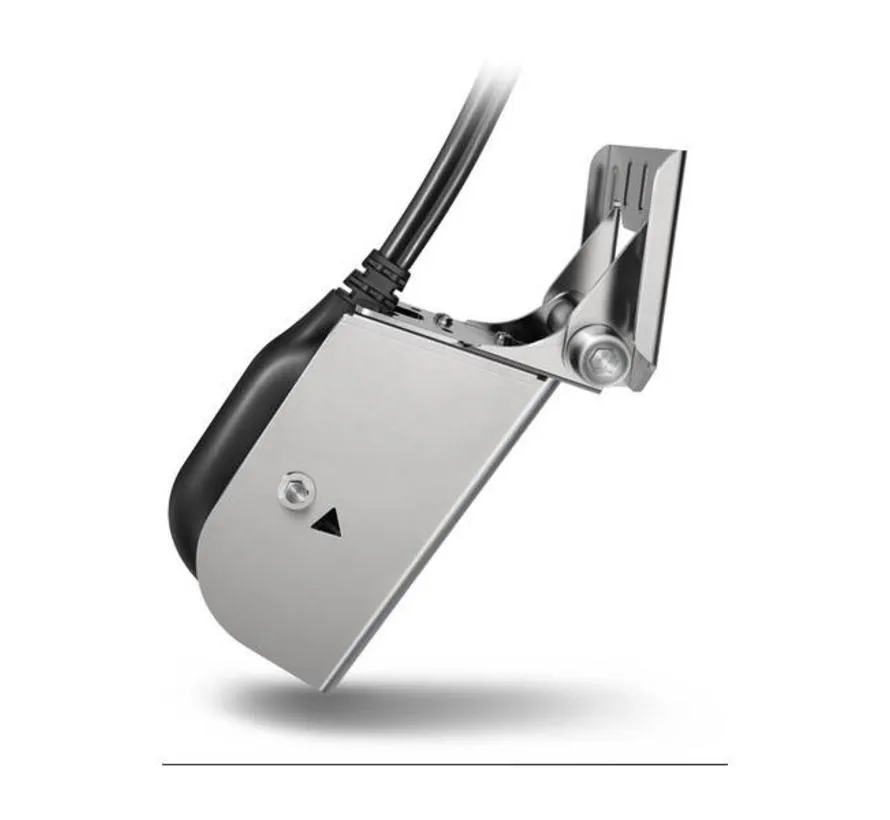

The Garmin Panoptix PS21-TM is a forward-looking transom-mount sonar transducer. LiveVü Forward provides real-time views of fish, lures and structure ahead and below the boat, while FrontVü is designed to show bottom contours and obstacles ahead.
Specifications:
- Brand: Garmin
- Model: Panoptix PS21-TM
- Part number: 010-01588-01
- Type: forward-looking sonar transducer
- Mounting: transom mount
- Frequency: 417 kHz
- Power: 144 W according to Garmin's current transducer selection guide
- Beam width: approx. 90° × 20°
- Maximum range/depth: approx. 300 ft / 91 m
- LiveVü Forward: yes
- FrontVü: yes
- Depth: yes
- Water temperature: yes
- Connection: Garmin Marine Network / Ethernet
- Supported transom angle: 0–70°.
Physical specifications:
- Dimensions: approx. 32 × 118 × 84 mm
- Transducer weight: approx. 0.39 kg
- Total weight including mount and cables: approx. 2.64 kg
- Maximum power consumption: approx. 8 W
- Installation supply: 10–35 V DC.
Included:
- Garmin Panoptix PS21-TM
- Transom mounting kit
- Mounting hardware
- Documentation.
FrontVü helpt u aanvaringen te voorkomen door obstructies te tonen with a voorwaarts range from 91 meter.¹
