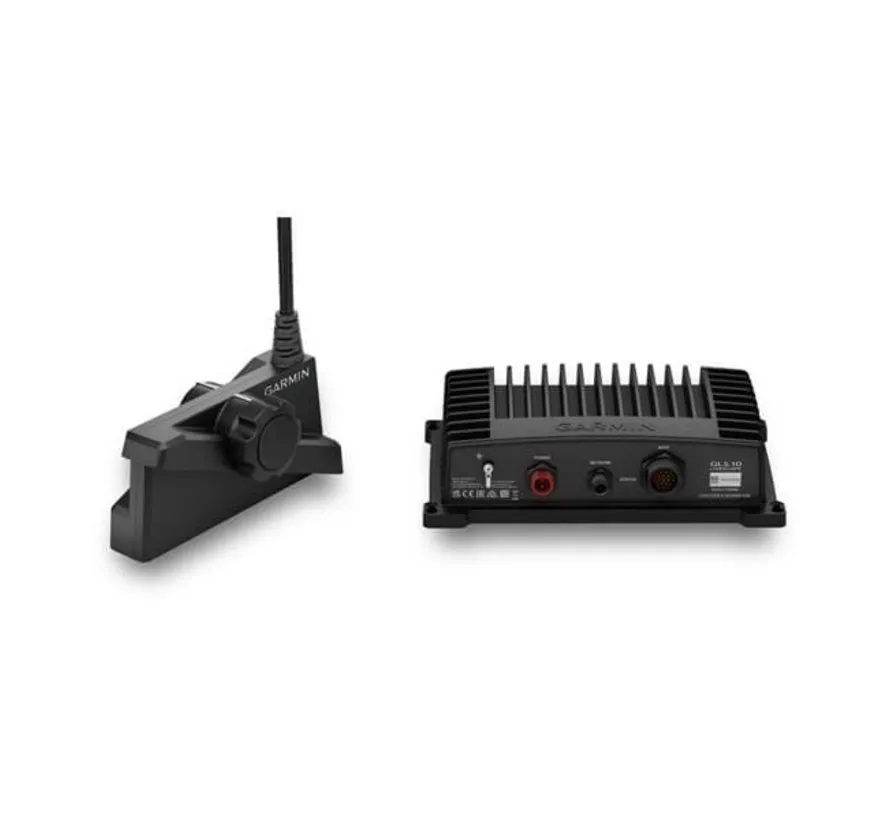

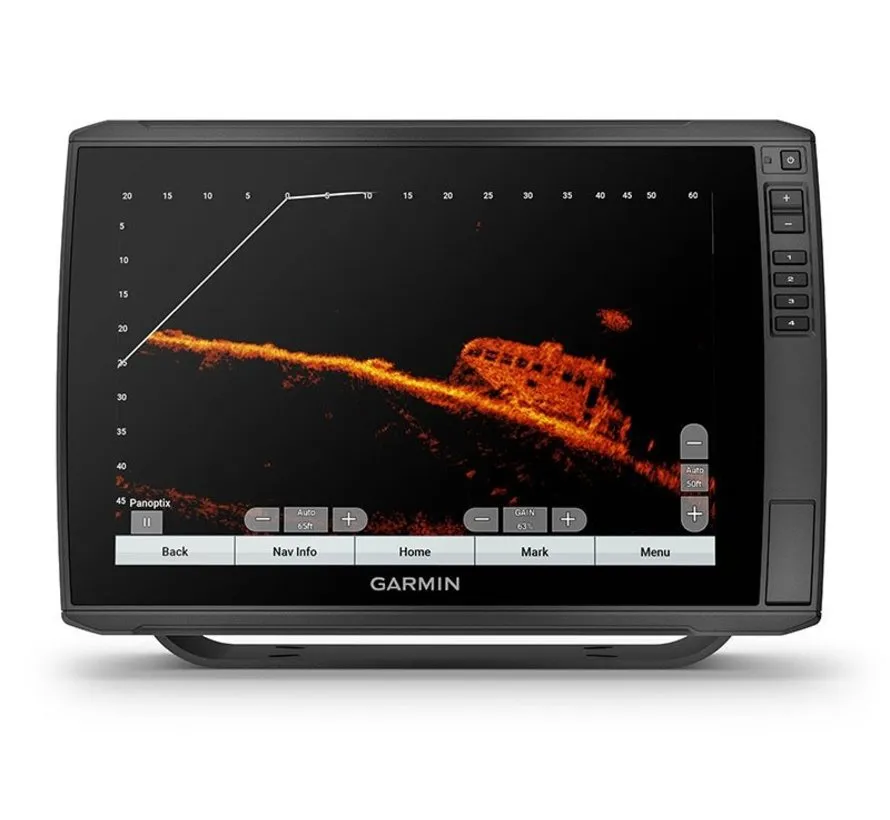

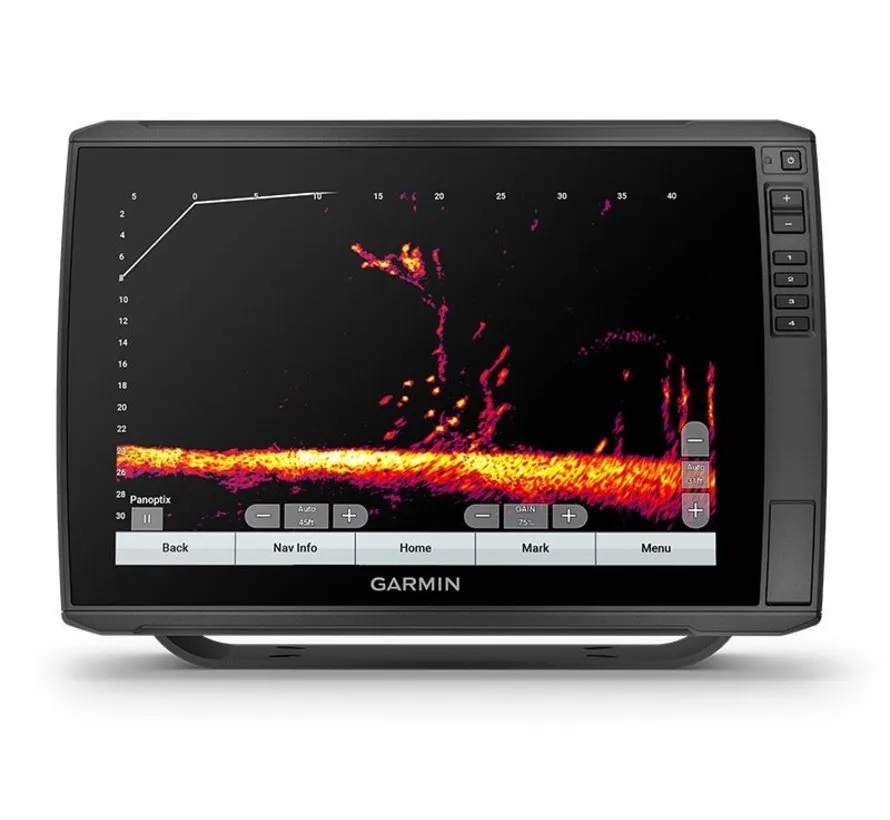

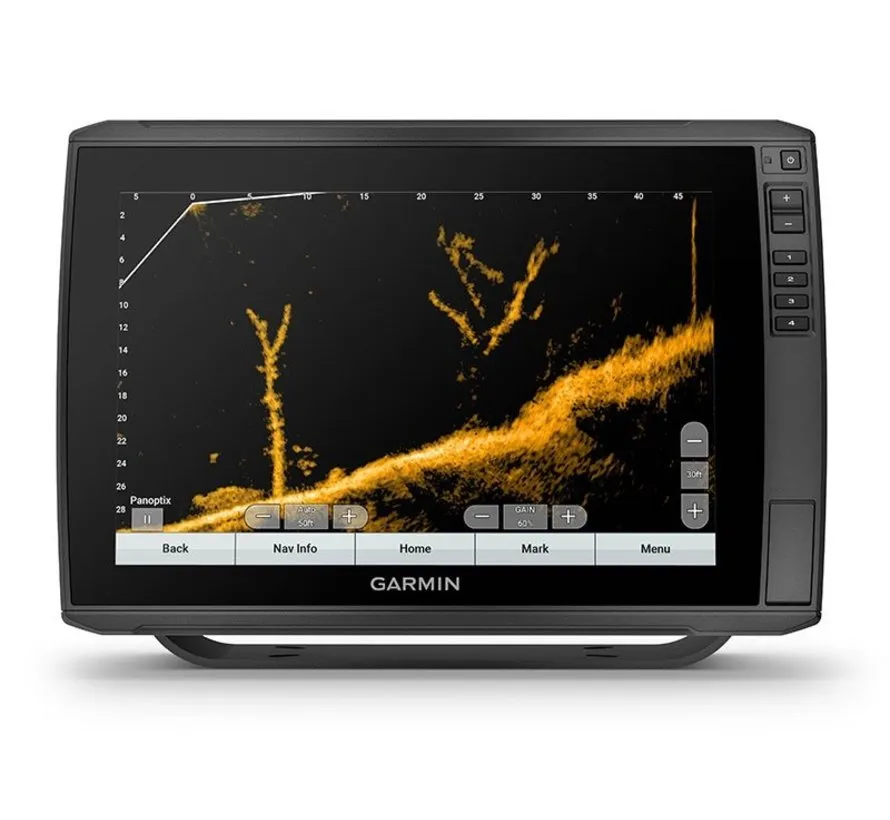

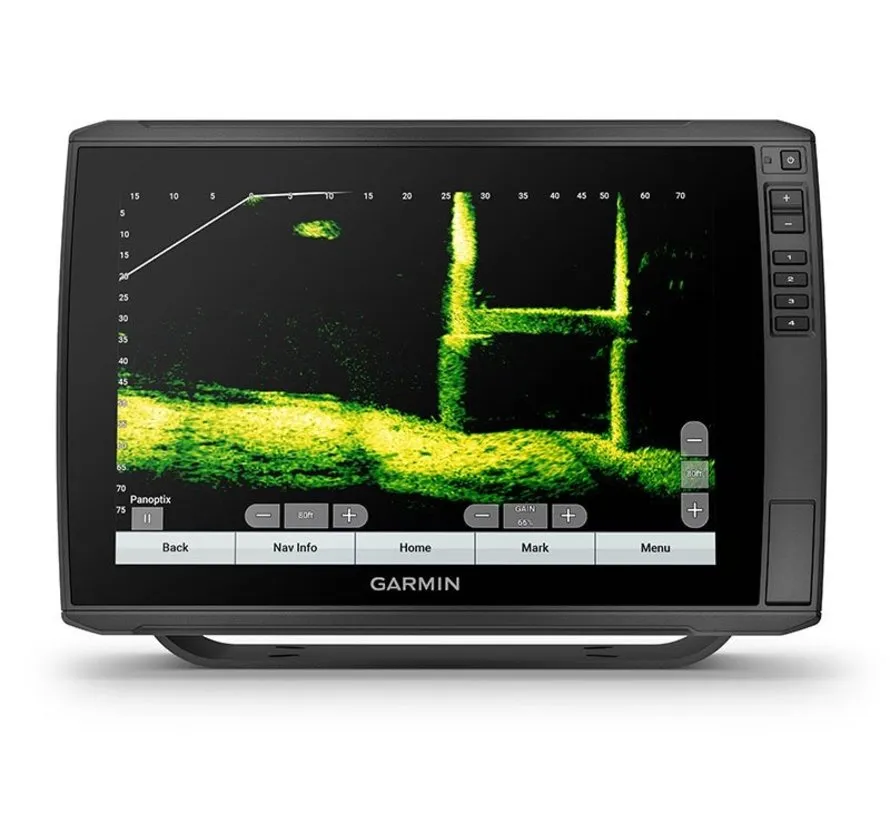

The Garmin LiveScope Plus System 010-02706-00 is the complete package with the GLS 10 sonar module and LVS34 LiveScope Plus transducer. It provides real-time views of fish, bait and underwater structure on compatible Garmin chartplotters.
Product specifications:
- Brand: Garmin
- Product: LiveScope Plus System
- Part number: 010-02706-00
- EAN: 0753759298456
- GLS 10 sonar module: included
- LVS34 transducer: included
- Forward Mode: yes
- Down Mode: yes
- Perspective Mode: yes
- AHRS image stabilization: yes
- Frequency: approx. 530–1100 kHz
- Transmit power: 500 W
- Maximum Forward/Down range: approx. 61 m / 200 ft

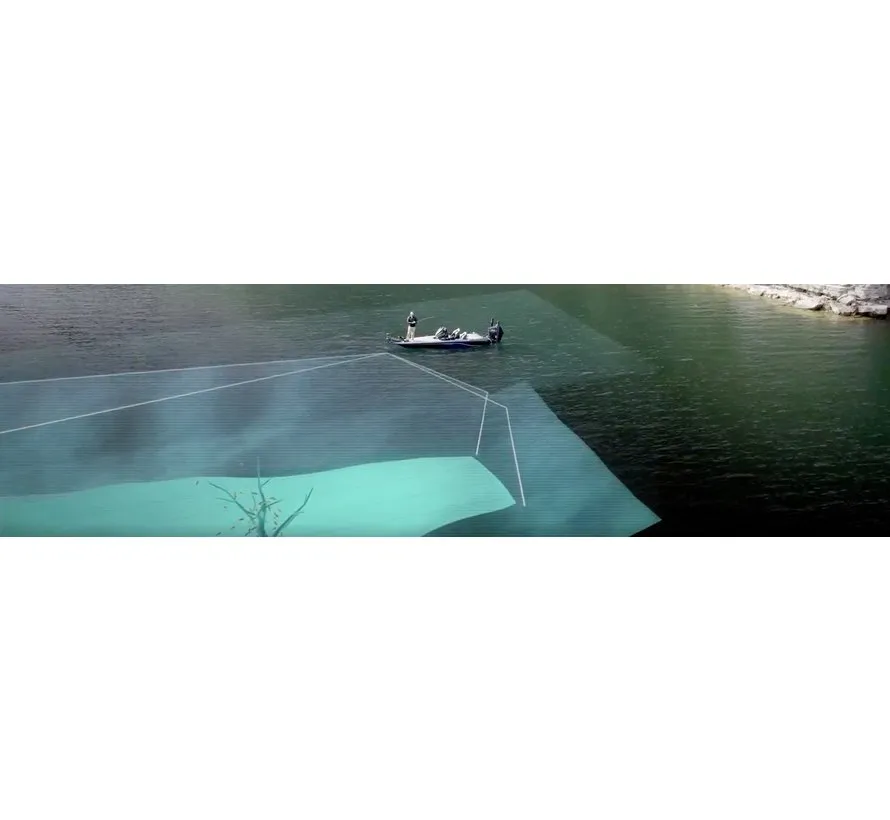

- Beam width: approx. 20° × 135°
- Power input: 10–32 V DC
- Typical power use: approx. 21 W
- Maximum power use: approx. 58 W
- Recommended fuse: 7.5 A
- Garmin Marine Network: yes
- Water rating: IPX7
- Transducer cable: approx. 6.1 m.
Included:
- GLS 10 sonar module

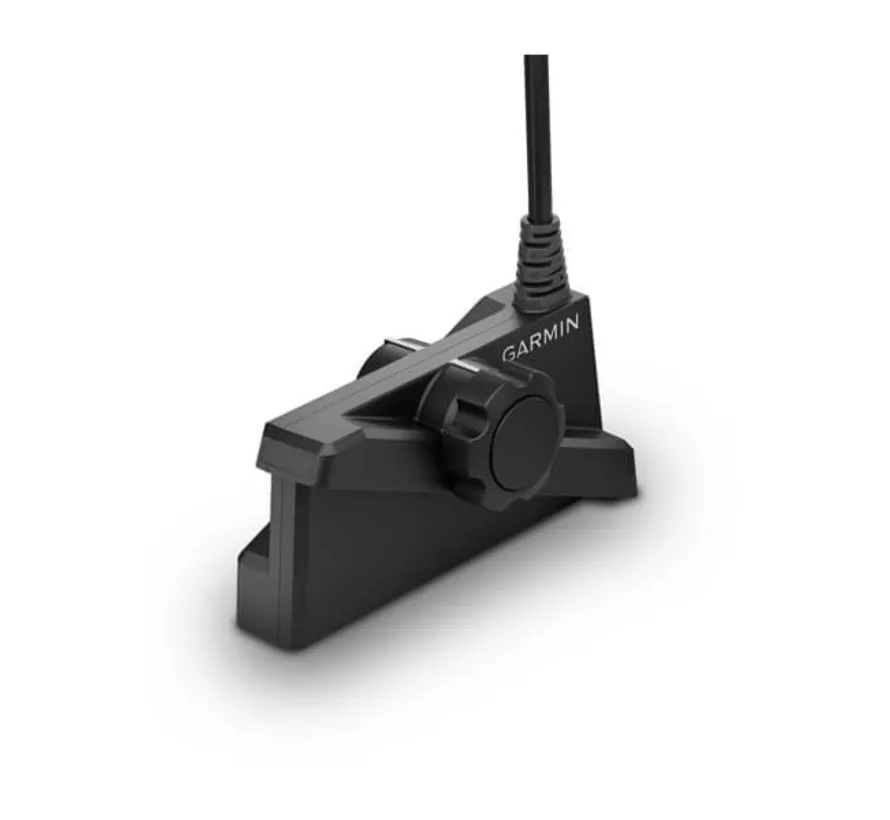

- LVS34 transducer

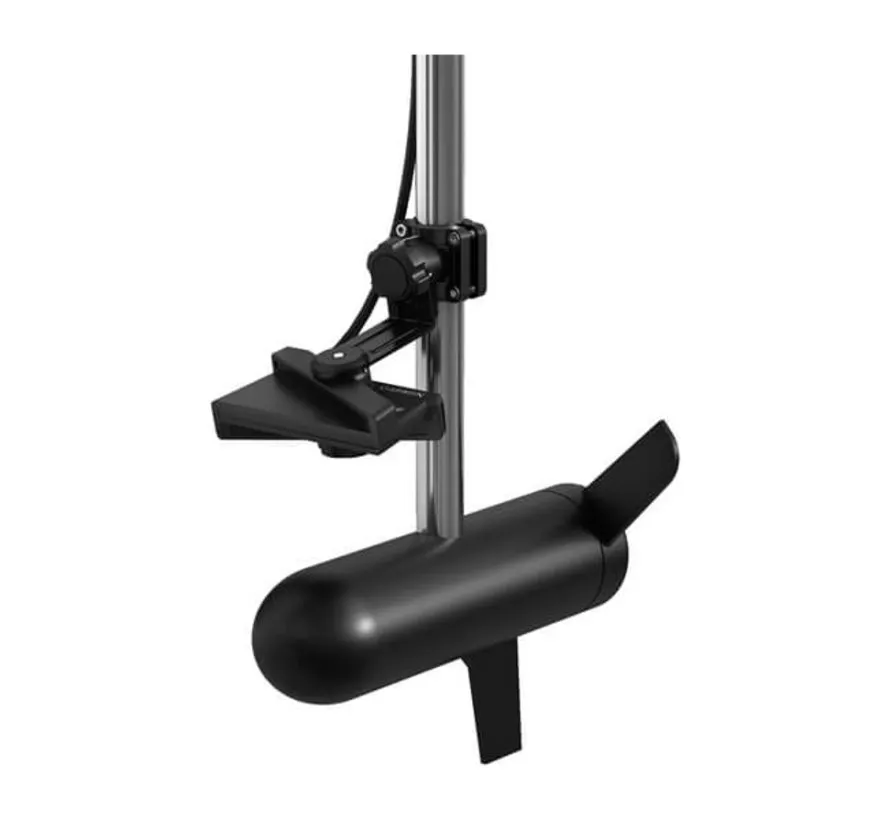

- Perspective Mode Mount

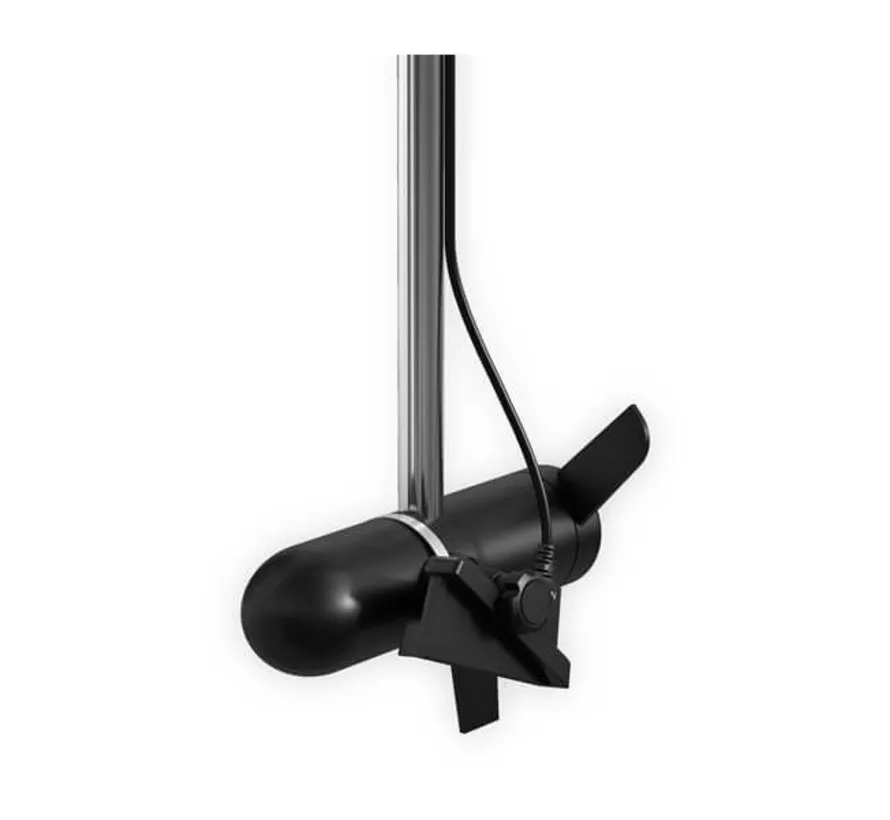

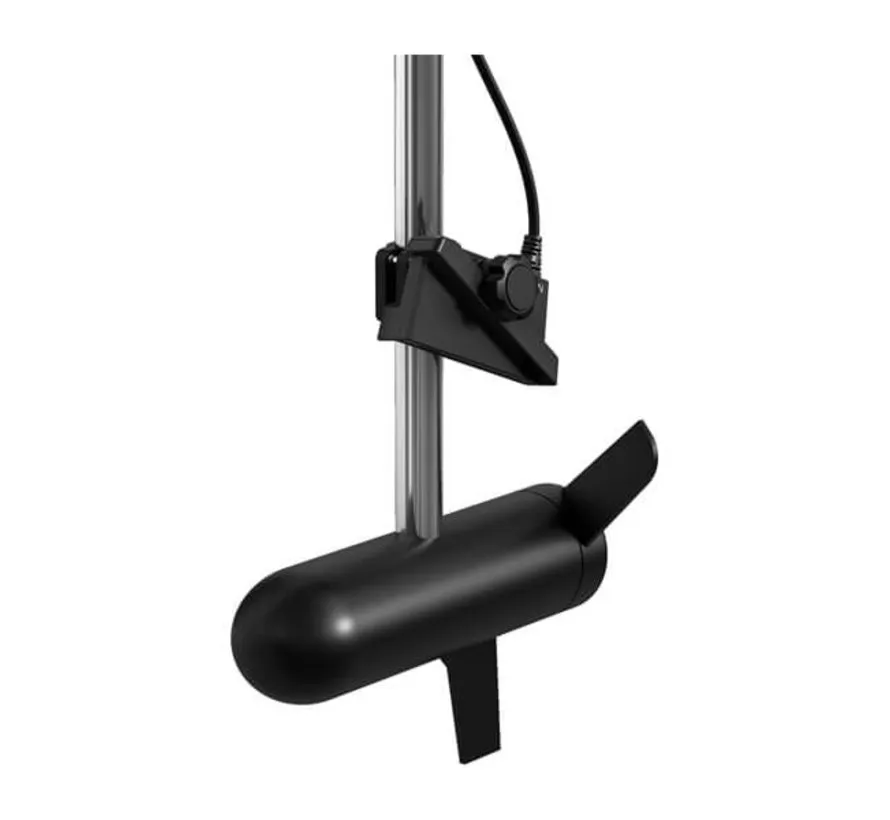

- Trolling motor shaft mount
- Trolling motor barrel mount
- Power cable
- Garmin Marine Network cable
- Mounting hardware
- Documentation.
Important:
- This is the complete LiveScope Plus system.
- Garmin 010-02706-10 is the LVS34 transducer only.
- A compatible Garmin chartplotter/display is required and not included.
