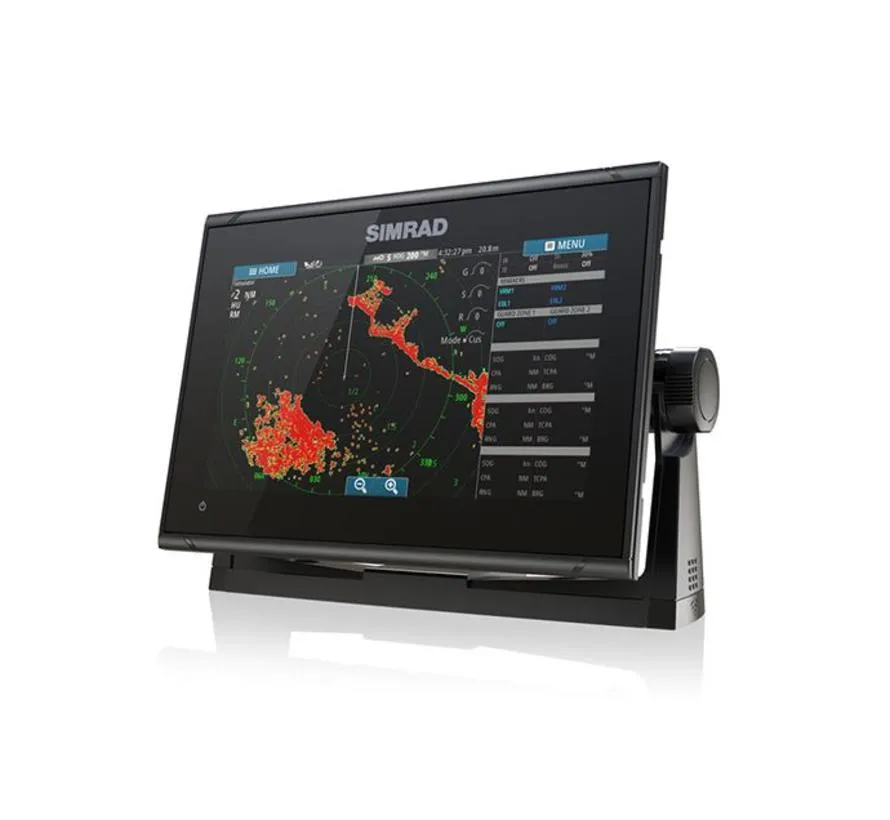

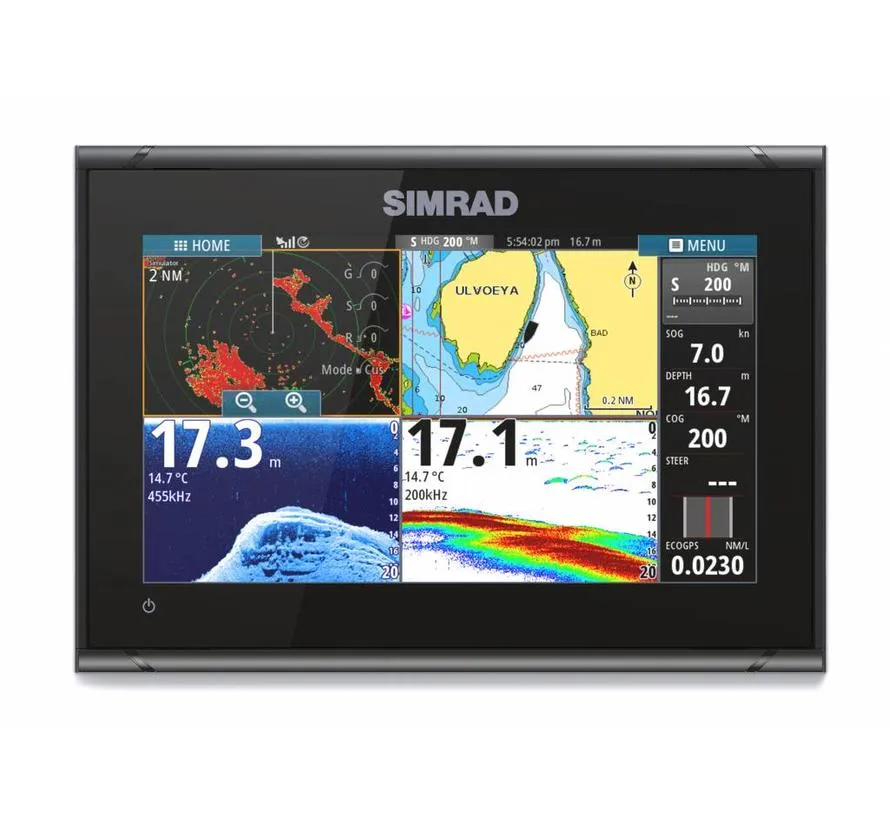

The Simrad GO9 XSE is a 9-inch multifunction chartplotter and fishfinder for sport boats, centre consoles and smaller cruisers. This 000-14445-001 package includes the Med/High HDI transducer for traditional CHIRP sonar and DownScan Imaging.
Product specifications:
- Brand: Simrad
- Model: GO9 XSE
- Part number: 000-14445-001
- EAN: 9420024172131
- Display: 9 inch
- Resolution: 800 × 480 pixels
- Brightness: approx. 1200 nits
- Touchscreen: yes
- GPS: integrated 10 Hz
- Med/High HDI transducer: included
- CHIRP sonar: yes
- DownScan Imaging: yes
- FishReveal: supported
- NMEA 2000: yes
- NMEA 0183: no
- Wi-Fi: yes
- Bluetooth: yes
- Ethernet: no

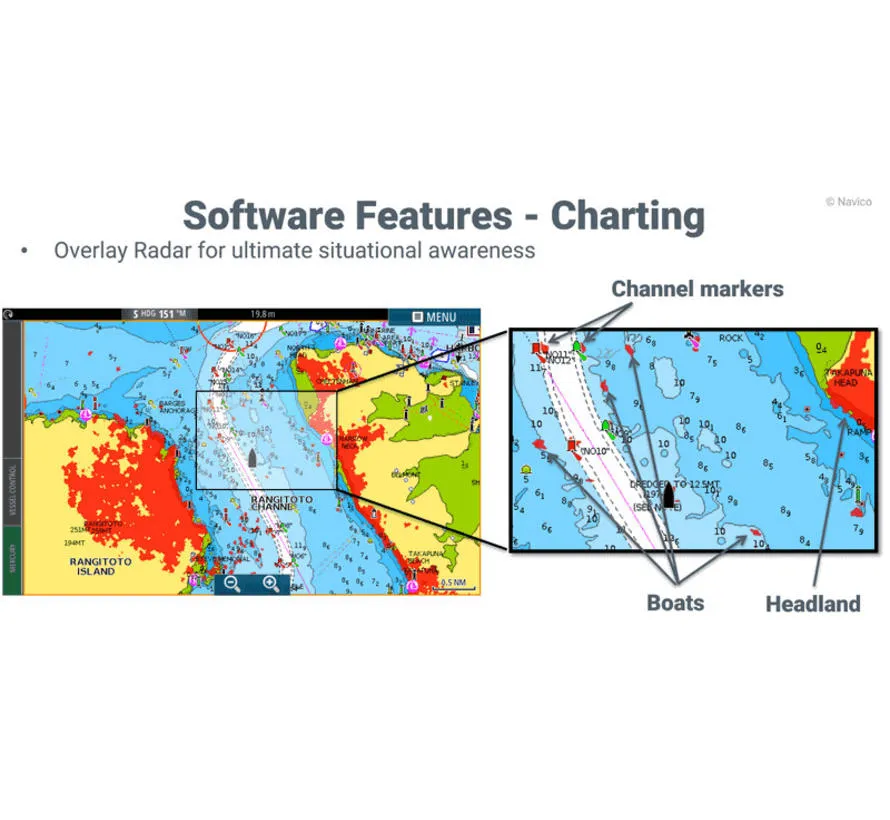

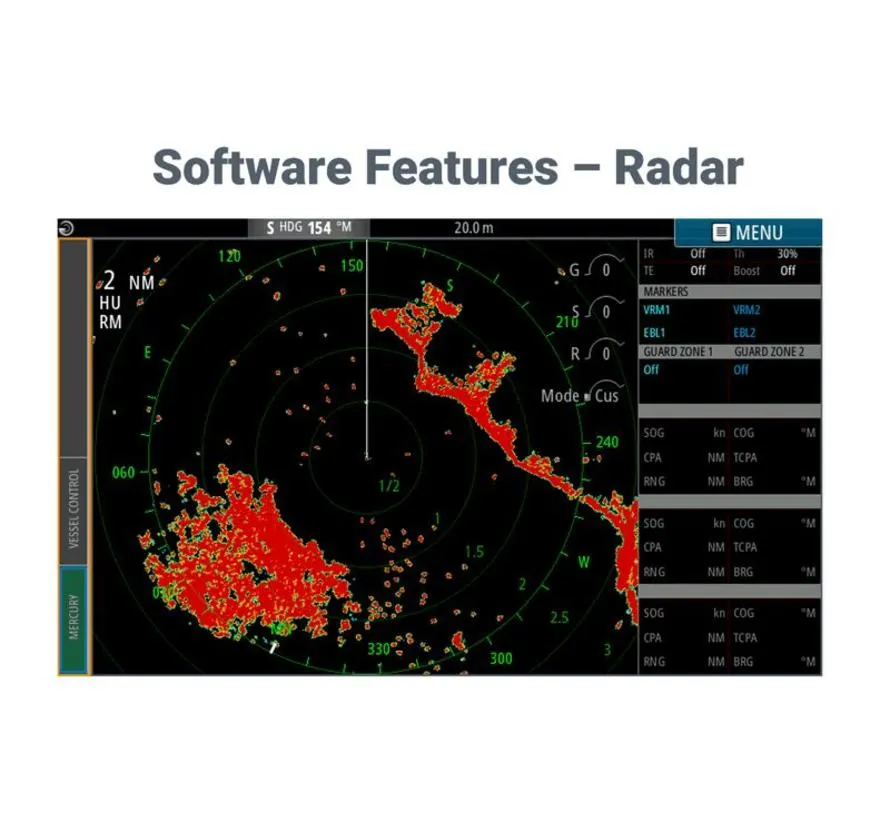

- Radar support: yes
- Smartphone/tablet mirroring: yes
- microSD slots: 2
- CZone support: yes.

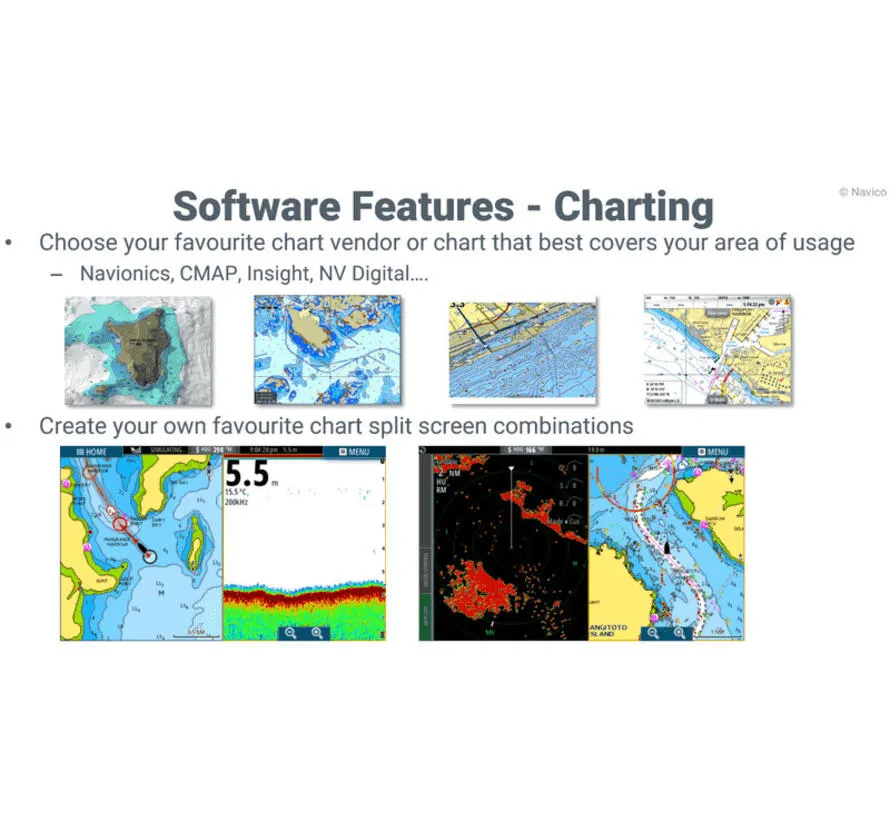

Chart support:
- C-MAP DISCOVER
- C-MAP REVEAL
- Navionics+
- Navionics Platinum+.
Physical and electrical:
- Dimensions: approx. 243 × 171 × 83 mm
- Weight: approx. 1.3 kg
- Supply: approx. 10–17 V DC
- Maximum power consumption: approx. 20 W
- Water rating: IPX6 / IPX7.
Important:
- This is the HDI transducer package, not the Active Imaging 3-in-1 package.
