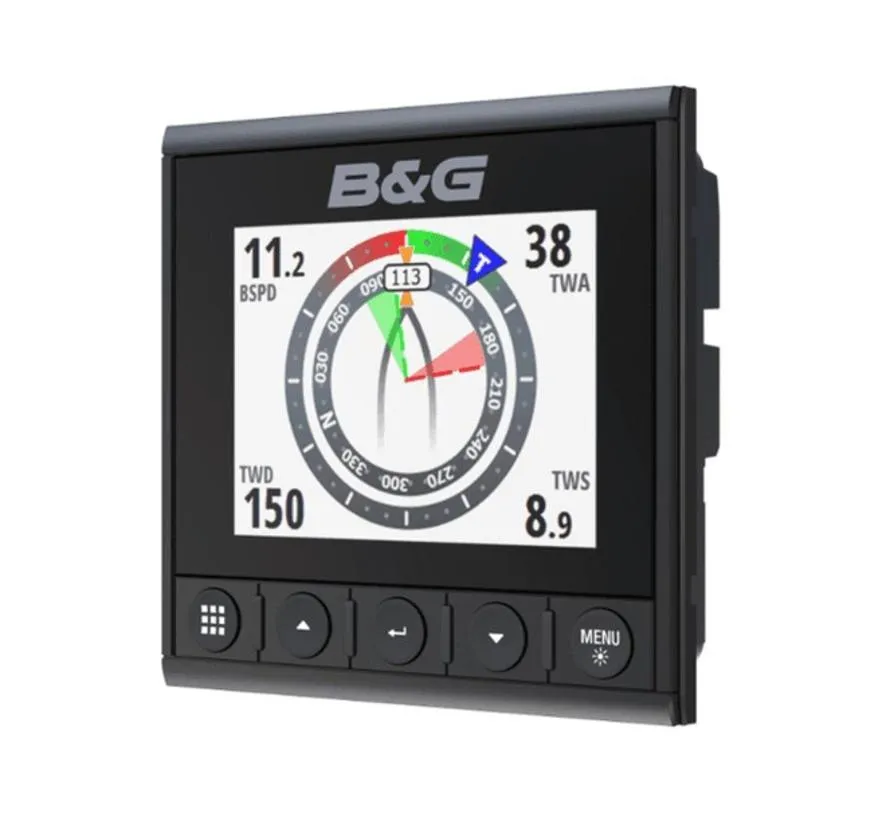

The B&G Triton² is a multifunction digital sailing instrument with an optically bonded 4.1-inch transflective colour display. It connects to sensors and marine equipment through NMEA 2000 and is designed for both cruising and sailing applications.
Product specifications:
- Brand: B&G
- Model: Triton²
- Part number: 000-13294-001
- EAN: 9420024155196
- Display size: 4.1 inch
- Resolution: 320 × 240 pixels
- Aspect ratio: 4:3

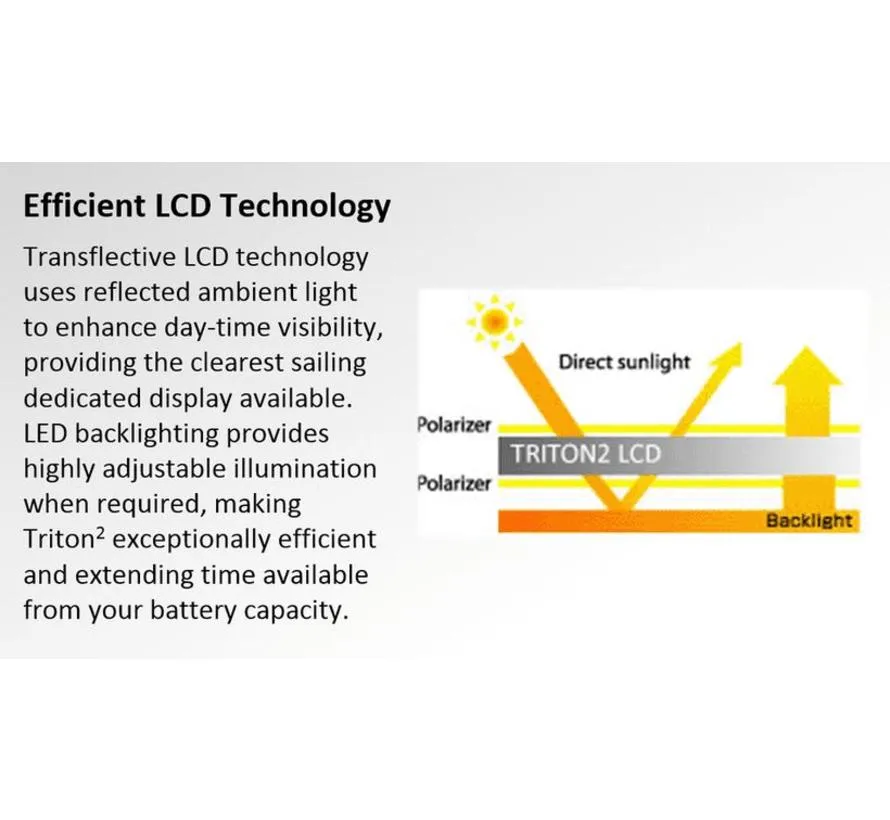

- Transflective colour LCD: yes
- Optically bonded: yes
- Touchscreen: no

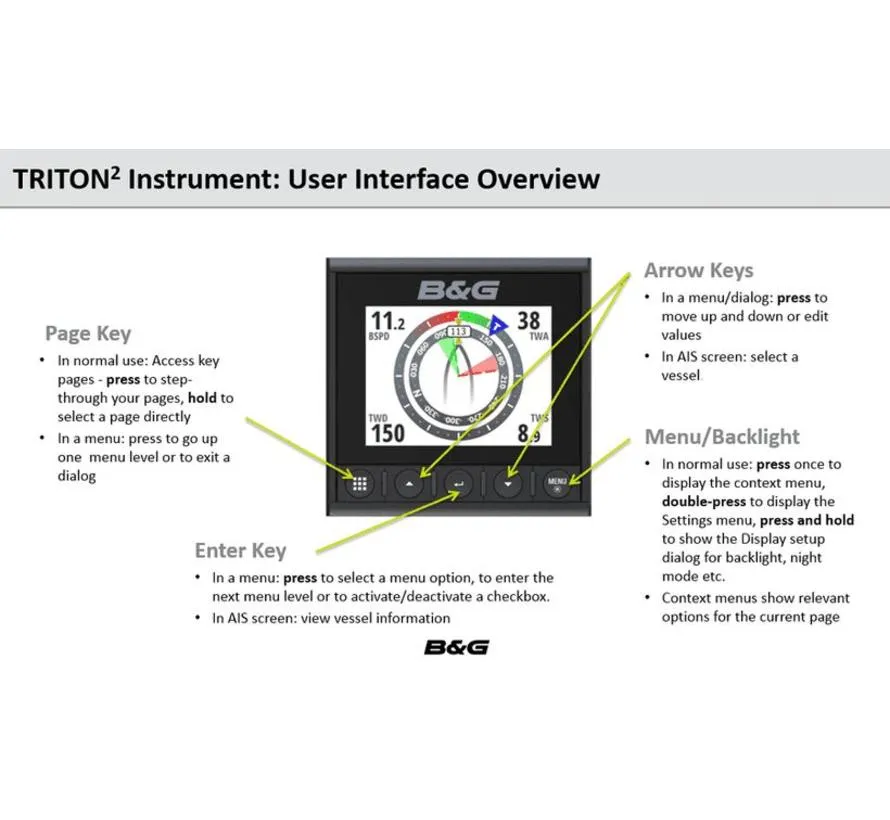

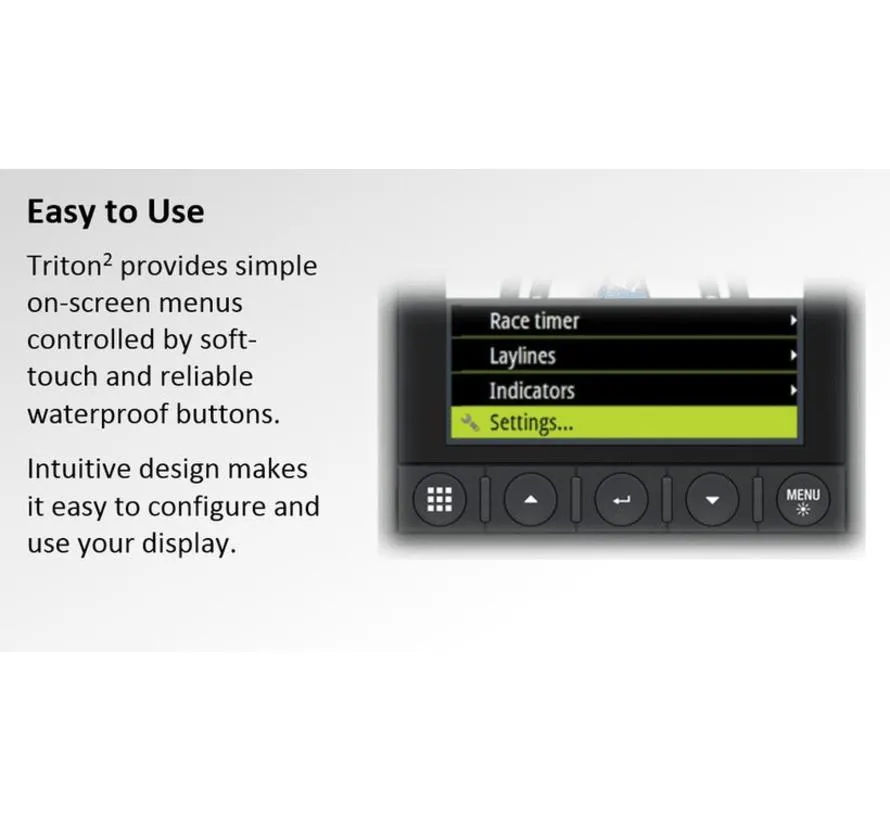

- Control: keypad
- Backlight colours: white, red, green and blue
- NMEA 2000 certified: yes

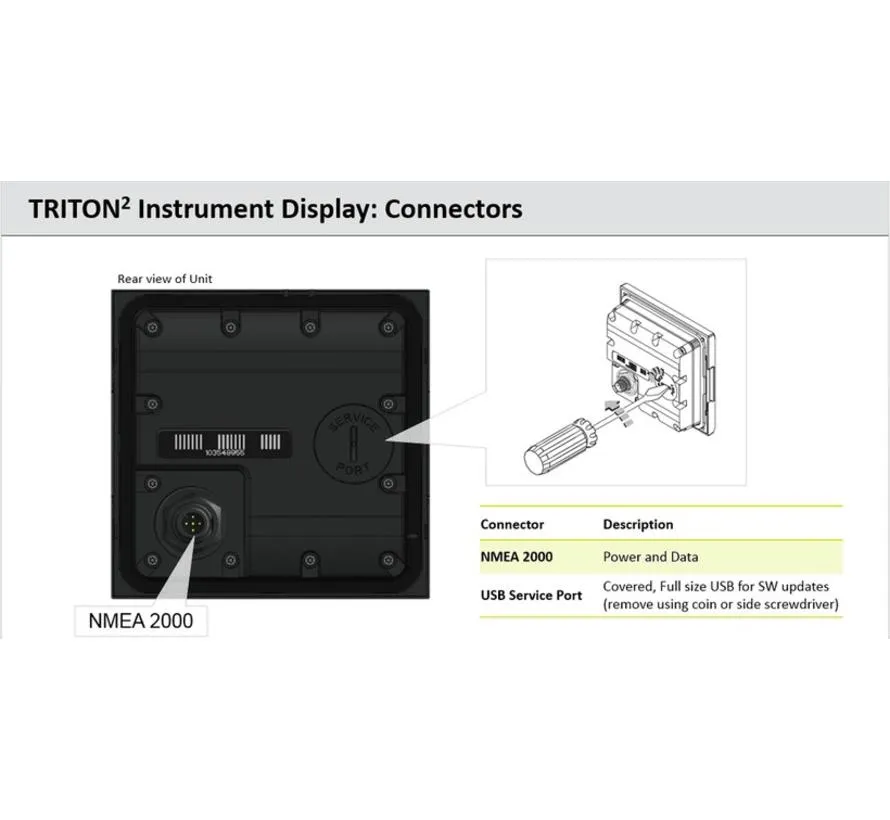

- NMEA 2000 connection: 1 × Micro-C
- NMEA 2000 LEN: 3
- Mounting: flush mount.

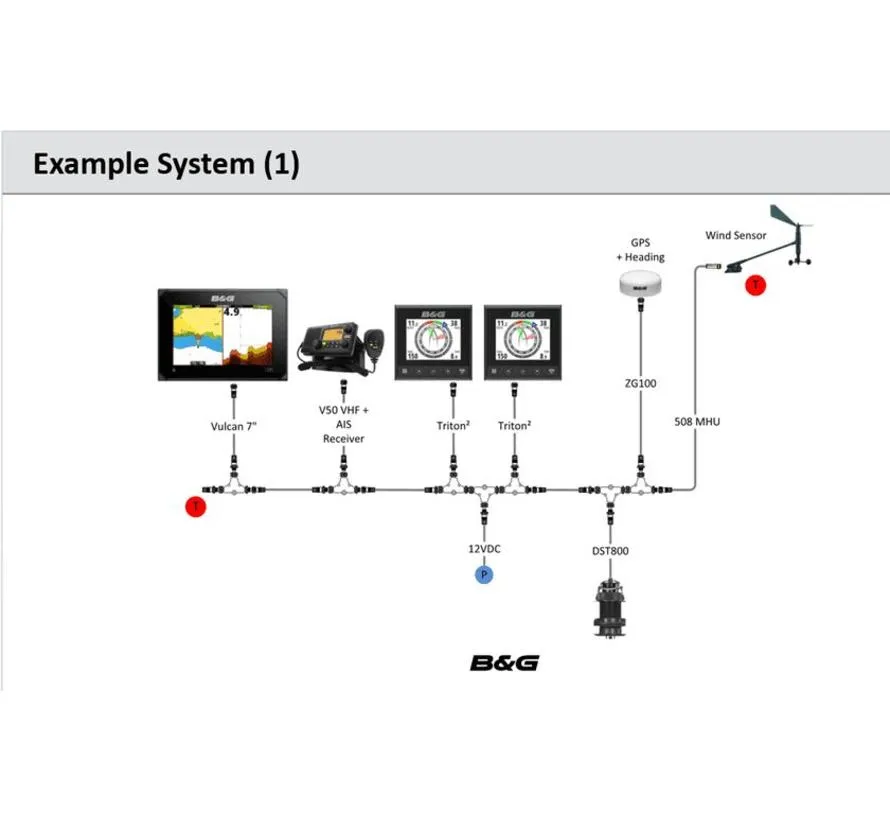

Available data depends on connected sensors and devices and can include:
- Wind speed and angle
- Boat speed
- Speed over ground
- Depth
- Water temperature
- GPS position
- GPS course
- Heading
- Rudder angle
- AIS targets
- Battery voltage
- Tank levels
- Engine information
- Weather data.

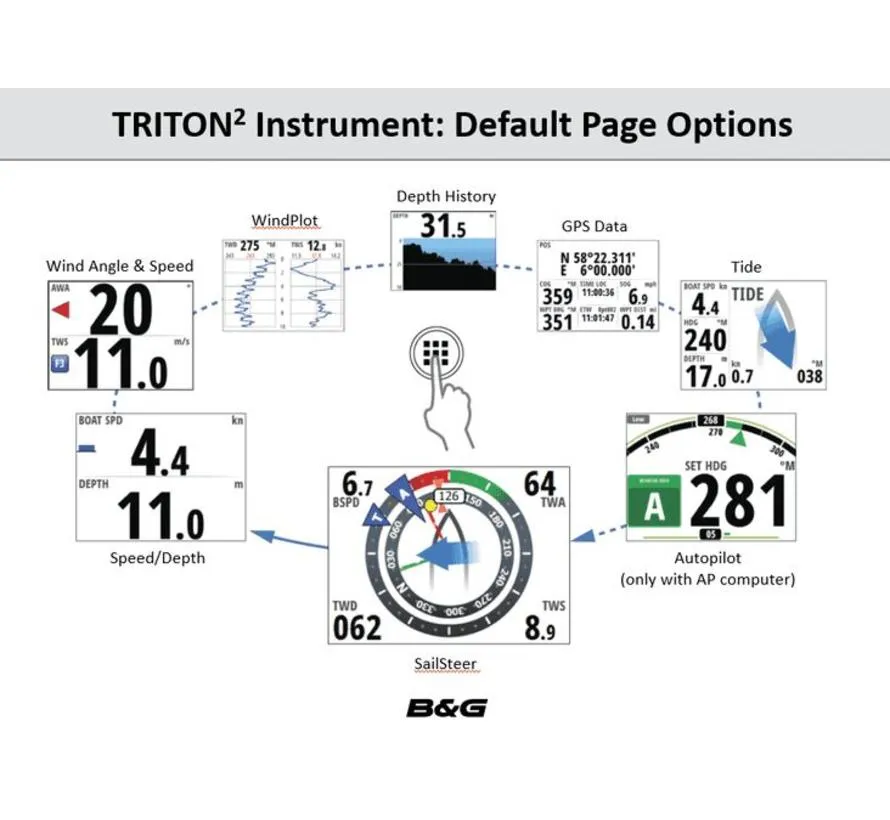

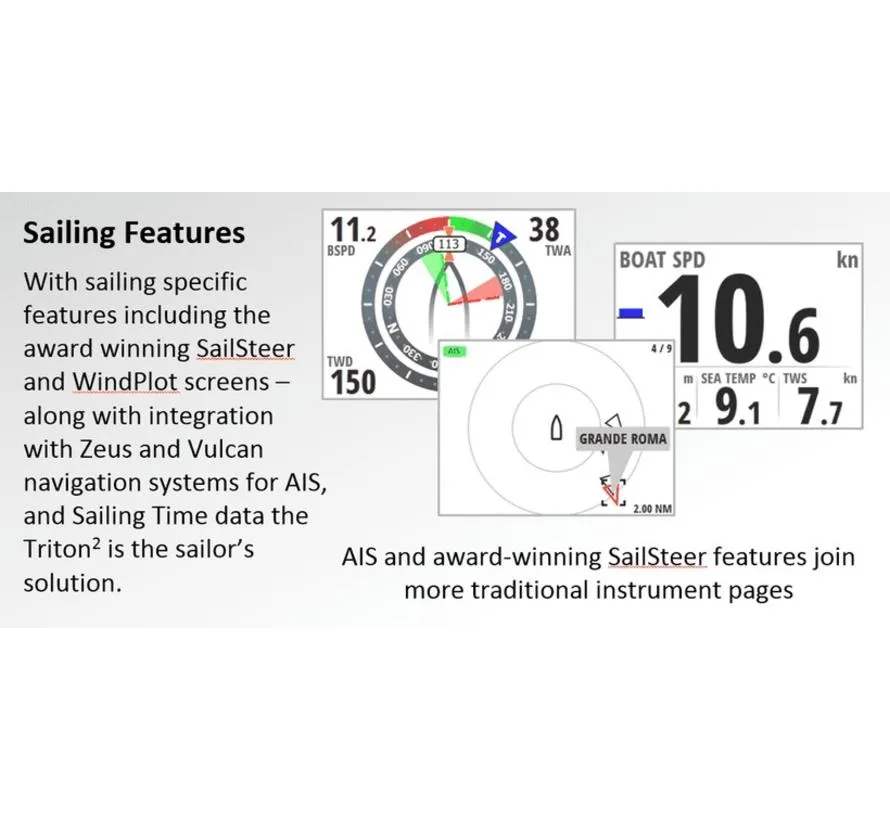

Sailing features:
- SailSteer
- WindPlot
- Laylines
- Heading and waypoint information
- Configurable data screens
- AIS display.
Autopilot:
Adding a separate Triton² Pilot Controller allows the Triton² display to become part of a fully functional B&G autopilot control system.
Electrical:
- Supply voltage: 10–16 V DC
- Nominal voltage: 12 V DC
- Typical consumption: approx. 1.4 W
- Maximum consumption: approx. 1.8 W
- Recommended fuse: 5 A.
Physical:
- Dimensions: 118 × 115 × 37 mm
- Weight: approx. 0.32 kg
- Compass safe distance: 300 mm.
Environmental:
- Water rating: IPX7
- Operating temperature: -25 to +65 °C
- Storage temperature: -40 to +85 °C
- Compliance: IEC/EN 60945.
Important:
- This product is the display-only version.
- Wind, speed and depth sensors are not included.
- A separate Triton² Pilot Controller is required for full autopilot control.
