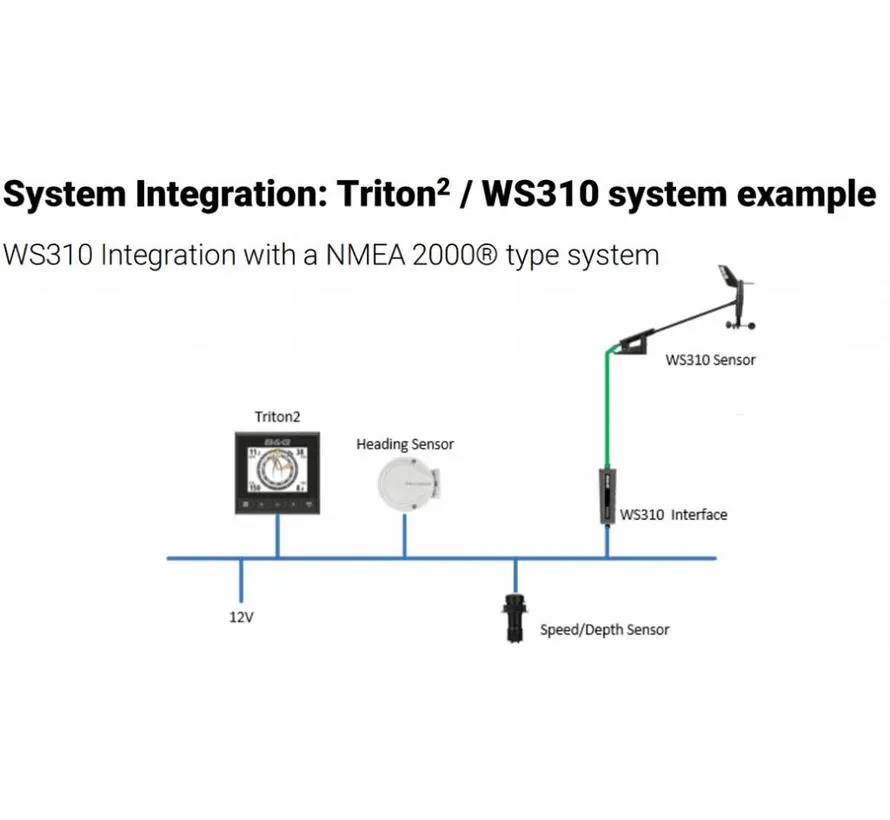

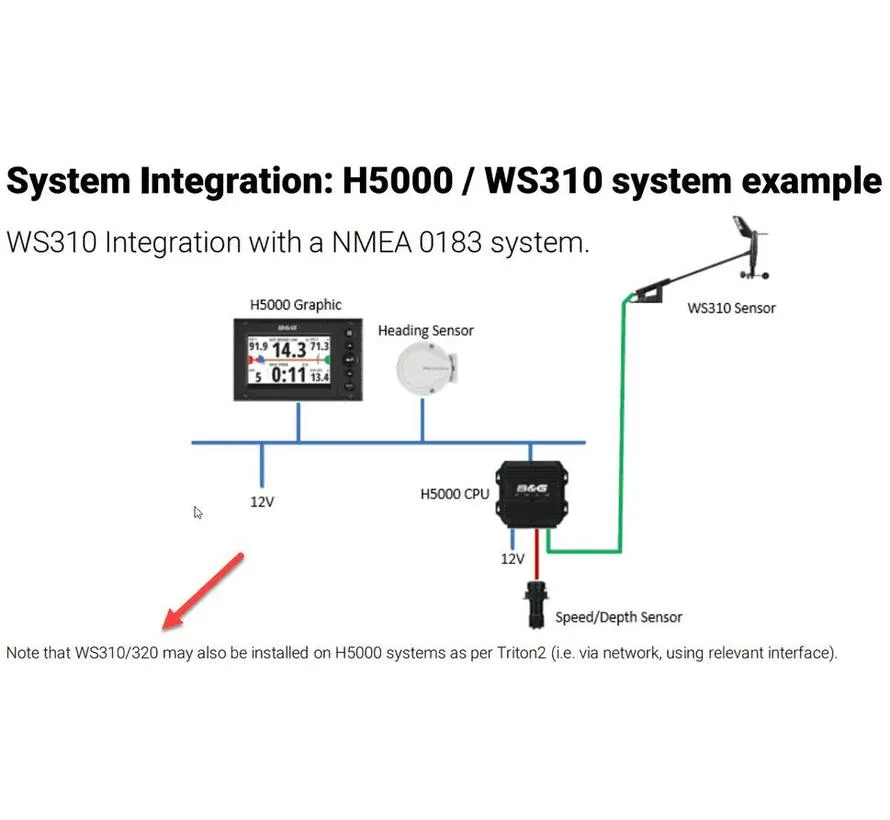

The B&G WS310 is a high-precision wired wind sensor designed for cruising and club-racing yachts. It measures wind speed and angle and sends the data through the supplied interface to the vessel's instrument network. This package includes a 20 m mast cable.
Specifications:
- Brand: B&G
- Model: WS310
- Part number: 000-14382-001
- EAN: 9420024171417
- Type: wired wind sensor
- Application: sailing yachts
- Mast cable: 20 m
- Network interface: included
- NMEA 2000 connection: yes
- Supply voltage: 9–16 V DC
- Nominal voltage: 12 V DC
- Water rating: IPX6 / IPX7
- Operating temperature: -25 to +65 °C
- Sensor weight: approx. 0.30 kg.
Wind performance:
- Wind speed range: up to approx. 100 knots / 51.4 m/s
- Wind speed resolution: approx. 0.1 knot
- Wind speed accuracy: approx. 4% between 2 and 80 knots
- Wind angle resolution: 0.1°
- Wind angle accuracy: approx. ±0.5°.

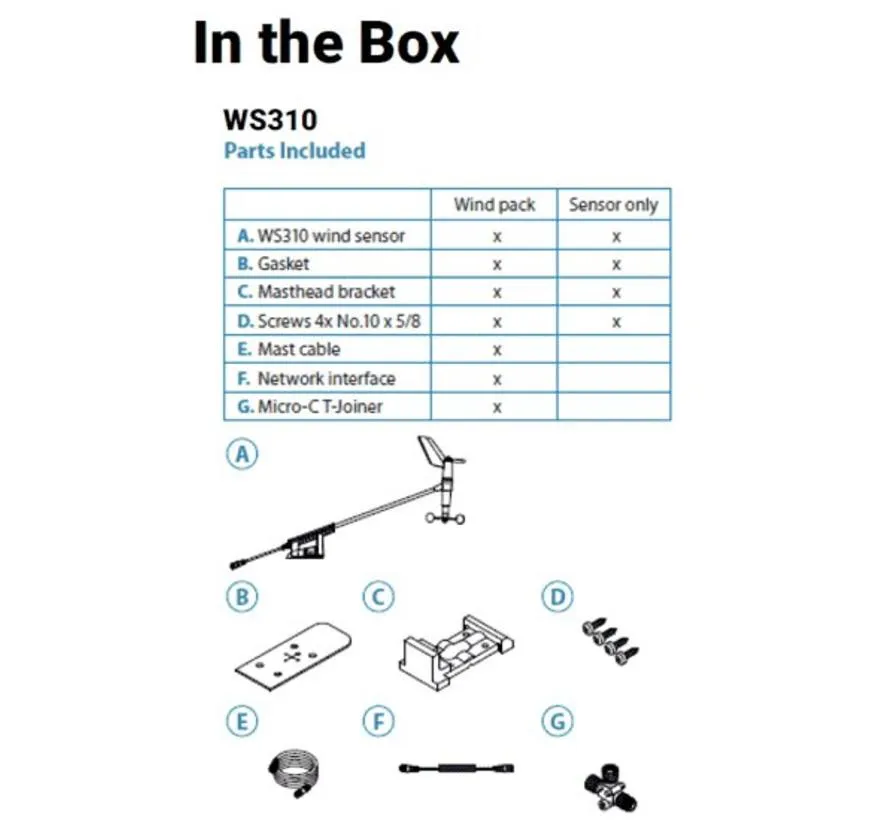

Included:

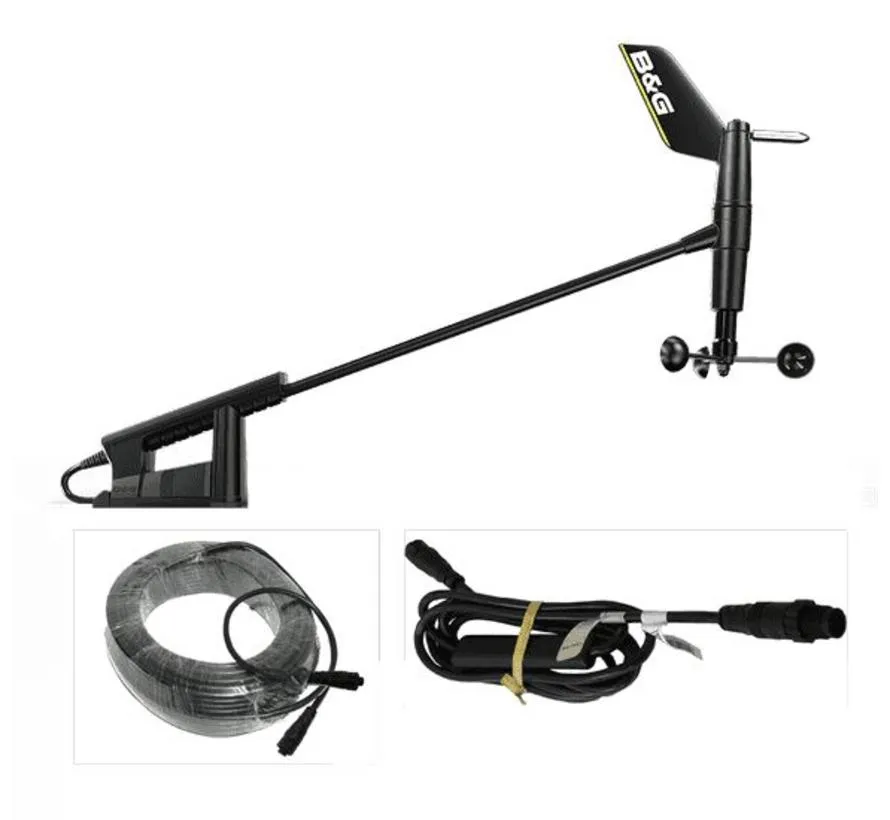

- B&G WS310 wired wind sensor

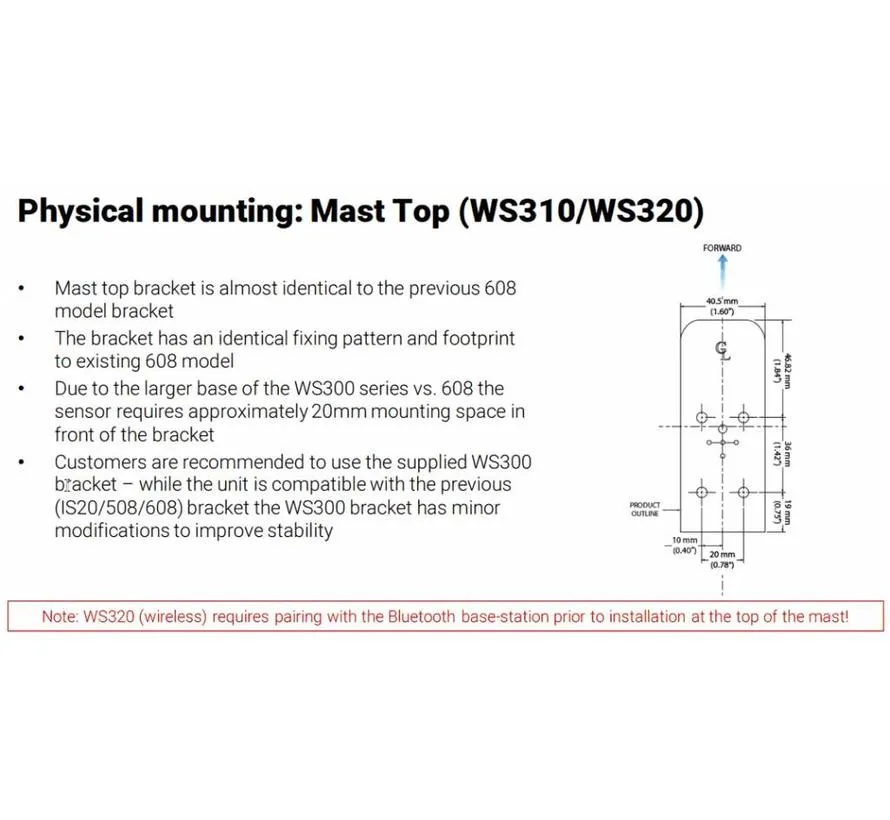

- Sensor/mast bracket

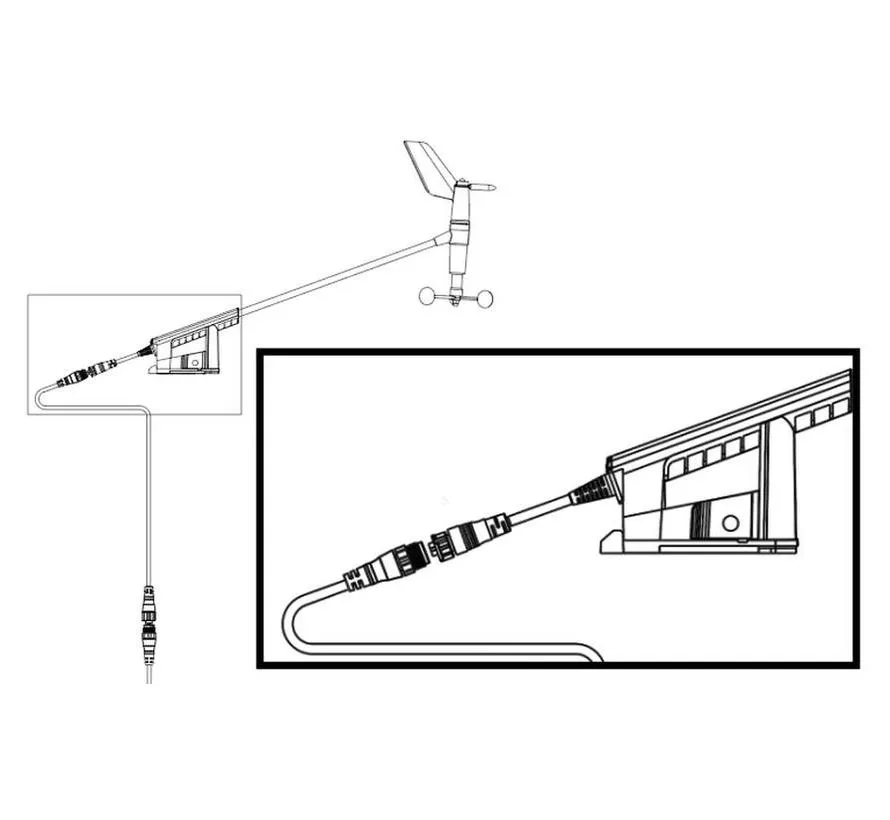

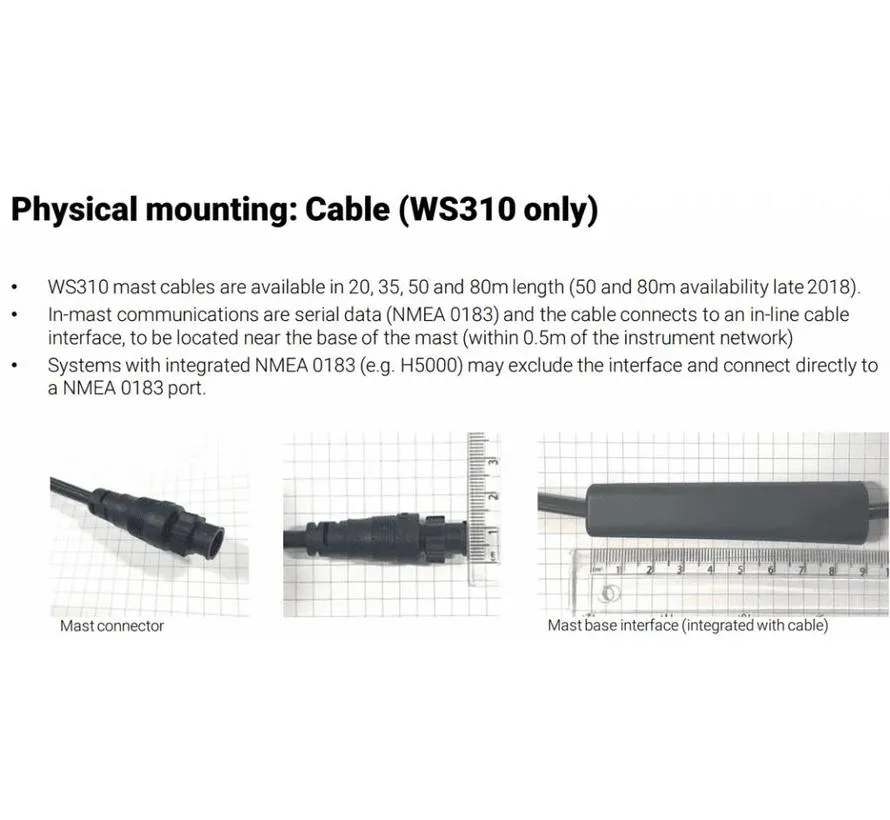

- 20 m mast cable
- WS310 network interface
- NMEA 2000 Micro-C T-connector
- NMEA 2000 network cable
- Mounting hardware.
Important:
- 000-14382-001 is the complete WS310 package with 20 m cable and interface.
- 000-14391-001 is the standalone WS310 sensor.
- A 35 m cable package is also available as 000-14843-001.
