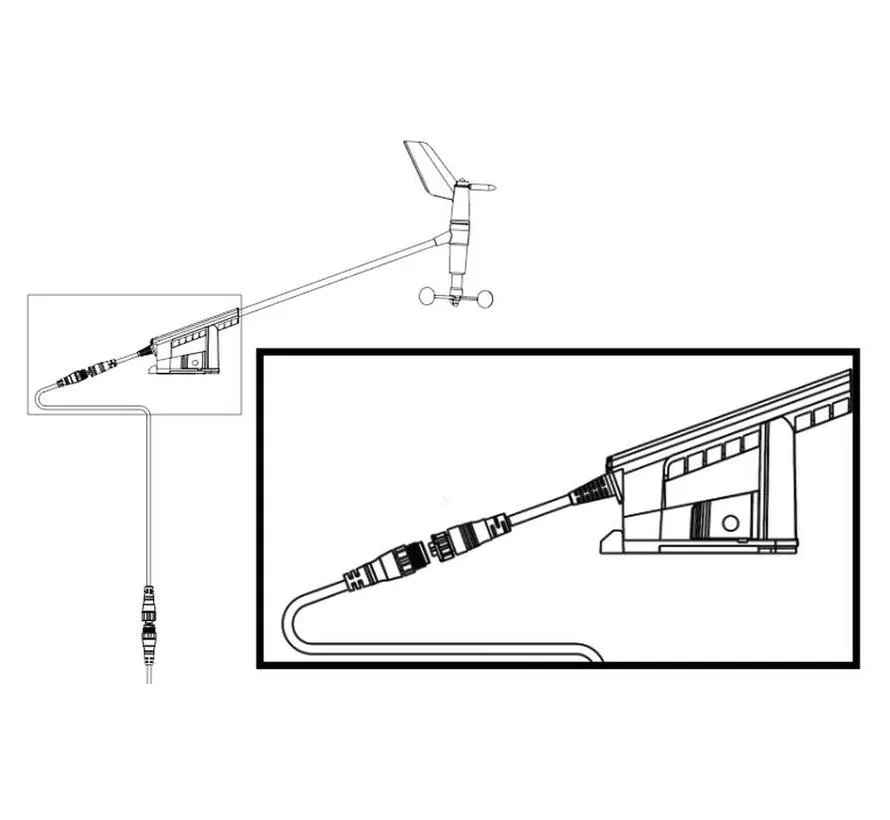

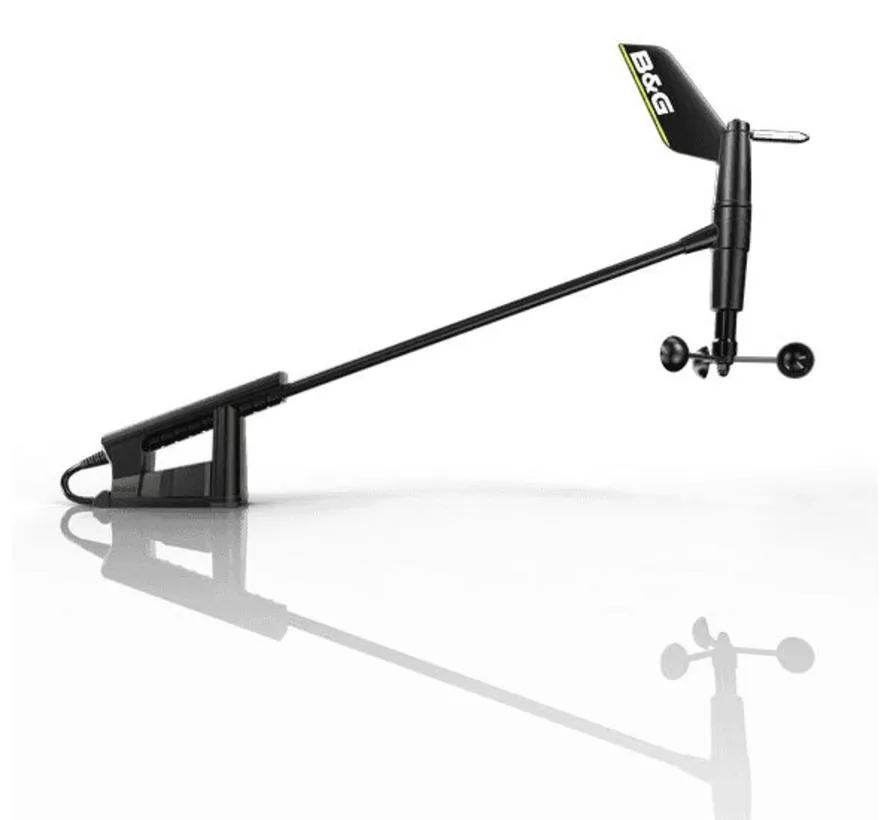

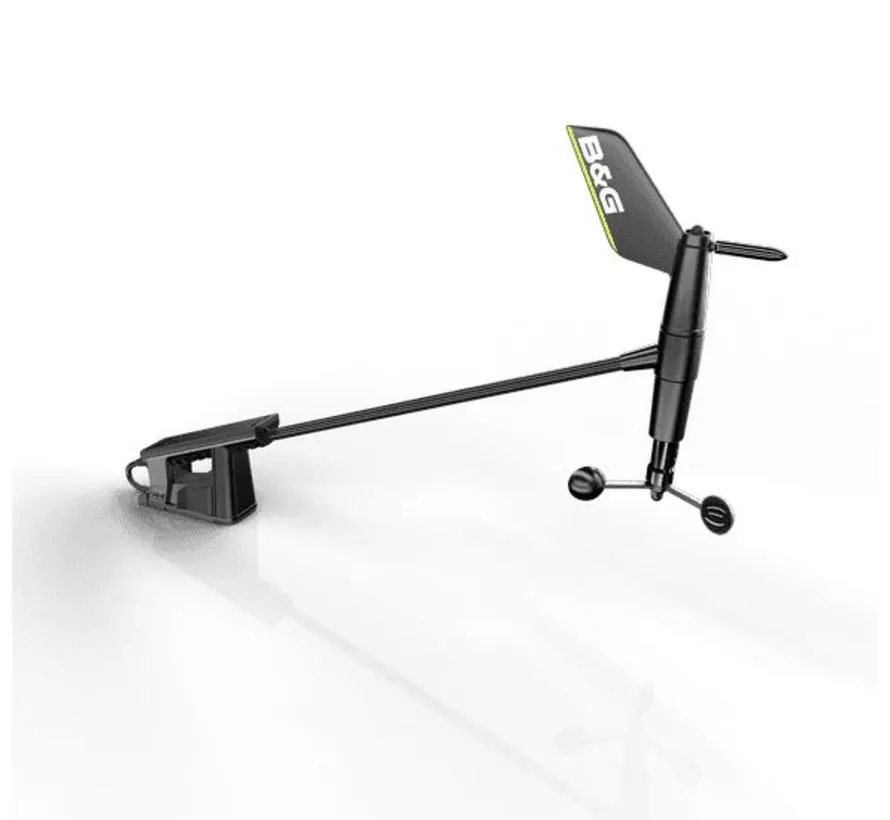

The B&G WS310 is a high-precision wired wind sensor designed for sailing yachts. This complete package includes a 35 m mast cable and WS310 interface for connection to an NMEA 2000 network, making it suitable for larger yachts and taller masts.
Product specifications:
- Brand: B&G
- Model: WS310
- Part number: 000-14843-001
- EAN: 9420024177068
- Product type: complete wired wind sensor package
- Application: sailing yachts

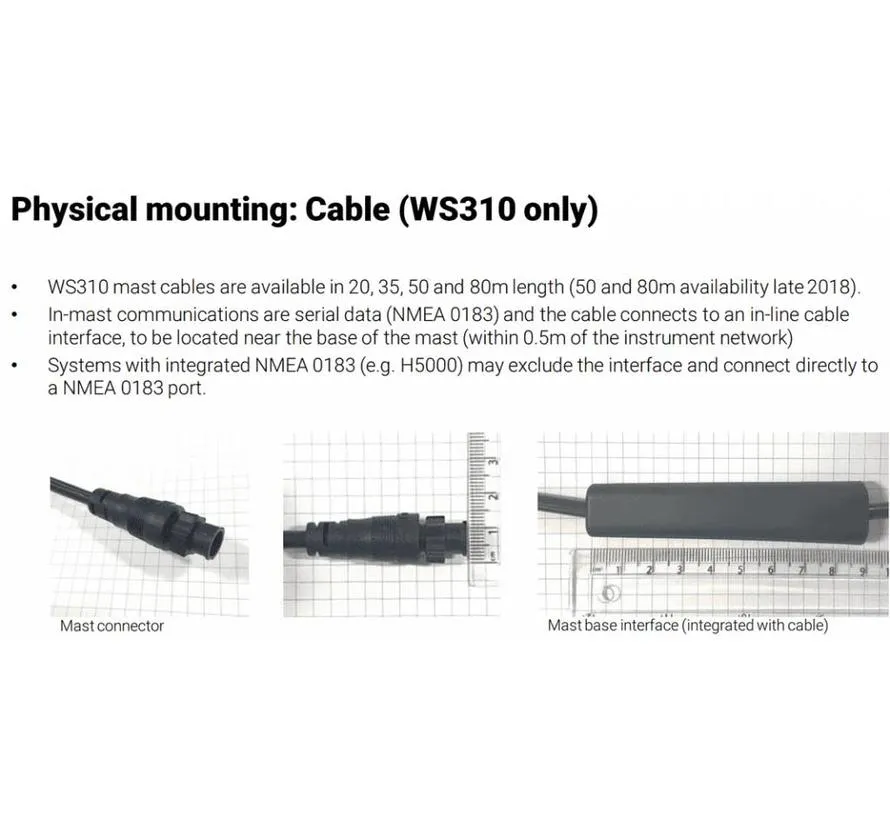

- Mast cable: 35 m
- WS310 interface: included
- NMEA 2000: via supplied interface
- Supply voltage: 9–16 V DC
- Nominal voltage: 12 V DC
- Sensor current draw: approx. 15 mA at 12 V DC
- Sensor weight: approx. 0.30 kg
- Water rating: IPX6 / IPX7
- Operating temperature: -25 °C to +65 °C
Wind performance:
- Maximum wind speed: approx. 100 knots / 51.4 m/s
- Wind speed resolution: 0.1 knot
- Wind speed accuracy from 2 to 80 knots: approx. ±4%
- Wind angle resolution: 0.1°
- Wind angle accuracy: approx. ±0.5°
Compatible with:

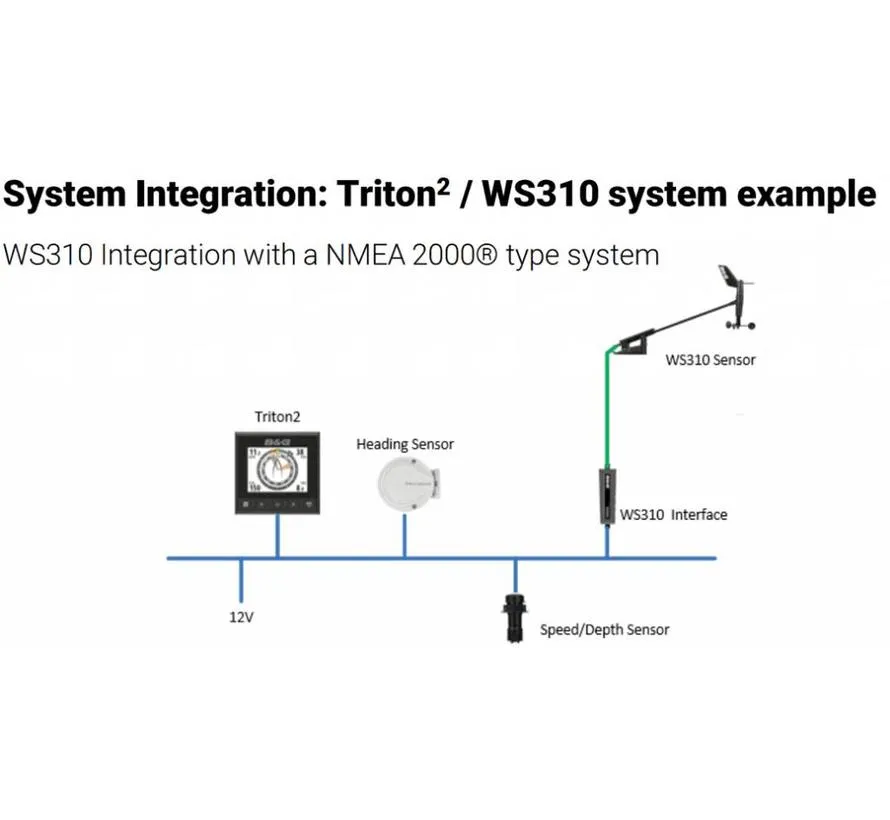

- B&G Triton²
- B&G Vulcan
- B&G Zeus series

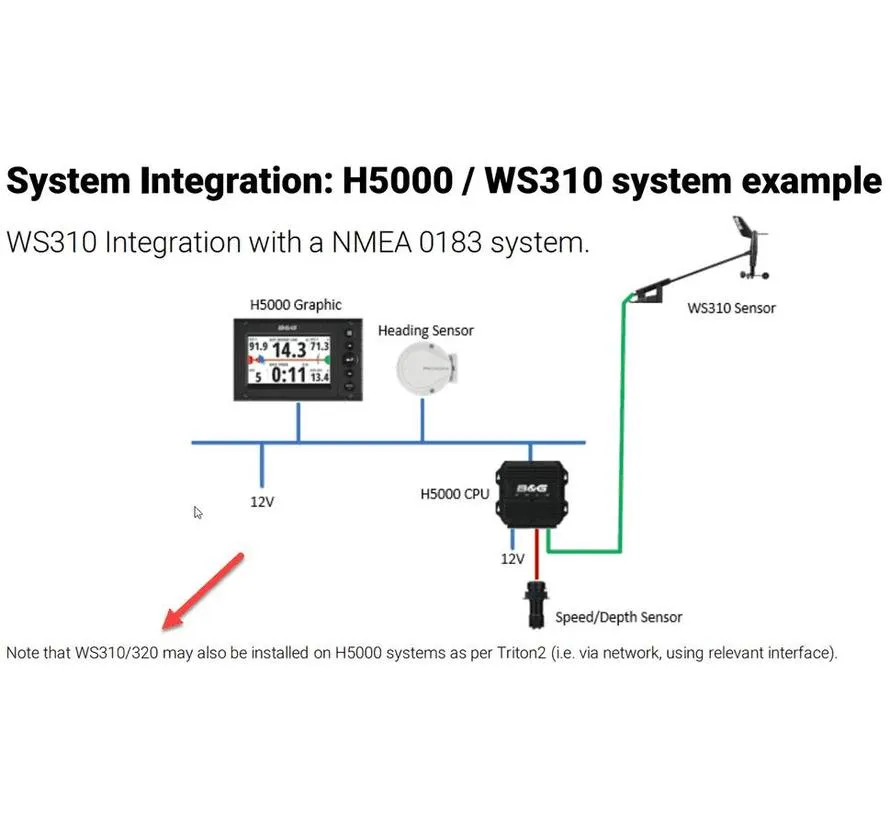

- B&G H5000
- Compatible NMEA 2000 displays
- B&G autopilot systems using NMEA 2000 wind data

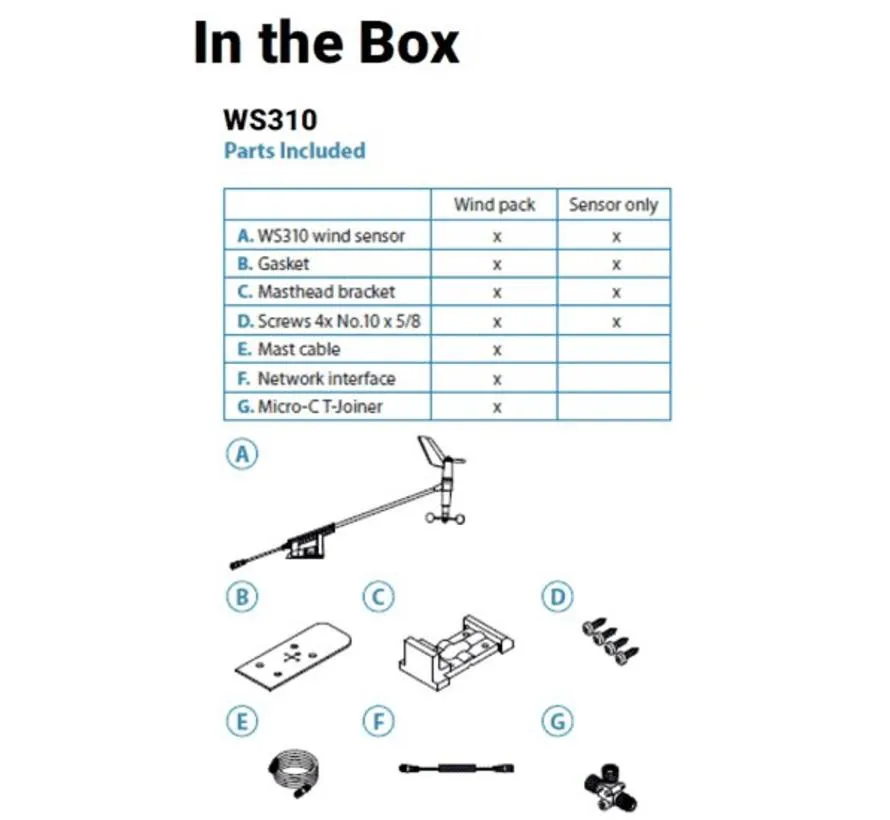

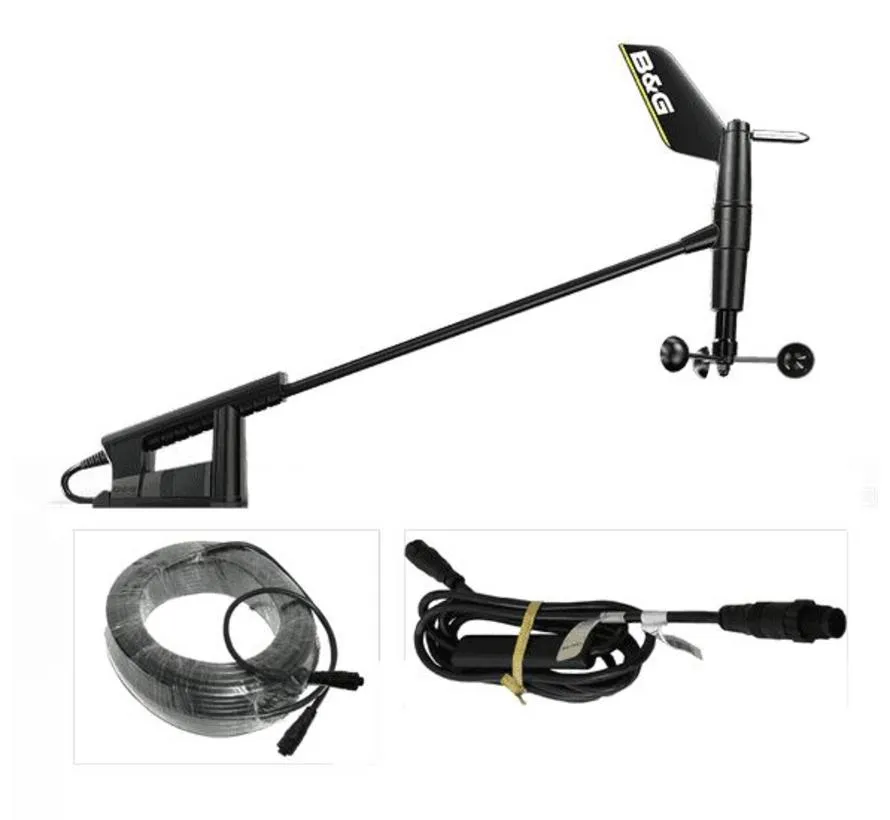

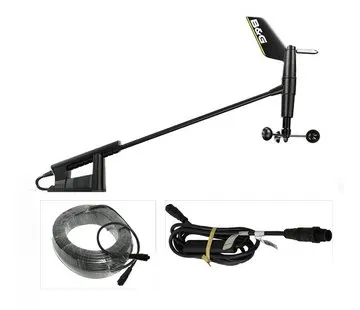

Included:
- 1 x B&G WS310 wired wind sensor
- 1 x WS310 wired interface
- 1 x 35 m mast cable
- Mounting and connection hardware
Important:
- 000-14843-001 = complete 35 m package
- 000-14382-001 = complete 20 m package
- 000-14391-001 = standalone WS310 wind sensor
- 000-14397-001 = 35 m mast cable
