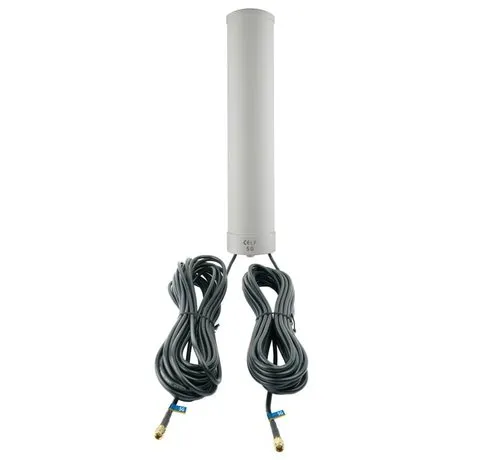

Celf 5G MiMo antenna that is also backwards compatible for the 2G/3G/4G mobile networks. MiMo stands for Multiple Input, Multiple Output. A MiMo antenna has 2 specially composed antennas in 1 housing. This MIMO antenna is suitable for 5G routers with 2 external antenna connections for 5G. Because the cables are integrated into this antenna, there is no connector transition and therefore no loss of signal or risk of interference due to moisture, for example.
Specifications Celf 5G MiMo antenna:
Gain 700-960 - 1400 MHz: 3 dBi
Gain 1700-2700 / 1400 / 3300-3800 MHz: 6 dBi
Max Power: 50 Watts
VSWR: < 2.0 Typical
Impedance: 50 Ohms
Dimensions: height 360 mm, thickness 74 mm
Temperature range: -30 ºC to 70 ºC
Cable: 2 x 10 meters CELF200 with SMA connections
Mounting: antenna suitable for fixed mounting
Mounting bracket for wall, pole, mast included
