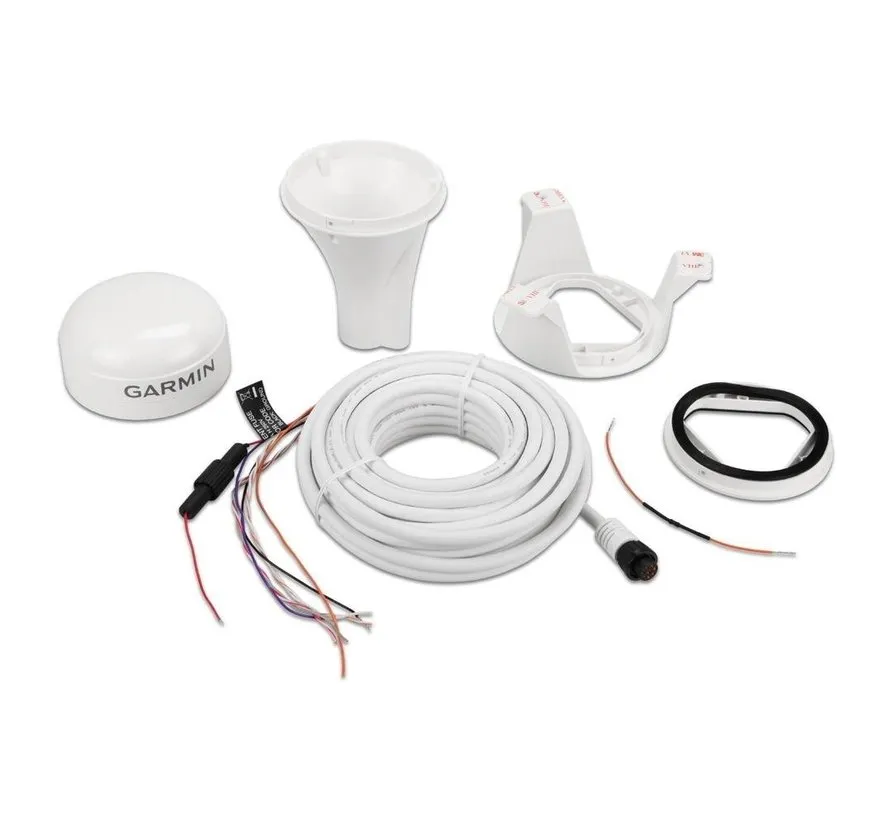

Garmin GPS 24xd HVS NMEA0183 with 10 Hz update rate for updating position, speed and time. This 32-channel receiver can track multiple global navigation satellite systems, including GPS, GLONASS, Galileo¹ and BeiDou1. Because multiple satellites are visible, it is possible to obtain more accurate positioning in challenging environments.
With more accurate determination of position, heading and speed, which are also retrieved 10 times faster than other receivers/antennas, your position is displayed more smoothly on the chartplotter/MFD at higher speeds. Multi-band GNSS provides position accuracy to less than 1 meter on compatible multi-function nautical displays, instrument displays and autopilots.
Position accuracy, normal marine use: < 50 cm, CEP 50%; < 1.0 meter, 88%
Specifications Garmin GPS 24xd HVS:
NMEA0183
Dimensions 91.6 mm x 49.5 mm
Weight 201 grams
Cable length 6 meter
Temperature range: -30° to 80° C
Housing: Fully sealed, shockproof plastic, waterproof to IPX7
Safe compass distance 150 mm
Voltage input: 9-16 Vdc, unregulated
150 mA at 12 Vdc
NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
