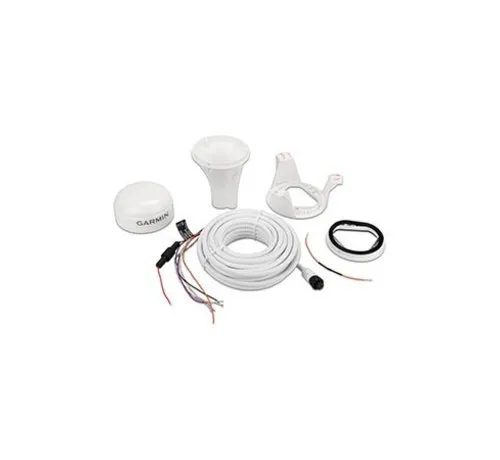

Garmin GPS 19x HVS (NMEA 0183) with 32 channels can track multiple global navigation satellite systems, including GPS, GLONASS, Galileo¹ and QZSS¹. Because multiple satellites are visible, it is possible to obtain more accurate positioning in challenging environments. Thanks to a more accurate determination of position, heading and speed, which are also retrieved 10 times faster. The receiver is WAAS-enabled and can determine your exact position to within 3 m (9.84 ft). (standard WAAS positioning). This water-resistant (IPX7) sensor can be mounted to a mast or on a flat surface. The sensor can also be easily attached to the underside of most fiberglass decks. In addition, it can be configured for a 1 Hz or 5 Hz update rate to support certain installation requirements.
Specifications Garmin GPS 19x HVS (NMEA 0183):
Dimensions 91.6 mm x 49.5 mm
Weight 201 g
Cable length 9.14 m
Temperature range: -22° to 176° F (-30° to 80° C)
Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
Safe compass distance 150 mm
Connection 8-33 Vdc, unregulated
Input current: 40 mA at 12 Vdc
