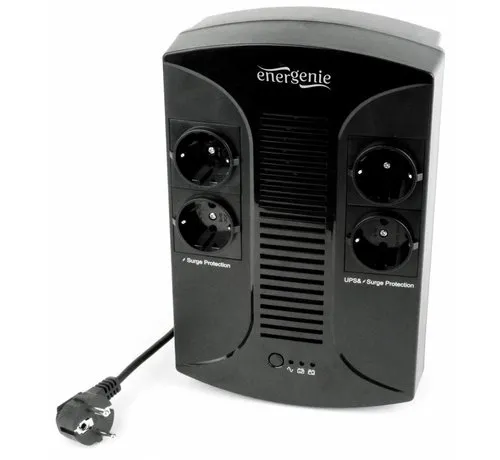

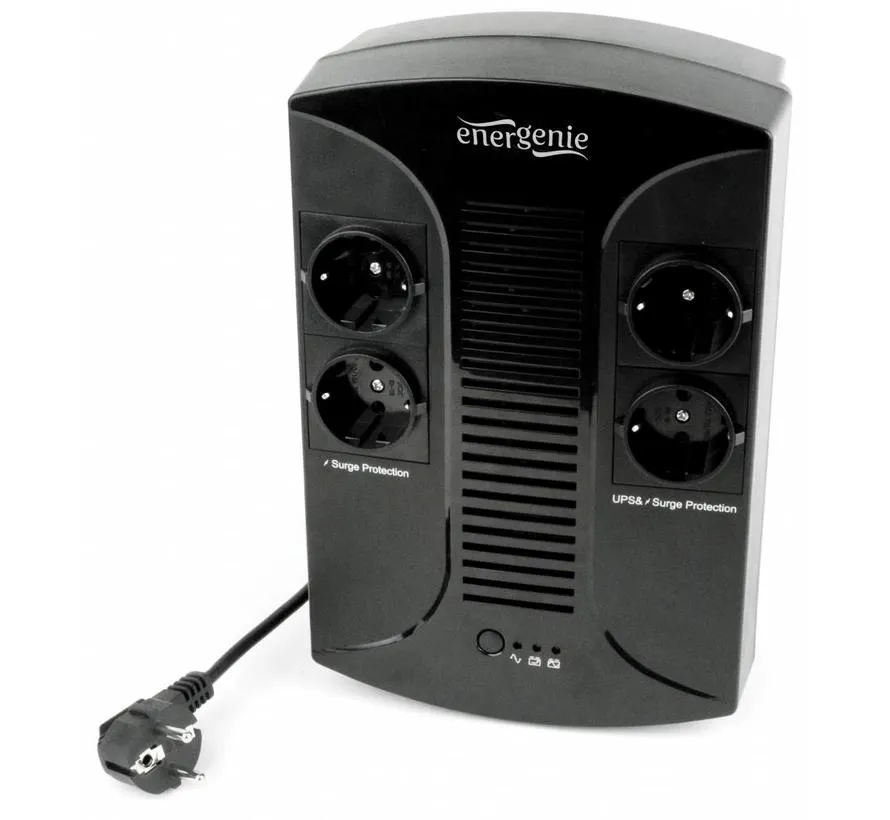

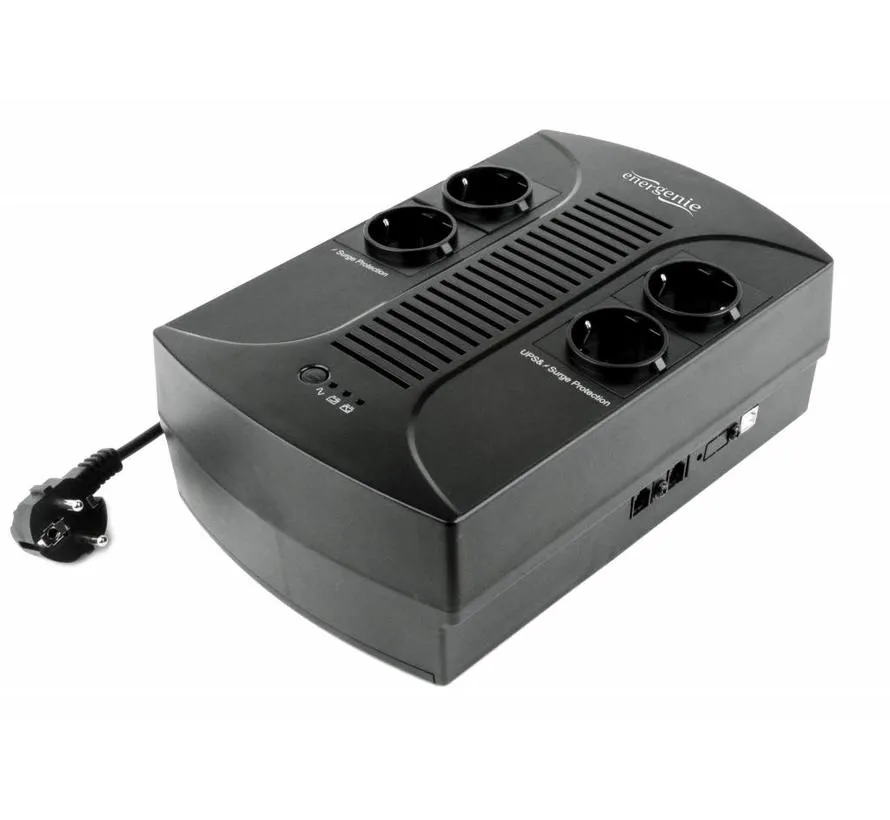

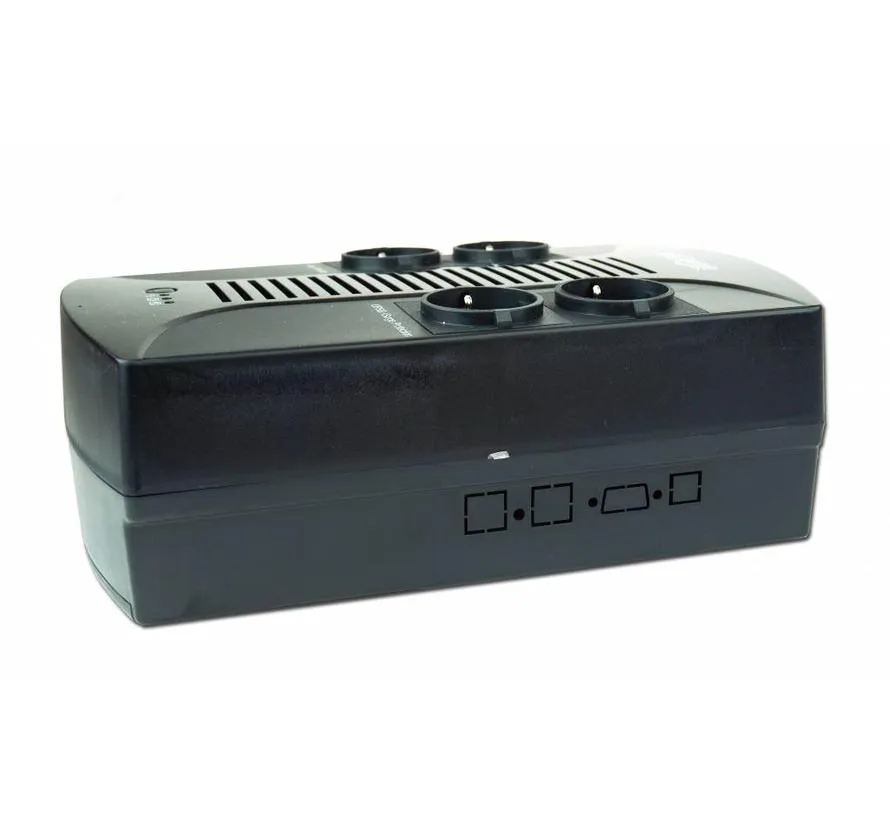

Energenie UPS with AVR, 850 VA
Ideal protection for sensitive equipment. Helps prevent data loss during power outages and protects against surges and voltage fluctuations.
Features
- Automatic 850 VA backup power (UPS)
- USB port
- Automatic Voltage Regulation (AVR) stabilizer
- Intelligent protection against surges, overload and short circuit
- Audible and visual alarm during power failure
- LED status indicators
- Internal battery with protection against overcharge and deep discharge
- Wall-mountable
Specifications Energenie UPS with AVR
- Type: line-interactive
- Waveform: sine wave (AC mains), modified (square) sine wave (battery)
- Input: 220 V AC ±25%, 50/60 Hz ±10%
- Output: 220 V AC ±10%, 50/60 Hz ±1% (220 V AC ±5% in inverter mode)
- Switching time: < 10 ms
- Backup time: 10–30 min (depends on load)
- Battery: sealed lead-acid 12 V DC / 8 Ah (151 × 65 × 95 mm)
- Charge time: up to 8 hours
- Sockets: 1× C13 (input), CEE 7/7P power cable, 4× Schuko (output)
- Sockets with UPS backup: 2
- Operating conditions: 0°C–40°C, 20–90% RH, non-condensing
- Power: 850 VA (510 W)
- Charging current: up to 1.2 A
- Noise: < 45 dB (at 1 m)
- Dimensions: 280 × 185 × 95 mm
- Product weight: 5.6 kg
- Feature: Cold start
System requirement
-
For correct operation, the connected load must be at least 5% of the UPS’s maximum capacity.
Example: a 700 W UPS needs at least 35 W connected load.
