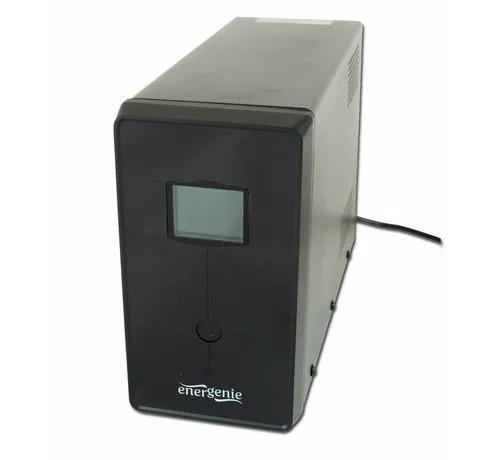

Energenie UPS backup power supply with LCD – 1500 VA (EG-UPS-034)
This line-interactive UPS with an LCD status display and AVR (Automatic Voltage Regulation) provides backup power during outages and protects sensitive equipment from surges, fluctuations, overload and short circuits. Includes a USB interface and UPS management software.
Features
- 1500 VA (900 W)
- AVR for stable output voltage
- USB interface + UPS management software
- LCD + audible/visual alarms
- Protection: short circuit, overload, surge/spike and lightning
- Battery protection: overcharge & overdischarge
- Cold start function
Specifications
- Type: line-interactive
- Waveform: sine wave (AC mains), modified (square) sine wave (battery)
- Input: 220 V AC ±25%, 50/60 Hz ±10%
- Output: 220 V AC ±10%, 50/60 Hz ±1% (±5% in inverter mode)
- Transfer time: < 10 ms
- Backup time: 8–20 min (load dependent)
- Battery: 2× 12 V / 8 Ah sealed lead-acid (series)
- Charge time: up to 12 hours
- Connections: 1× IEC C14 input, 3× IEC C13 + 2× Schuko outputs
- Operating conditions: 0–40°C, 20–90% RH, non-condensing
- Noise: < 45 dB (at 1 m)
- Dimensions: 400 × 125 × 220 mm
- Weight: 10.8 kg
- System note: connected load should be ≥ 5% of max capacity
