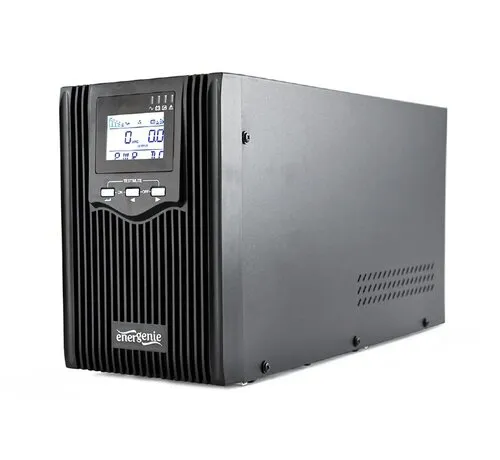

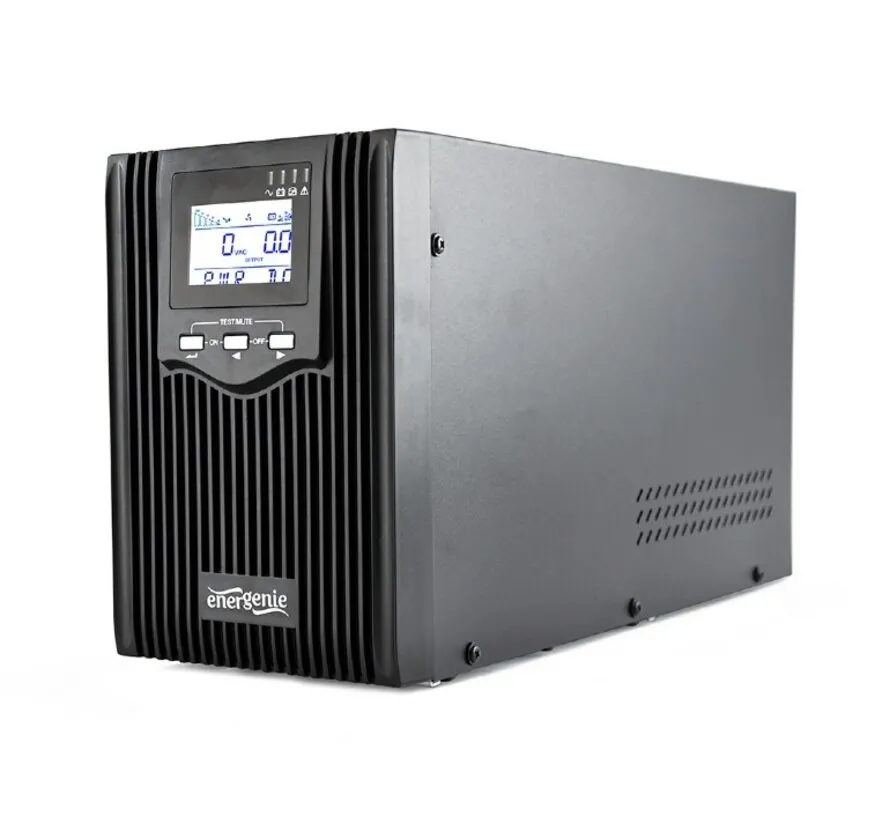

Energenie EG-UPS-PS2000-02 2000VA Pure Sine Wave UPS
The Energenie EG-UPS-PS2000-02 is a line-interactive pure sine wave UPS designed for sensitive equipment such as servers, NAS, networking gear and other devices that require clean sine wave power (also useful for certain solar/inverter setups). It provides instant backup power during outages, helps prevent data loss, and protects against surges and short circuits.
Key features
- Pure sine wave output (low distortion) for sensitive loads
- AVR (Automatic Voltage Regulation) for stable voltage
- LCD display + LED status with audible/visual alarms
- Protection against overload and short circuit
- Communication: USB + RJ45 (optional: dry contacts / SNMP)

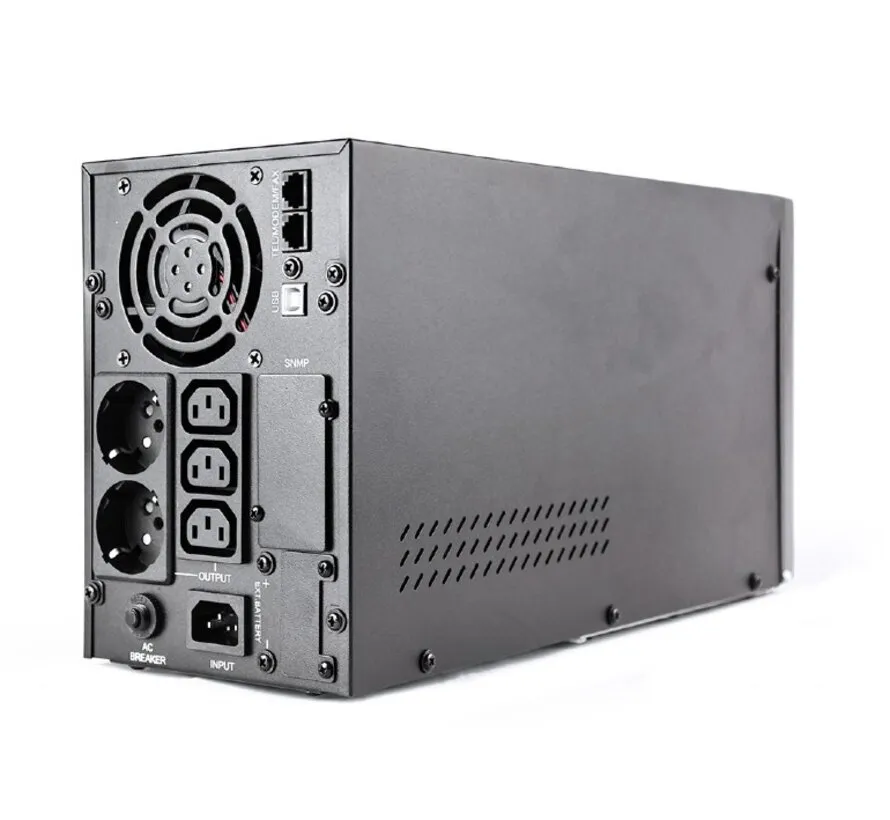

- Outputs: 2× Schuko + 3× IEC C13
Specifications
- Topology: Line-interactive (pure sine wave)
- Waveform: pure sine, ~5% distortion (linear load), PF > 0.8
- Input: 220V AC ±25%, 50/60Hz ±10%
- Output: 220V AC ±10%, 50/60Hz ±1% (inverter mode: 220V AC ±10%)
- Transfer time: up to 10 ms (typical)
- Backup time: 10–30 min (load dependent)
- Battery: 3× 12V/9Ah sealed lead-acid (F2 terminals)
- Charge time: up to 90% in 6–8 hours
- Sockets: C14 input, outputs 3× IEC C13 + 2× Schuko
- Operating conditions: 0–40°C, 10–90% RH, non-condensing
- Power: 2000VA (1600W)
- Charging current: 1A (default)
- Noise: < 50 dB (at 1 m)
- Dimensions: 144 × 410 × 215 mm
- Weight: 18.5 kg
- Feature: Cold start
- System note: connected load should be ≥ 5% of max capacity
