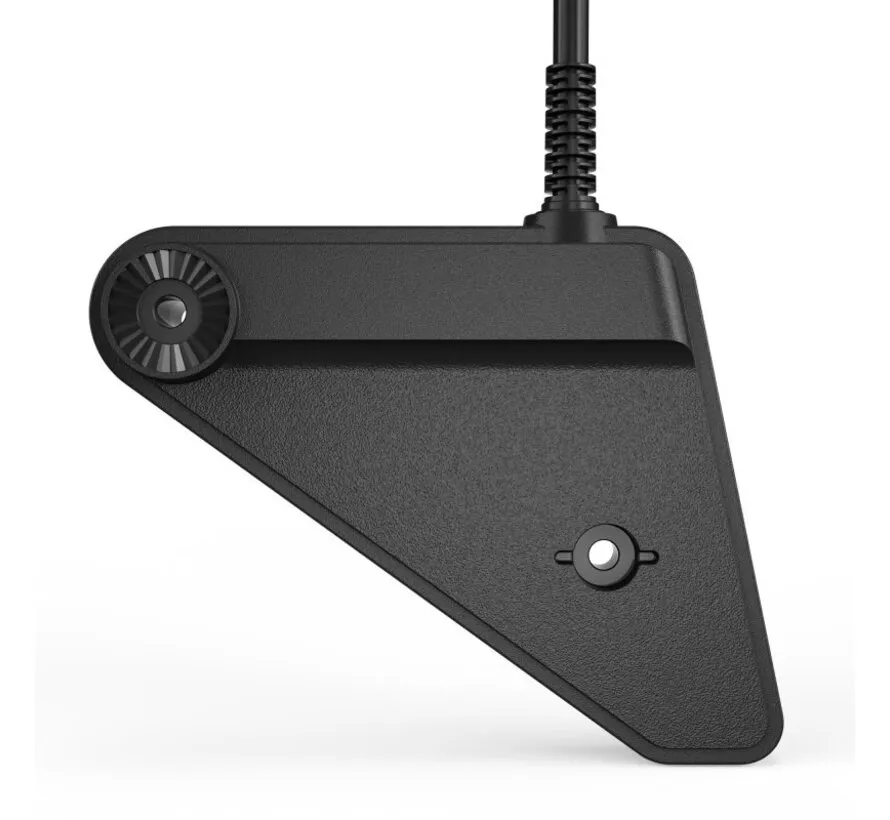

The Lowrance Eagle Eye LIVE Transducer Pack is the original transducer for Eagle Eye fishfinders. It combines four sonar modes in one housing and connects directly to the Eagle Eye head unit without requiring a separate ActiveTarget module.
Product specifications:
- Brand: Lowrance
- Product: Eagle Eye LIVE Transducer Pack
- Part number: 000-16368-001
- EAN: 9420064136681
- Live Forward sonar: yes
- Live Down sonar: yes
- High CHIRP sonar: yes
- DownScan Imaging: yes
- Water temperature: yes
- Speed sensor: no
- Cable length: approx. 20 ft / 6.1 m
- Connector: Eagle Eye-specific 9-pin
- Direct display connection: yes
- External sonar module required: no

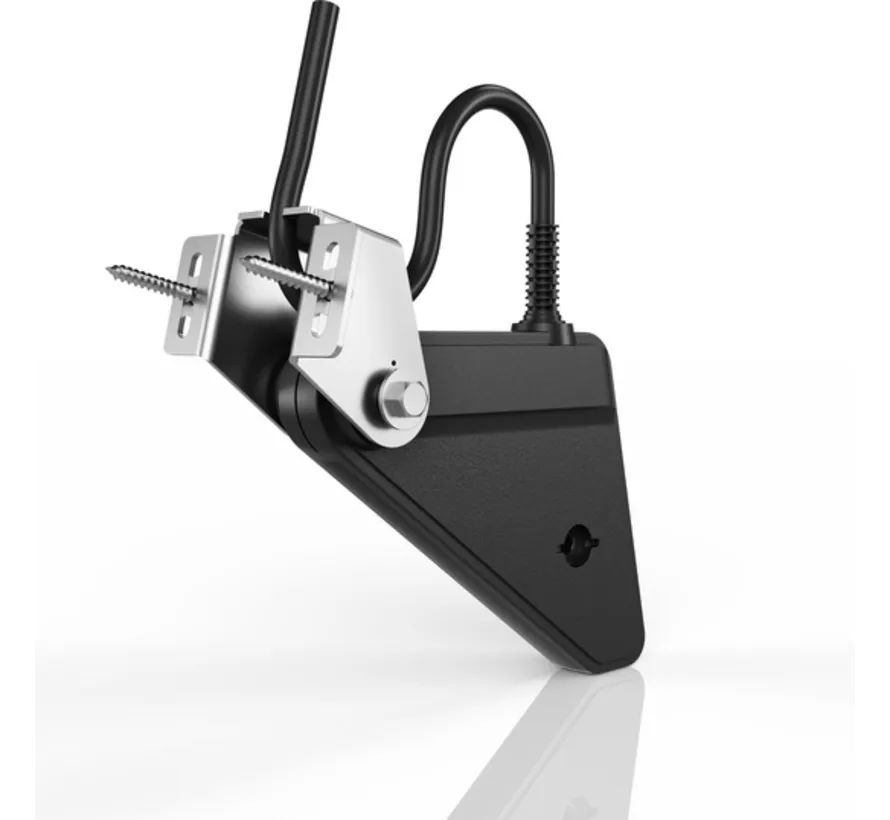

- Transom mounting: supported
- Trolling motor mounting: optional with bracket 000-16369-001.
Compatibility:
Compatible with:
- Lowrance Eagle Eye 9 Live
Not compatible with:
- standard Eagle displays
- Eagle SplitShot
- Eagle TripleShot
- Eagle HDI
- HOOK series
- Elite FS
- HDS Carbon
- HDS LIVE
- HDS PRO
- ActiveTarget systems.
Included:
- Eagle Eye LIVE transducer
- Integrated cable
- Transom mounting hardware
- Installation instructions.
