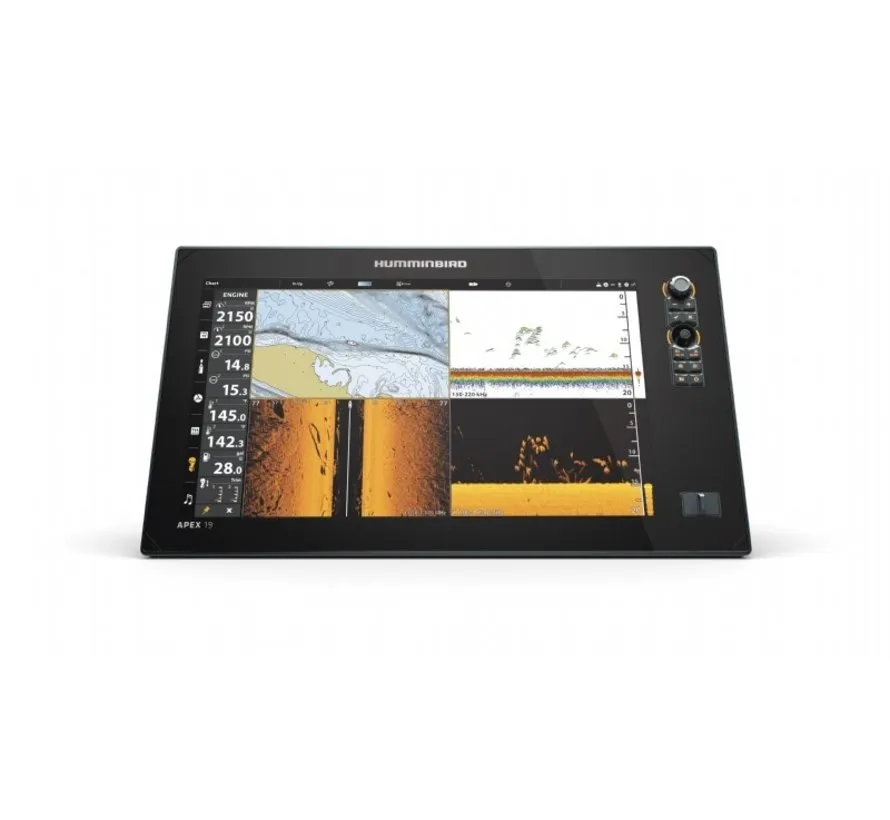

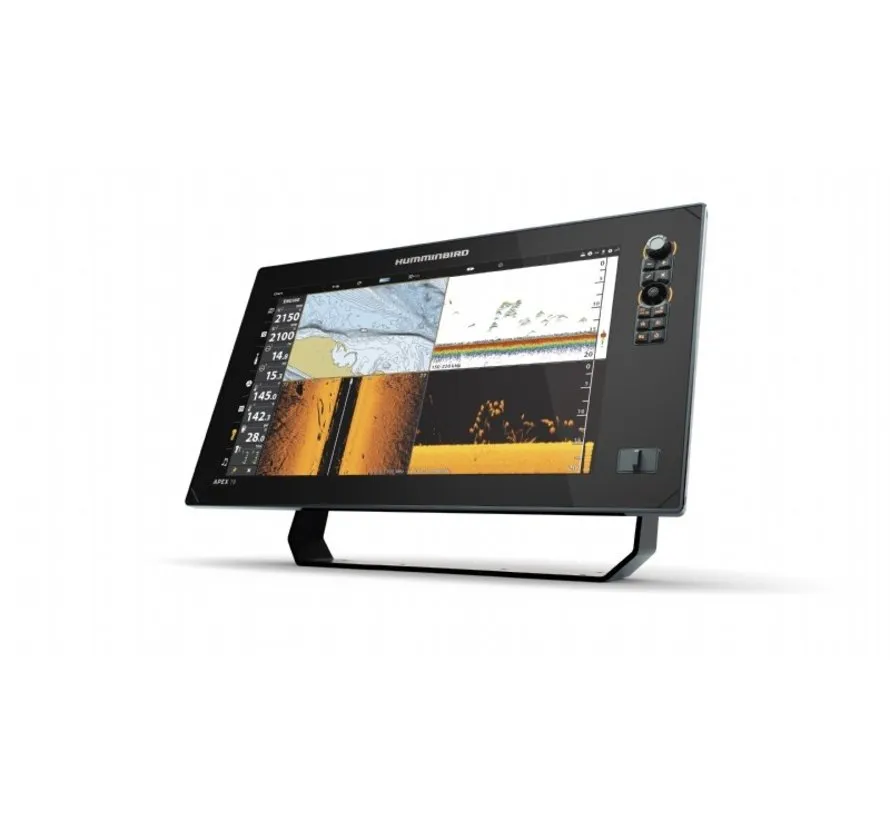

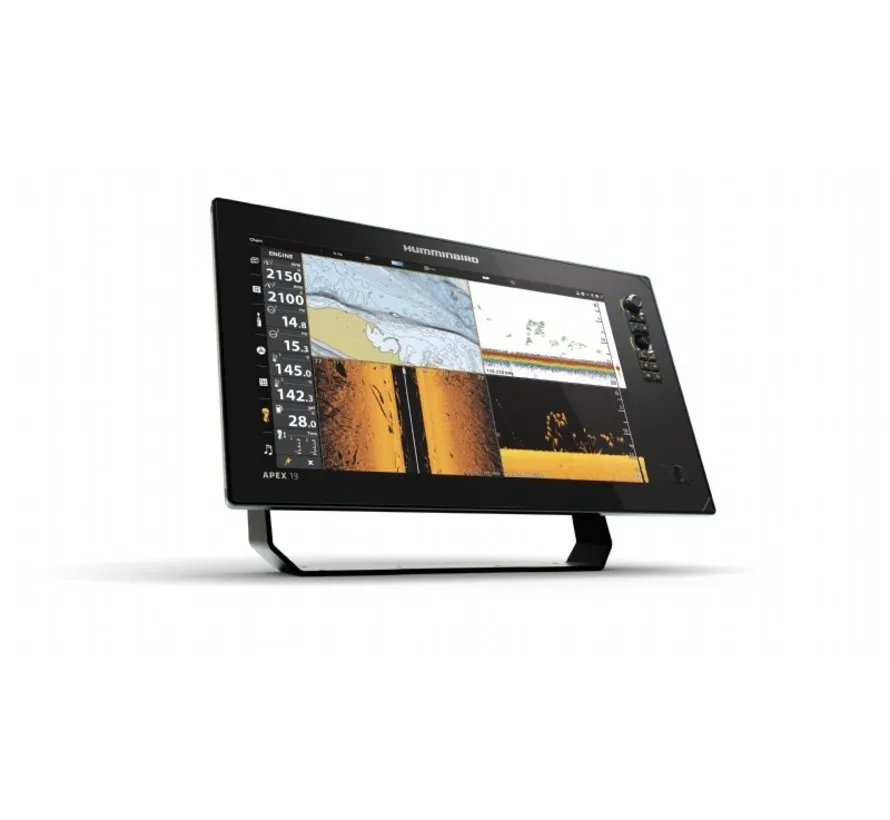

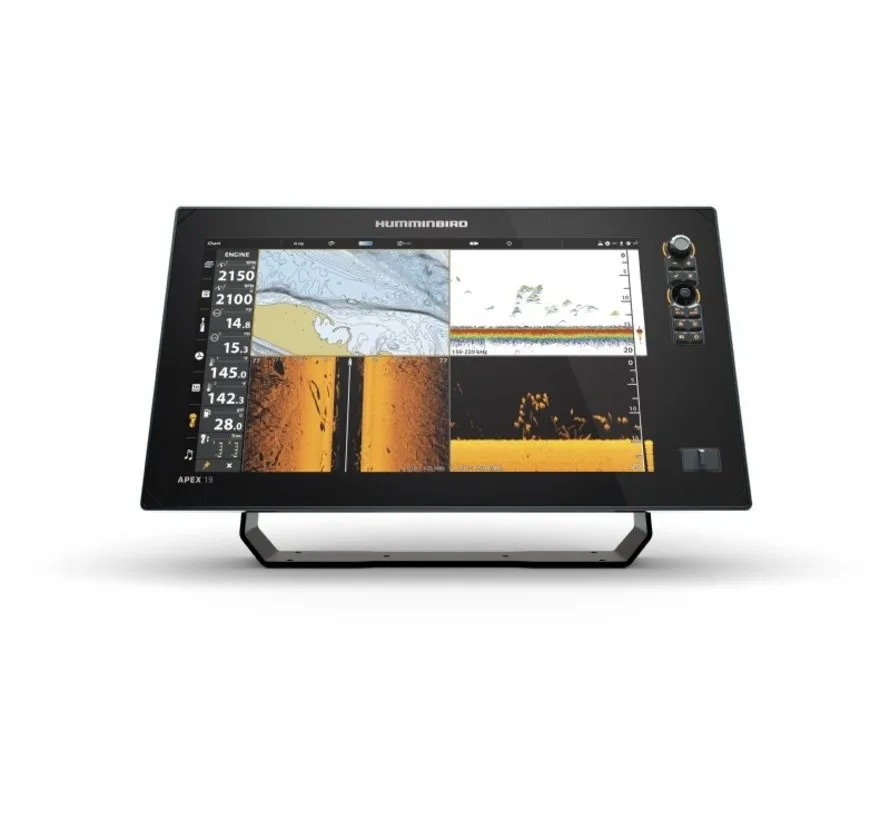

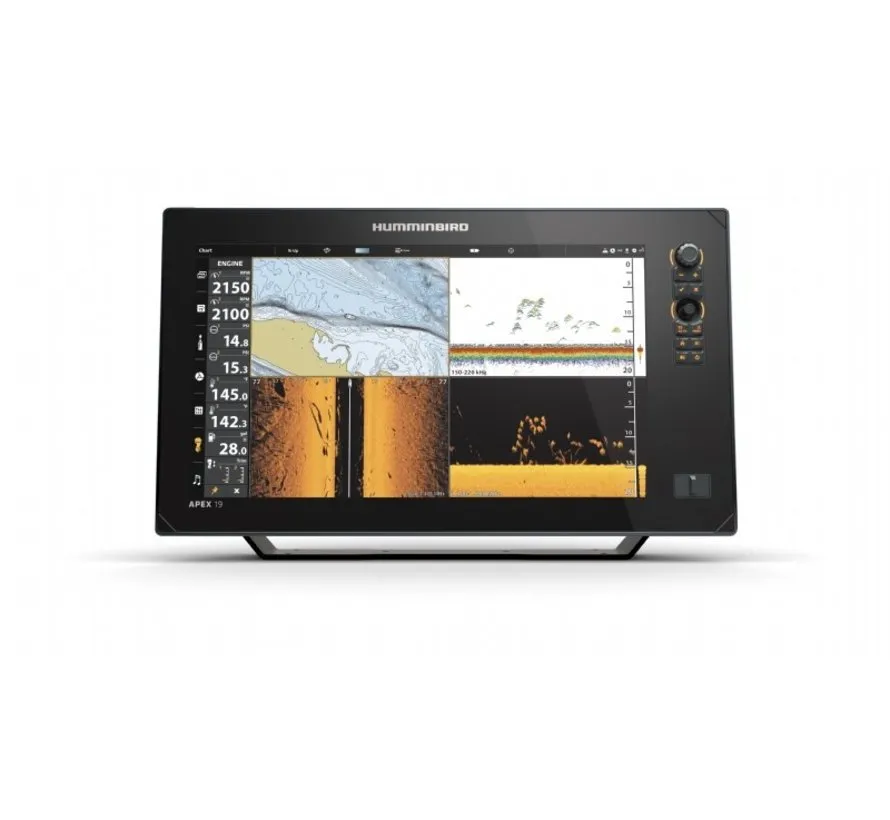

The Humminbird APEX 19 MSI+ is a large multifunction chartplotter and fishfinder designed for advanced fishing and marine navigation.
Its 18.5-inch Full HD touchscreen provides ample space for charts, sonar, Side Imaging, Down Imaging, radar and network information.
Variants
411240-1 – transducer included
- EAN: 0082324054549
- Includes XM 14 HW MSI T transducer
- MEGA Side Imaging+
- MEGA Down Imaging+
- Dual Spectrum CHIRP
411240-1CHO – Control Head Only
- EAN: 0082324055805
- No transducer included
- Suitable for an existing compatible transducer or as an additional network display
Display
- Display size: 18.5 inches
- Resolution: 1920 × 1080 pixels
- Full HD
- Colour TFT
- Touchscreen
- Customisable split-screen layouts
Sonar
Built-in sonar technologies:
- MEGA Side Imaging+
- MEGA Down Imaging+
- Dual Spectrum CHIRP
- Dedicated sonar channel for compatible optional 2D CHIRP transducers up to 2 kW
CHIRP frequencies:
- Full: approx. 150-220 kHz
- Wide: approx. 140-200 kHz
- Narrow: approx. 180-240 kHz
Imaging frequencies:
- 455 kHz
- 800 kHz
- MEGA Side Imaging+: approx. 1050-1175 kHz
- MEGA Down Imaging+: approx. 1100-1200 kHz
Sonar range
Depending on frequency, transducer and conditions:
- 2D sonar: up to approx. 360 m
- MEGA Down Imaging+: approx. 76 m
- 455 kHz Down Imaging: approx. 122 m
- MEGA Side Imaging+: approx. 152 m
- 455 kHz Side Imaging: approx. 244 m
Navigation
- Built-in GPS
- Chartplotter functionality
- Waypoints, routes and tracks
- Dual microSD card slots
- Compatible with suitable Humminbird and Navionics chart products

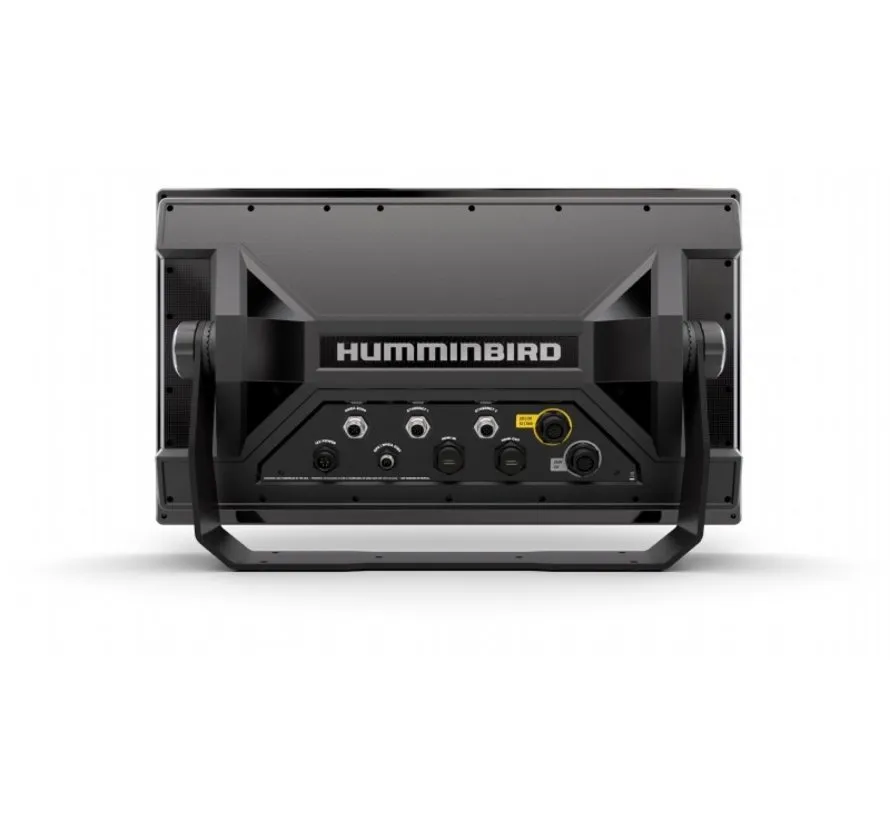

Networking and connectivity
- NMEA 2000
- NMEA 0183
- Dual Ethernet
- WiFi
- Bluetooth
- HDMI input
- HDMI output
- One-Boat Network
System compatibility
Compatible with suitable:
- Humminbird MEGA Live
- MEGA Live 2
- MEGA 360 Imaging
- Minn Kota trolling motors
- Minn Kota i-Pilot Link / Advanced GPS Navigation
- Built-In MEGA SI / DI
- Talon and Raptor
- Cannon downriggers
- AIS
- Marine radar
- Autopilot systems
- NMEA 2000 engine data
Electrical specifications
- Supply voltage: 10.8-20 V DC
- Typical current draw: approx. 4.4 A
- Required fuse: 7.5 A
Dimensions
- Width: approx. 507 mm
- Height: approx. 315 mm
- Depth: approx. 124 mm
411240-1 package
- Humminbird APEX 19 MSI+ control head
- XM 14 HW MSI T transducer
- Power cable
- Gimbal mounting bracket
- Mounting hardware
- Unit cover
411240-1CHO package
- Humminbird APEX 19 MSI+ control head
- Power cable
- Gimbal mounting bracket
- Mounting hardware
- Unit cover
- No transducer
