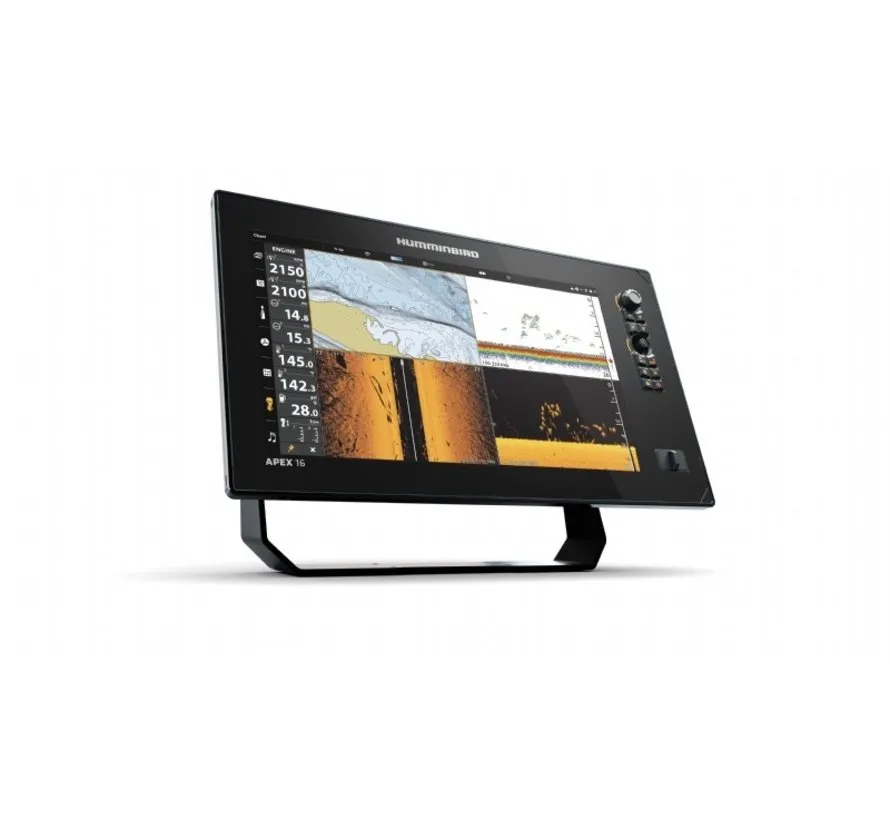

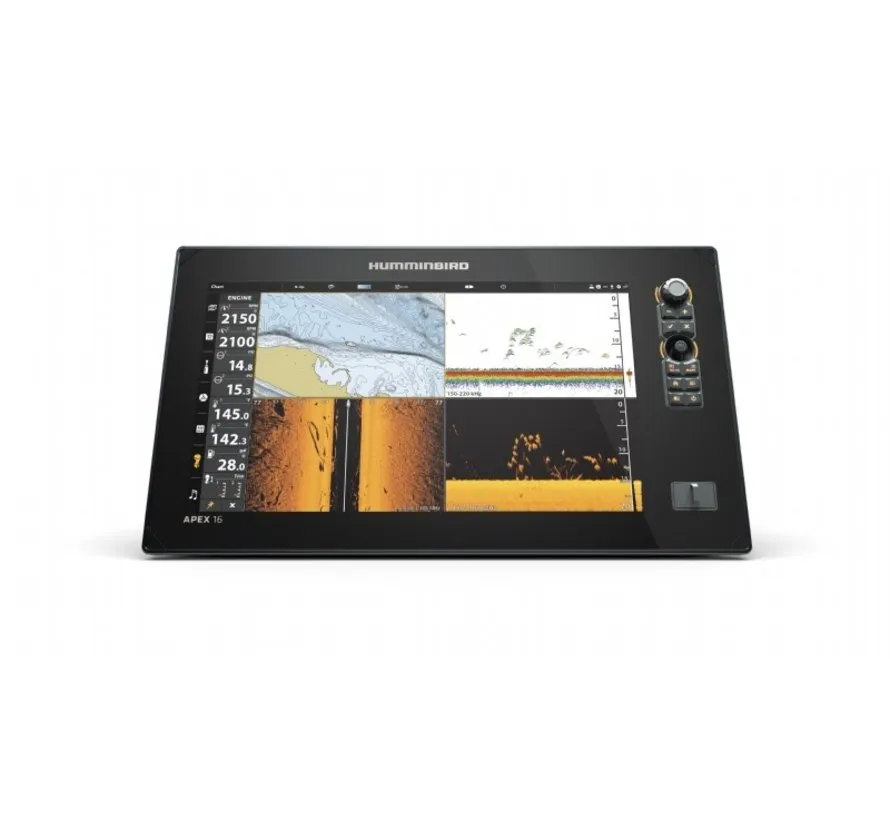

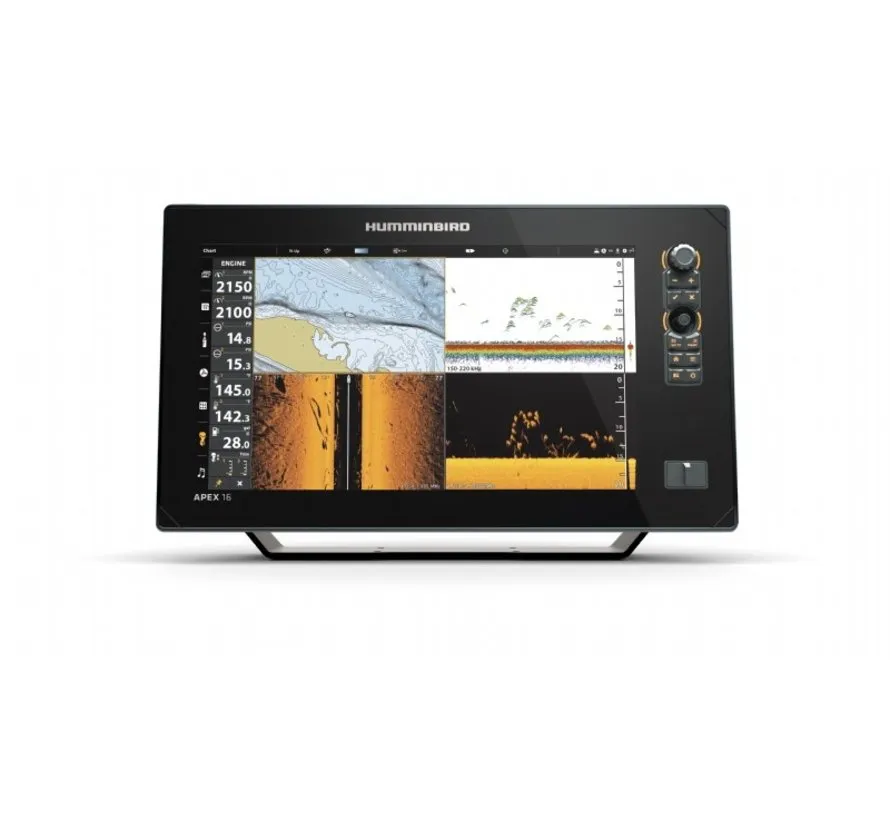

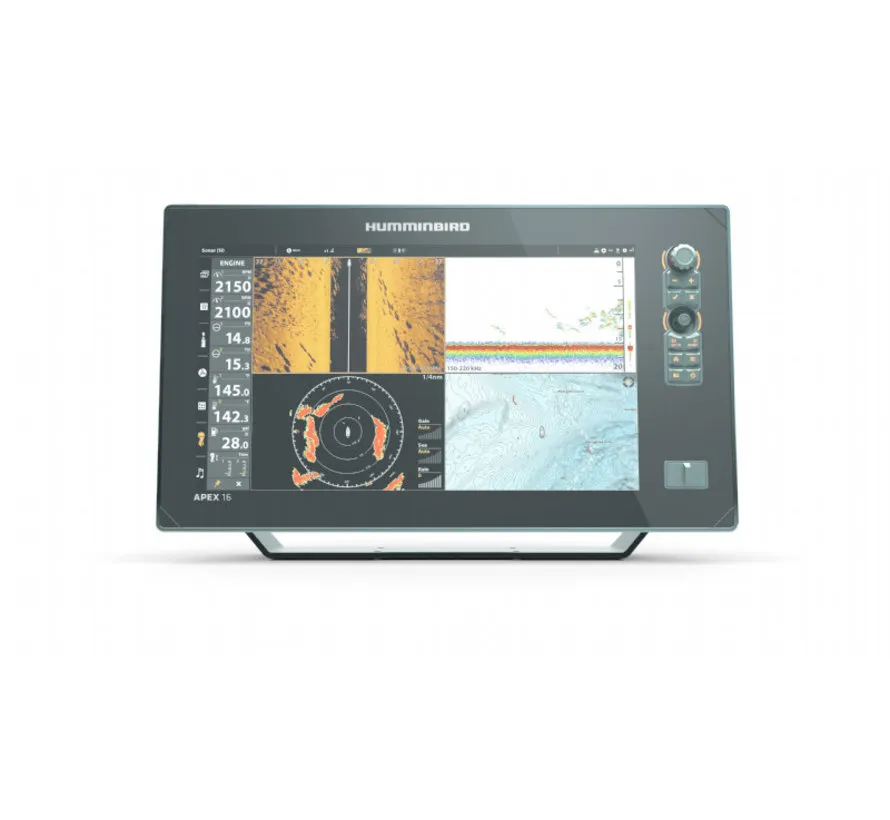

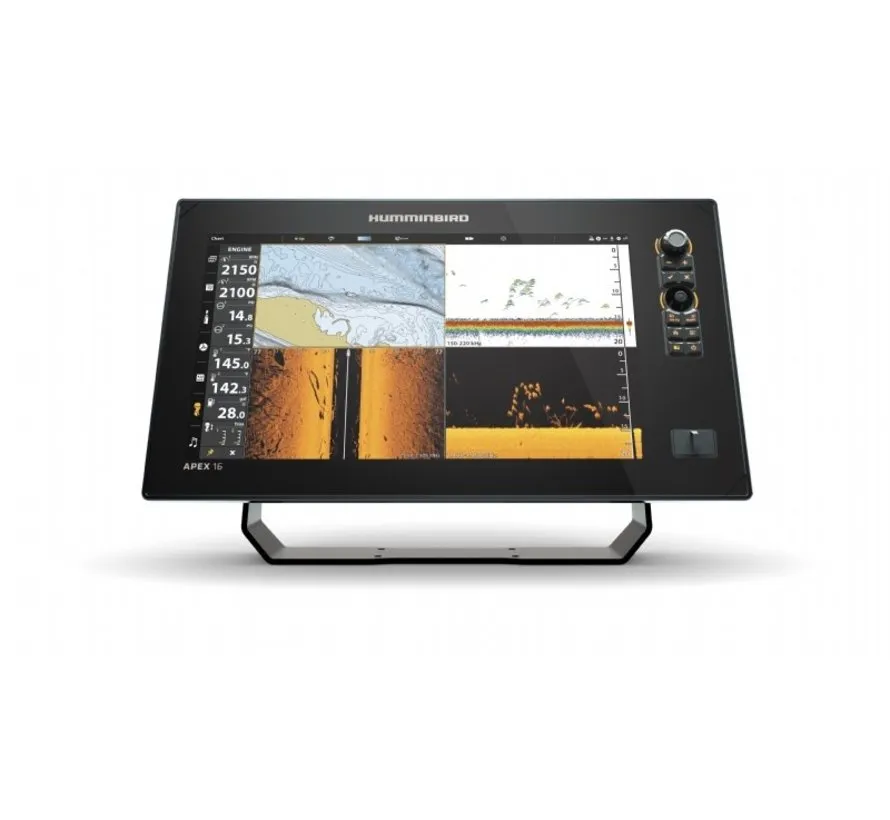

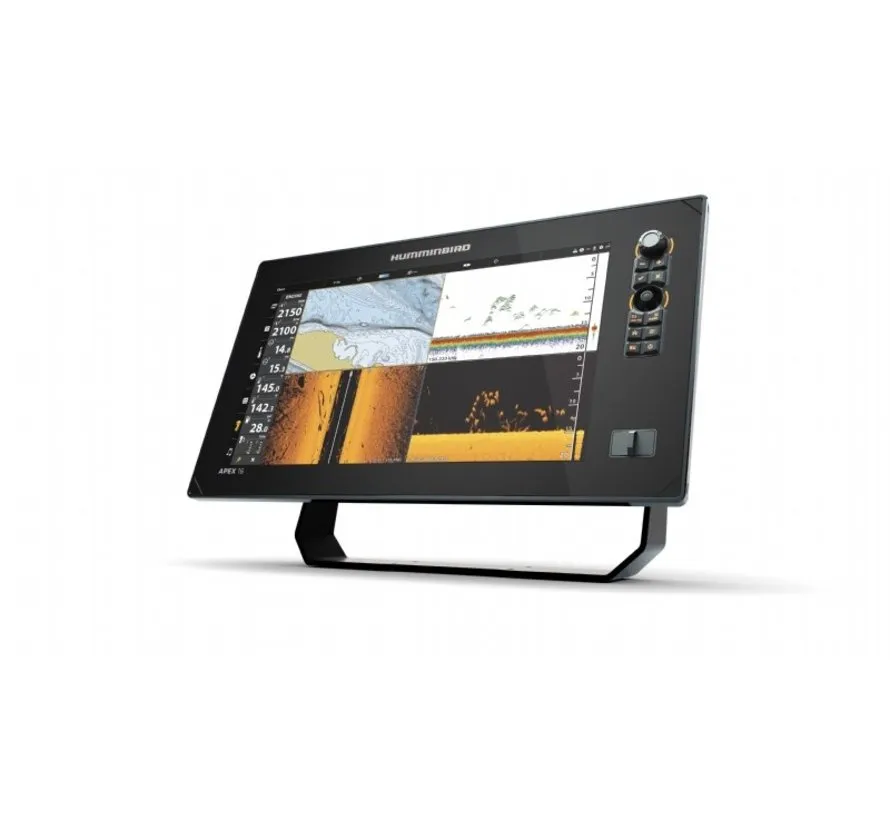

The Humminbird APEX 16 MSI+ is a large multifunction chartplotter and fishfinder designed for advanced fishing and marine navigation.
Variants
411500-1
- EAN: 0082324055331
- Includes XM 14 HW MSI T transom transducer
411500-1CHO
- EAN: 0082324055737
- Control Head Only
- No transducer included
Display
- Display size: 15.6 inches
- Resolution: 1920 × 1080 pixels
- Full HD
- Colour TFT
- Touchscreen
- Physical keypad
- Custom split-screen layouts
Sonar
- MEGA Side Imaging+
- MEGA Down Imaging+
- Dual Spectrum CHIRP
- Dedicated accessory sonar channel for compatible 2D CHIRP transducers up to 2 kW
Dual Spectrum CHIRP
- Full: approximately 150-220 kHz
- Wide: approximately 140-200 kHz
- Narrow: approximately 180-240 kHz
- Maximum 2D sonar depth: approximately 360 m
Imaging range
MEGA Side Imaging+:
- Up to approximately 152 m
455 kHz Side Imaging:
- Up to approximately 244 m
MEGA Down Imaging+:
- Up to approximately 76 m
455 kHz Down Imaging:
- Up to approximately 122 m
Navigation
- Built-in GPS
- Humminbird Basemap compatible
- LakeMaster compatible
- CoastMaster compatible
- Navionics+ compatible
- Navionics Platinum+ compatible
- Dual microSD slots

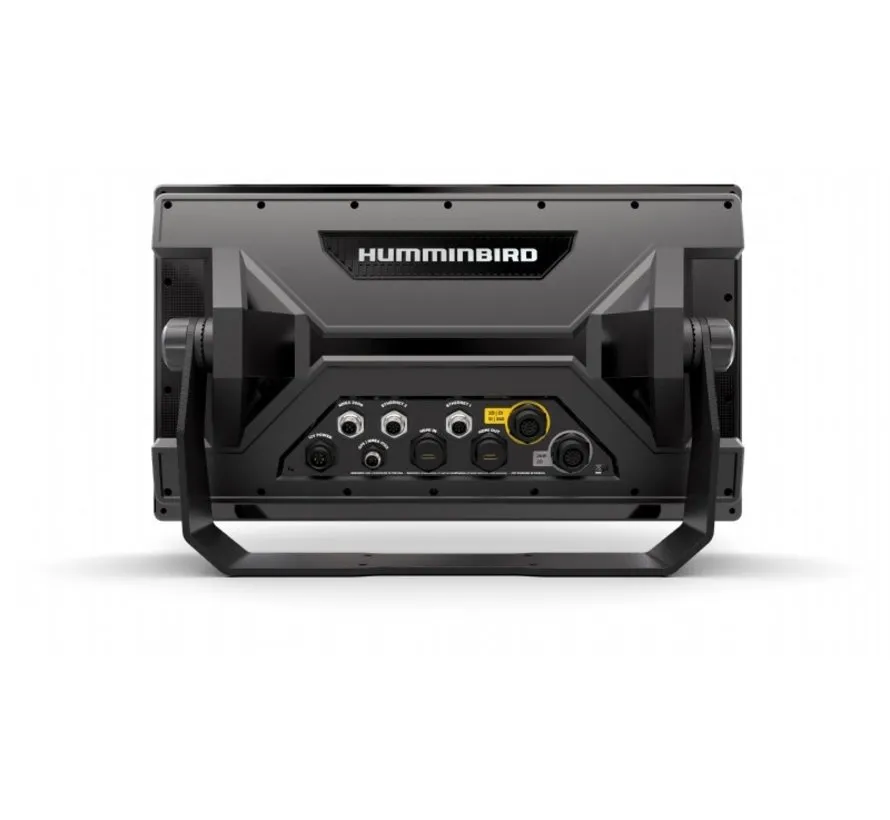

Networking and connectivity
- NMEA 2000
- Dual Ethernet
- WiFi
- Bluetooth
- HDMI input
- HDMI output
- One-Boat Network
Compatibility
Compatible with suitable:
- MEGA Live
- MEGA Live 2
- MEGA 360
- Minn Kota i-Pilot Link
- Minn Kota Advanced GPS Navigation
- Built-In MEGA SI
- Built-In MEGA DI
- Talon
- Raptor
- Radar
- AIS
- Autopilot
Electrical specifications
- Supply voltage: 10.8-20 V DC
- Current draw: approximately 4.3 A
- Fuse: 7.5 A
- Sonar RMS output: up to approximately 1000 W
Weight
- Approximately 4.76 kg
Package contents 411500-1
- APEX 16 MSI+ display
- XM 14 HW MSI T transducer
- Power cable
- Gimbal mounting bracket
- Mounting hardware
- Unit cover
Package contents 411500-1CHO
- APEX 16 MSI+ display
- Power cable
- Gimbal mounting bracket
- Mounting hardware
- Unit cover
- No transducer
