AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer.
The TM185MW takes transducer design and performance to the next level by utilizing a center frequency (60-100 kHz) with an incredible ultra-wide beam width ranging from 57-73° port-starboard to 16° average fore/aft.
Maximum coverage under the boat is achieved with this medium frequency transducer, serving anglers fishing for pelagic species in the upper water column.
Airmar's new Medium Ultra-Wide models are perfect for searching for deeper fish with a frequency band of 60-100 kHz.

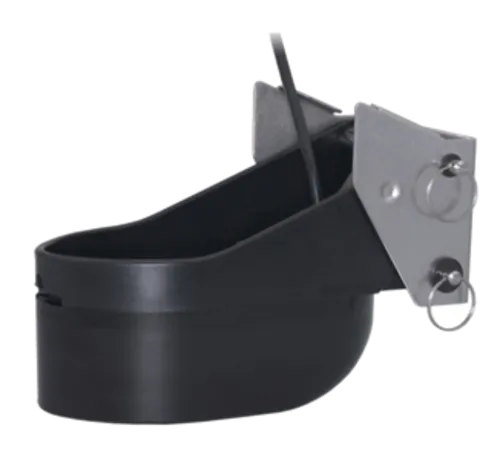

The TM185MW Transom Mount is a 1 kW transducer in one of AIRMAR's most popular housings. Transom models are best suited for small and trailer boats where a thruhull installation is not practical. Easy to install and ideal for small craft with trailers where a hull may interfere with loading.
Advantages;
Depth and fast response water temperature sensor
1 kW with depth tracking up to 400 m (1,300')
Center frequency: 60-100 kHz
57° to 73° beam width (port/ starboard)
16° average fore/aft
40 kHz total bandwidth of one transducer
Center frequency for superior mid-depth performance and excellent separation between fish and target
Easy installation on the transom of the boat
Good performance at speeds below 30 knots
Easy maintenance and inexpensive replacement
Exclusive Xducer ID® technology
Specifications;
Acoustic window: Urethane
Cable length: 9 m (30')
General use: Leisure/hunting, fishing
Connection: Airmar 12-pin (MMC)
Screen connection: Cable required
Maximum depth: 400 m (1300')
Average frequency: 60-100 kHz
Medium wide beam width: 57° to 73° beam p/s 16° average f/a
Mix and Match Series: 12-pin chirp
Power: 1 kW
Sensor connection: MMC
Single or dual frequency: CHIRP-ready single band
Tilted element: None
Mirror angle: 2° to 22°
Weight: 4.2 kg (9.2 lb.)
Housing: Urethane/stainless bracket
Functions: Depth, Temperature
Hull Material: Compatible with all hull materials
Mounting Style: Dom
