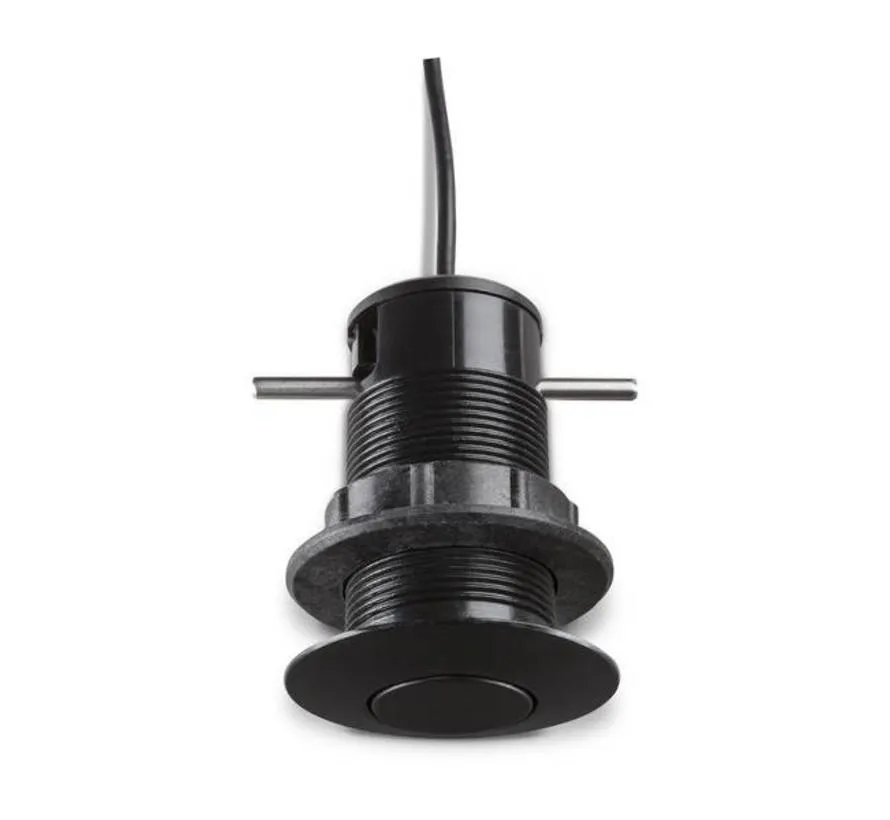

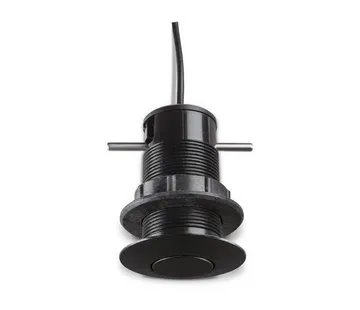

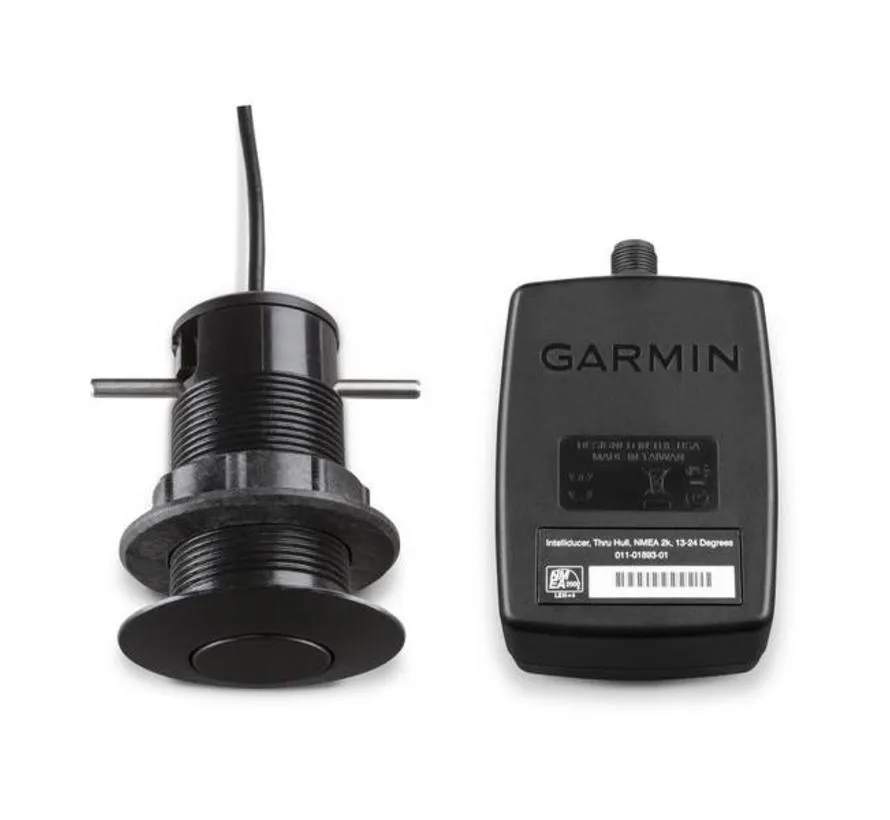

This Garmin GDT 43 is a thru-hull transducer for measuring water depth and water temperature. The version under article code 010-01749-10 is supplied with a NMEA 2000 adapter, allowing direct connection to a NMEA 2000 network so the data can be shown on a compatible Garmin chartplotter or instrument display.
The GDT 43 is also useful as a replacement or retrofit option for an existing Nexus or Silva 43 mm thru-hull transducer (TH43). That makes it a practical choice for installations where the existing hull opening size and NMEA 2000 integration need to be retained.
Product specifications
- Brand: Garmin
- Article code: 010-01749-10
- Type: GDT 43
- Product type: thru-hull depth and temperature transducer
- Used for:
- water depth measurement
- water temperature measurement
- display on compatible Garmin chartplotters
- display on compatible Garmin instrument displays
- Network / connection: NMEA 2000 (via included adapter)
- Mounting: thru-hull
- Mounting hole: 43 mm
- Suitable as retrofit for:
- Nexus 43 mm thru-hull transducer
- Silva TH43 thru-hull transducer
- Cable length: 6 m
- Hull material according to dealer source:
- fiberglass
- steel
- aluminium
- Deadrise according to dealer source: 0–22°
- In the box:
- GDT 43 depth transducer
- NMEA 2000 adapter
