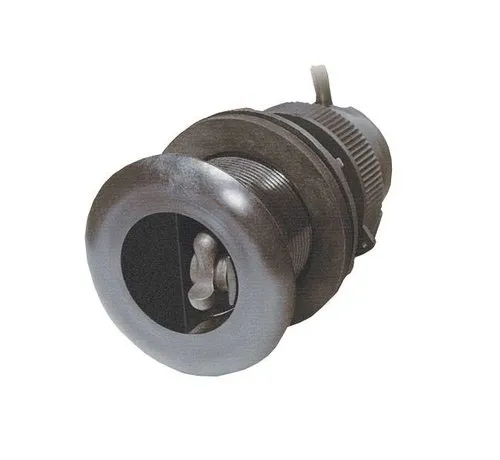

Airmar DST800 Plastic Smart Triducer with NMEA0183 protocol
The DST800 is a SmartTM, TRIDUCER® multisensor that provides depth, speed, and temperature functions in one compact coupling fixture. Digital signal processing in the housing delivers depth, speed, and temperature data for a chart plotter, radar screen, or digital display, making a separate depth sounder unnecessary. Operates at 235 kHz, so there is no interference with your 50/200 kHz fishfinder transducer.
Airmar's Smart sensors have embedded microelectronics, meaning the signal is processed from the transducer itself.
Specifications Airmar DST800 Plastic Smart Triducer:
Depth, speed, and temperature measurement in one compact housing
235 kHz frequency prevents mutual interference with other sonar devices on the vessel
Depth performance from 0.5 to 185 m (1.6 to 600')
Wide, fan-shaped beam to port and starboard can find the bottom even when installed on a high deadrise hull or a sloping sailboat
Fast-reacting water temperature sensor provides an accuracy of ±0.2°C (±0.1°F)
NMEA0183 protocol
Acoustic window: Urethane
Cable length: NMEA 0183: 10 m (33')
General use: Cruising/racing with sailboats, Leisure/yacht, Fishing
Conventional width: 10°x44°
Data rate: 1X per second
Functions: Depth, Speed, Temperature
Hole size: 51 mm (2")
Housing: Plastic
Hull material: Fiberglass or metal
Max. blind spot: Up to 22°
Max blind spot: 22°
Max Depth: 500 mm (1.6') Up to 70 m (230')
Mounting style: Tilted element through the hull
Power: 60 W
Protocol output: NMEA 0183
Pulses: 20,000 p/nm* (5.6 Hz per knot) -*p/nm = pulses per nautical mile
Retractable housing: Yes
Single or dual frequency: Conventional single frequency
Speed range: Up to 45 knots
Temperature accuracy: ±0.5°C (±1.8°F)
Tilted element: None
Usable shaft length: 57 mm (2.25")
Voltage: 10 to 25 VDC
Water temperature: -10° to 40°C (14° to 104°F)
Weight: 0.9 kg (2 lb.)
