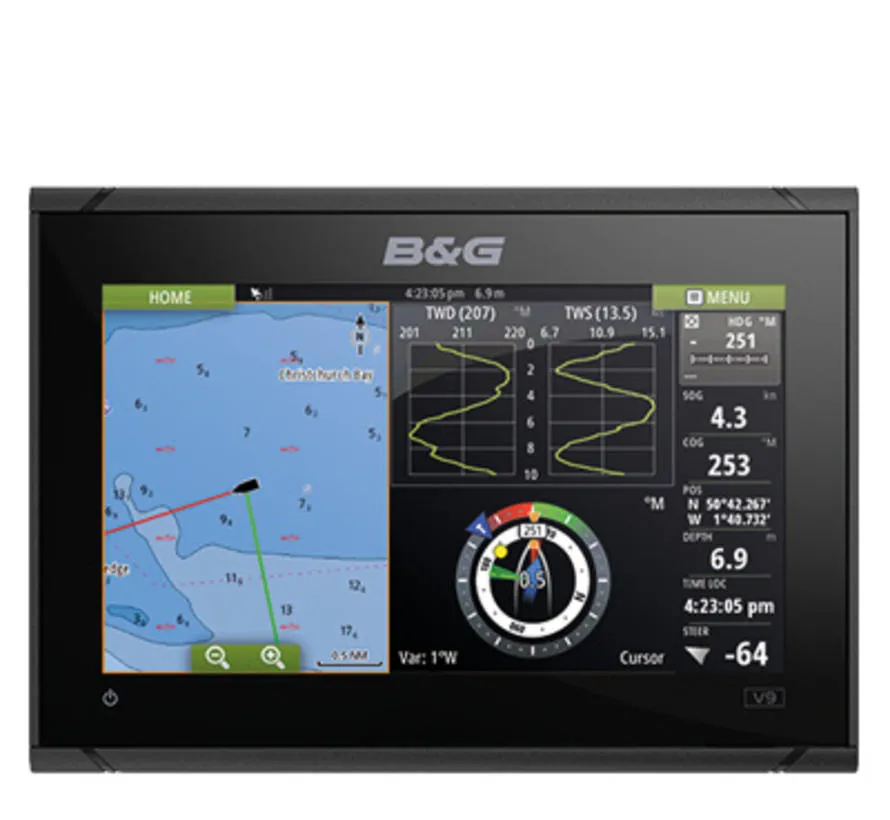

The B&G Vulcan 9 is a 9-inch multifunction chartplotter designed specifically for coastal cruising and club racing.
Dedicated B&G sailing functions provide sailors with clear navigation, wind and performance information.
Display
- Screen size: 9 inches
- Resolution: 800 × 480 pixels
- Brightness: 1200 nits
- Multitouch display
- Viewing angle: 80°

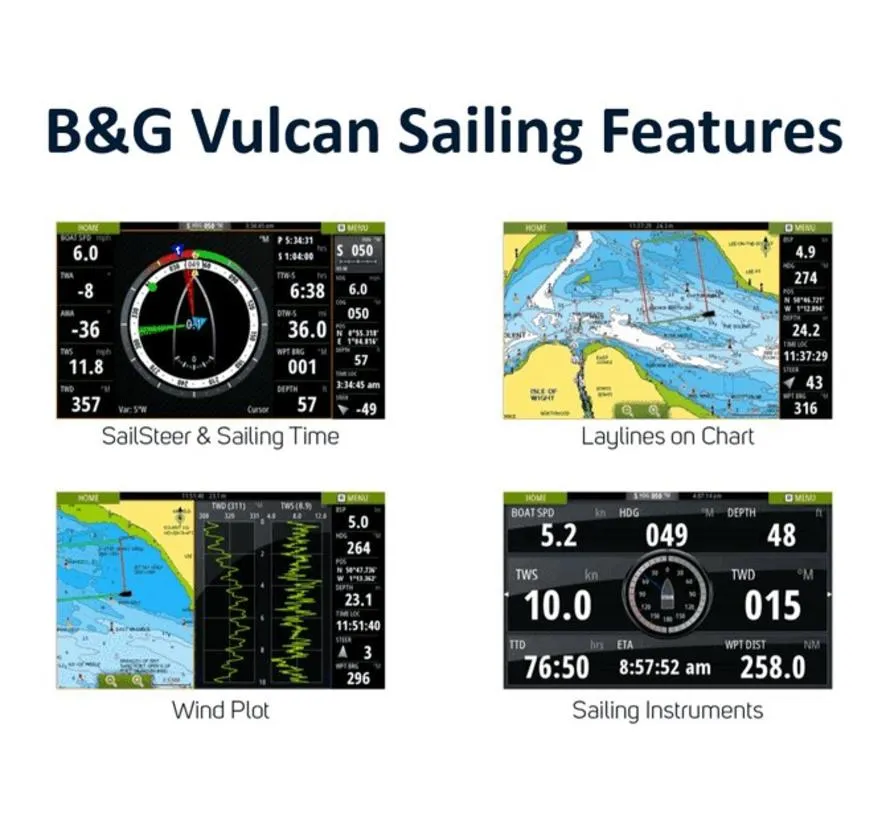

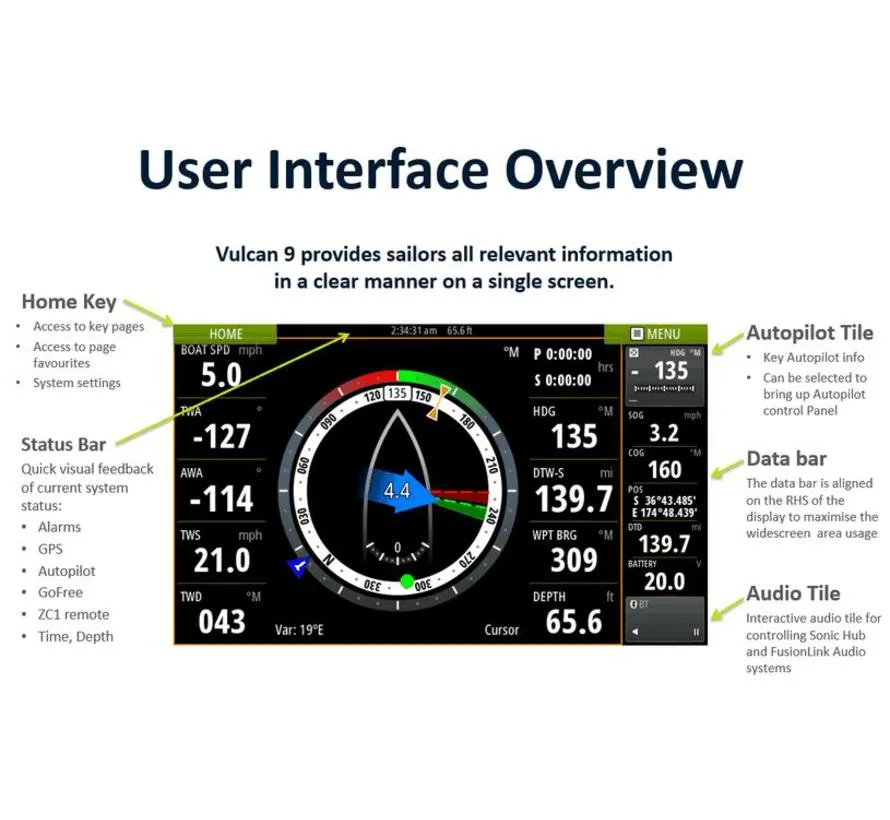

Sailing functions

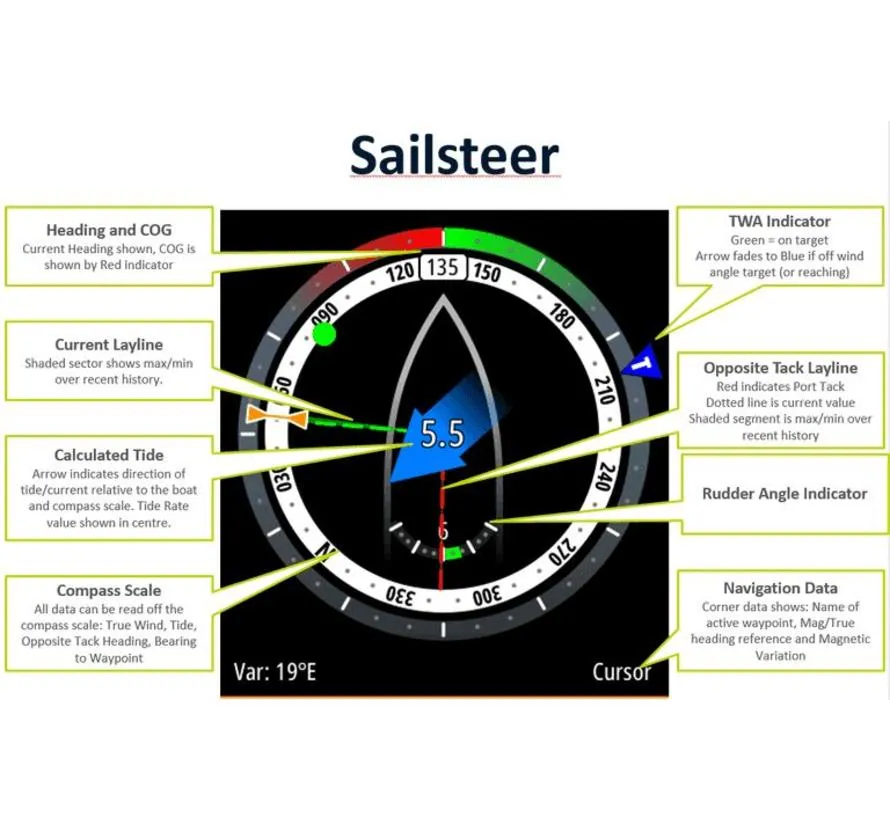

- SailSteer
- SailingTime
- Laylines

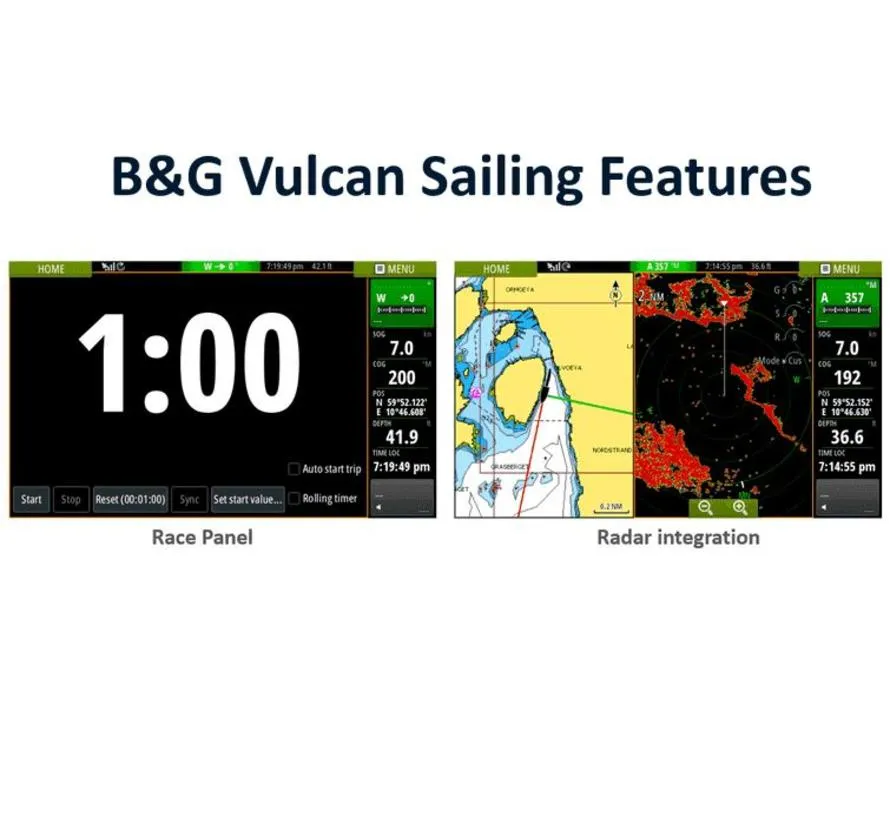

- RacePanel
- Wind information
- Instrument display
- Autopilot control
GPS
- Internal 10 Hz GPS
- 32 channels
- GLONASS
- WAAS
- EGNOS
- MSAS
- Horizontal accuracy: approx. 3 m
Navigation capacity
- 6000 waypoints
- 500 routes
- Up to 100 route points per route
- 50 tracks
- Up to 12,000 track points

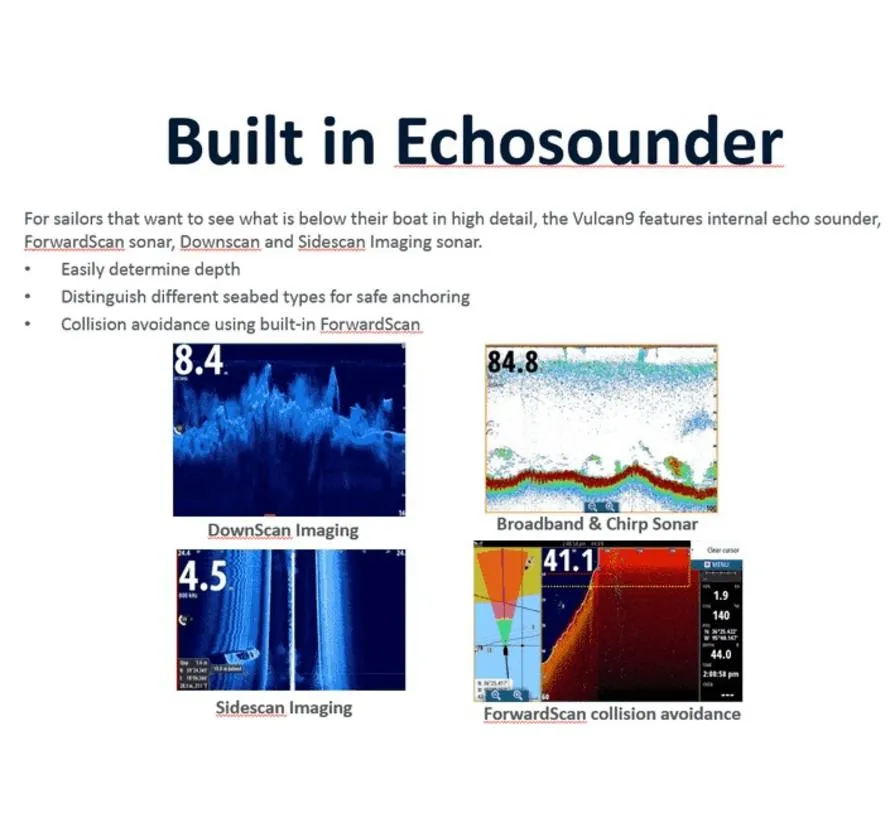

Sonar
- Integrated sonar module
- One 9-pin Xsonic connector
- CHIRP
- DownScan Imaging
- ForwardScan support
Transducer not included.
Radar
Compatible with suitable B&G/Navico radar systems through Ethernet, including appropriate Broadband and Halo radar installations.

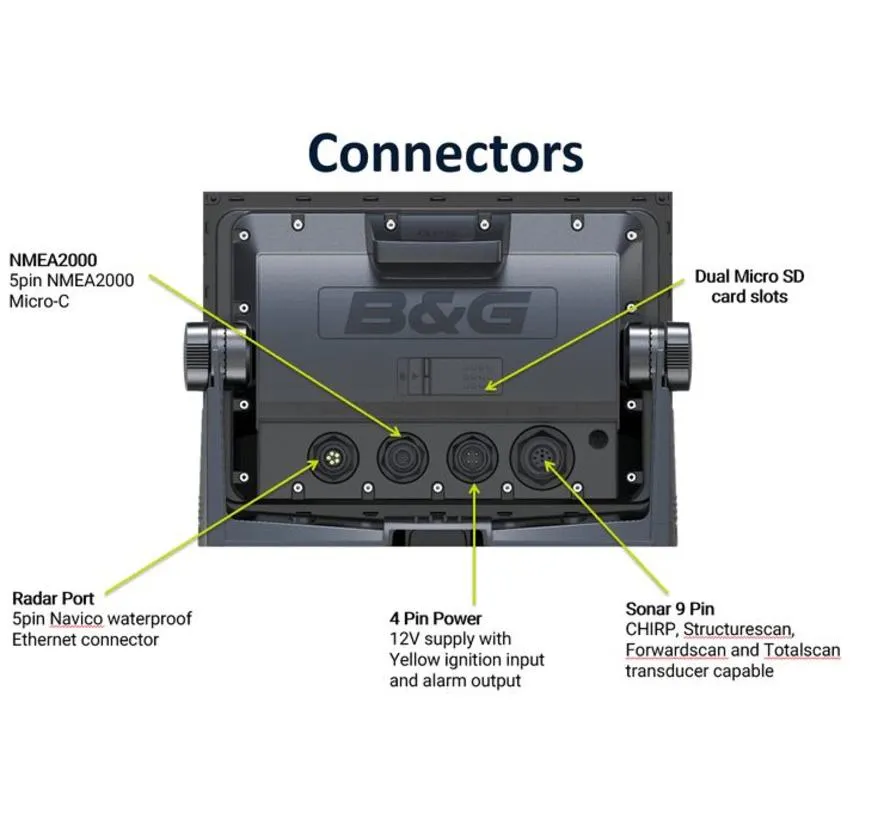

Networking and connectivity
- NMEA 2000 Micro-C
- NMEA 2000 LEN: 1
- 100 Mbit/s Ethernet
- Integrated WiFi
- Integrated Bluetooth
- Two microSD slots
- AIS data via NMEA 2000
Power
- 12 V DC
- Operating range: 10–17 V DC
- Typical power consumption: approx. 12 W
- Maximum power consumption: approx. 20 W
- Recommended fuse: 3 A
Dimensions
- 243 × 171 × 83 mm
- Weight: approx. 1.32 kg
Environmental
- IPX6 / IPX7
- Operating temperature: -15 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
Package contents
- B&G Vulcan 9 display

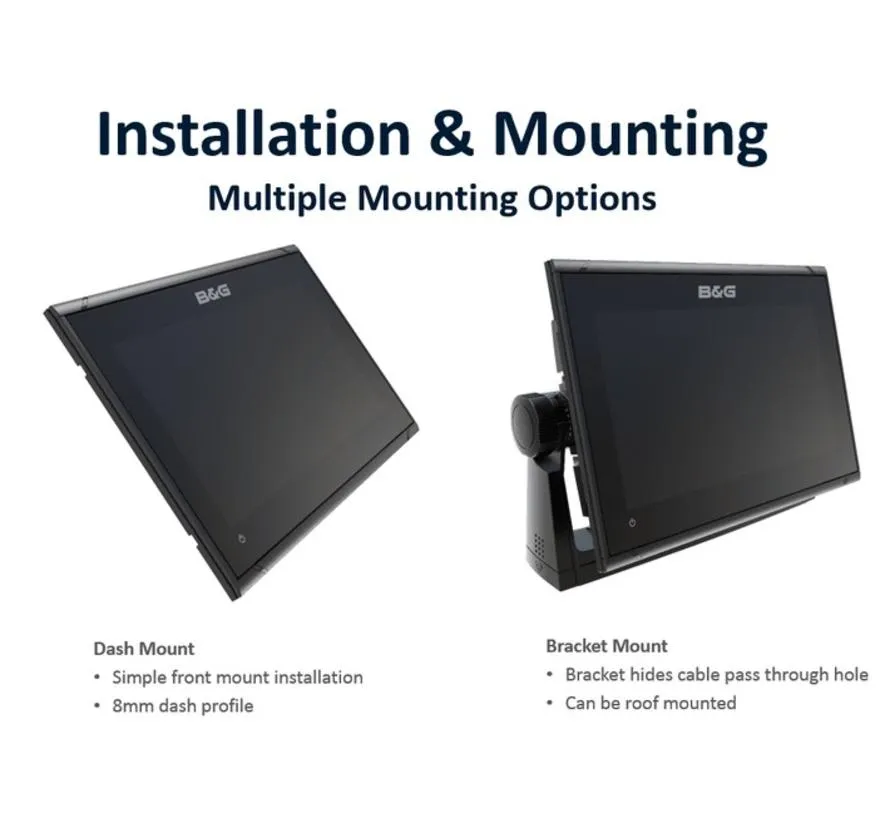

- Mounting bracket
- Mounting hardware
- Power cable
- Documentation
Not included
- Sonar transducer
- Radar
- NMEA 2000 backbone
- Autopilot
- Detailed chart depending on version
