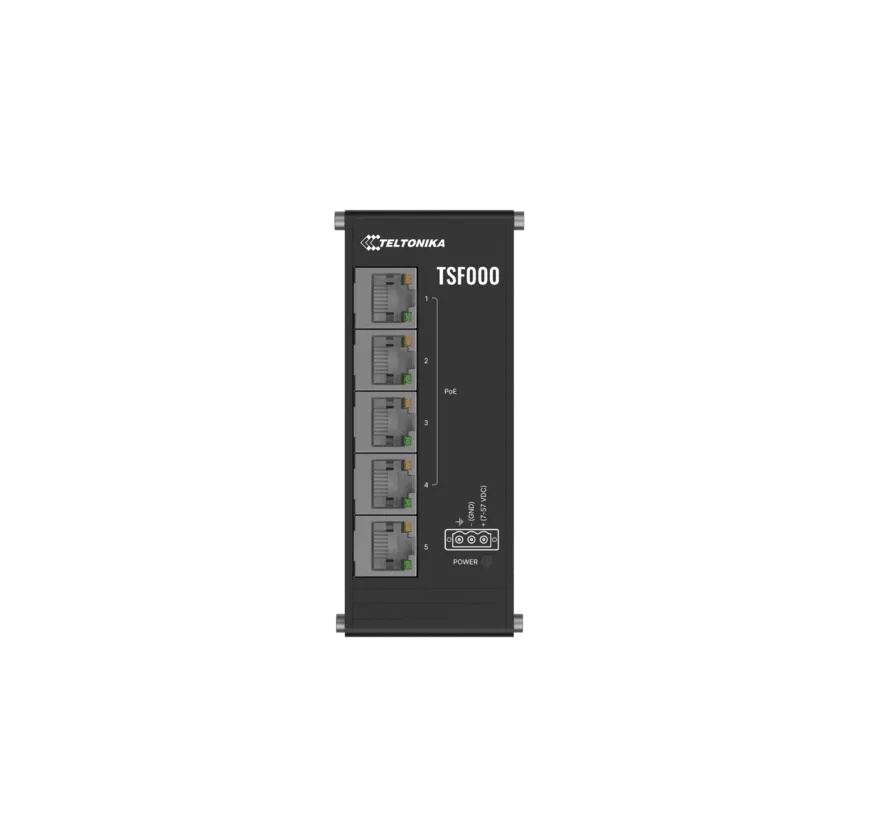

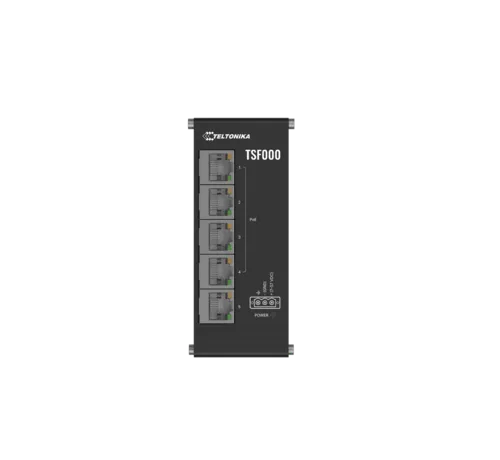

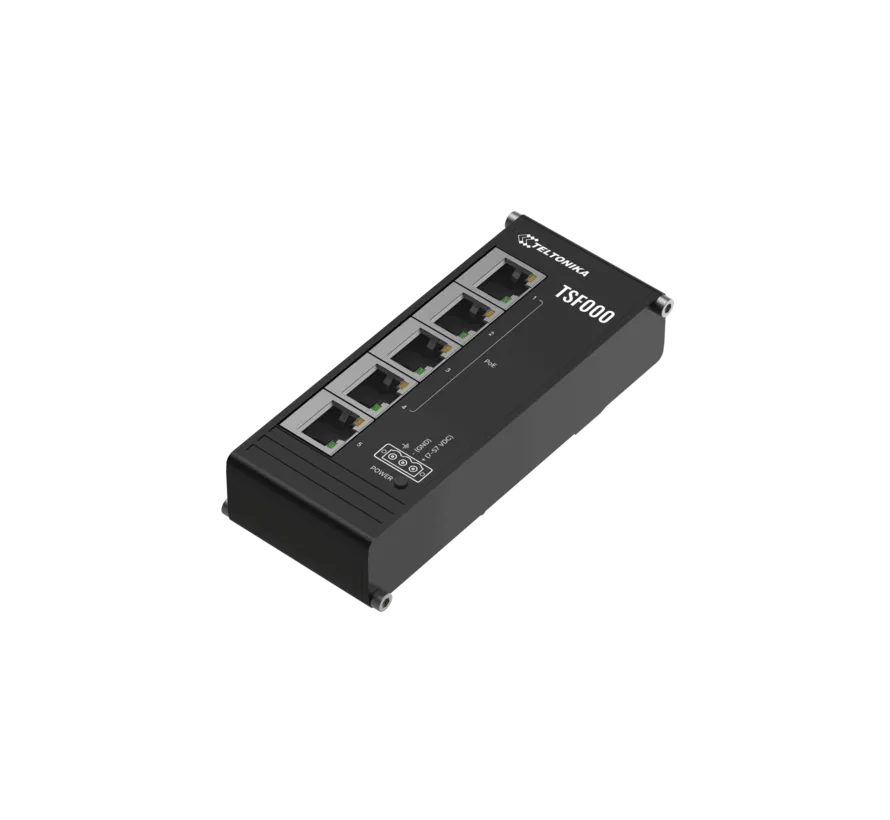

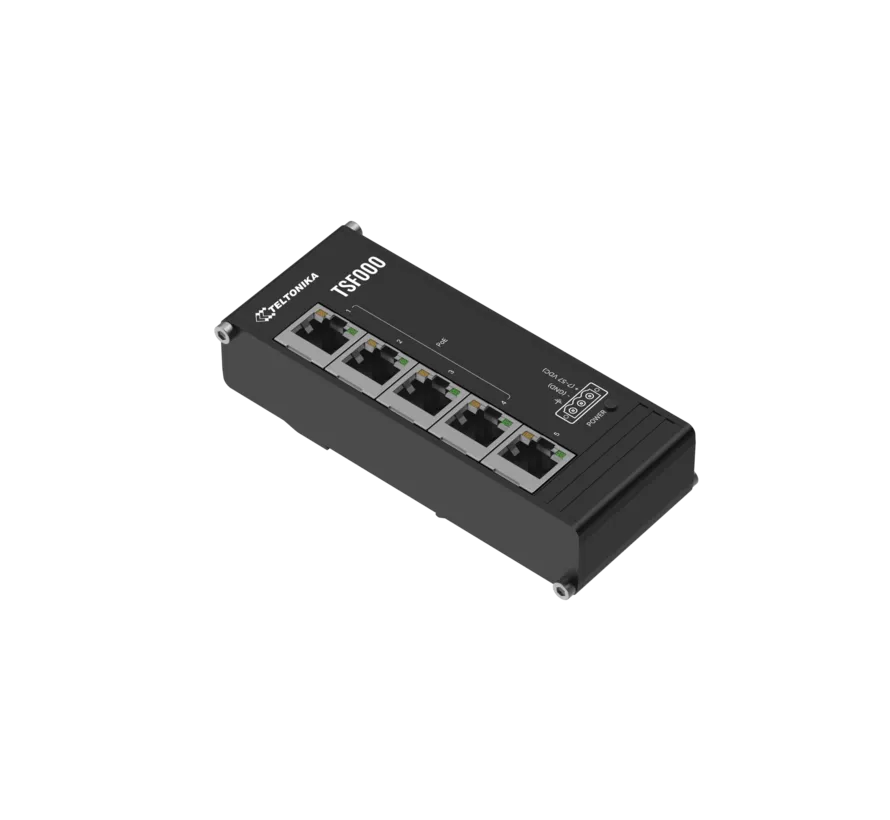

The Teltonika TSF000 is a compact unmanaged PoE+ switch for industrial, commercial and technical network installations. Its low-profile housing makes it ideal for control cabinets, tight installation spaces, retail, IoT, surveillance, automation, energy and utility applications.
The switch has 5 Fast Ethernet RJ45 ports with 10/100 Mbps speed. Ports 1 to 4 support PoE and PoE+, allowing compatible devices to receive both data and power through the same network cable. Typical applications include IP cameras, access points, sensors and other PoE devices.
With a total PoE budget of 120 W and up to 30 W per PoE port, the TSF000 can power multiple PoE devices at the same time. A suitable power supply is required for PoE operation; the standard version is supplied without PSU. The integrated DIN rail bracket and aluminium housing make installation simple and robust.
Key features
- Compact Teltonika unmanaged PoE+ switch
- Model TSF000
- Article code TSF000000000
- 5x RJ45 Fast Ethernet ports
- 10/100 Mbps per Ethernet port
- Ports 1–4 with PoE/PoE+ support
- IEEE 802.3af and IEEE 802.3at
- Up to 30 W per PoE port
- Total PoE budget 120 W
- Low profile of only 28 mm
- Integrated DIN rail mounting bracket
- Rugged anodized aluminium housing

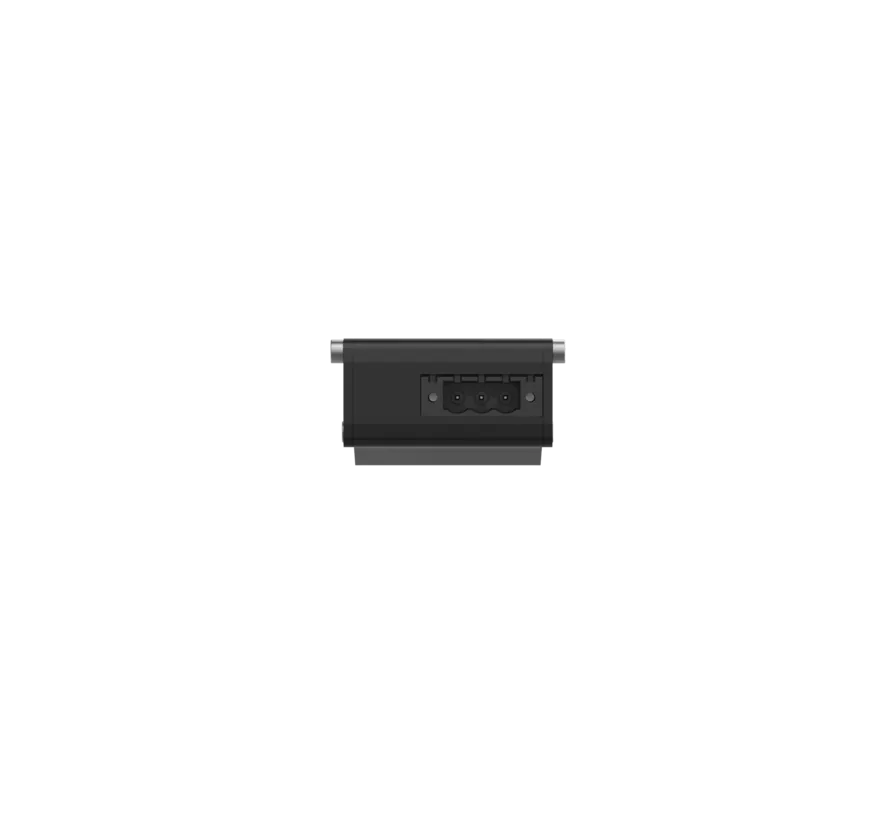

- Flexible 7–57 VDC power input
- 44–57 VDC required for PoE-out
- 10 Gbps non-blocking bandwidth according to datasheet
- 128 KB packet buffer
- MAC address table with 2K entries
- Jumbo frame support up to 9216 bytes
- 1 power LED and 10 Ethernet status LEDs
- Suitable for IP cameras, access points, IoT and industrial sensors
- Supplied without power supply
- Always check PoE power and PSU before installation
