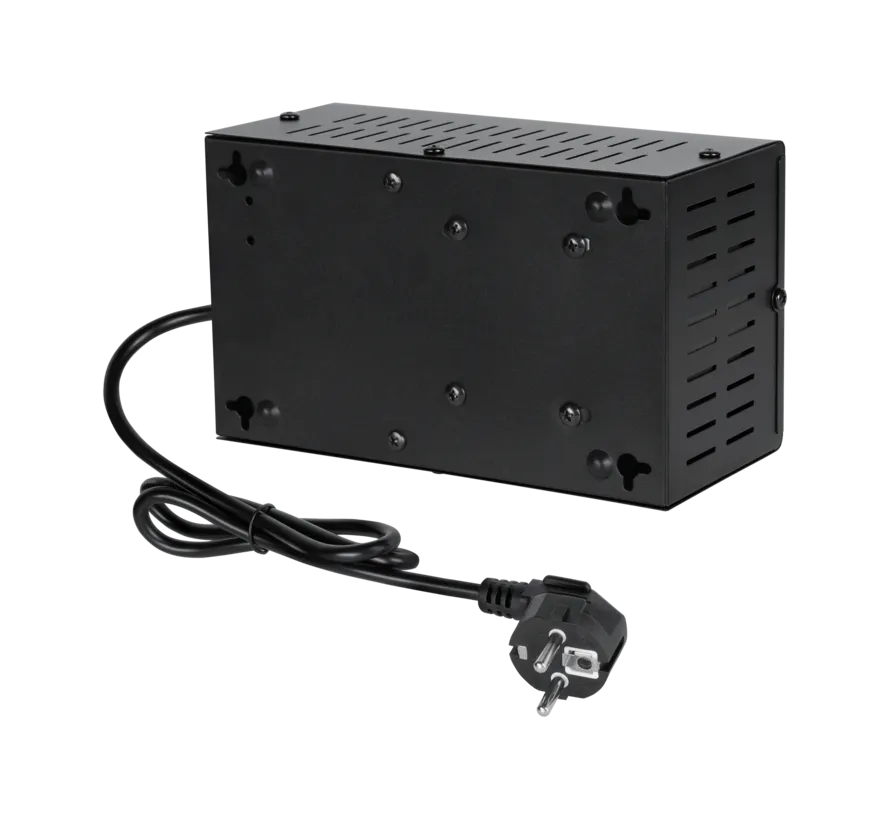

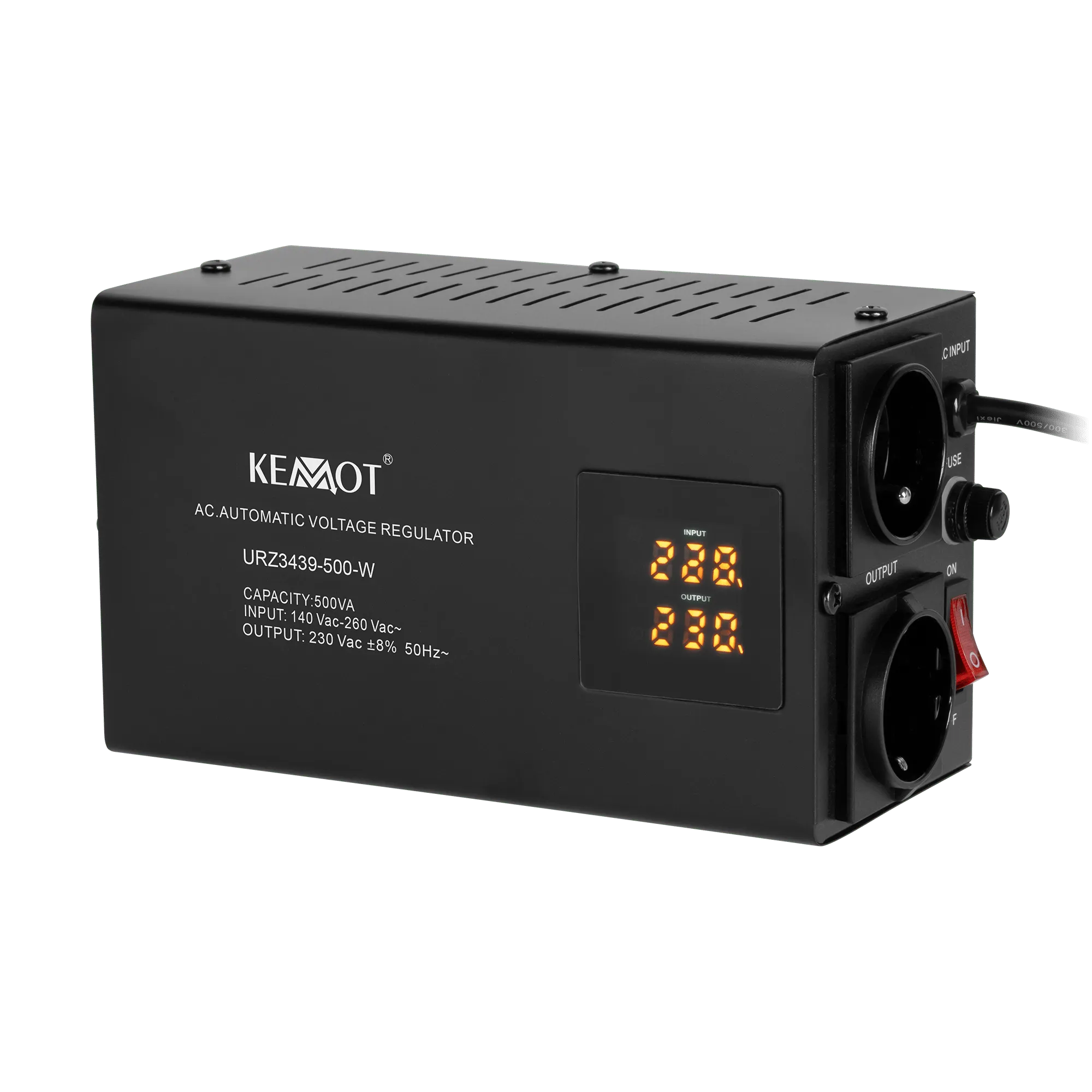

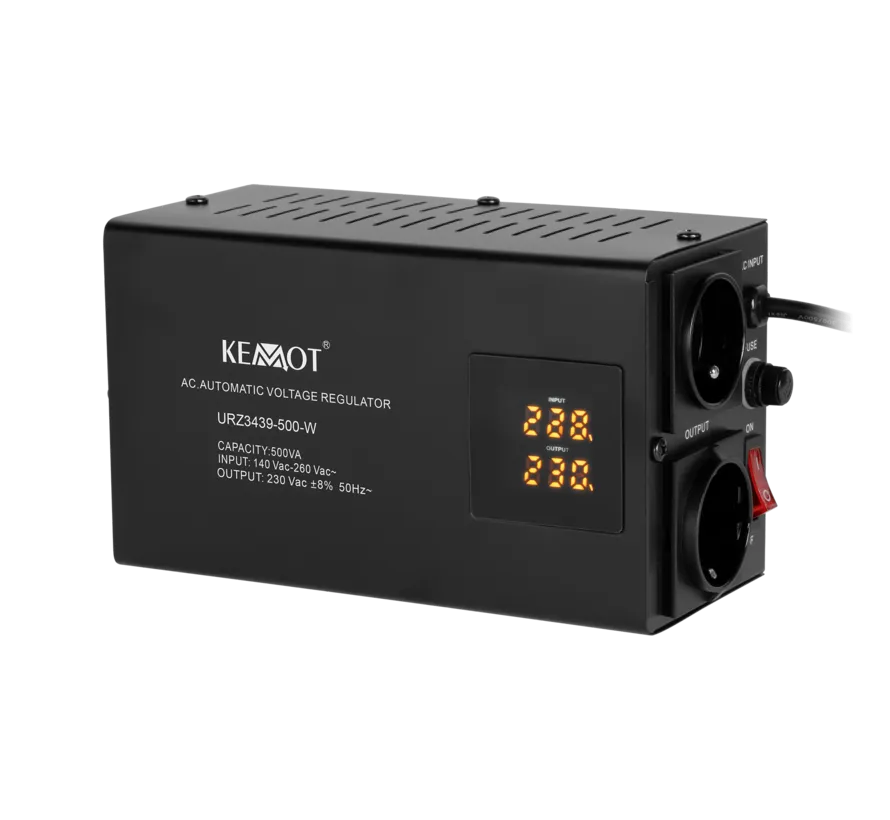

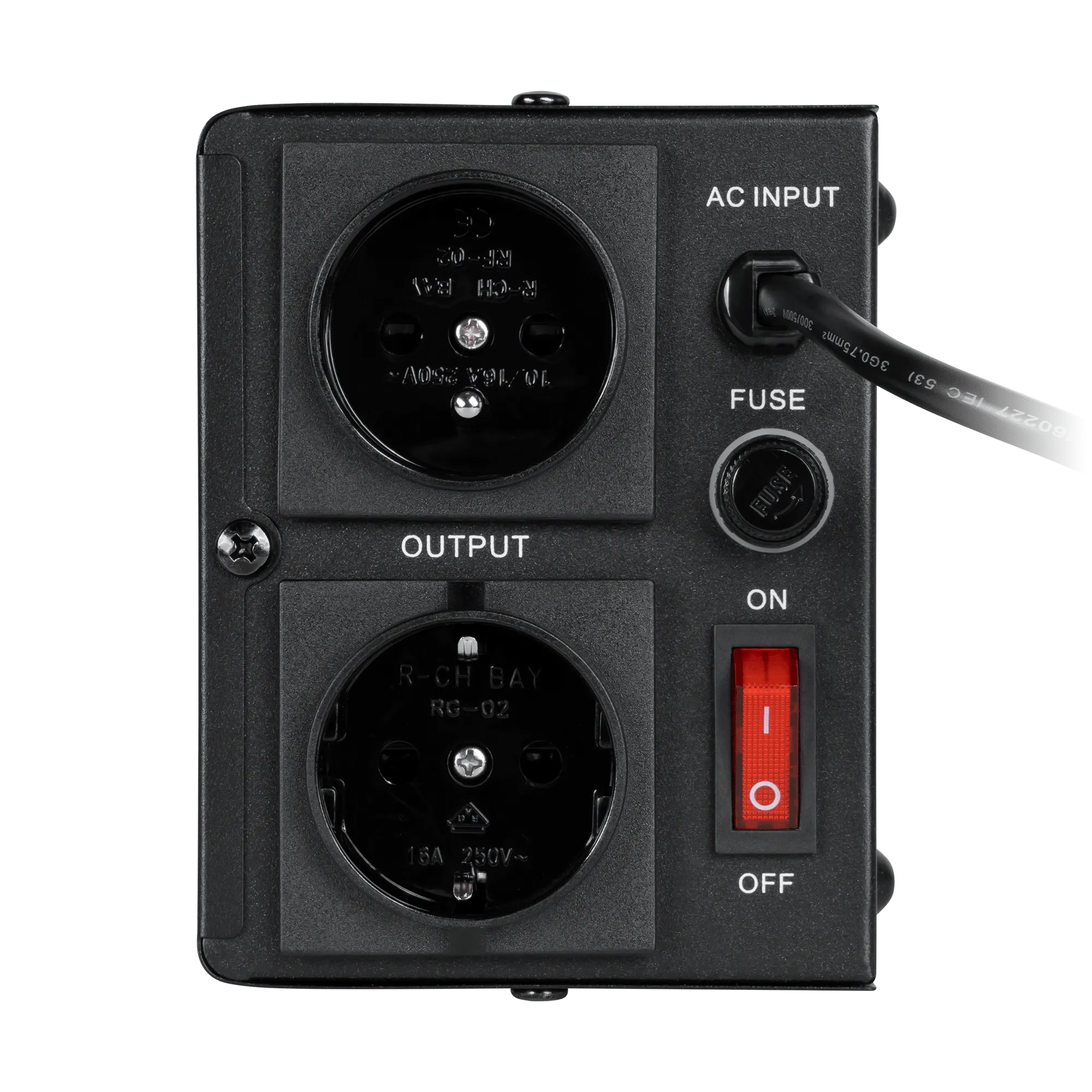

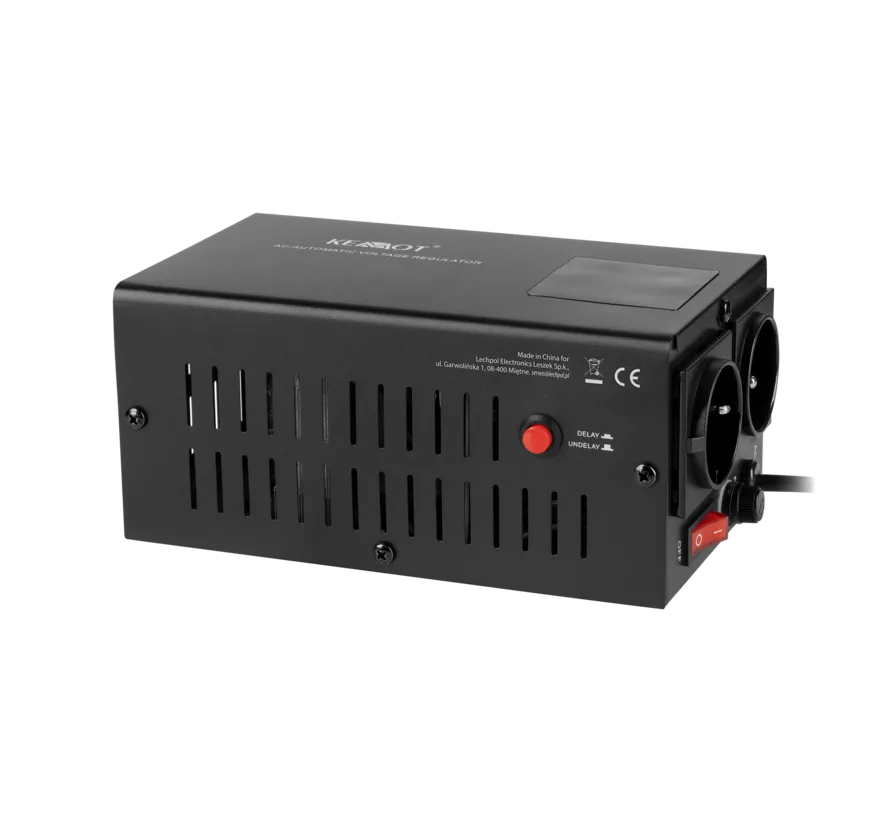

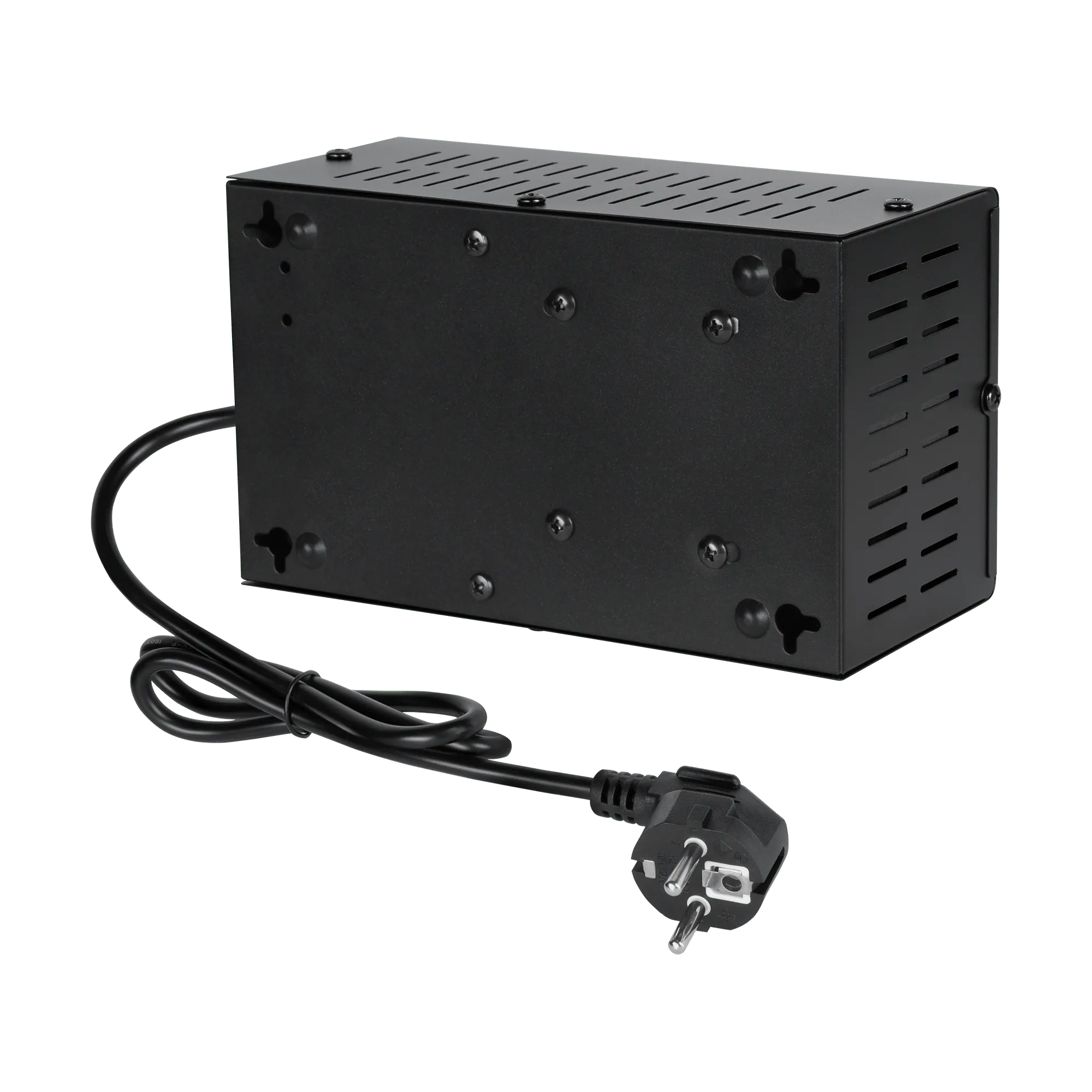

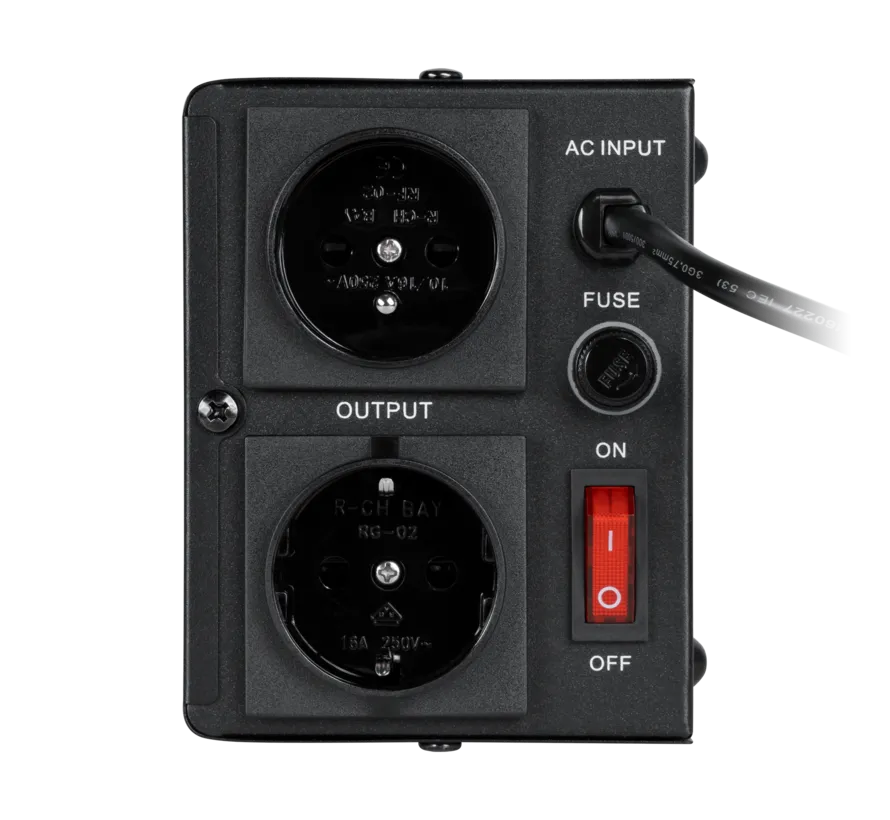

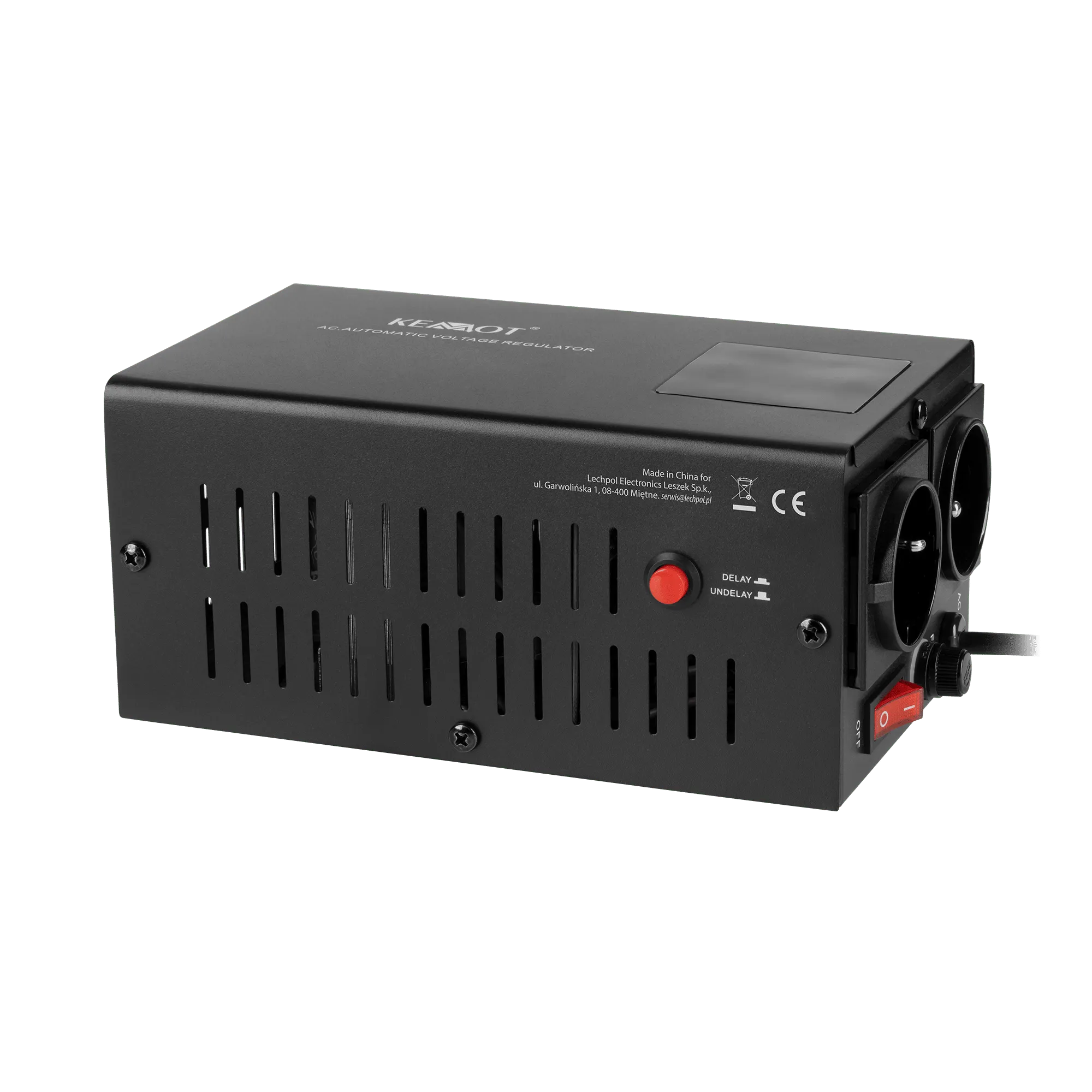

The Kemot SER-500-W is a compact automatic voltage stabilizer designed to regulate fluctuating mains voltage in domestic, office and technical installations.
It regulates an input voltage between 140 and 260 V AC to a 230 V AC output with an accuracy of ±8%.
Product specifications:
- Brand: Kemot
- Model: SER-500-W
- Part number / manufacturer code: URZ3439-500-W
- EAN: 5901890115902
- Product type: automatic voltage stabilizer / AVR
- Design: wall mount
- Rated power: 500 VA
- Input voltage: 140–260 V AC
- Input frequency: 50/60 Hz
- Output voltage: 230 V AC
- Output frequency: 50/60 Hz
- Output accuracy: ±8%
- Phase: single phase
- Transformer: EI transformer
- Efficiency: approximately 98%
- Delay: selectable normal/delayed operation
- Delay times: approximately 6 / 180 seconds
- Operating temperature: 0 to 40 °C
- Relative humidity: 10–90%
- Storage temperature: -15 to 45 °C
- Dimensions: 117 x 197 x 90 mm
- Unit weight: approximately 1.65 kg
- Gross packaged weight: approximately 2.1 kg
- Package dimensions: approximately 13 x 28 x 17 cm
Protection features:
- Overvoltage protection
- Undervoltage protection
- Overload protection
- Overtemperature protection
- Short-circuit protection
Suitable for:
- Televisions
- Audio equipment
- Computers
- Monitors
- Office equipment
- Electronic control systems
- Measuring equipment
- Household electronics
- Communication equipment
- Other compatible 230 V equipment within the rated capacity
Important:
- Rated capacity is 500 VA.
- Check the actual load before connecting equipment.
- Motors, pumps and compressors may draw significantly more power during startup.
- The SER-500-W is a voltage stabilizer, not a UPS.
- It does not provide battery-backed power during a complete mains failure.
Included:
- 1 x Kemot SER-500-W automatic voltage stabilizer
- Documentation
Not included:
- Battery
- UPS backup system
- External power source
