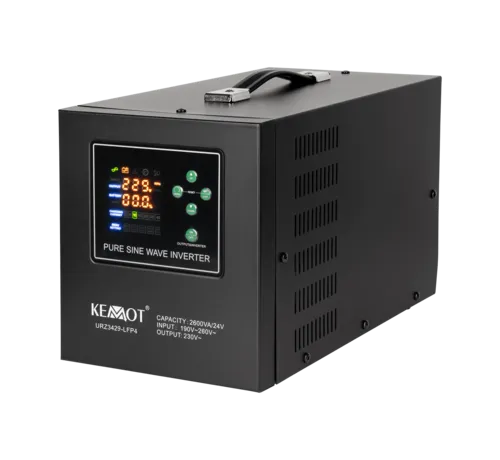

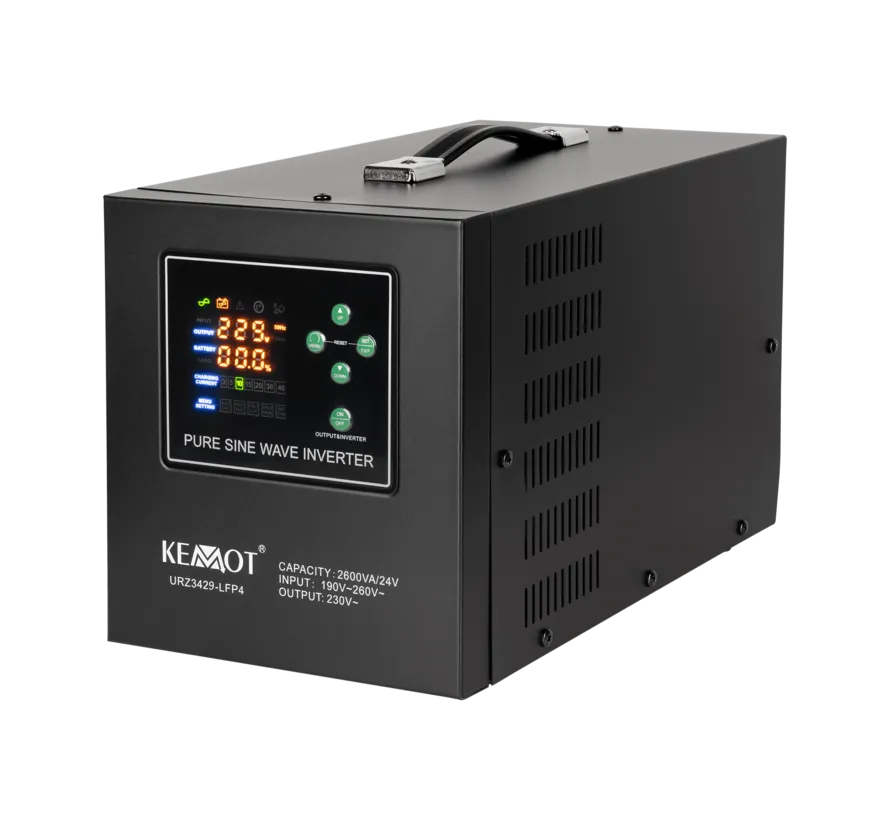

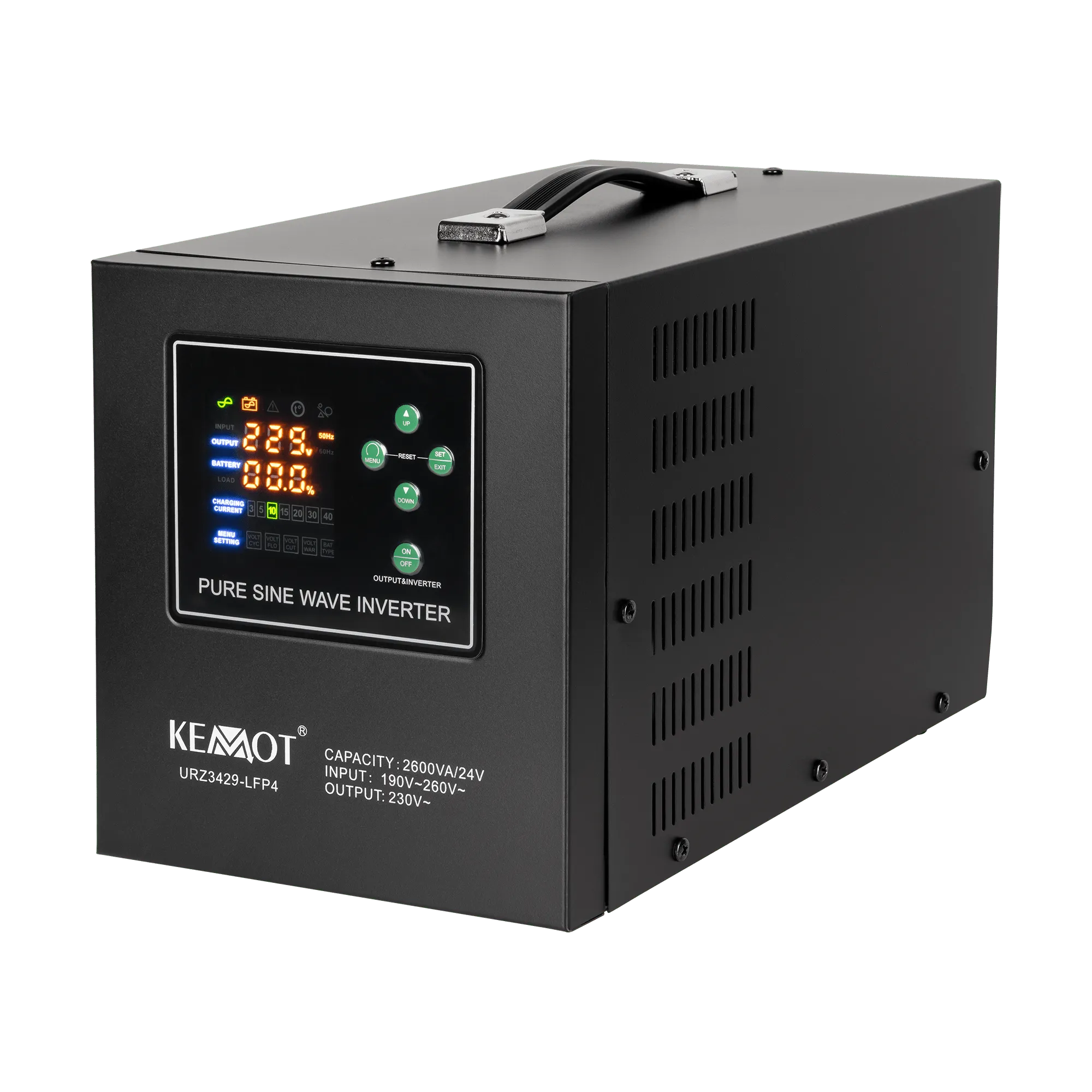

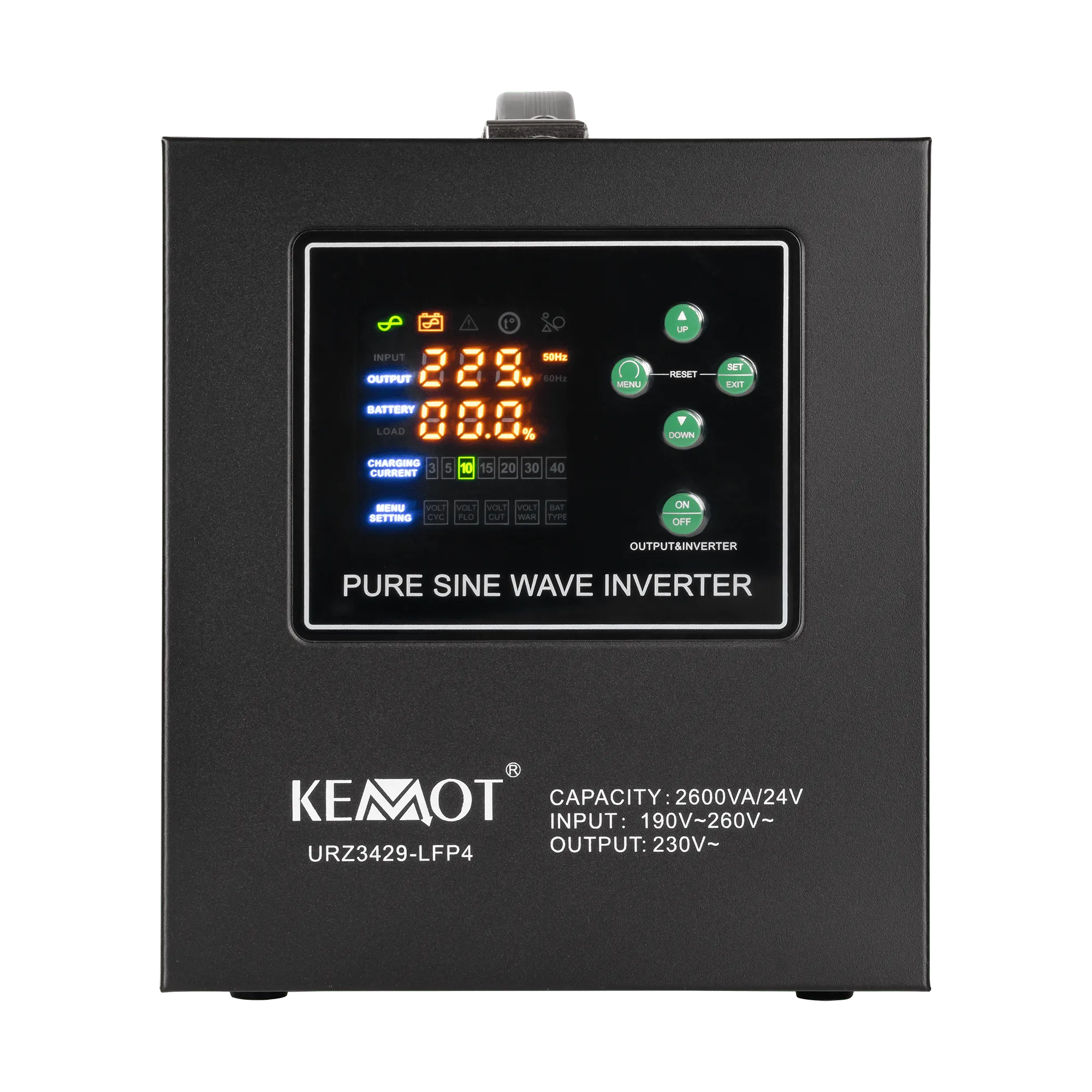

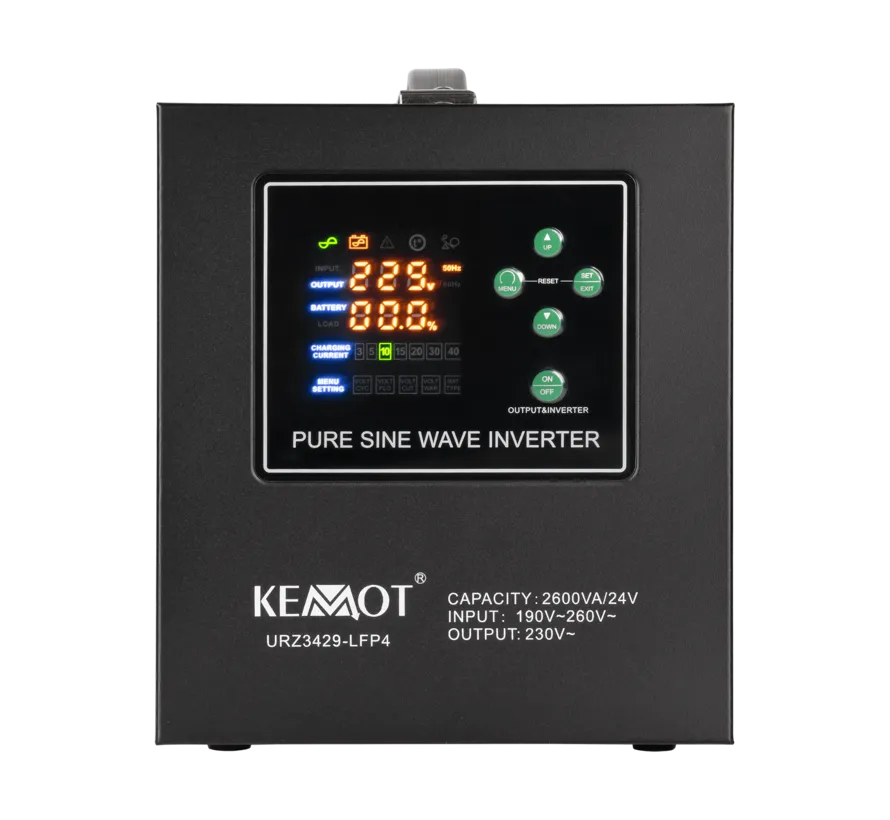

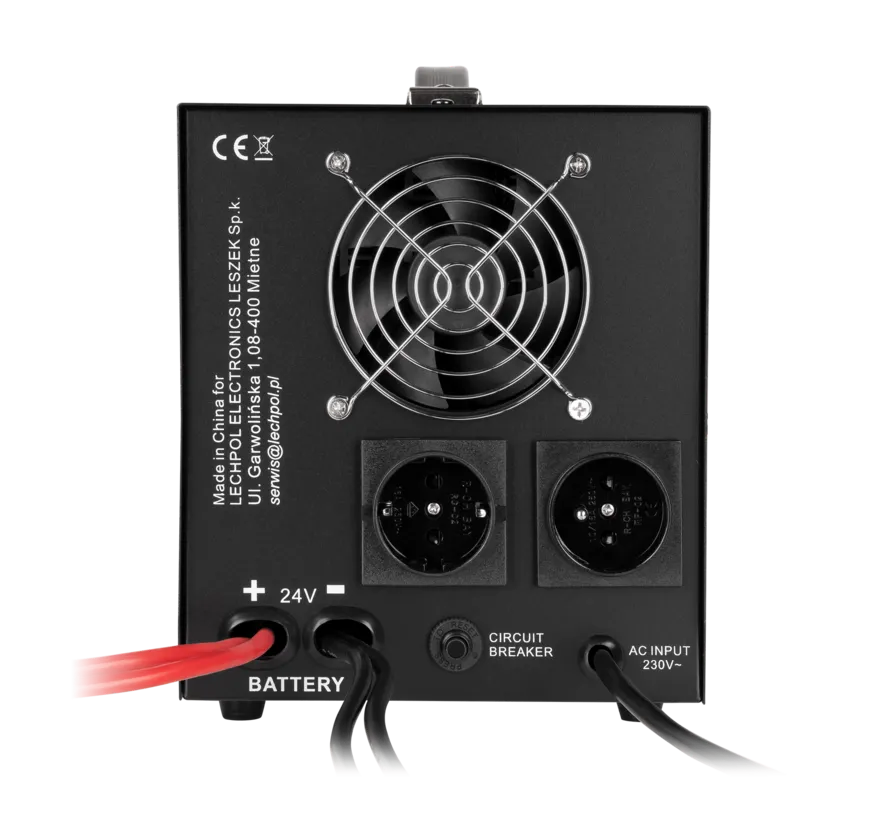

The Kemot PROsinus-2600/24-LFP4 is a high-capacity backup power supply combining a 24 V DC to 230 V AC pure sine wave inverter, battery charger and automatic UPS function.
It provides 2600 VA apparent power and 1800 W rated continuous output. Combined with an external 24 V battery bank, it provides stable 230 V AC backup power for heating systems, pumps, sensitive electronics and other compatible equipment.
Product specifications:
- Brand: Kemot
- Model: PROsinus-2600/24-LFP4
- Part number: URZ3429-LFP4
- EAN: 5901890123150
- Product type: UPS / inverter / battery charger
- Apparent power: 2600 VA
- Rated continuous power: 1800 W
- Battery voltage: 24 V DC
- External battery required: yes
- Battery included: no
- LFP4 version: yes
- AC input voltage: 190–260 V AC
- Input frequency: 45–60 Hz
- Mains-mode output: 206–242 V AC ±5%
- Inverter output: 230 V AC ±3%
- Output frequency: 50/60 Hz ±0.5 Hz
- Output waveform: pure sine wave
- DC-to-AC efficiency: ≥85%
- Maximum charging current: 20 A
- Supported battery capacity: 50–200 Ah
- Recommended battery capacity: approx. 55 Ah
- Estimated charging time: 4–14 hours
- Transfer time: ≤4 ms
- Operating temperature: 0 to 40 °C
- Relative humidity: 10–90%
- Unit weight: approx. 11.5 kg
- Dimensions: 138 x 276 x 155 mm
- Gross packaged weight: approx. 13.6 kg
- Package dimensions: approx. 28 x 39 x 25 cm
24 V battery system:
When using individual 12 V batteries, two suitable batteries are normally connected in series to create the required 24 V battery bank.
Use batteries of the same type, capacity, age and state of charge when connecting batteries in series.
LFP4 version:
This model belongs to the LFP4 series and is intended for modern lithium iron phosphate applications. When using LiFePO4, use a suitable 24 V battery or battery bank with a compatible BMS and verify the battery's charging requirements.
Protection features:
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Undervoltage protection
Suitable for:
- Heating boilers
- Gas boilers
- Pellet heating systems
- Circulation pumps
- Water pumps
- Compressors
- Refrigerators
- Computers
- Monitors
- Audio/video equipment
- Office equipment
- Chargers
- Power tools within rated capacity
Important:
- External 24 V battery bank required.
- Battery is not included.
- Rated continuous output is 1800 W.
- Motors, pumps and compressors may require considerably higher startup power.
- Use a LiFePO4 battery with a suitable BMS.
Included:
- 1 x Kemot PROsinus-2600/24-LFP4

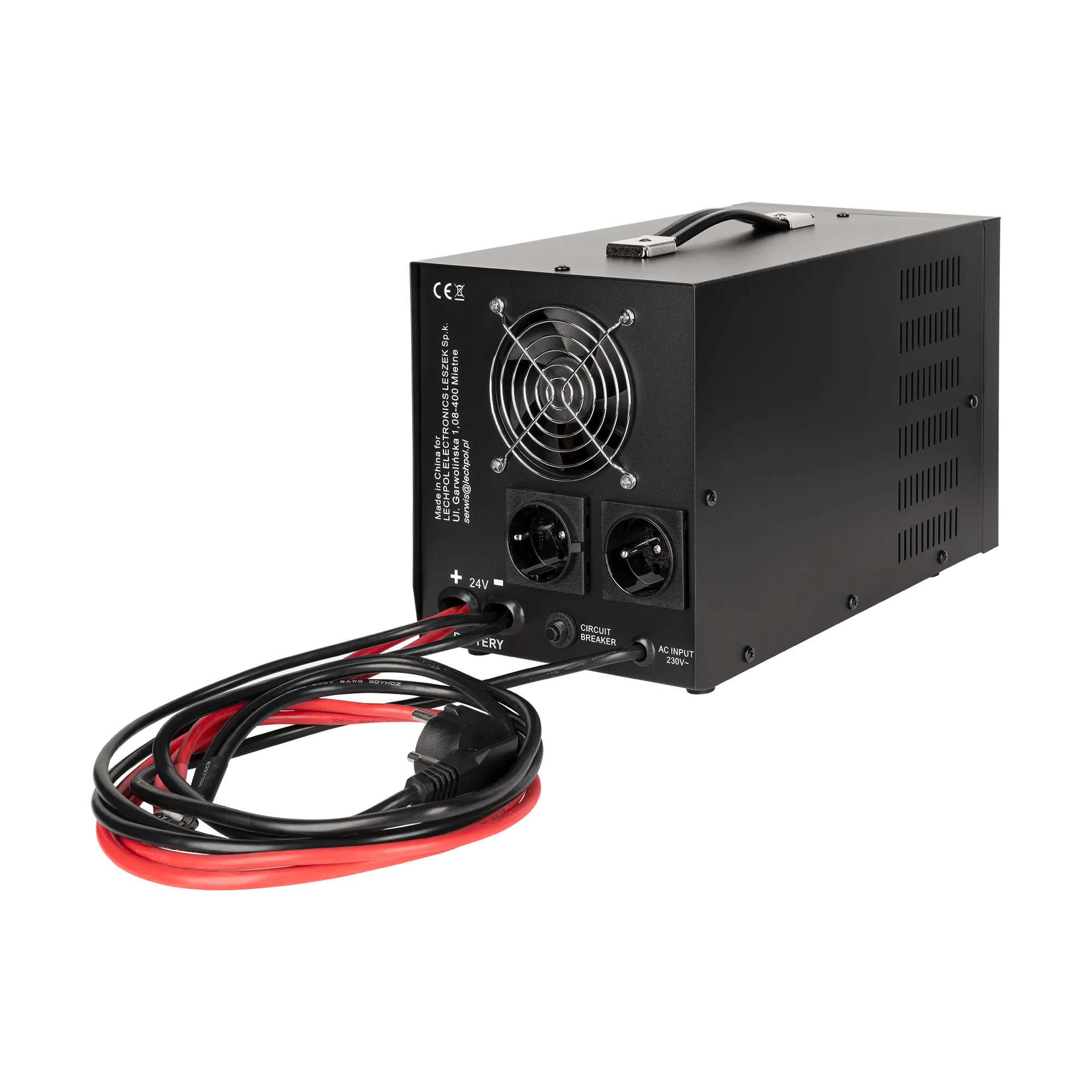

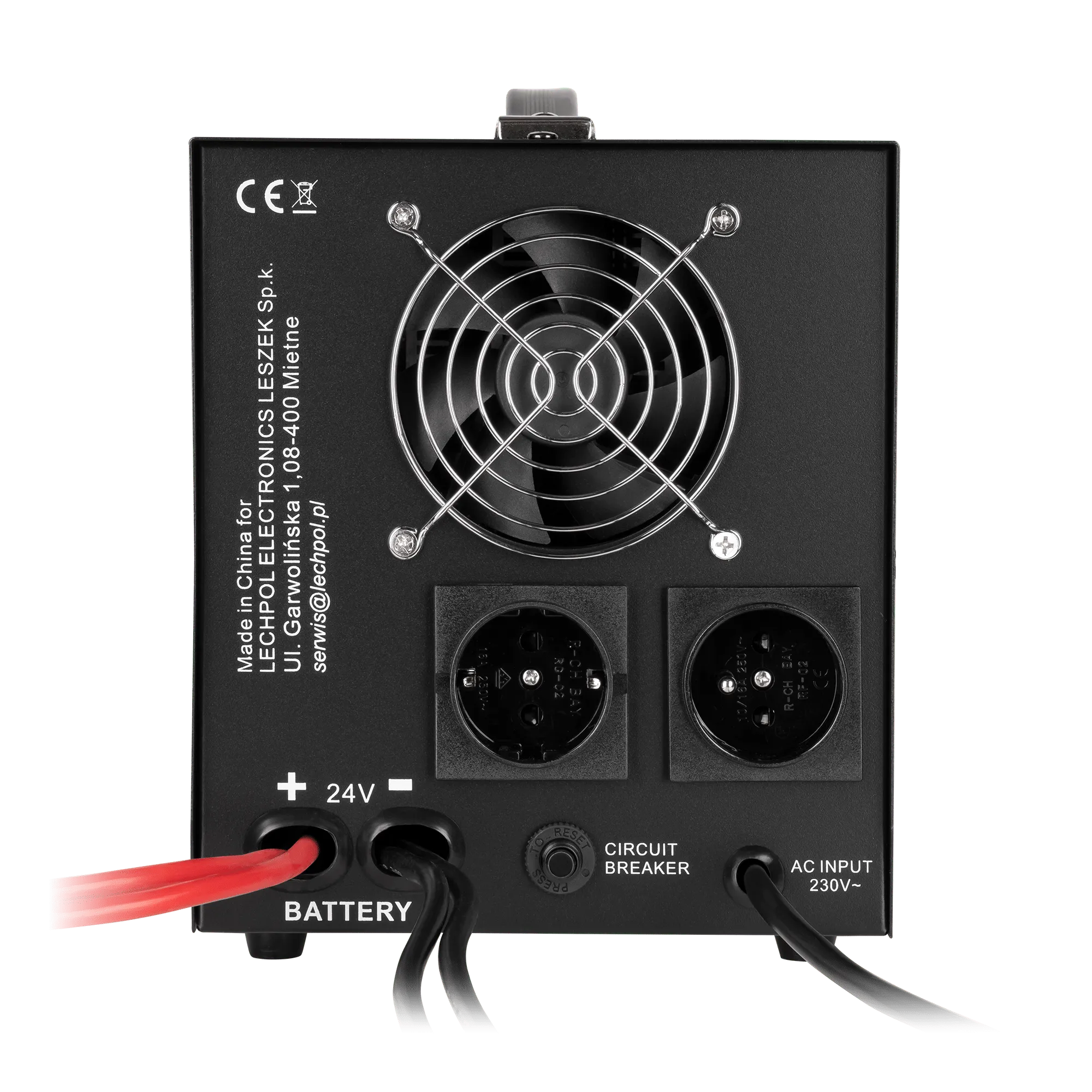

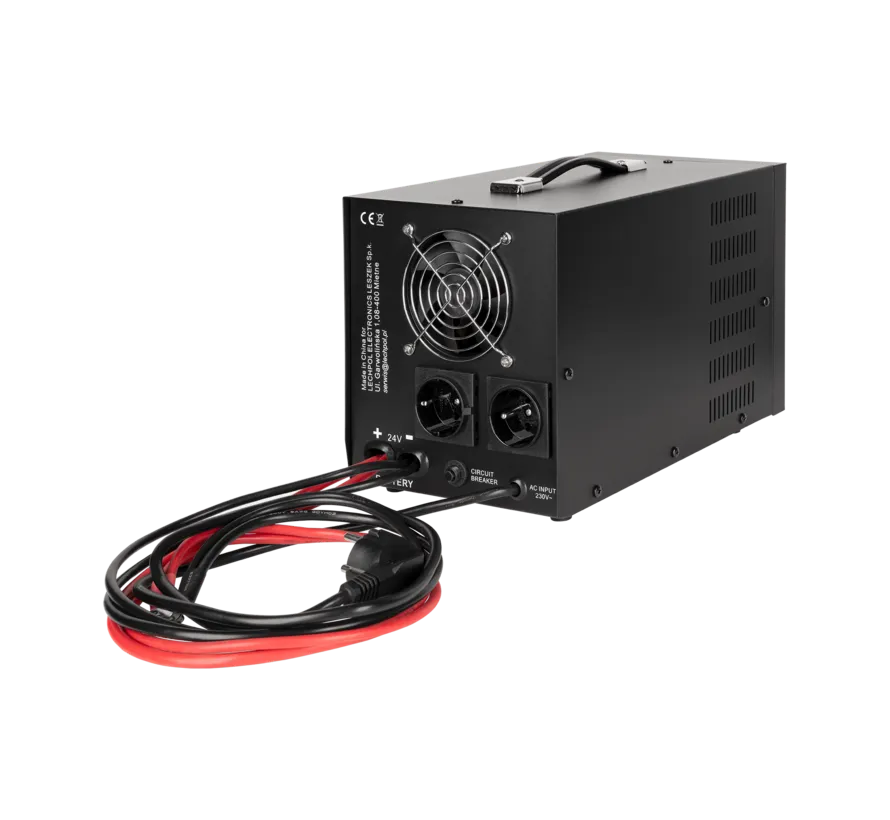

- Battery connection cables
- Documentation
Not included:
- 24 V battery bank
- LiFePO4 battery
- Additional installation fuse where required
