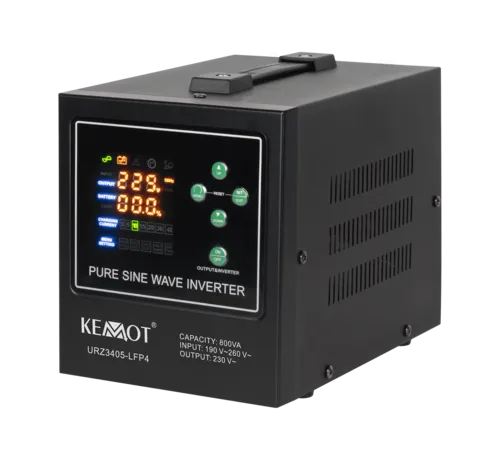

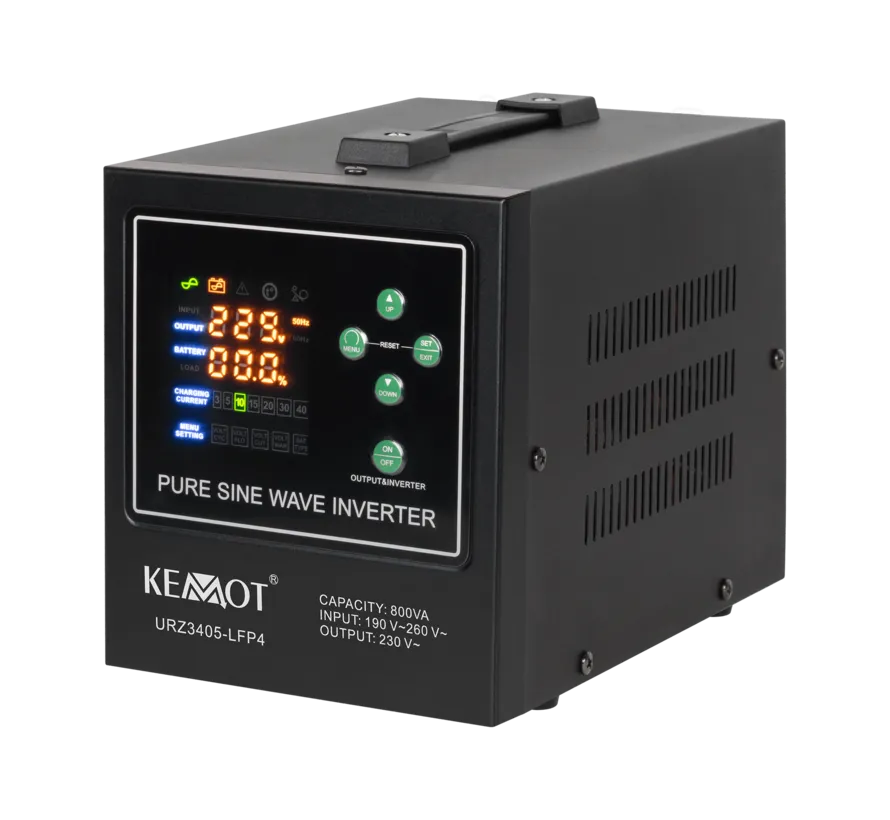

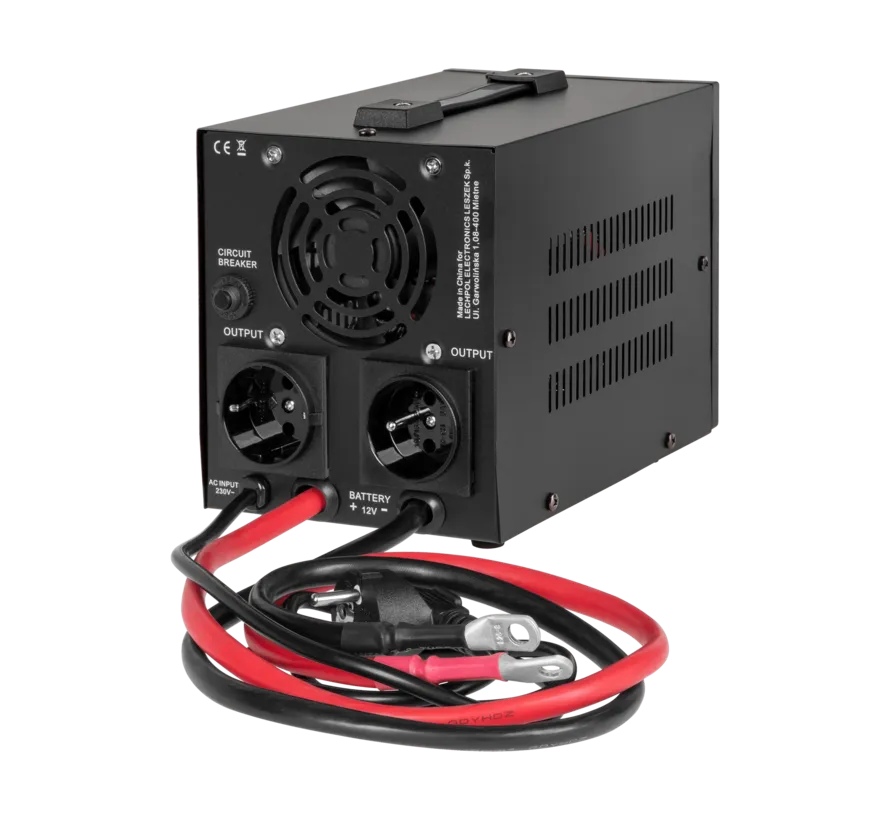

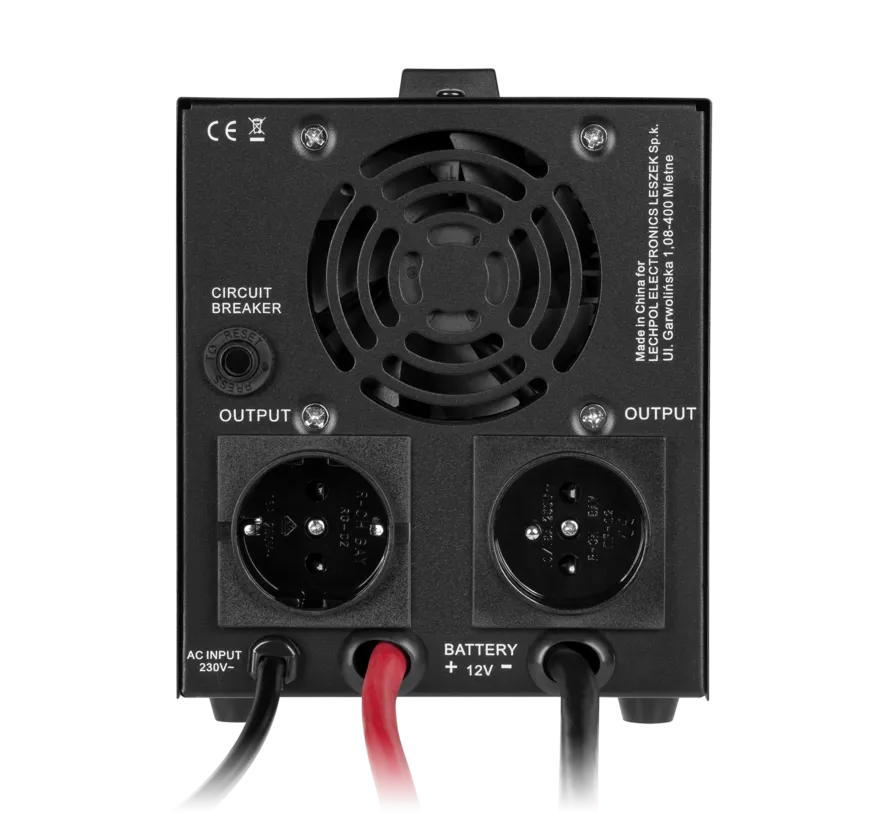

The Kemot PROsinus-800-LFP4 combines a backup power supply, pure sine wave inverter and battery charger.
Its key advantage over the standard PROsinus-800 is the BAT TYPE function, which allows the charging profile to be selected for either gel or lithium iron phosphate (LiFePO4) batteries.
Product specifications:
- Brand: Kemot
- Model: PROsinus-800-LFP4
- Part number: URZ3405-LFP4
- EAN: 5901890116398
- Product type: UPS / inverter / battery charger
- Apparent power: 800 VA
- Rated continuous power: 500 W
- Battery voltage: 12 V DC
- External battery required: yes
- Battery included: no
- Supported battery types: gel and LiFePO4
- BAT TYPE selector: yes
- Maximum battery voltage: 15 V
- Battery capacity range: approx. 50–200 Ah
- Recommended battery capacity: approx. 80 Ah
- AC input voltage: 190–260 V AC
- Input frequency: 45–60 Hz
- Mains-mode output: 190–245 V AC ±5%
- Inverter output: 230 V AC ±3%
- Output frequency: 50/60 Hz ±0.5 Hz
- Output waveform: pure sine wave
- DC-to-AC efficiency: ≥85%
- Maximum charging current: 15 A
- Selectable charging current: 3 A / 5 A / 10 A
- Estimated charging time: 4–14 hours
- Transfer time: ≤4 ms
- Display: LED
- Display information: input/output voltage, frequency, load and battery status
- Fixed phase: yes
- Operating temperature: 0 to 40 °C
- Relative humidity: 10–90%
- Dimensions: approx. 138 x 226 x 155 mm
- Weight: approx. 4.7 kg
Battery charging parameters:
- Battery voltage: 12 V
- Cycle charging voltage: 13.9–14.5 V
- Float charging voltage: 13.3–13.9 V
- Lower battery threshold, lead/gel: 10.5–11.5 V
- Lower battery threshold, LiFePO4: 10.9–11.5 V
- Low-voltage protection, lead/gel: 9.8–11 V
- Low-voltage protection, LiFePO4: 10.6–11 V
- Charging current settings: 3 A / 5 A / 10 A
Suitable for:
- Heating boilers
- Gas boilers
- Pellet heating systems
- Circulation pumps
- Water pumps
- Heating control equipment
- Refrigerators within rated capacity
- Televisions
- Audio equipment
- Computers
- Monitors
- Office equipment
- Chargers
- Power tools within rated capacity
Protection features:
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Undervoltage protection
- Battery low-voltage protection matched to selected battery type
Important:
- An external 12 V battery is required.
- Battery is not included.
- Select the correct battery type before charging.
- Use a LiFePO4 battery with a suitable BMS.
- Continuous rated output is 500 W.
- Motors, pumps and compressors may require substantially higher start-up power.
Included:
- 1 x Kemot PROsinus-800-LFP4
- Copper battery connection cables
- Documentation
Not included:
- 12 V battery
- LiFePO4 battery
- Gel battery
- Additional installation fuse where required
